Россия GSM 4G ретранслятор 900 LTE 2600 3g 2100 WCDMA UMTS Мобильный усилитель сигнала сотовой - купить

Купить Россия GSM 4G ретранслятор 900 LTE 2600 3g 2100 WCDMA UMTS Мобильный усилитель сигнала сотовой

2g 3g 4g Tri Band Signal Booster 900 1800 2600 GSM WCDMA UMTS LTE Cellular Repeater 900/1800/2600mhz Amplifier

2g 3g 4g Усилитель сигнала Tri Band 900 1800 2600 GSM WCDMA UMTS LTE Сотовый ретранслятор Усилитель 900/1800/2600 МГц



Q:How does cell phone signal booste work?

Please make sure you can get at least 2 bars signal which you want to enhance,The frequency of the cell phone signal you want to enhance must match the frequency of the purchased booster.

PS:If you want to enhance your phone's GSM900/1800/2100 frequency, you will buy 900mhz/1800mhz/2100mhz Booster.

The Outdoor Antenna must be installed in the direction of the base station that can receive the Target Signal.

Q:How to check the phone card signal frequency is?

There are some ways to check the frequency: 1.Please turn off WIFI and turn on the network 2G or3G or 4G and go to outdoors of your house: Samsung Dial:*#0011# →ServiceMode→Click into SIM INFORMATION (BAND 1,BAND 3).

IPhone Dial*3001#12345#*→Serving Cell info→Freq Band Indicator.

XiaoMi Phone Downlode APP: Cellular-Z

2. Please install Cell Phone's  APP: Network cell info

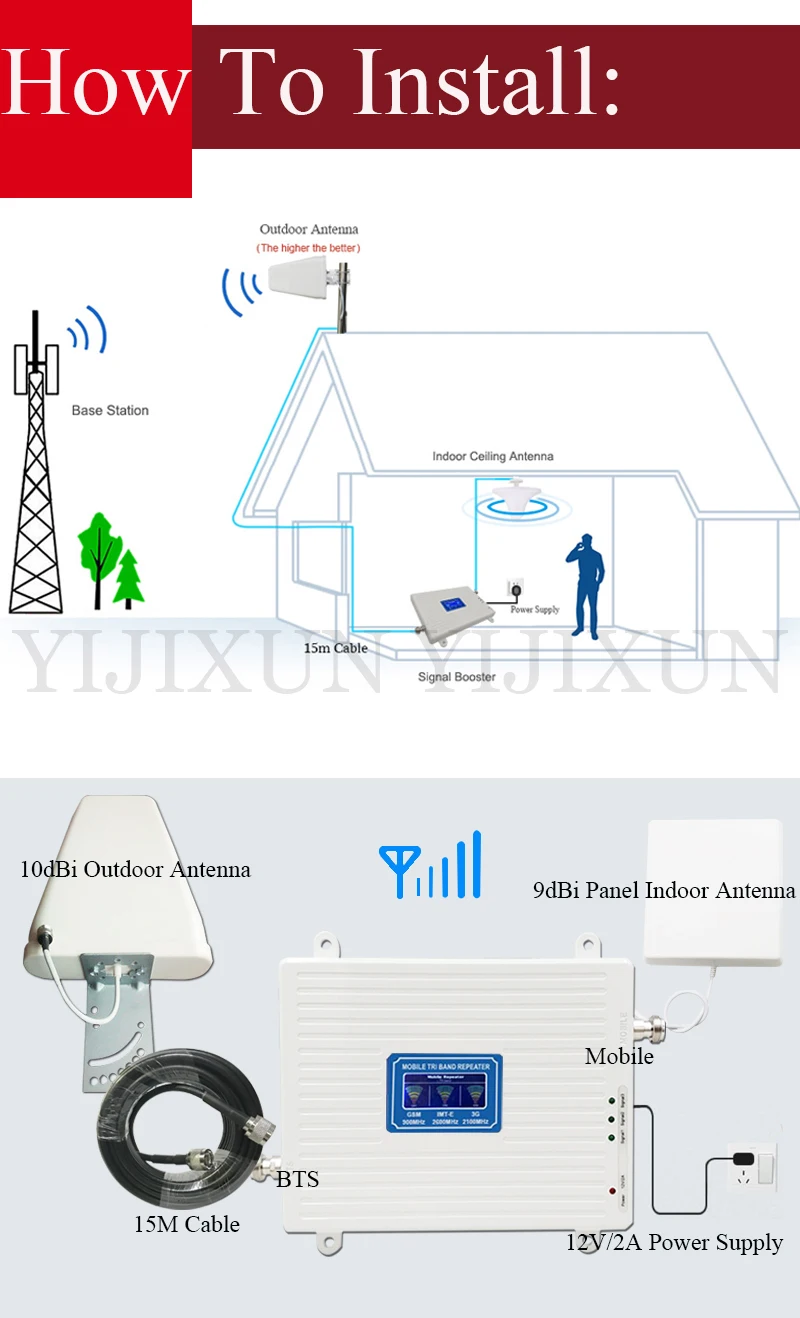

How to install :

Step 1: Find a position where could receive great signal,mostly a higher position, like at rooftop. Install outdoor antenna at it and make it toward the base station. Note: the outdoor antenna shall receive good signal, otherwise the repeater could not work. Step 2: Connect outdoor antenna to booster at BTS connector with the cable. Step 3: Connect indoor antenna to booster at MS connector. And it would be better to install it at a height of 2 meters.  Note: The two antennas shall be totally separated by a brick wall with a distance of at least 10 meters. Otherwise, the signal would intervene to each other, showing full of signal on display, but actually the booster doesn't work properly. Step4: Plug in power supply and done!

Model No :YJ23-GWL

GSM 900mhz Frequency Range:Uplink:890-915mhz;Downlink:935-960mhz

FDD LTE 2600mhz(BAND 7) Frequency Range :Uplink:2500-2570mhz;Downlink:2620-2690mhz WCDMA 2100mhz(BAND 1)Frequency Range :Uplink:1920-1990MHz ;Downlink: 2110-2180MHz Gain :70±2dB Connector Type: N female connector 1.GSM900MHZ+LTE FDD2600MHZ+WCDMA 2100MHZ Tri-band repeater ,amplify GSM +LTE+WCDMA Three 2.Tri-band mobile phone signal repeater with LCD display 3.1000sqare meter coverage without barrier 4.70db high gain  and  23dbm output power

Packaging Including:

1.2G 3G 4G 900/1800/2600 signal repeater

2.AC Power Cord (DC 12V 2A )

3. 2g 3g 4g External log periodic antenna

4. 2g 3g 4g Internal Panel antenna

5. 15m cable



2G 3G 4G Antenna Outdoor  800-2700 Log Periodic External 10dBi Gain LPDA Antenna For Mobile Phone Signal Repeater Booster amplifier

2G 3G 4G Антенна Наружная 800-2700 Журнал Периодическая Внешняя 10dBi Усиление LPDA Антенны Для Мобильного Телефона Ретранслятор Усилителя Сигнала

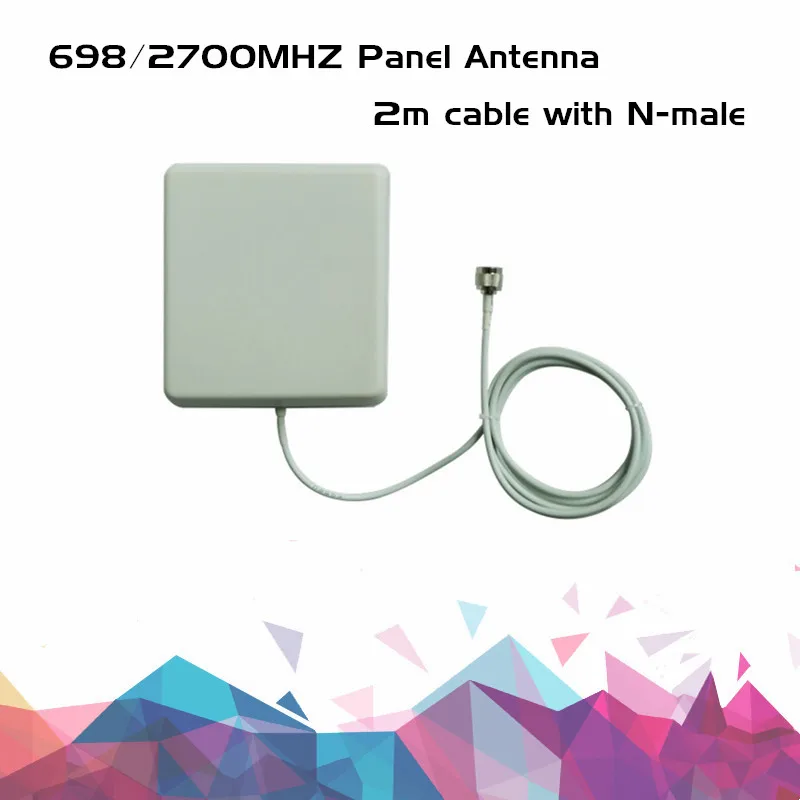

N male 700-2700MHz Indoor Panel Antenna 9dBi Internal Antenna for 2G 3G 4G Cell Mobile Phone Signal Booster Repeater Amplifier

N мужской 700-2700 МГц Внутренняя панель антенны 9dBi Внутренняя антенна для 2G 3G 4G Сотовый мобильный телефон Усилитель-ретранслятор

15 meters RG6 Low Loss Coaxial Cable 50ohm N Male to N Male Connector Communication Coax Cable For Mobile Phone Signal Booster

15 метров RG6 Коаксиальный кабель с низкими потерями 50 Ом Разъем N-контактный Разъем Коаксиальный кабель для мобильного телефона

Как установить :   Шаг 1: Найдите позицию, где можно получить отличный сигнал, в основном более высокую позицию, как на крыше. Установите наружную антенну на нее и направьте ее к базовой станции. Примечание: наружная антенна должна принимать хороший сигнал, иначе повторитель не сможет работать. Шаг 2: Подключите внешнюю антенну к усилителю на разъеме BTS с помощью кабеля. Шаг 3: Подключите комнатную антенну к усилителю на разъеме MS. И было бы лучше установить его на высоте 2 метра. Примечание: две антенны должны быть полностью разделены кирпичной стеной на расстоянии не менее 10 метров. В противном случае сигнал будет вмешиваться друг в друга, показывая полный сигнал на дисплее, но фактически усилитель не работает должным образом. Шаг 4: Подключите блок питания и готово!
