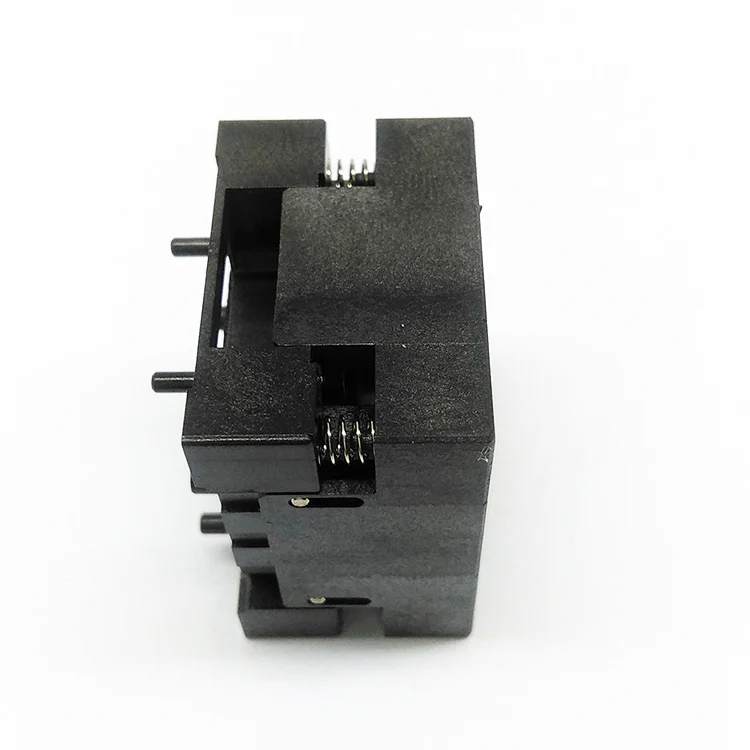

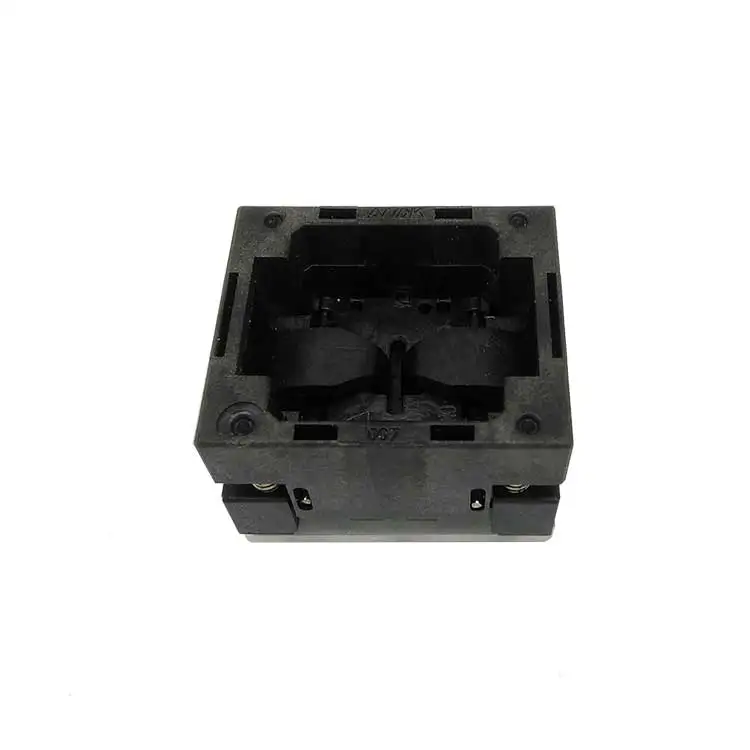

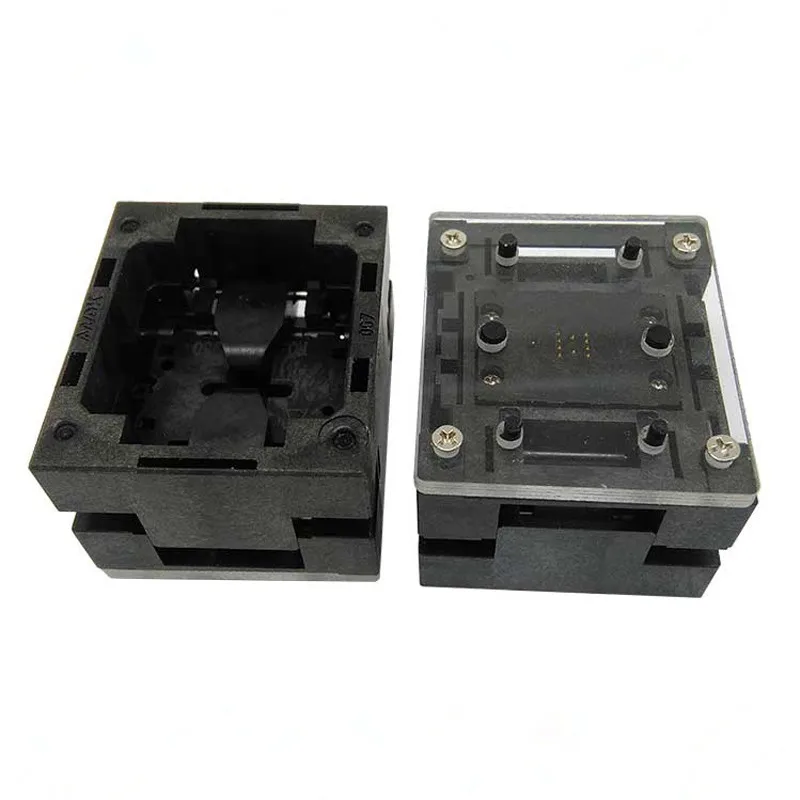

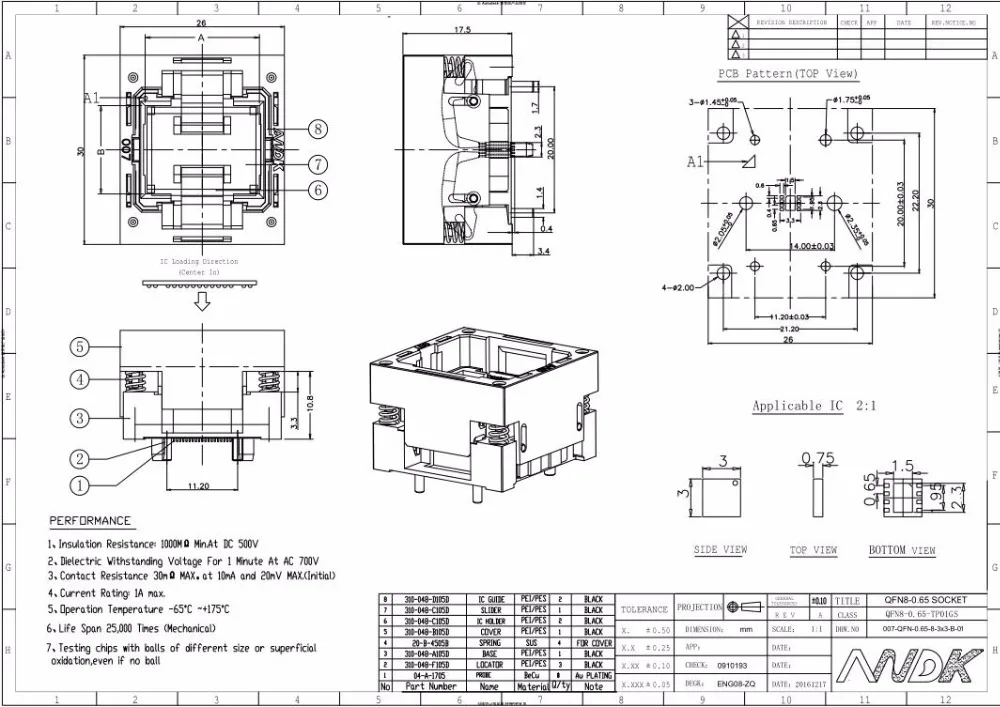

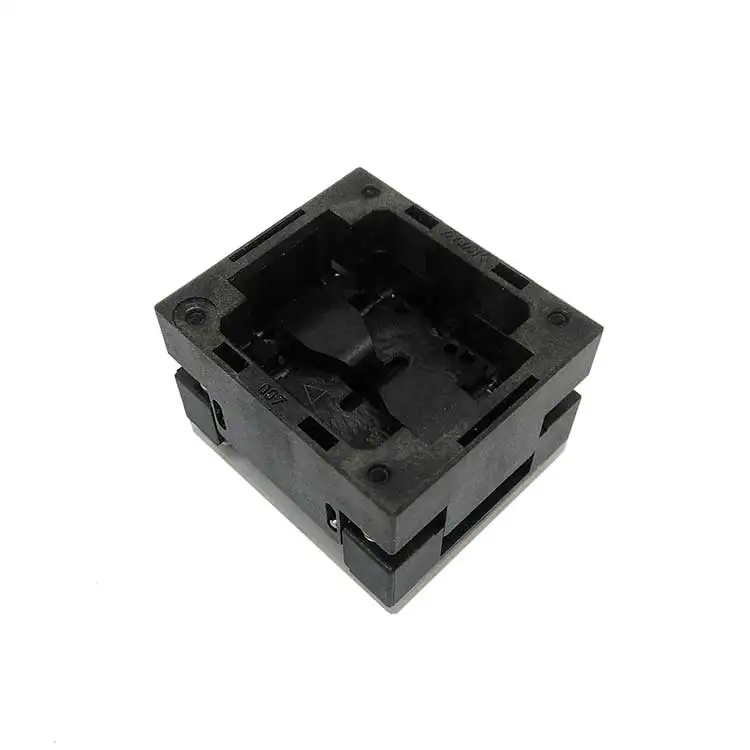

  QFN8 MLP8 WSON8 DFN8 Burn in Socket Open Top Pogo Pin with Pin Pitch 0.65mm Chip Size 3x3 Flash Adapter IC test burn in socket        Product Features:   a.Open-top structure burn in socket    b.Adopting engineering material for socket structure,   Strength is high ,lifetime is long   c.Adopting import BeCu material for socket contact   Spring ,thickening gold-plating surface ,impedance is small elasticity is good   d.For 0.65mm pitch package   e.Thru hole design        Material & Performance:   Ø socket Body: PEI   Ø Contacts:Beryllium Copper Alloy   Ø Contact Plating:Gold over Nickel   Ø Operation Force:2.0KG min, the more PINs the greater force   Ø Contact Resistance:50mΩ max   Ø Dielectric:700V AC for 1 minute   Ø Insulation Resistance:1,000MΩ500V DC   Ø Max Current Capacity : 1A   Ø Temperature Rating:-55℃~+175 ℃   Ø Life Span 20,000 Times (Mechanical)       Specification and Dimension :   a)Package : QFN MLF MLP WSON DFN (open top structure)   b) Pin pitch : 0.65 mm   c) Pin Count : 8   d) Applicable IC Body Dimension : 3x3 mm       ​
