Купить MCU-30105 MAX30105 Optical Sensor Particle Sensing Smoke Detection Flame Module | Integrated Circuits

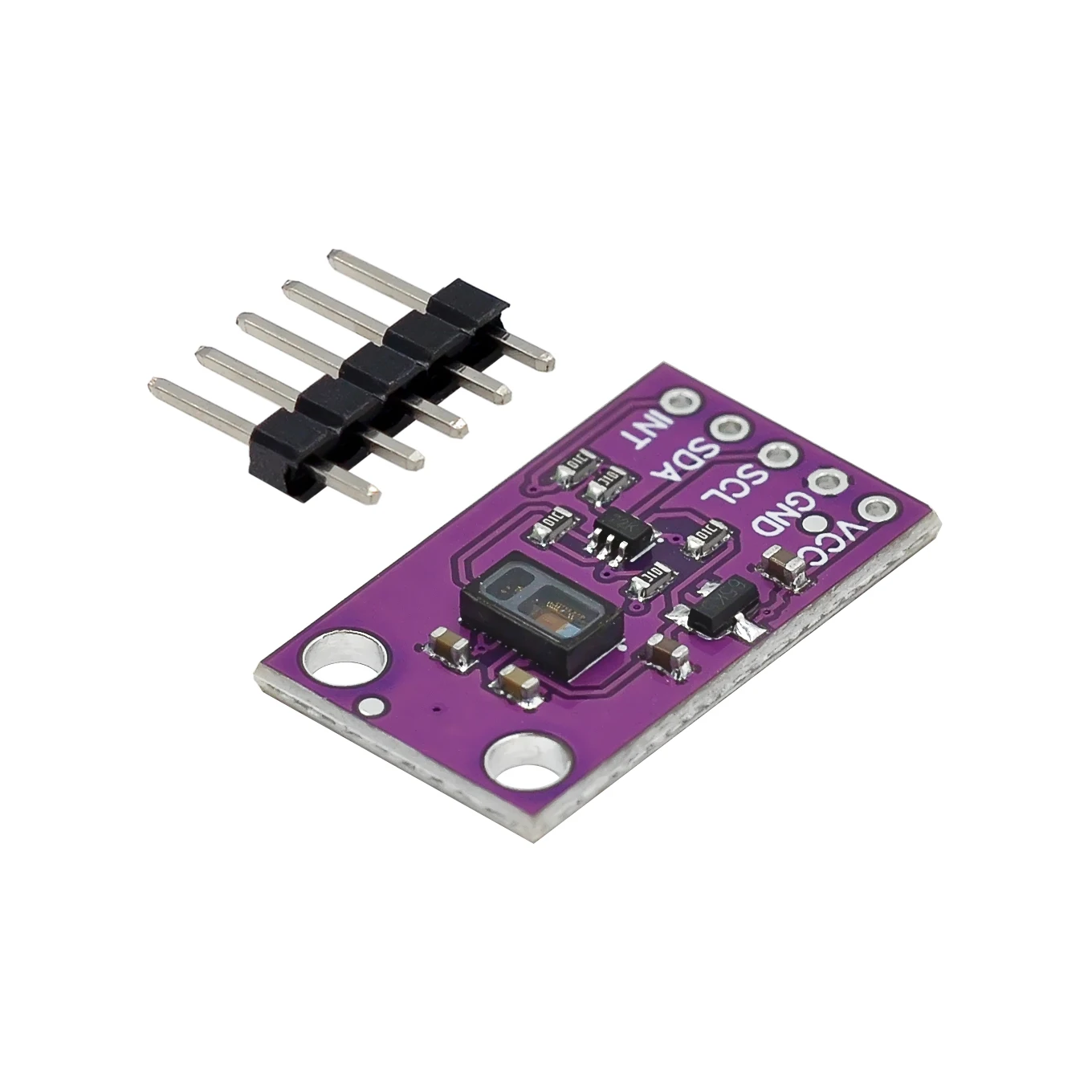

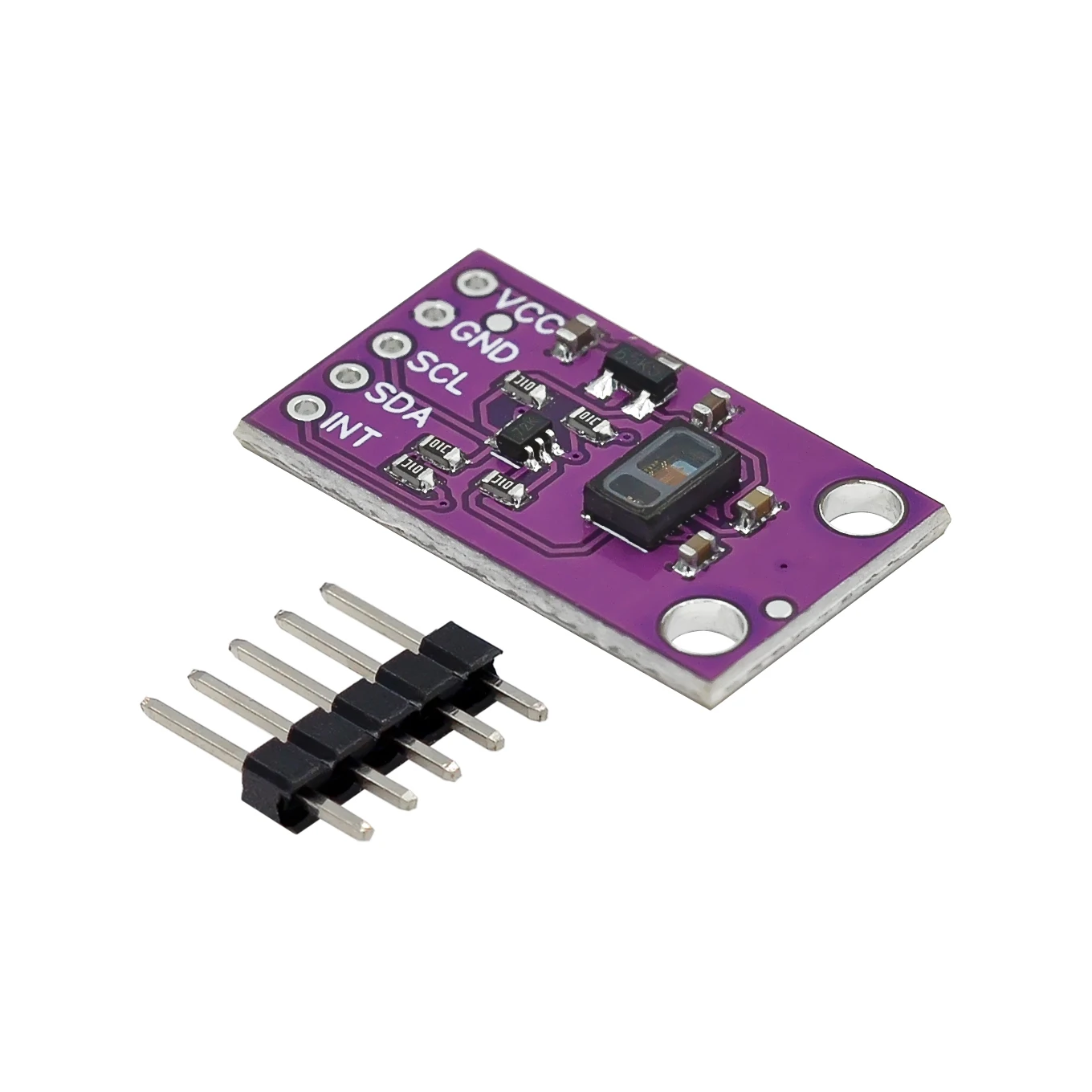

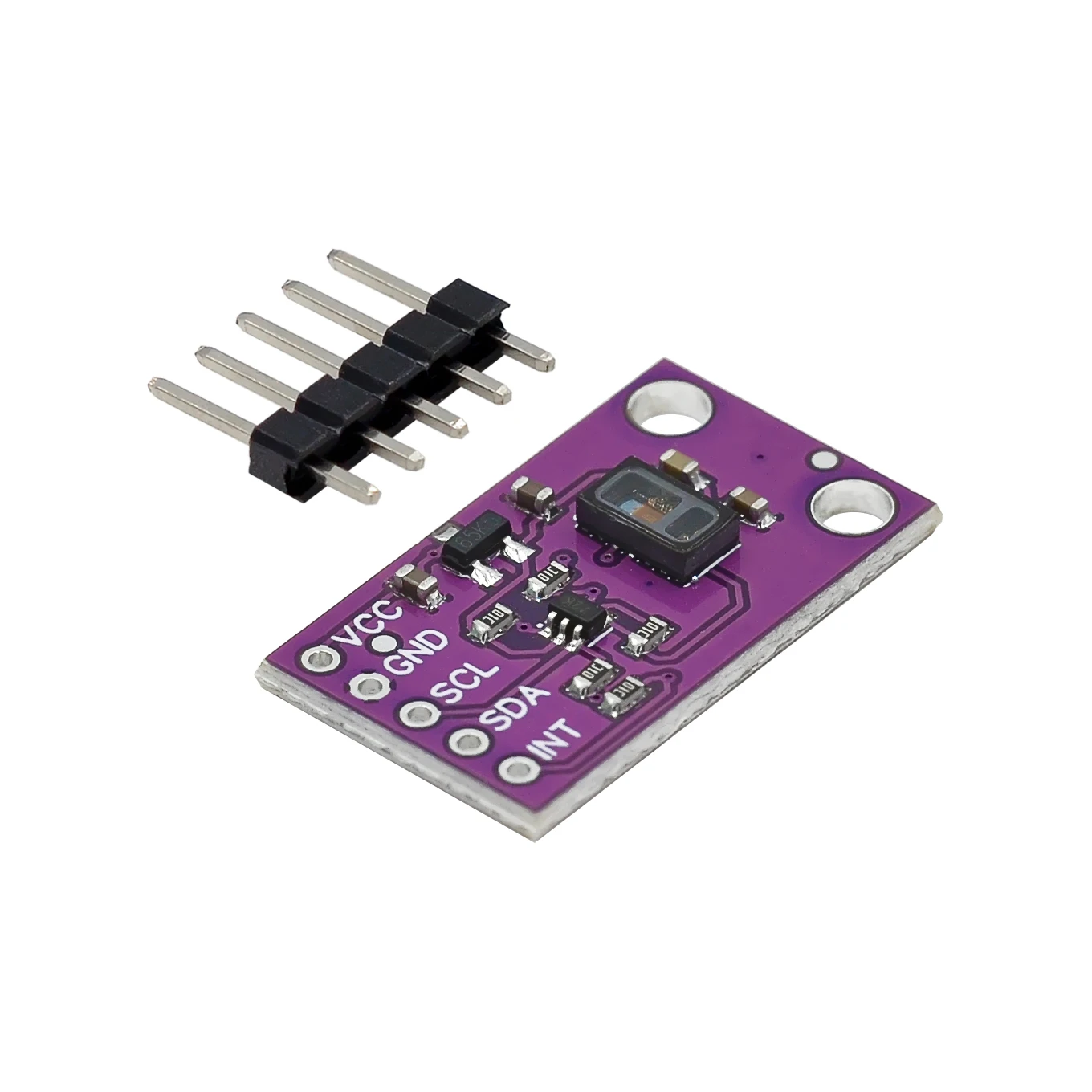

Product features
The MAX301 05 is an integrated particle detection module. Integrated internal LED, photodetector, optical element, and high SNR, low noise electronic circuit with ambient light suppression, and reliable motion artefact suppression. Simplifies the design process for fire alarm light smoke detection applications. Thanks to its extremely small size, it can also be used as a smoke detection sensor for mobile and wearable devices.
Product details
Operating voltage: DC 5V
Operating temperature: -40°C to +85°C
Communication interface: IIC

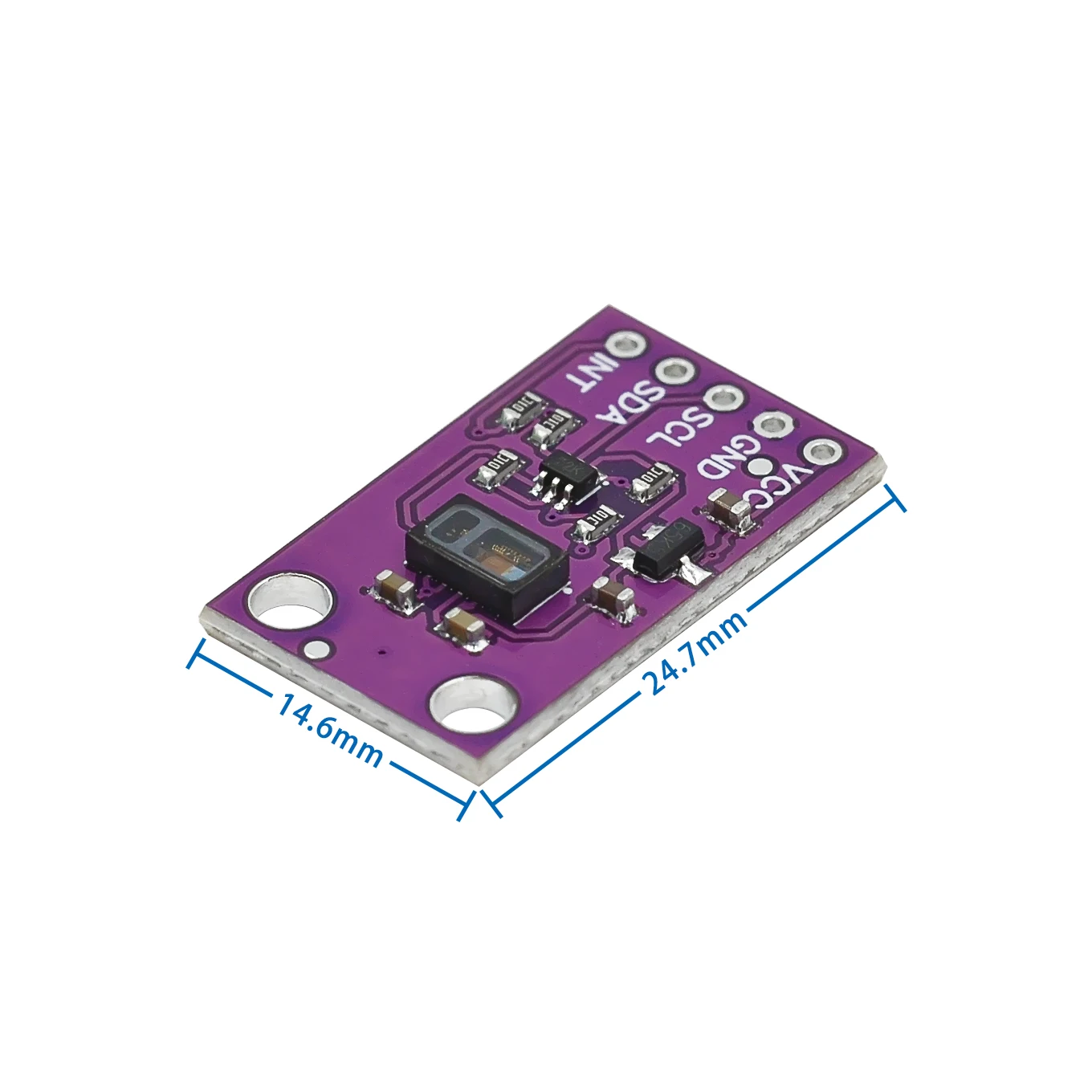

Module size: 24.6*14.5mm, with two M3 mounting holes

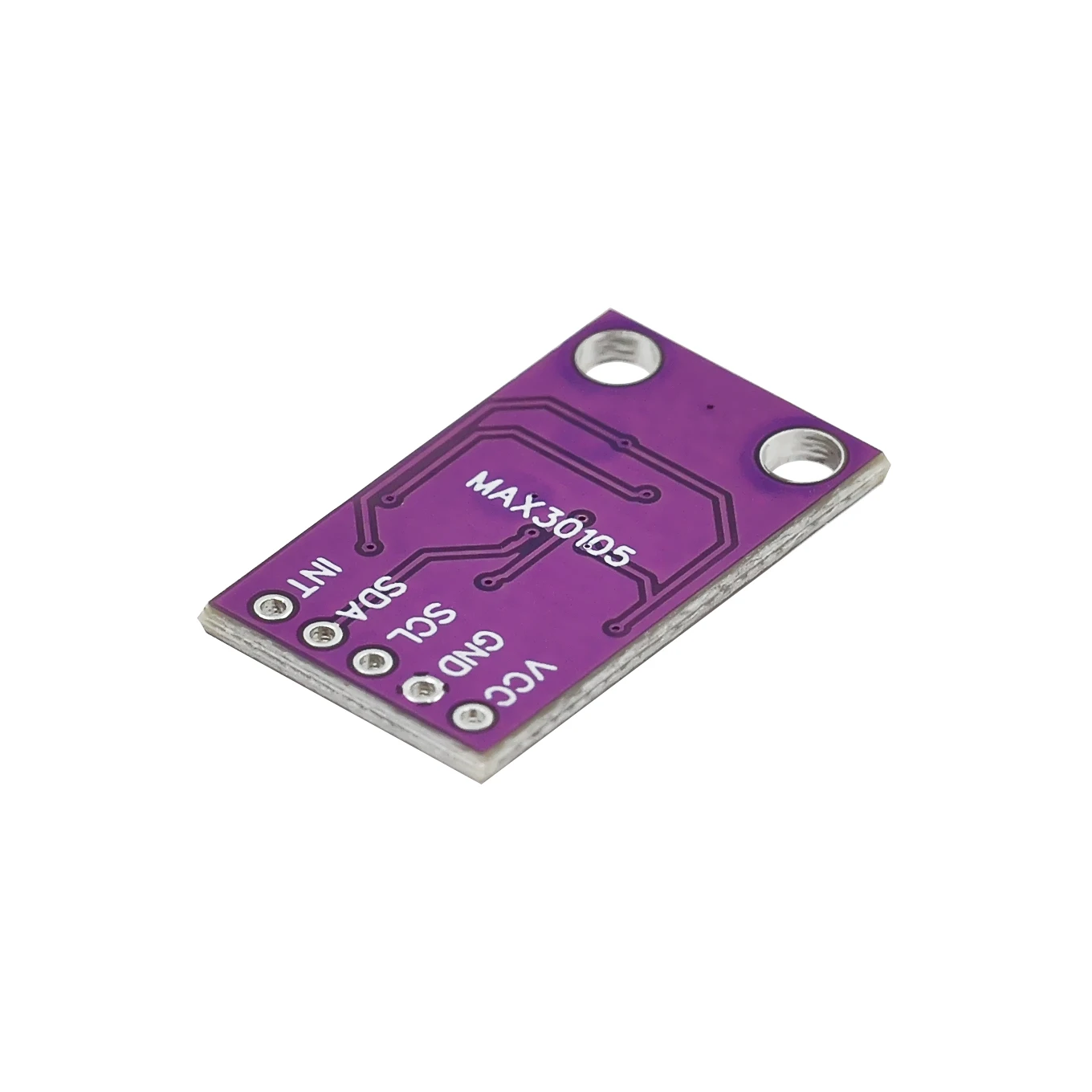

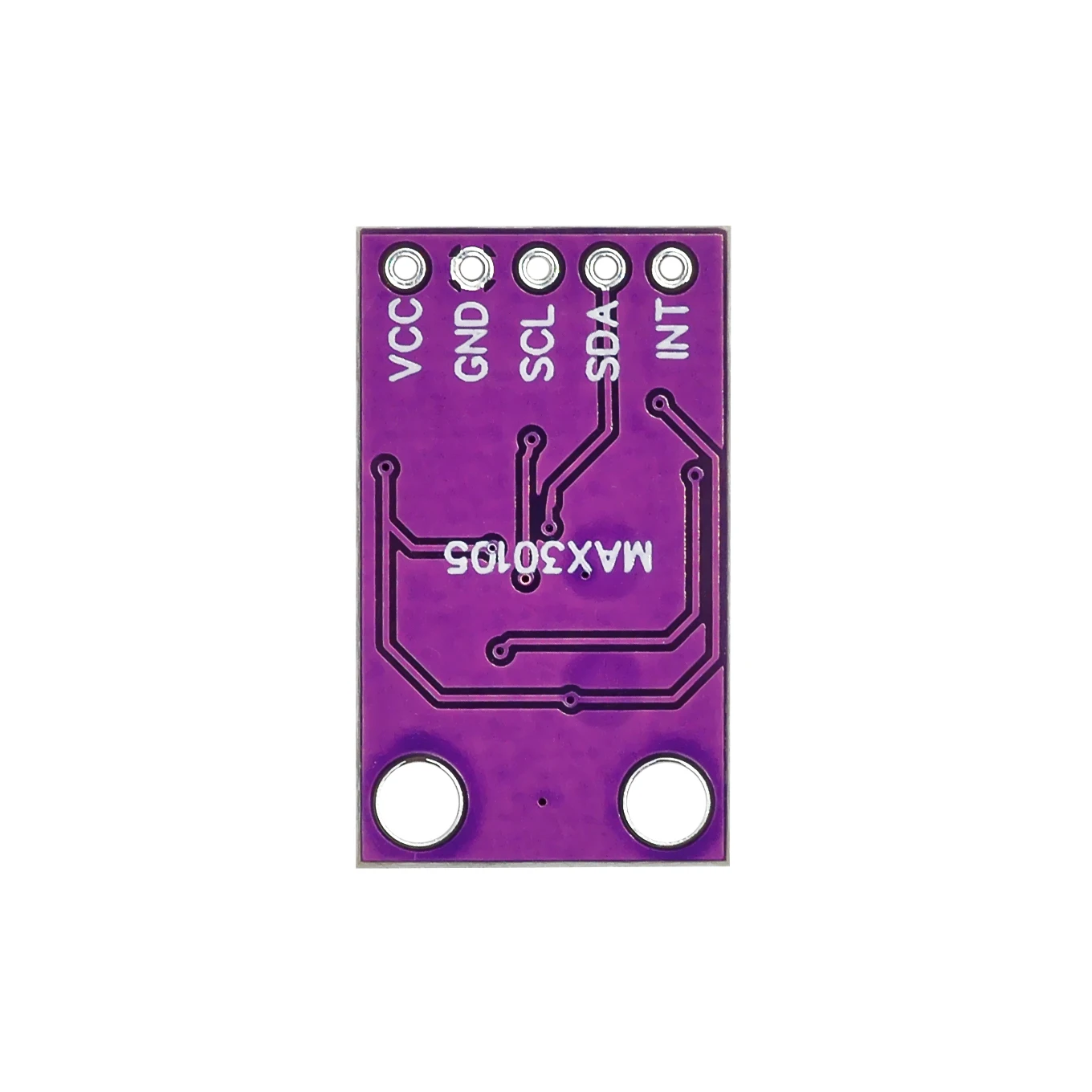

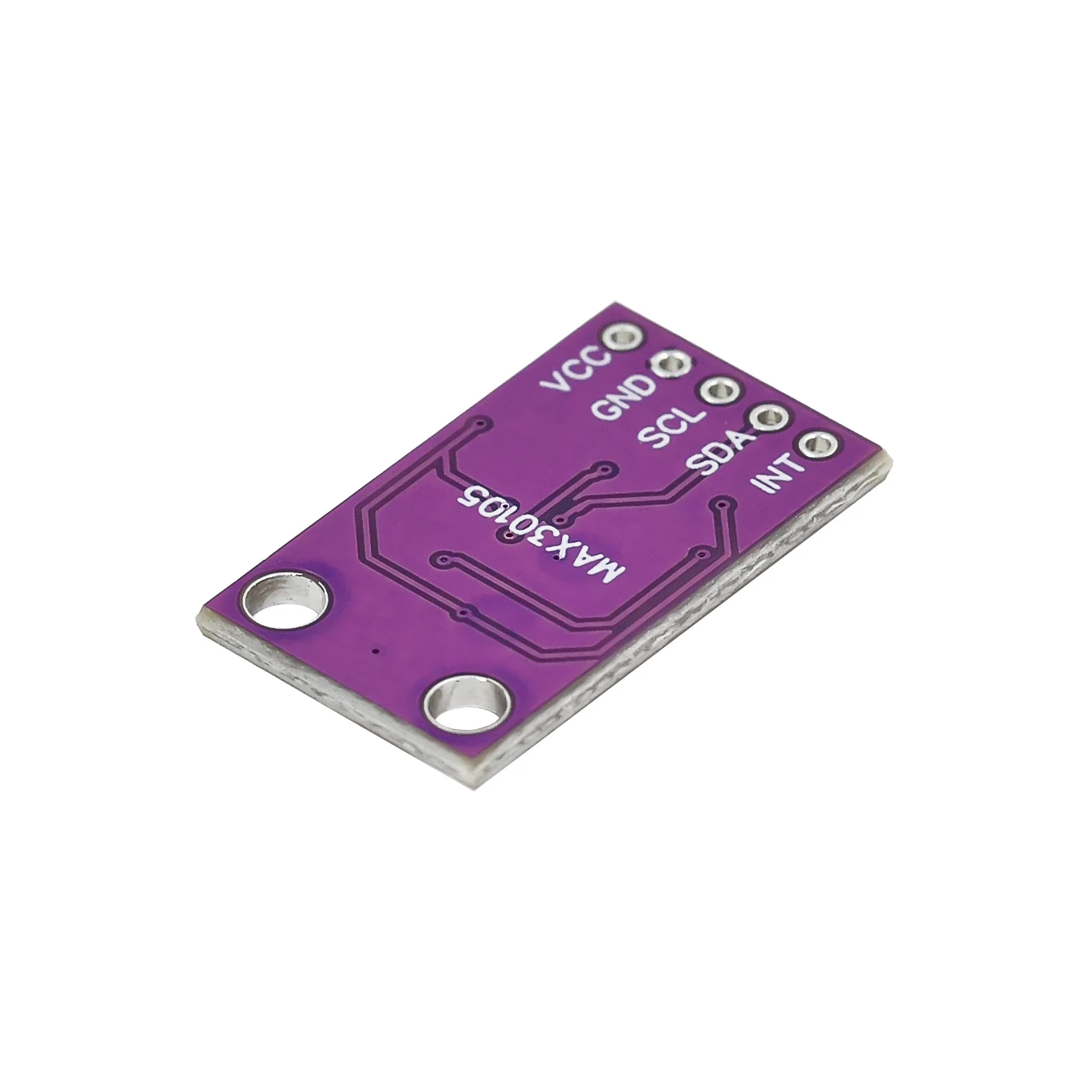

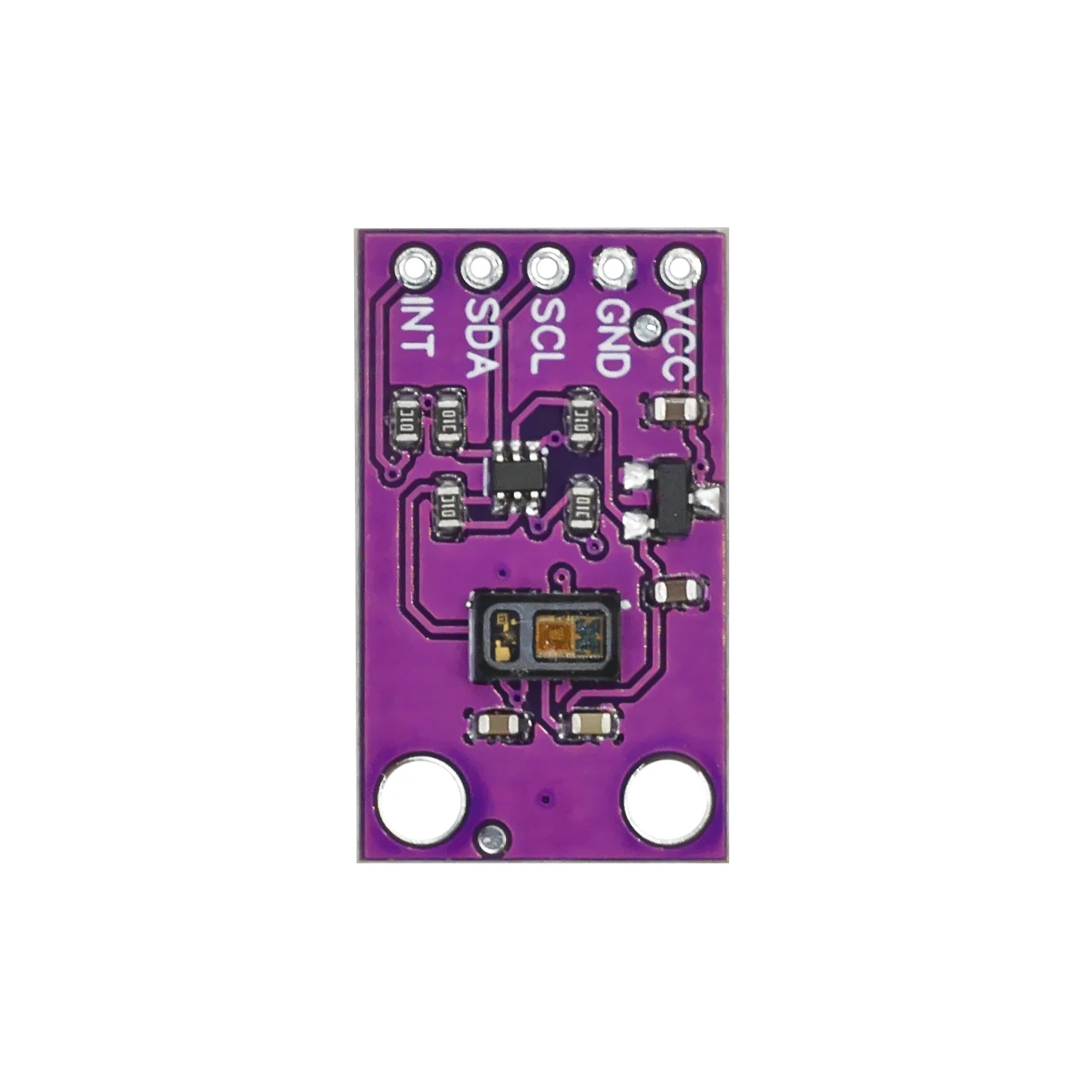

Pin definition
VCC: Power positive
GND: Ground
SCL: I2C serial clock line
SDA: I2C serial data line
INT: active low interrupt, pulled-up resistor
Instructions for use
The module has internal pull-up resistors for the I2C data and clock lines, so the user does not need to pull up the resistors repeatedly.
