Электрический шаровой клапан из латуни с двумя или тремя направлениями подачи мотором и кабелем для управления от сети переменного тока 220 В предназначенный работы газом водой маслом - купить

Купить DN15 / DN20 DN25 моторизованный электрический двухходовый / трехходовый шаровой клапан из латуни AC 220V 3-х жильный - с кабелем привода для газа, воды, масла.

Features:
Made of high quality brass with lasting performance.

Great energy saving, long life design.

Suitable for medium water, gas, oil.

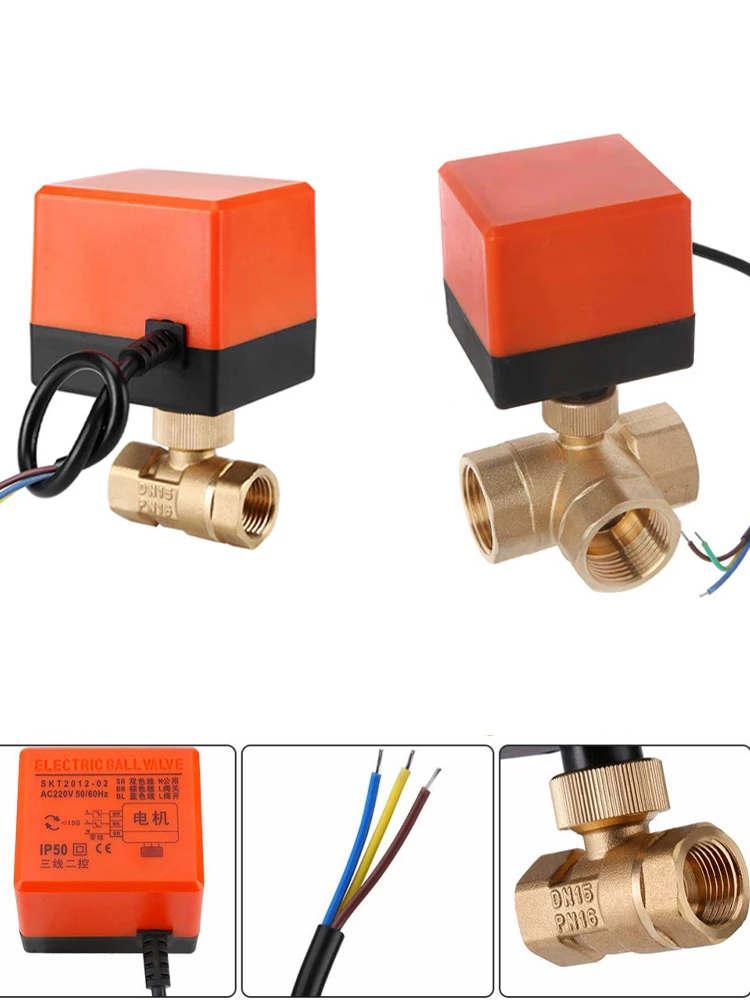

This 3-way 2-wire ball valve can rotate 90 degrees.

Specs:
Medium: hot / cold water, 60% ethylene glycol

Power supply: AC 220V

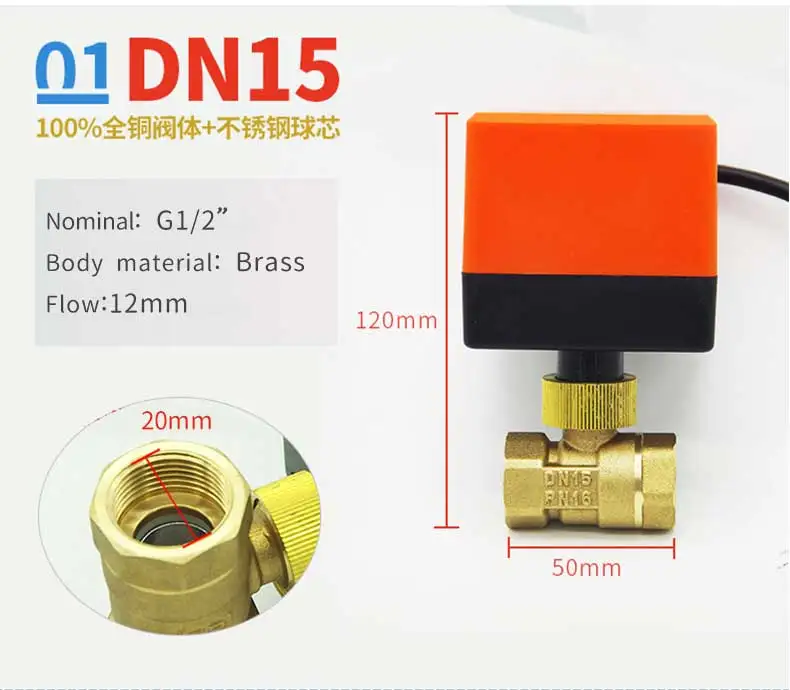

Model: DN15 (G 1/2 ")

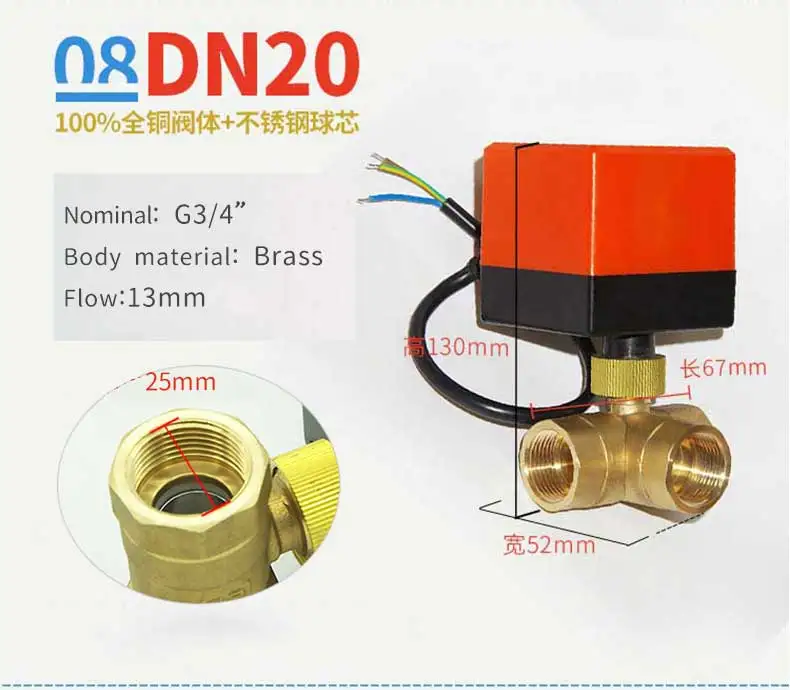

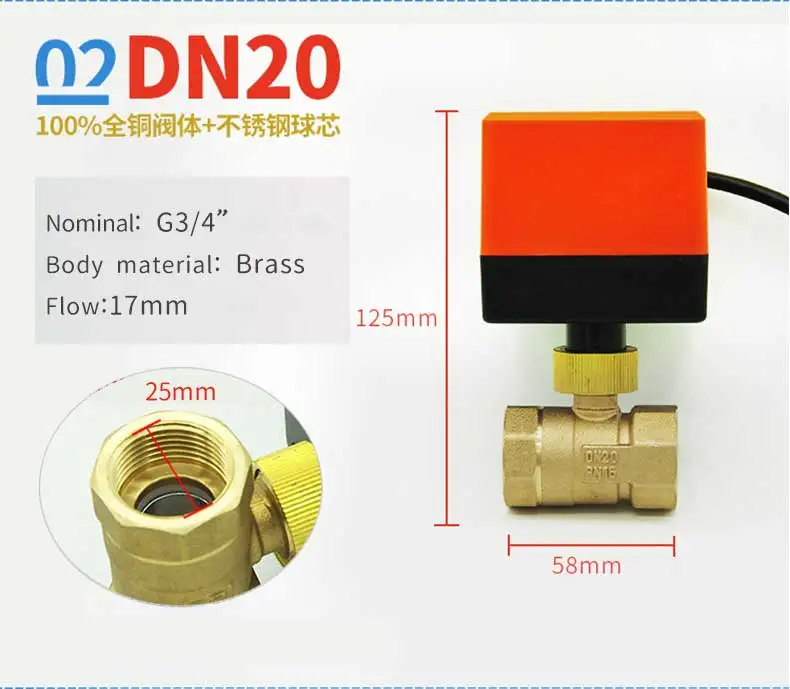

Model: DN20 (G 3/4 ")

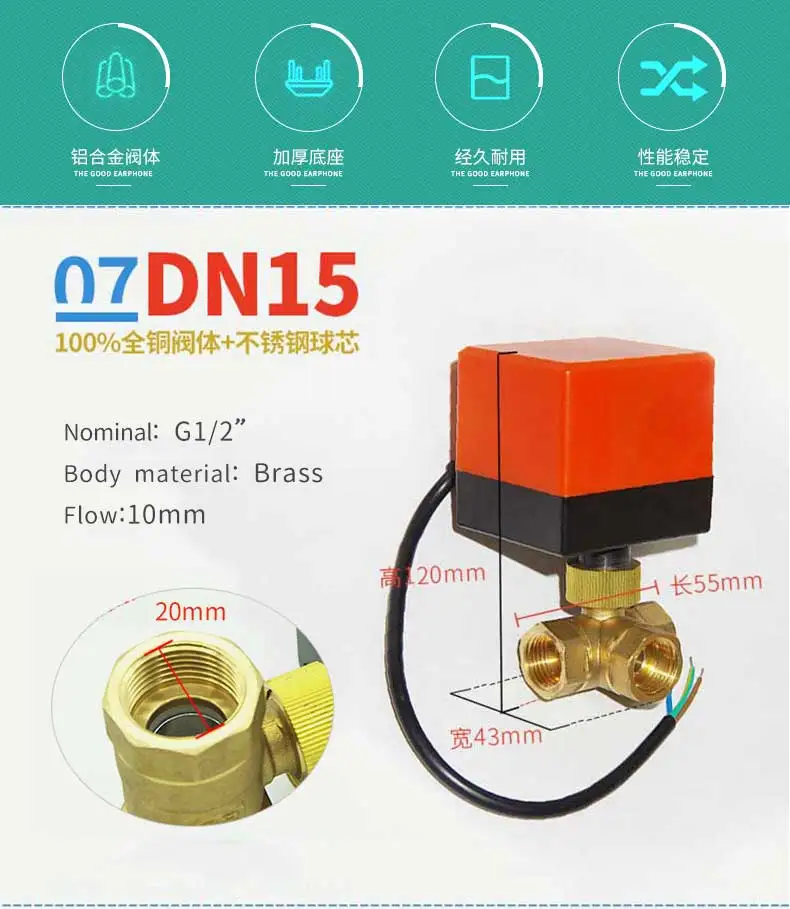

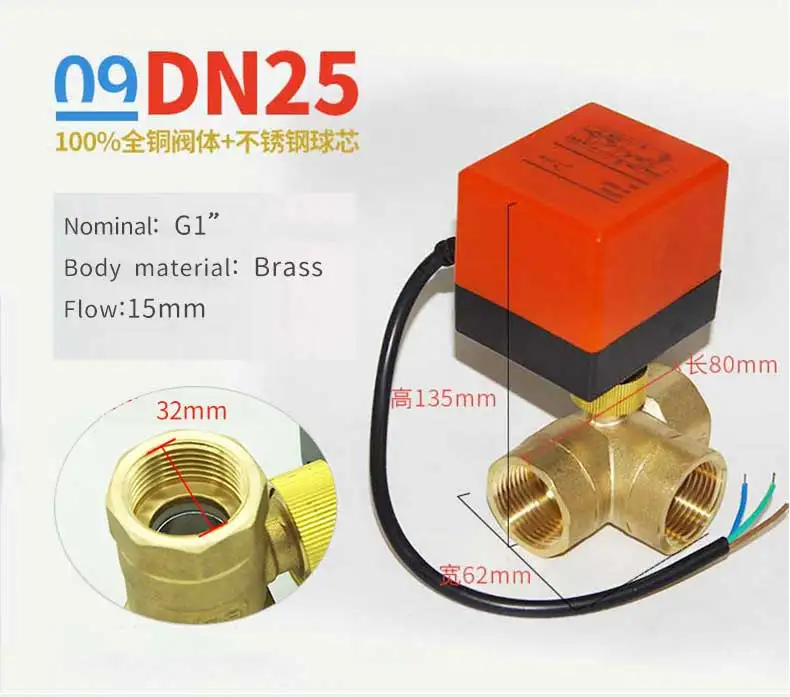

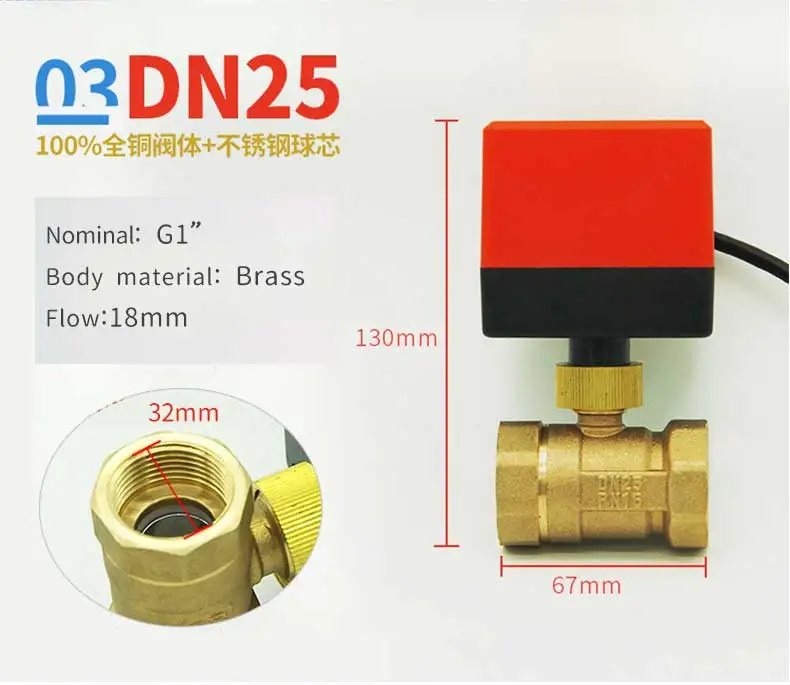

Model: DN25 (G 1 ")

Structure forms: two forms

Operating mode: three floating points (24 V AC) or on / off

Power: 6 W (only when the valves open and close)

Operating time: 5-15 seconds

Nominal Pressure: 1.6MPa

Average temperature: 2 ° ~ 95 °

Maximum differential pressure: 1.0MPa

Protection class: IP65

Connection mode: ZG internal thread

Features:
Straight flow, large flow, no slag blockage

Well, water and dirt resistant function test (IP65)

The actuator is easily disassembled and mounted.

The actuator can be installed after installing the equipment and pipes to improve efficiency.

The LED indicates when the valve is turned on / off, to detect if the valve is fully on / off.

Great energy saving, long life design.

Closed tightly due to high pressure when closing

The actuator can be mounted in two directions
