Nidec 370 Карбоновый щеточный мотор DC 12V 30000RPM высокоскоростной мощный крутящий момент Сильный магнитный DIY RC игрушка автомобиль водный пистолет включен - купить

Купить Nidec 370 Карбоновый щеточный мотор DC 12V 30000RPM высокоскоростной мощный крутящий момент Сильный магнитный DIY RC игрушка автомобиль водный пистолет включен.

Brand NameNoneModel Number5096OriginMainland ChinaTypeMicro MotorCertificationceUsageHome ApplianceConstructionPermanent MagnetTorquenot clearCommutationBrushProtect FeatureExplosion-proofContinuous Current(A)not clearOutput Powernot clearEfficiencyIE 1Measurement unitpiece/piecesEach pack1Output shaft diameter2.0mmOutput shaft length9.5mmVoltage rangeDC 3V-12VNo-load Speed30000RPM420,64 ₽-5%420,64 ₽-5%399,52 ₽399,52 ₽there is store discountAdd to CartBuy now399,52 ₽loaderReviews

5,0

2 reviews20000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalГерман С.20 August 2022

Show moreJose Luis G.15 February 2022

Show moreOpen 2 reviewsDescription

Specification:


1.Motor diameter: 24.3MM

2.Motor height: 30.2MM(Not include output shaft)

3.Output shaft diameter: 2.0MM

4.Output shaft length: front shaft:9.5MM, rear shaft: 4MM

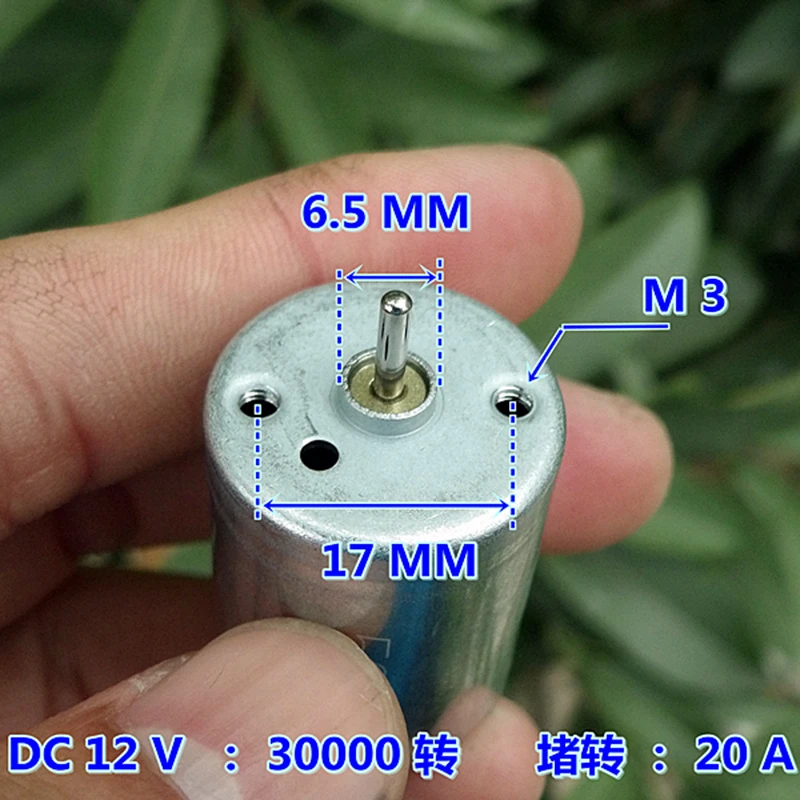

5.Screw hole: M3

6.Screw hole distance: 17MM

7.Weight: 46 Grams

8.Voltage: 12V

9.Speed: 30000RPM

10.Current: 0.38A (Stall current: 20A)

11.This motor is a super power density motor.Fever is for sure and normal.The use of the environment should have a good cooling environment, as well as power supply must have large current, preferably over 20A.

Package Include:

1pcs x Motor



---
