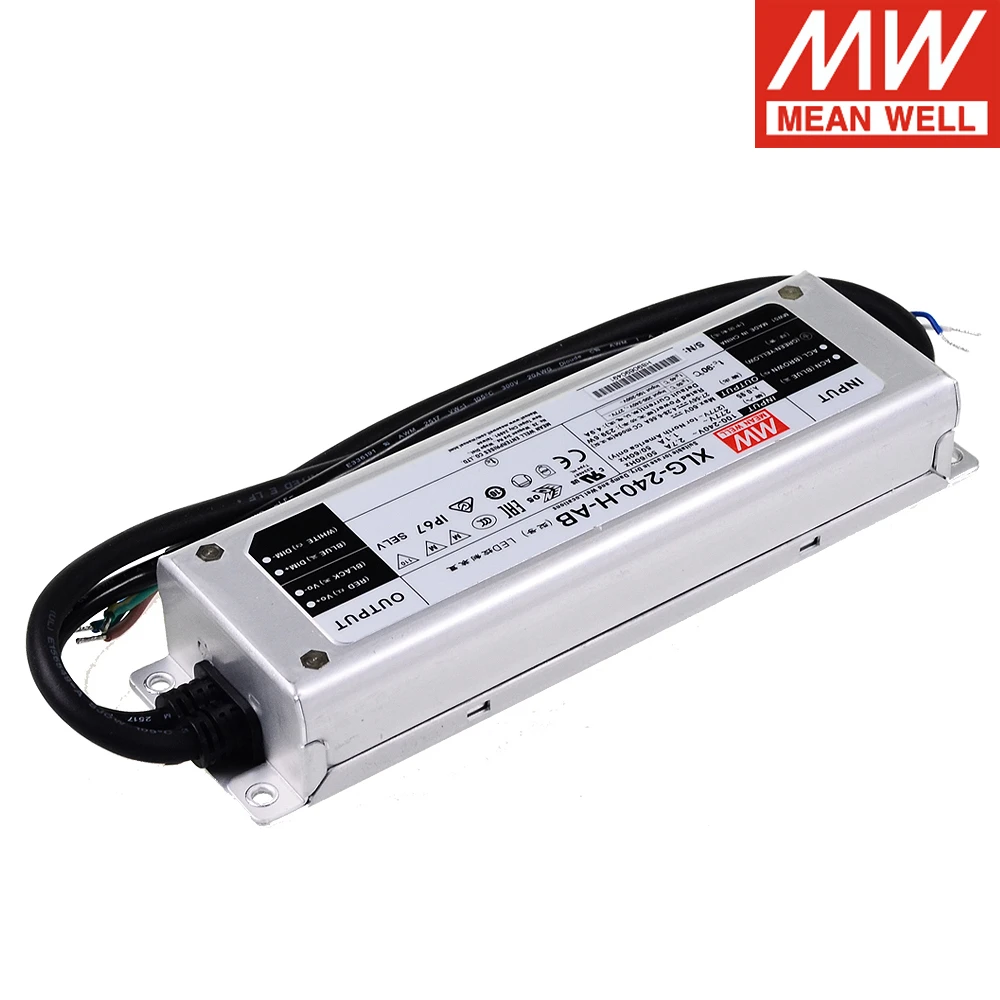

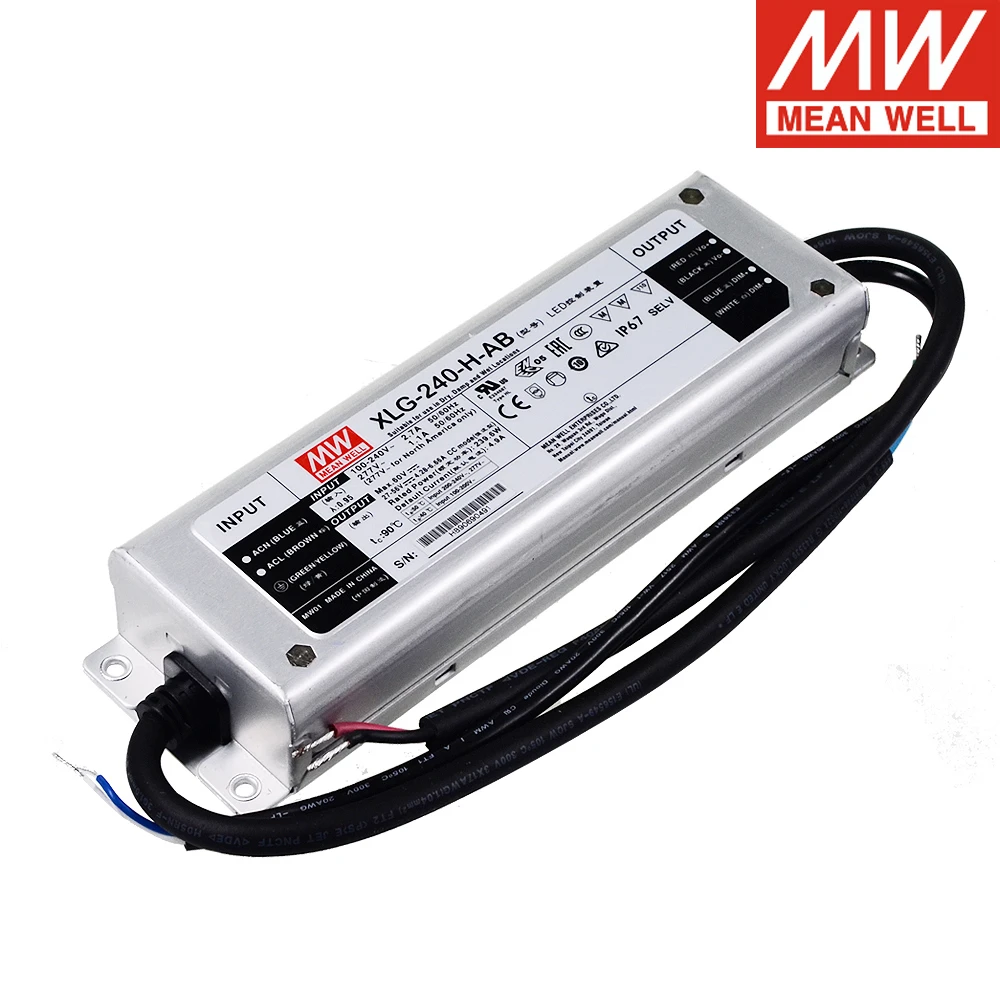

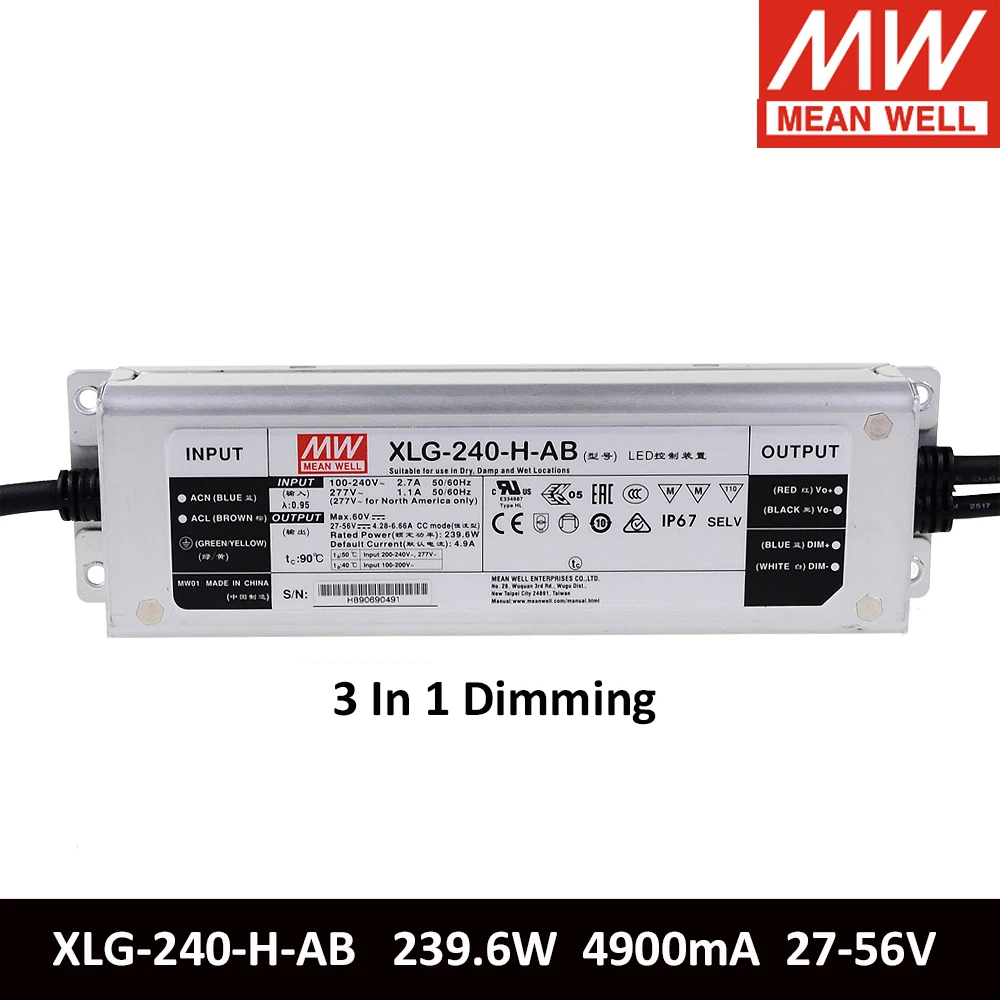

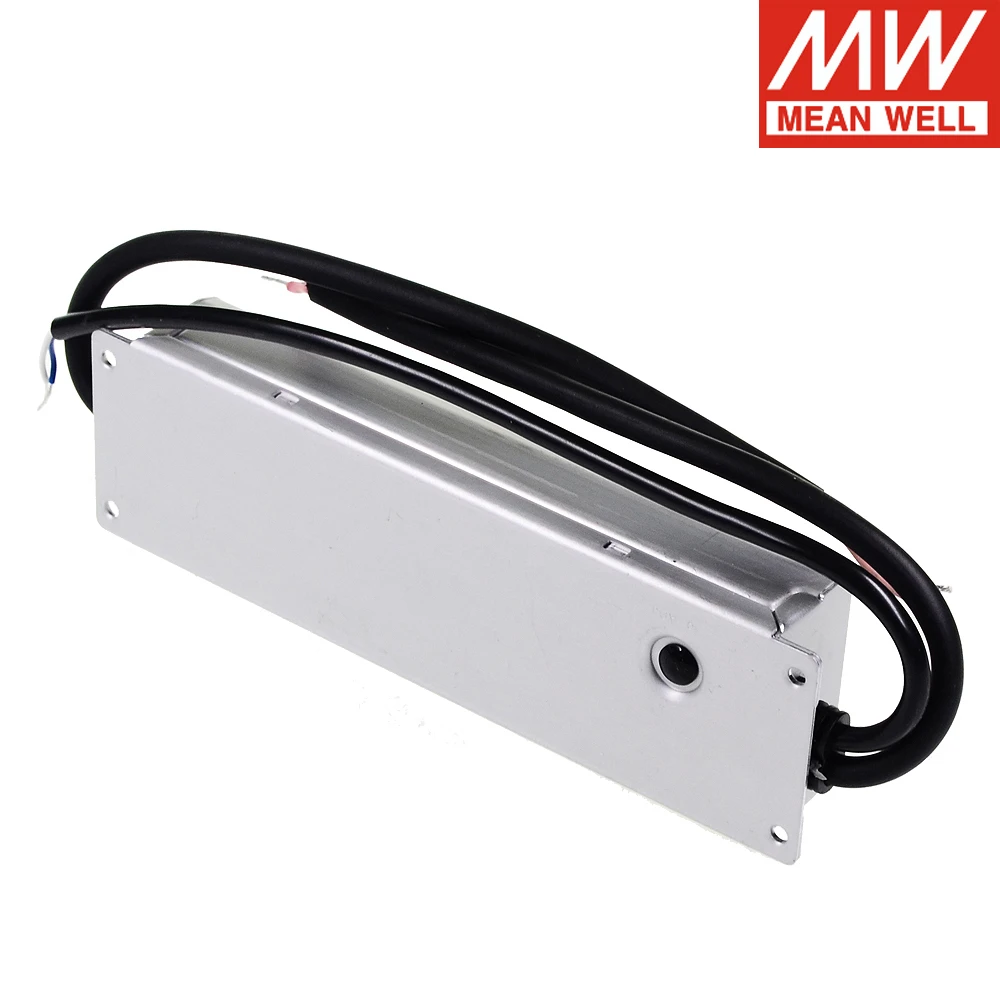

Mean Well Metal Case Switching Power Supply IP67 Xlg-240-h-ab 239.6W 110V/220V AC To DC 27-56V LED Driver 3 IN 1 Dimming Обустройство - купить

Купить Mean Well Metal Case Switching Power Supply IP67 Xlg-240-h-ab 239.6W 110V/220V AC To DC 27-56V LED Driver 3 IN 1 Dimming | Обустройство

Description

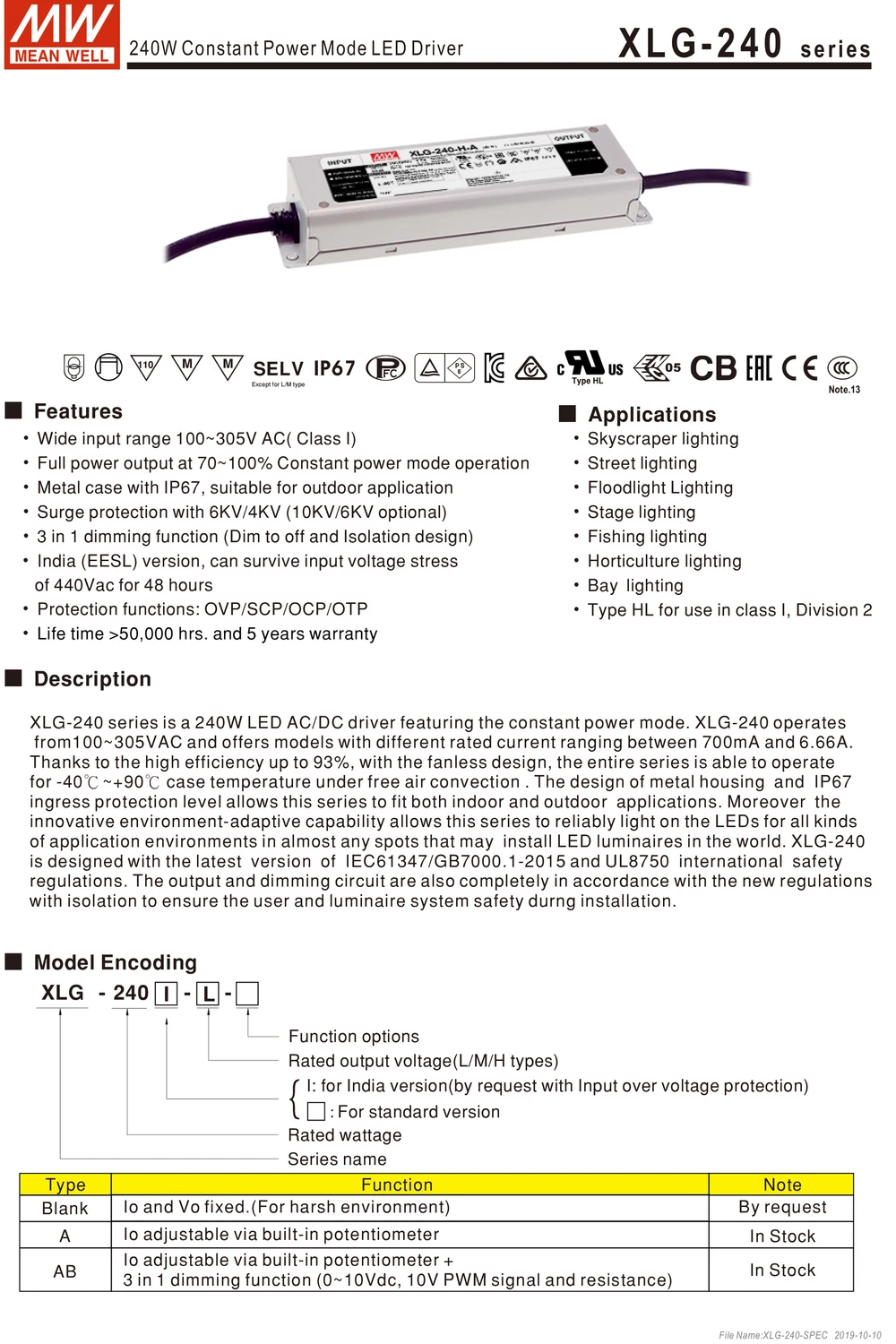

XLG-240 series is a 240W LED AC/DC driver featuring the constant power mode. XLG-240 operates from1 00~305VAC and offers models with different rated current ranging between 700mA and 6.66A. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40 °C ~+90°C case temperature under free air convection . The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover theinnovative environment- adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-240

is designed with the latest version of IEC61347/GB7000.1-201 5 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulationswith isolation to ensure the user and luminaire system safety durng installation.

Features

●Wide input range 100~305V AC( Class I)

●Full power output at 70~ 100% Constant power mode operation

●Metal case with IP67, suitable for outdoor application

●Surge protection with 6KV/4KV (1 0KV/6KV optional)

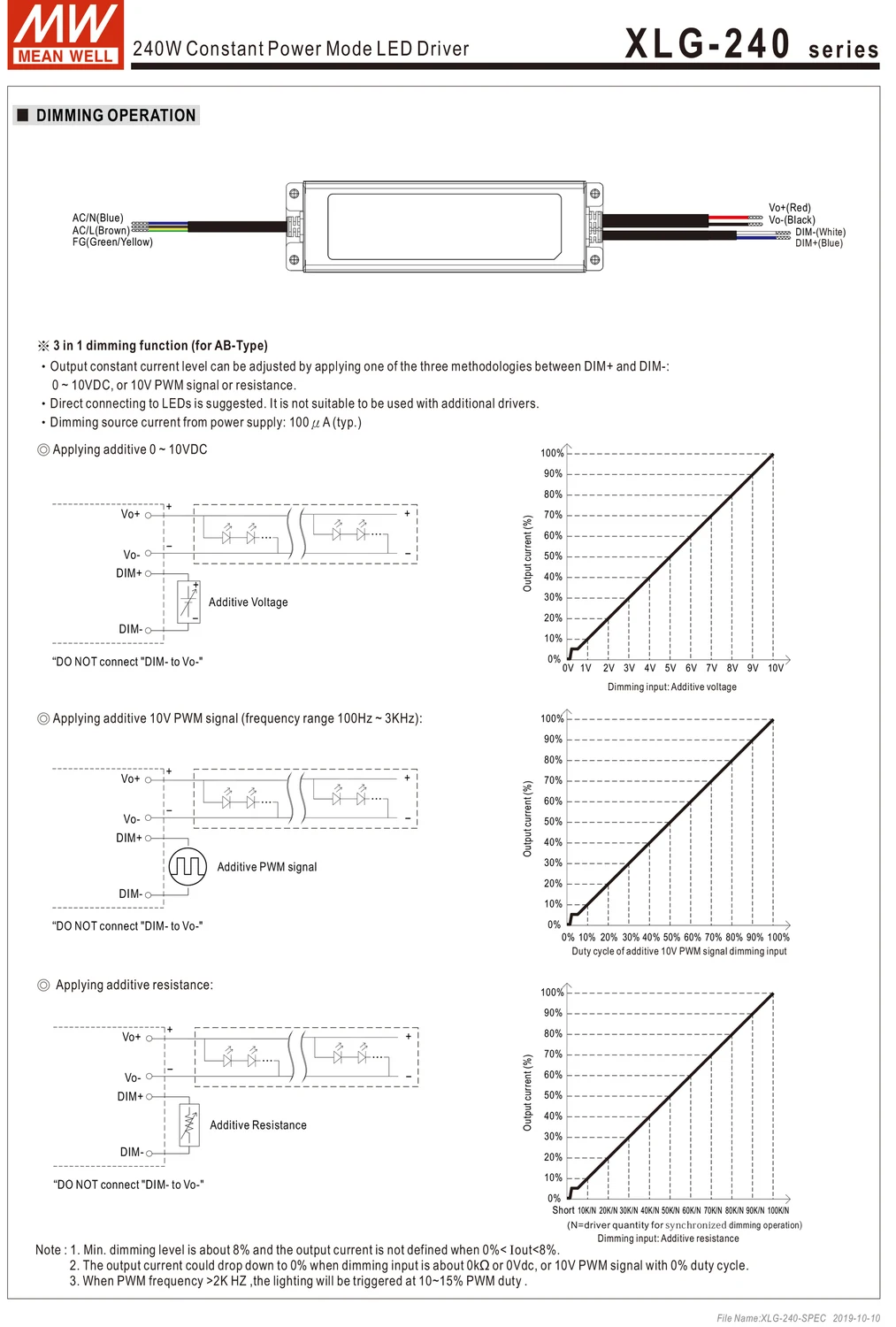

●3 in 1 dimming function (Dim to off and Isolation design)

●India (EESL) version, can survive input voltage stress of 440Vac for 48 hours

●Protection functions: OVP/SCP/OCP/OTP

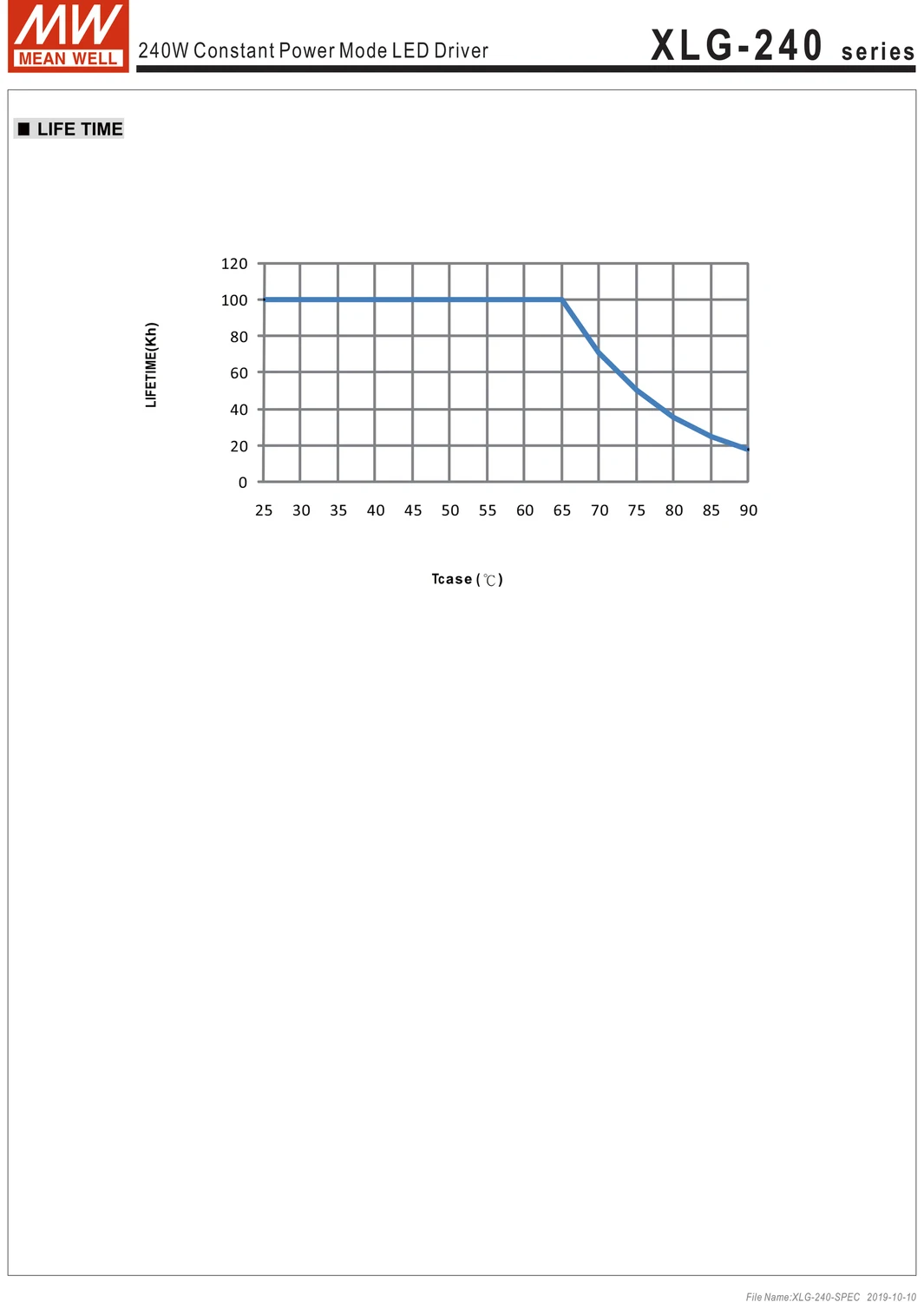

●Life time >50,000 hrs. and 5 years warranty

■Applications

●Skyscraper lighting

●Street lighting

●Flodlight Lighting

●Stage lighting

●Fishing lighting

●Horticulture lighting, Bay lighting

●Type HL for use in class I, Division 2
