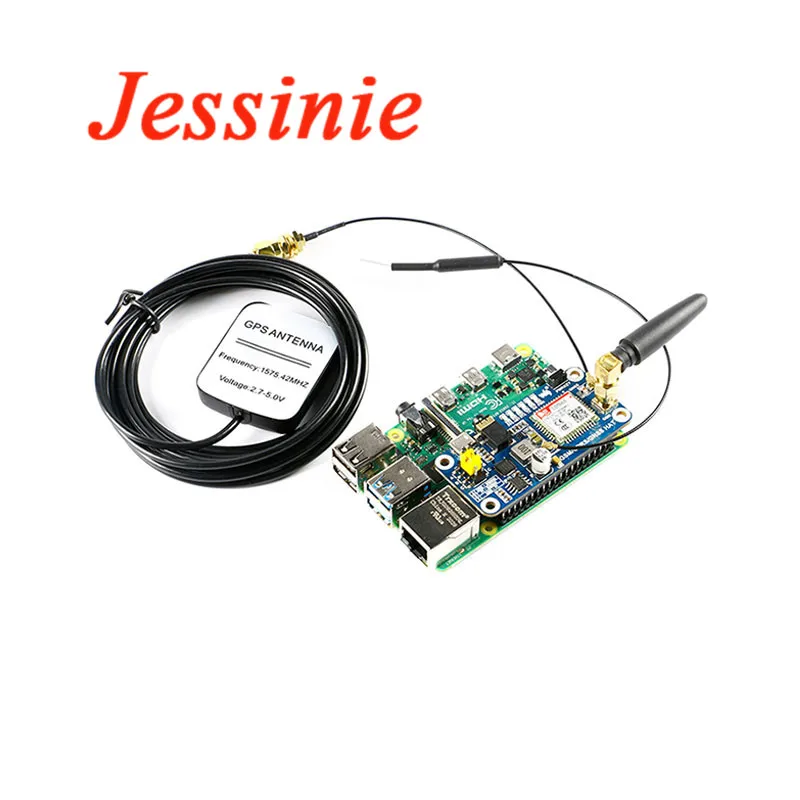

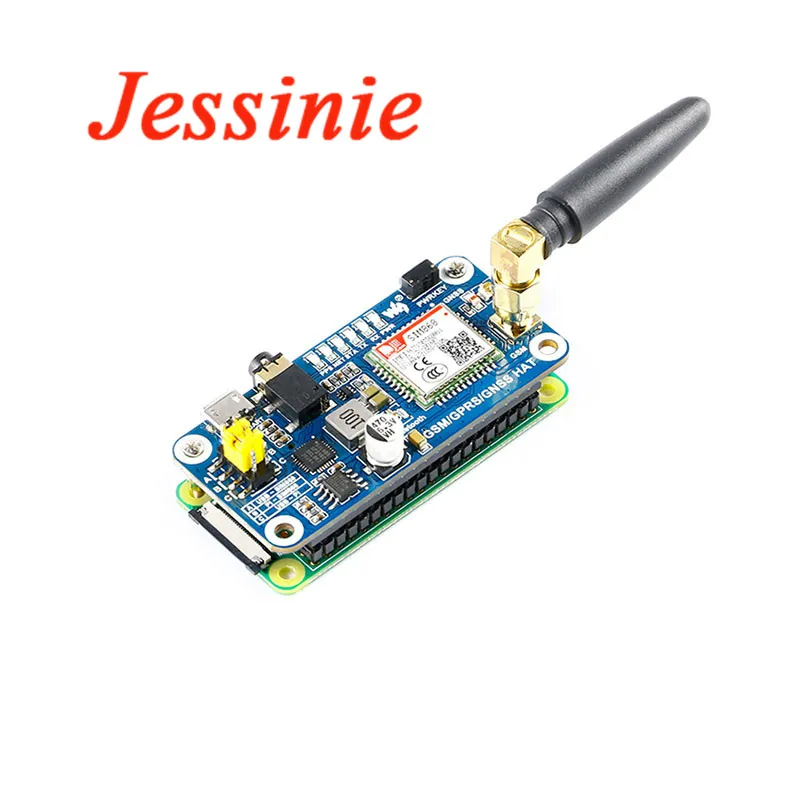

Introduction:

It is a Raspberry Pi expansion board with GSM (Global System for Mobile Communications), GPRS (General Packet Radio Service), GNSS (Global Navigation Satellite System) and Bluetooth-compatible
I am small, low power, and powerful! Bring me, your Raspberry Pi will be able to easily make calls, texting, wireless Internet, global positioning, Bluetooth-compatible data transmission and more.

Features of the product:

For Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+

Support SMS, phone, GPRS, DTMF, HTTP, FTP, MMS, email and other functions

Support GPS, Beidou, Glonass, LBS base station positioning, all-round positioning

Support Bluetooth-compatible 3.0 for Bluetooth data transmission

On-board CP2102 USB to UART chip for easy serial port debugging

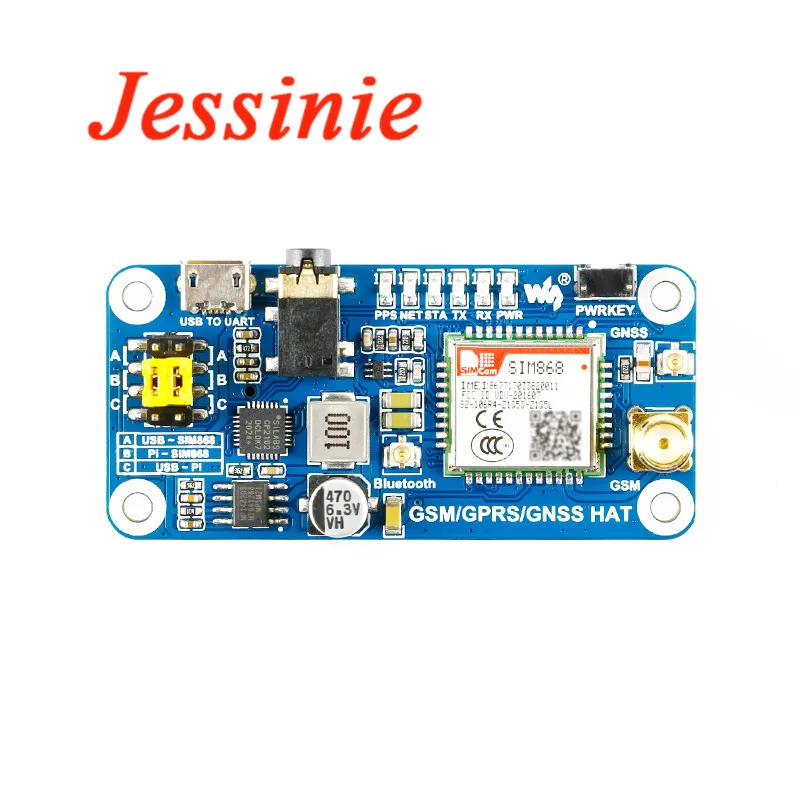

Onboard 6 LED indicators for easy viewing of module operation status

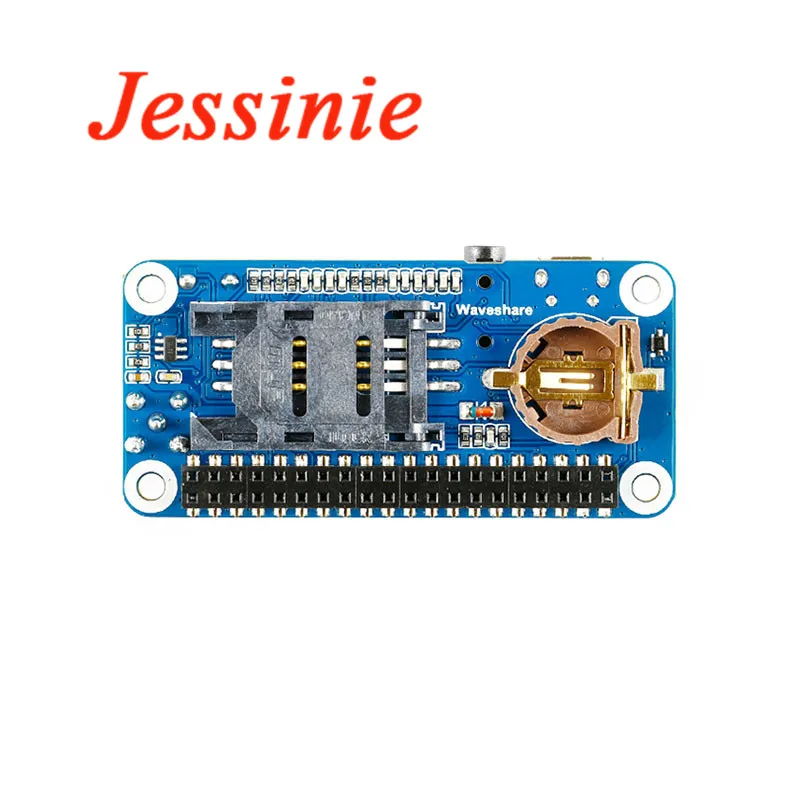

Onboard SIM card slot, support for 1.8V and 3V SIM cards

Support RTC real time clock with spare battery holder

Support automatic identification of baud rate (1200bps ~ 115200bps)

Support AT command control (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT command set)

Support for the SIM Application Toolkit: GSM 11.14 Release 99

Provide a complete supporting information manual (sample programs such as Raspberry/for Arduino/STM32)

【productGSM/GPRS parameters]

GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz

Support automatic search for 4 bands

Meet the GSM phase 2/2+ standard

Class 4 (2W @ GSM 850/EGSM 900 MHz)

Class 1 (1W @ DCS 1800/PCS 1900 MHz)

GPRS multi-slot class 12 (default)

GPRS multi-slot class 1~12 (configurable)

Uplink/downlink transmission rate: ≤85.6kbps

Support Packet Broadcast Control Channel (PBCCH)

Encoding format: CS-1, CS-2, CS-3, CS-4

Support PAP protocol for PPP connection (password authentication protocol)

Support for unstructured supplementary data services (USSD)

Support type: MT, MO, CB, Text, PDU

SMS storage device: SIM card

Voice codec mode: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Muti Rate

Support echo cancellation

Support for noise suppression

【productGNSS parameters]

33 tracking channels

99 acquisition channels

GPS L1 C/A code

Tracking :-165 dBm

Cold start :-148 dBm

Cold start: 28s (typ.)

Hot start:

Warm start: 26s

Accurate positioning:

【productBluetooth parameter]

Integrated AT command control

Compliant with Bluetooth specification3.0 + EDR

Support SPP, OPP, HFP/HSP and other functions

【productOther parameters]

Working voltage: 5V

Working temperature: -40 ° C ~ 85 ° C

Storage temperature: -45 ° C ~ 90 ° C

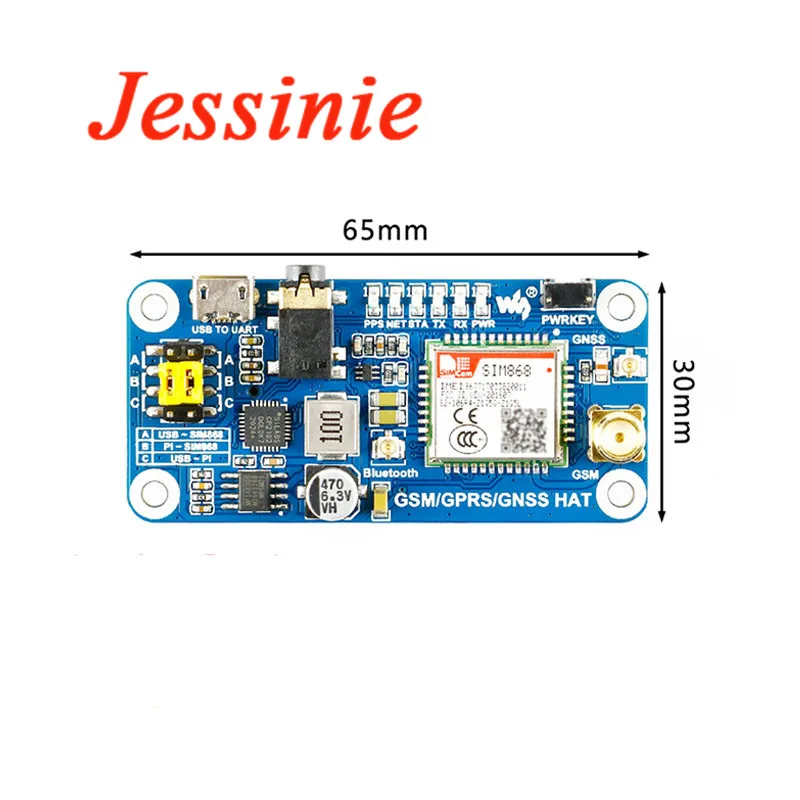

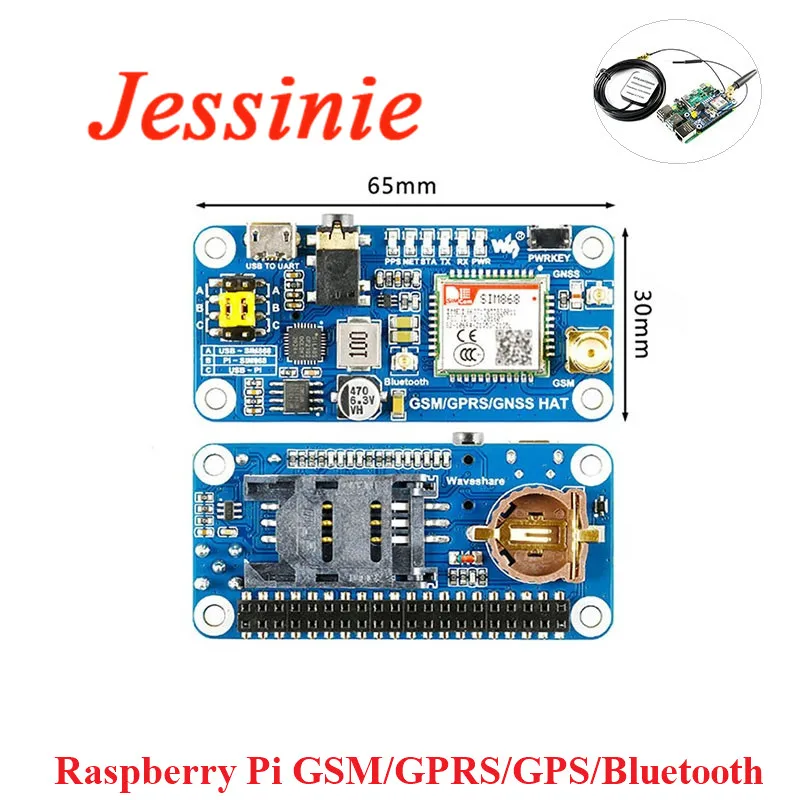

Product size: 30.2mm x 65mm
