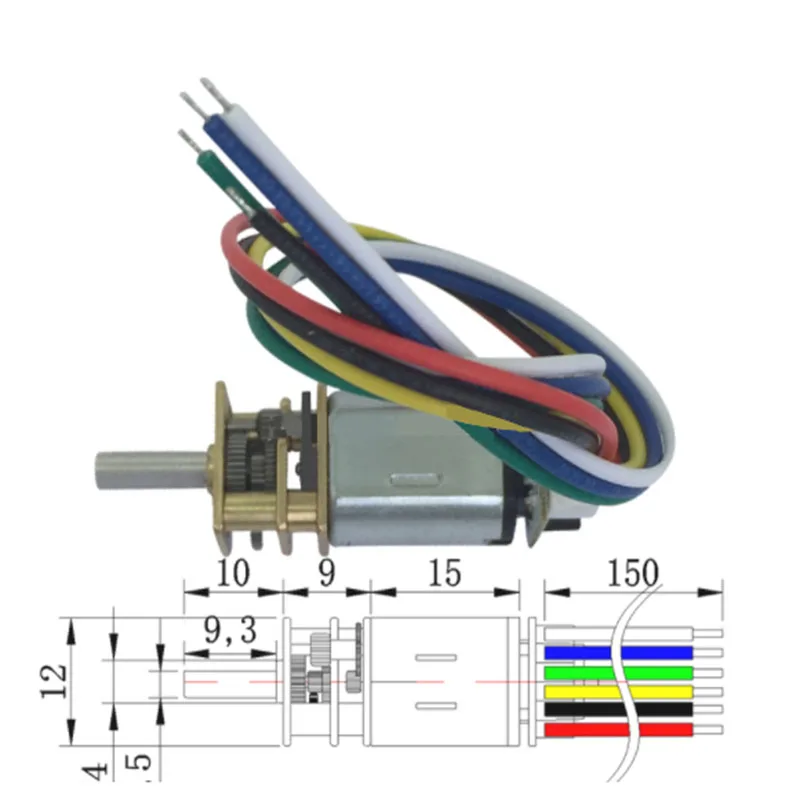

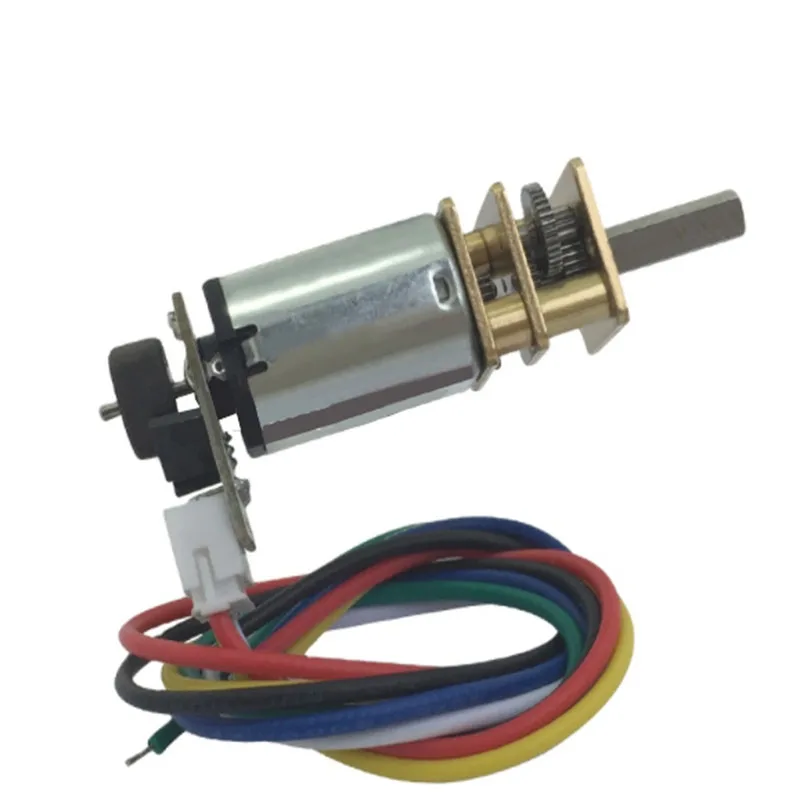

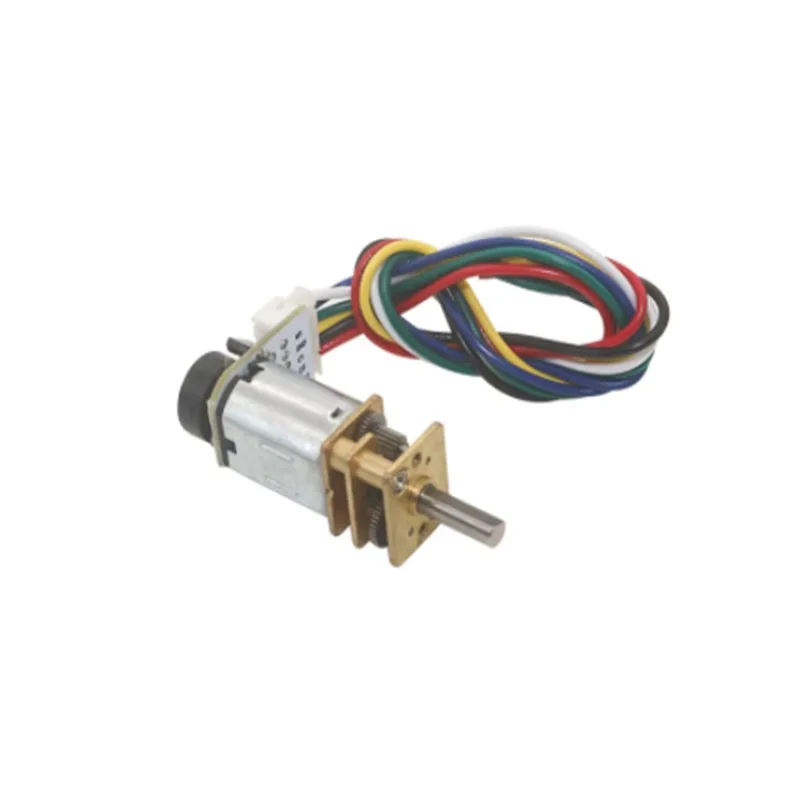

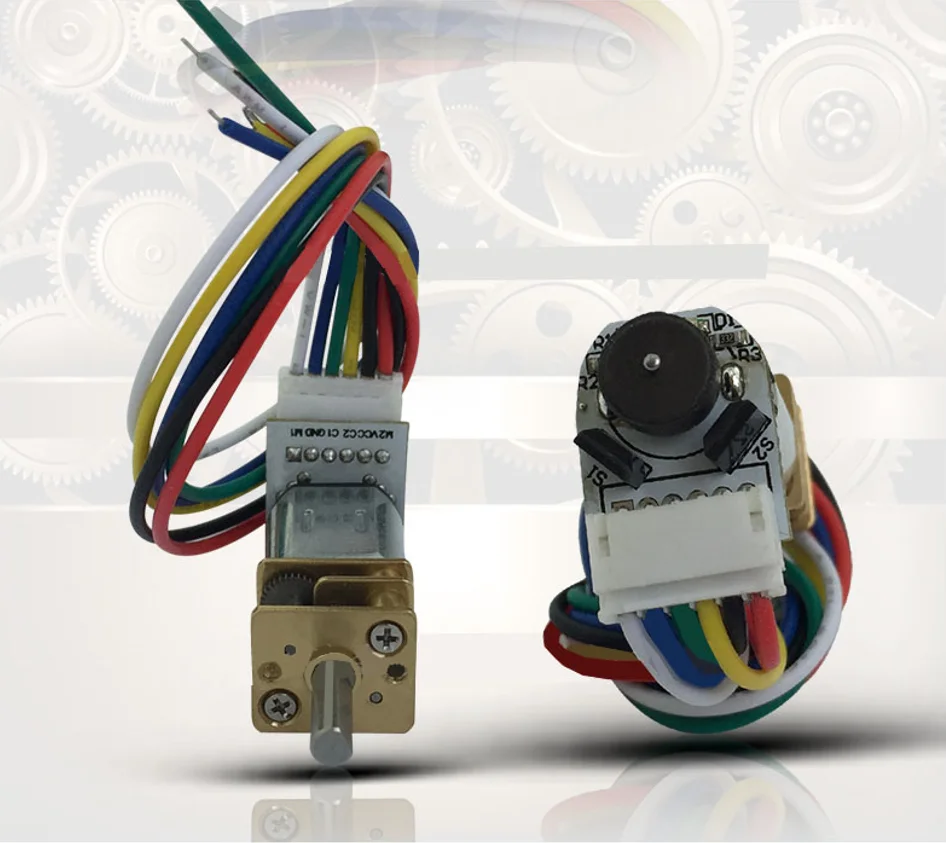

JGA12-N20B Precision Mini DC Gear Motor With Encoder

Product Description

1.Standard Operating Conditions:
1-1 Rated Voltage:	6VDC  constant between motor terminals
1-2 Direction of Rotation:	CW when viewed from output shaft side
1-3  Operating Temperature and Humidity	Temperature range of -10℃~+50℃, Humidity range of 30%~80% temperature range of -10℃~+50℃
1-4  Storage Temperature	Temperature range of -20℃~+60℃
2.Measuring Conditions:
2-1 Motor Position:	To be place t horizontally when measuring
2-2 Power Supply:	Regulated DC power supply
2-3 Environmental Temperature and Humidity:	Temperature range of 15℃ to 30℃
	Relative humidity 30%and 70%
2-4Power Supply:	Regulated DC power supply
	--No load speed: 39rpm to   1500rpm
2-5 Application:	--Robotics, Small Appliance, Fanner, Electric Curtain;
	--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
2-6 Character:	--Electric motor,low noise,low current and no spark.
	--High quantity ,small body

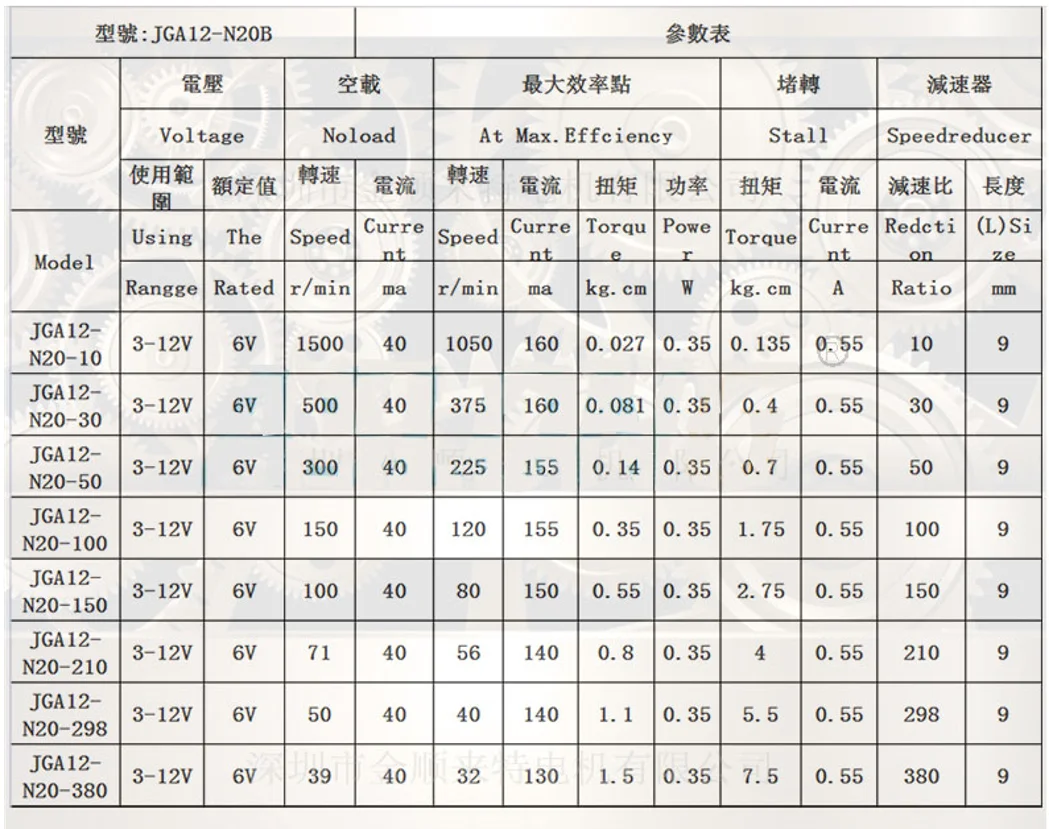

Product parameters:

Stock Information :

More than 1000pcs is in factory store about this type of different  no-load output speed

Model:JGA12-N20

Working volt range:3-12V

Rated volt: 3V

No-loading rotation speed:750Rpm 250Rpm 150Rpm 75Rpm 50Rpm 35Rpm 25Rpm 19Rpm

Rated volt: 6V

No-loading rotation speed:1500Rpm 500Rpm 300Rpm 150Rpm 100Rpm 71Rpm 50Rpm 39Rpm

Rated volt: 12V

No-loading rotation speed:3000Rpm 1000Rpm 600Rpm 300Rpm 200Rpm 142Rpm 100Rpm 78Rpm;

Advantages:

1.Company Advantage:
A. Our company is a large-scale professional manufacturer deeply trusted by domestic and overseas customers, integrating development, production, wholesales and service.
B. To ensure high-quality and best service ,kingly built up professional teams engaged in research,product engineering and sales.
C. We have 10 years experience in the design of the research and development, With strong technology developing ability and manufacturing capability, advanced equipment
2. Product Advantage:
A. Variety of products,quality guaranteed, products are widely used
B. Advanced product testing equipment
C. Product flexibility, customize according to the requirements of the clients any special
develop all kinds of molds, Independent research and development since the open mold products
D. Products through a variety of certification(CE,RoHs,ISO,CCC,UL....)
E. Some products have patent certificate
3. Main product advantage
A . Specifications can be tailoer-made according to customer's requirements.
B. Can provide free samples
C. Product quality is guaranteed, a short period of delivery
