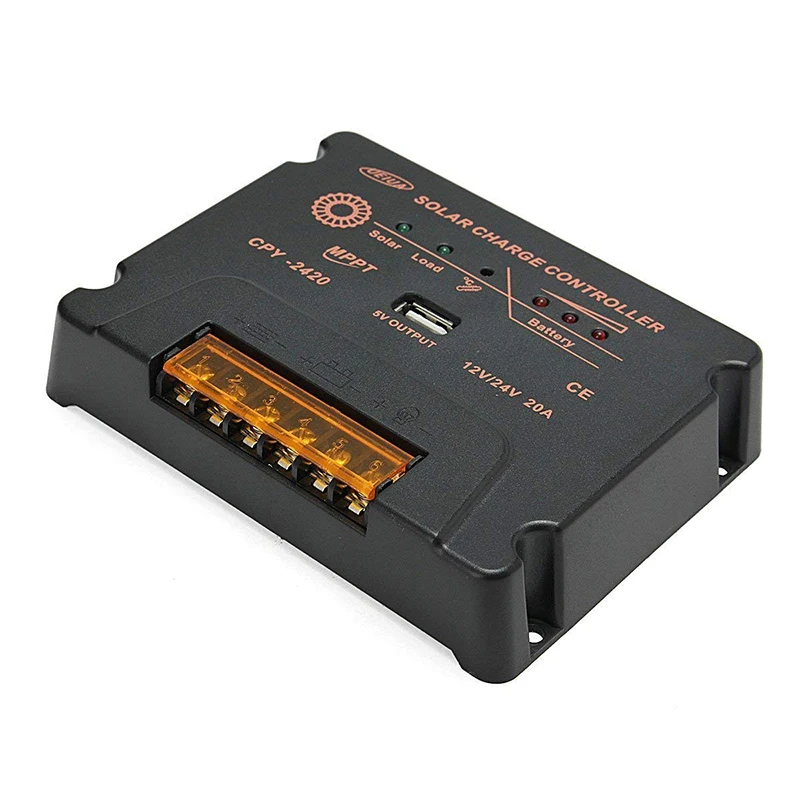

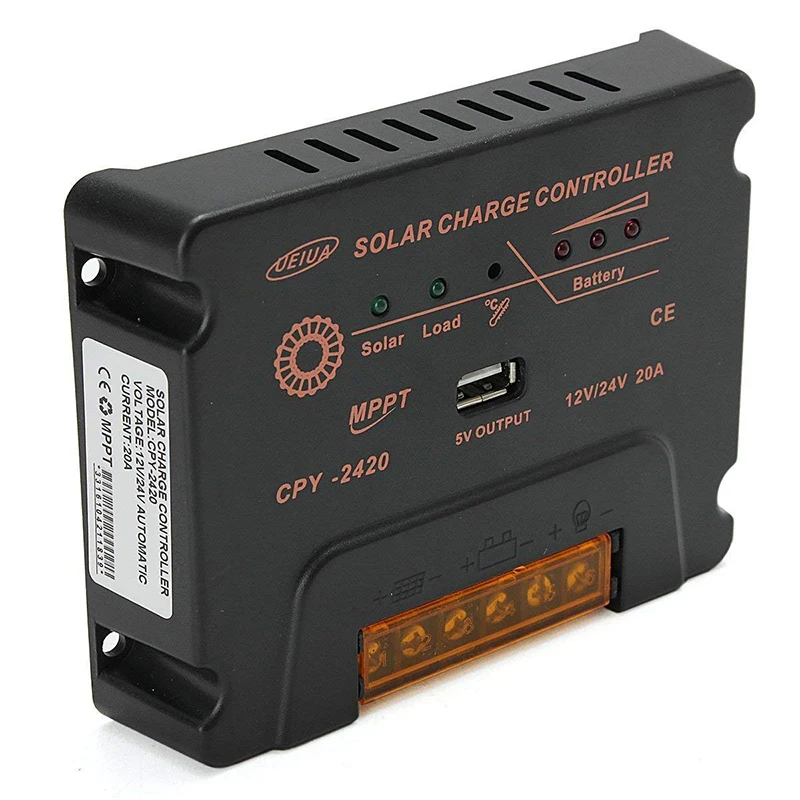

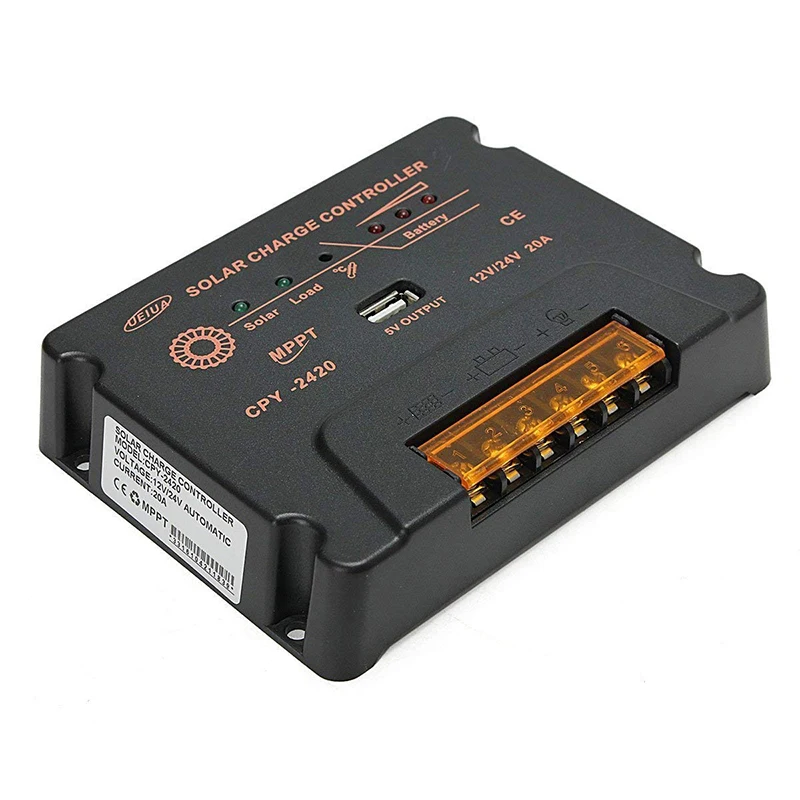

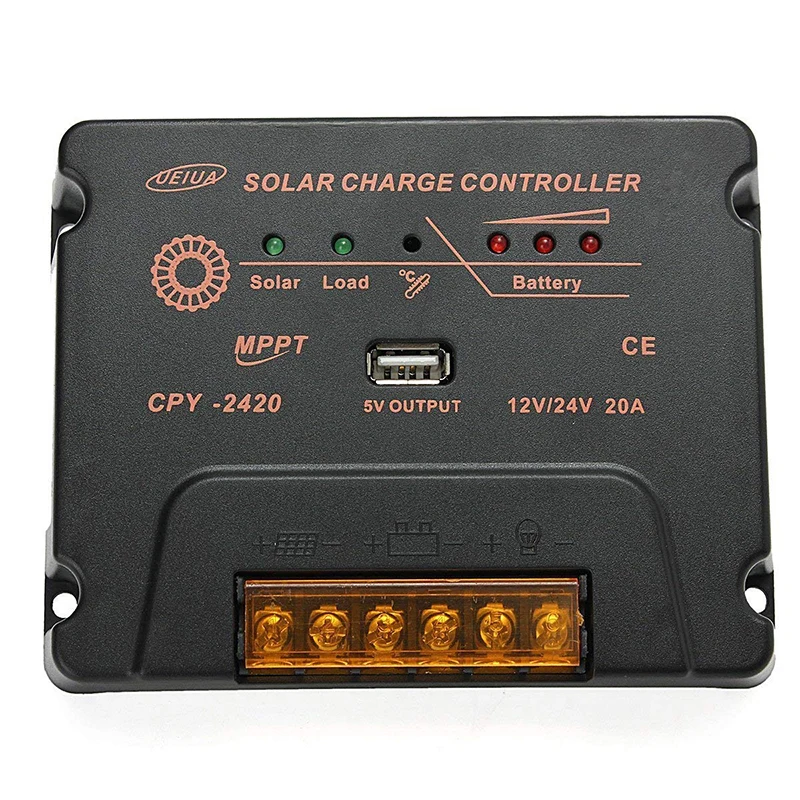

20A 10A MPPT Solar Charge Controller 12V/24V Battery Panel Regulator Charger With USB 5V Output Max PV Input Voltage 50V

This CPY-10A/20A 10/20 amp MPPT Solar Charge controller not only can real-time detect the power of solar panels, but also can track the highest voltage current value(VI), which make the system with the highest efficiency for battery charging.

MPPT Solar charge controller.

20A/10A,12V/24VDC AUTO.

Max PV Input Voltage is 50V.

With USB 5V Output.

Safety recommendations: 18V solar panel connect with 12V battery,36V solar panel connect with 24V batteries..

Contact us now to get our lastest wholesale price list!!!

Product Overview:

1. Use single-chip microcomputer control, has the advantages of intelligent, strong adaptability, reliable function.
2. Adopts the MPPT technology, can work in the maximum power point of the I-V curves, the efficiency is up to 99%.
3. With high precision temperature detection and compensation circuit, longer battery life.
4. 12V/24V auto work, three stage of battery display, can intuitively understand of the working status of the controller.
5. Delicate structure design and highly precise circuit design, allowing the space of the controller to be maximize.
6. With over charging, over discharging, overload, short circuit and reverse polarity protection.
7. With USB 5V output, can charge different digital products.

MPPT Controller Specifications:

Model: CPY-20A
Rated charge current: 20A
Rated discharge current: 20A
Rated Voltage: 12V/24V Auto
MPPT Efficiency: Max 99%
USB Output: 5V 1A
No Load Current: <10mA
Overload, short circuit protection: >= 1.5 Rated Current
Over Voltage Protection: 16V; X2/24V
Voltage of Stop Charging: 14.7V; X2/24V
Discharge Recovery Voltage: 12.2V; X2/24V
Over discharge voltage: 10.8V; X2/24V
Size: Approx. 132 x 100 x 28mm/5.19" x 3.93" x 1.1"
Weight: 291g
Model: CPY-10A
Rated charge current: 10A
Rated discharge current: 10A
Rated Voltage: 12V/24V Auto
MPPT Efficiency: Max 99%

Installation Instructions:

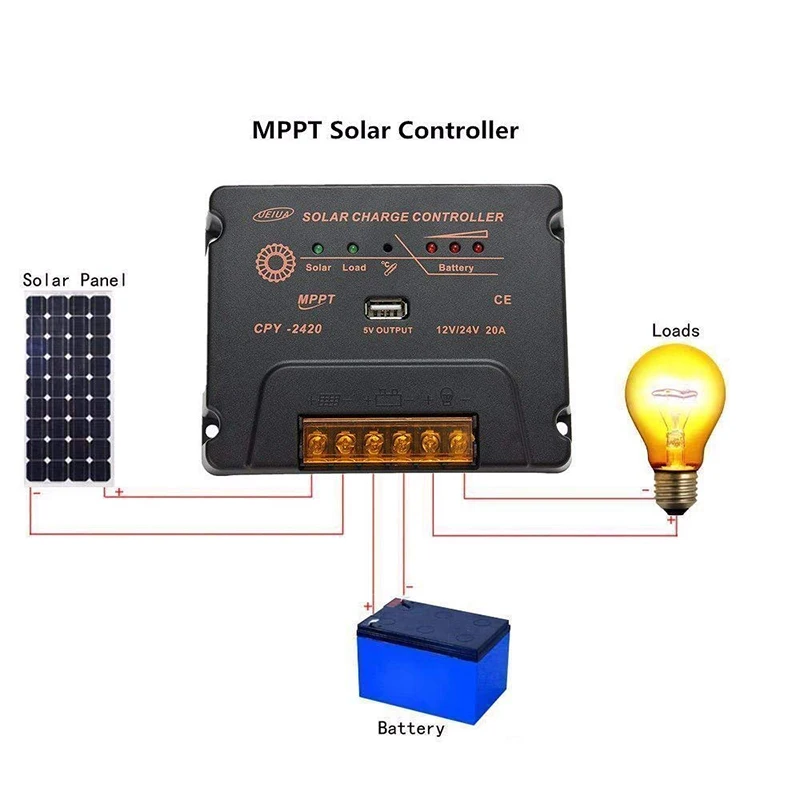

Please first connect the battery, and then connect the solar panel and the load in order.
The controller has reverse polarity protection internally, but if the connection error still may damage your controller.
Please make sure the voltage and current are within the rated range of controller

Package Includes:

1x 20A MPPT Charge Controller 1x User Manual

Please make sure the voltage and current are within the rated range of controller
