150W Motor Long Shaft Length 83mm Electric DC 12V 24V High Speed 2000rpm 4000rpm PWM Reversed 12 V Moter DIY Model Engine 63100 - купить

Купить 150W Motor Long Shaft Length 83mm Electric DC 12V 24V High Speed 2000rpm 4000rpm PWM Reversed 12 V Moter DIY Model Engine 63100 |

Introduction of the motor 1. Product Name : 63100 High Power 150W Permanent Magnet DC Motor With 12V 24V 2. Voltage range : DC 12V To DC 24V 3. No load speed :  DC 12v 2000rpm/min ; DC 24v 4000rpm/min(-10% ; +10%) 4. No load current : 12V 0.5A ; 24V 0.6A (-10% ; +10%) 5. Rated current : 12V 4.42A ; 24V 4.76A (-10% ; +10%) 6. Stall current : 12V 5.6A ; 24V 5.8A (-10% ; +10%) 7. Power : 150W 8. Direction of rotation of the motor : CW Or CCW ; Support Reversed 9. The speed of the motor can be adjusted using the speed controller. 10. Low noise : 40 dB 11. Support continuous 24 hours of work ; 12. Applications : Earthworms machine ; cutting machine ; cotton candy machine ; high-end toys ; other smart devices, etc. The following is a description of the quality materials and structures of this motor. 1. Use dustproof waterproof ring 2. D type long shaft 3. Using L2200GS high-quality magnetic tile, the motor has high working efficiency and small dynamic loss. 4. Use double ball bearings to make the motor shaft more bearing capacity and less friction. 5. The wire in the rotor is made of pure copper. It is more conductive,resistant to temperature and prolongs the life of the motor.

The size is for reference only,the measurement will be slightly different,please pay attention before buying

How to buy the products you need

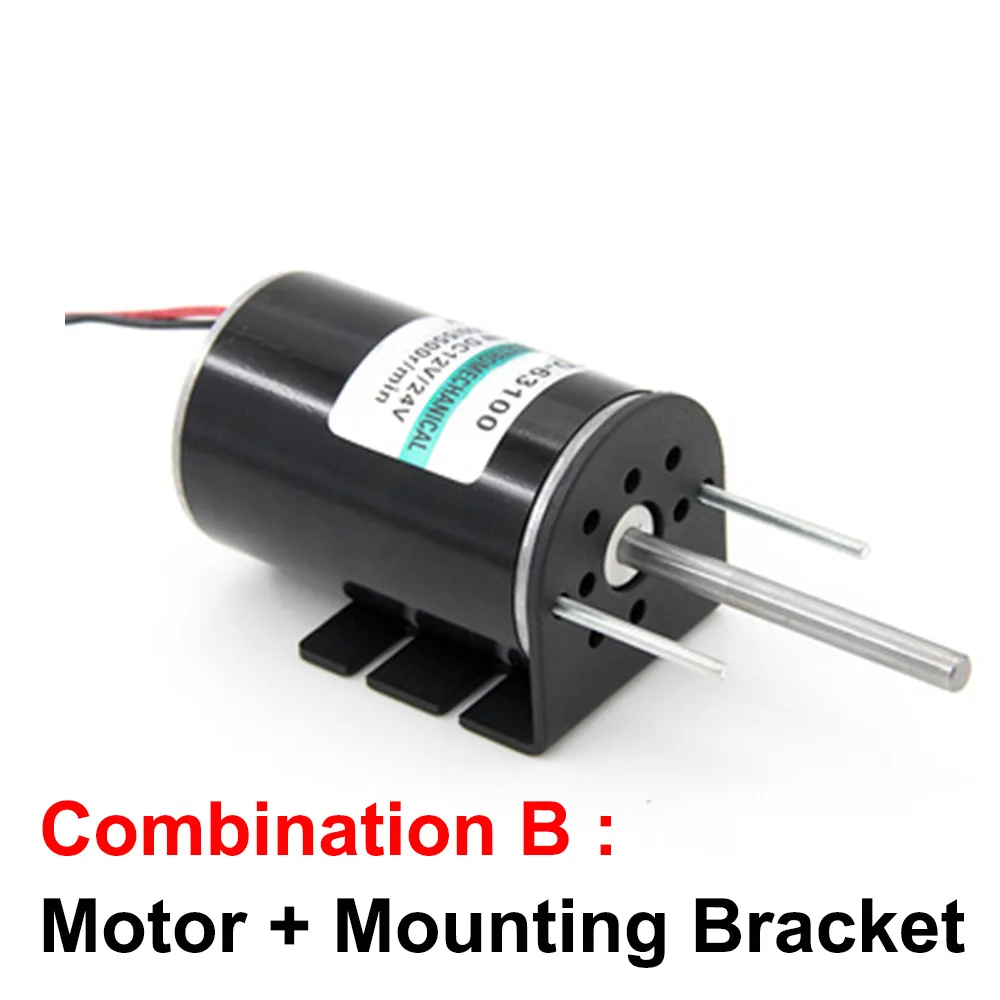

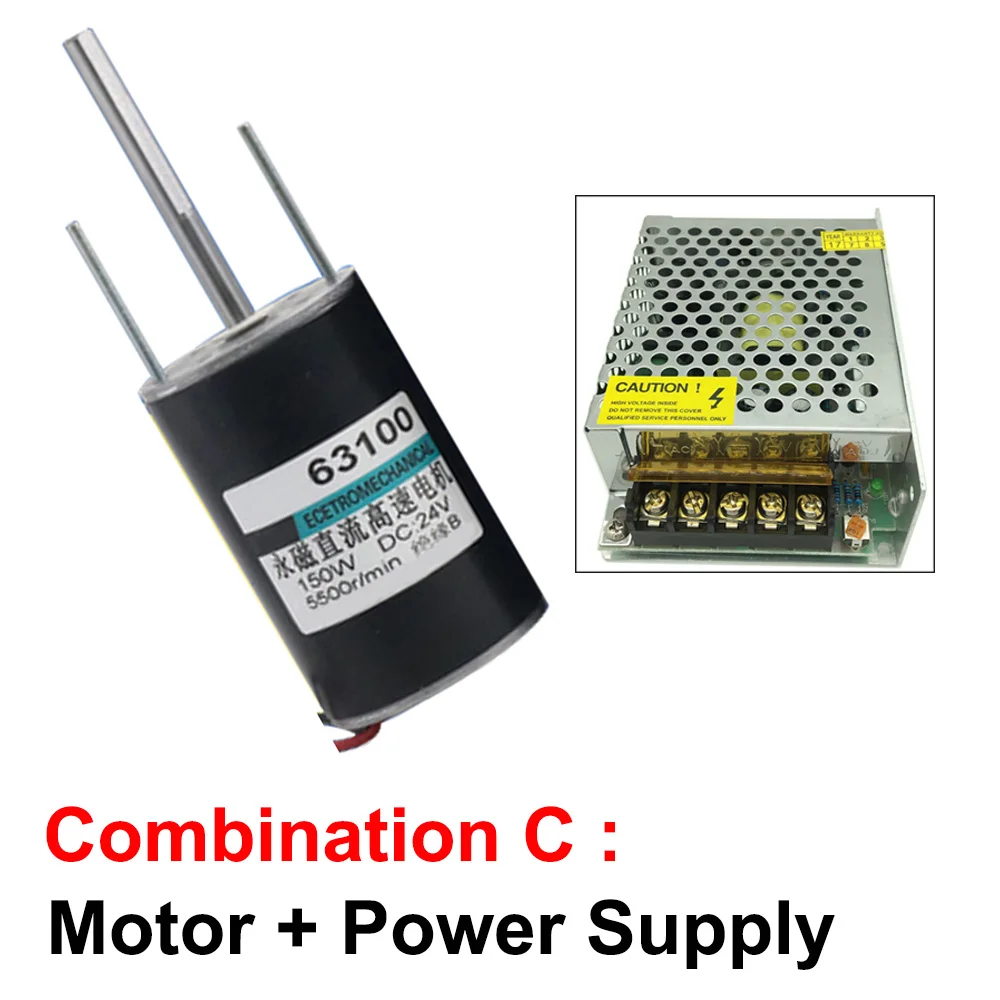

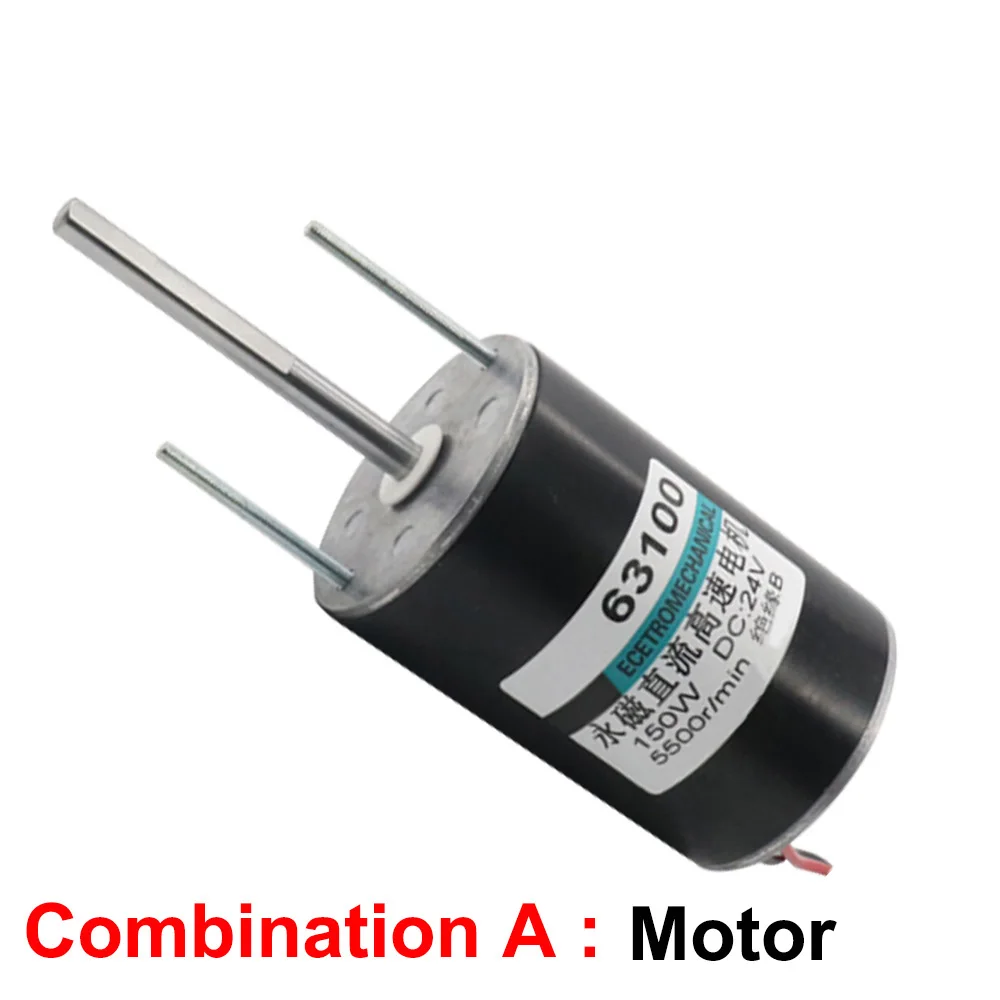

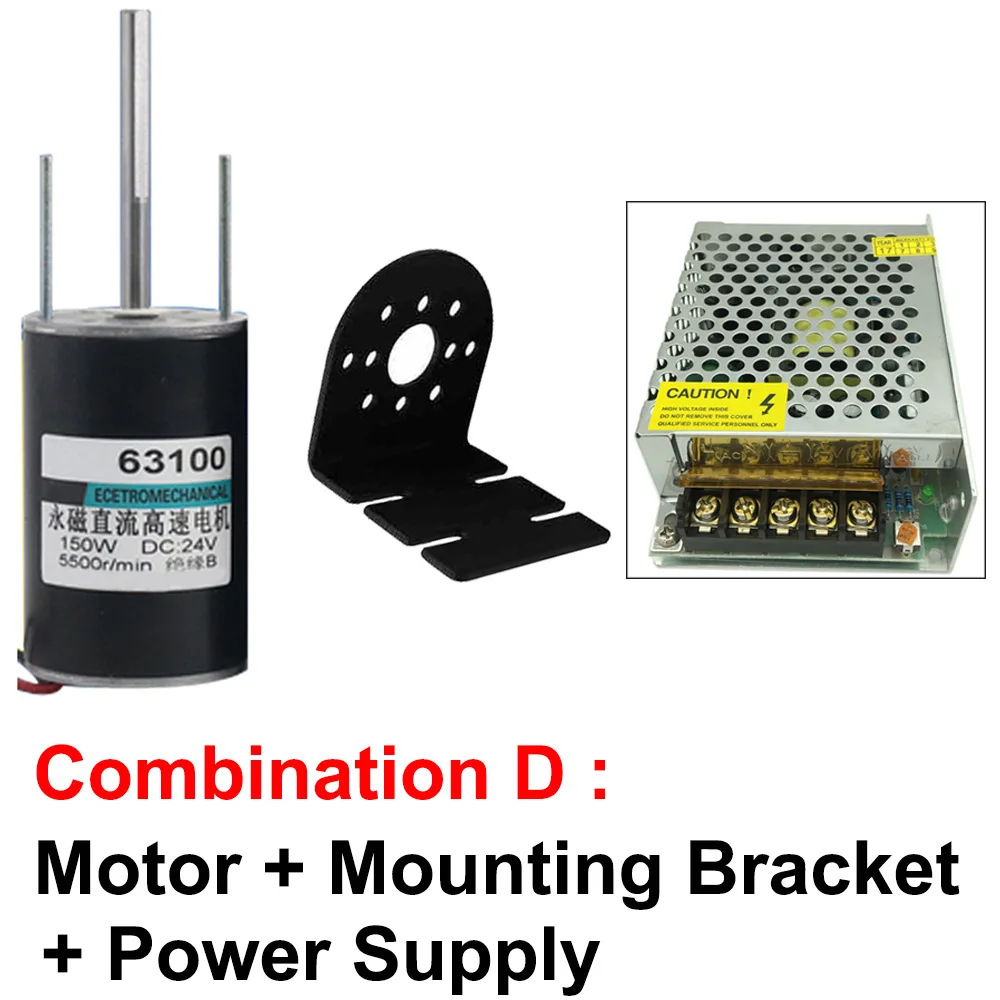

Combination A : You will receive a motor Combination B : You will receive a motor and mounting bracket Combination C : You will receive a motor and power supply ;For example, the voltage in your country is AC 110V Or AC 220V, but the voltage of this motor is DC 12V Or 24V, so the motor can't directly connect to your home power supply. You can solve this problem with this power supply, the input voltage of the power supply is AC 110V or AC 220V, the output voltage is DC 12V Or 24V, then the motor line can be connected to the power output DC interface Combination D : You will receive a motor ; a mounting bracket and power supply For example one, the speed of the motor you choose 12v 2000rpm and Combination A ; You will receive a motor with 12v 2000rpm For example two, the speed of the motor you choose 12v 2000rpm and Combination B ; You will receive a motor 12v 2000rpm and mounting bracket

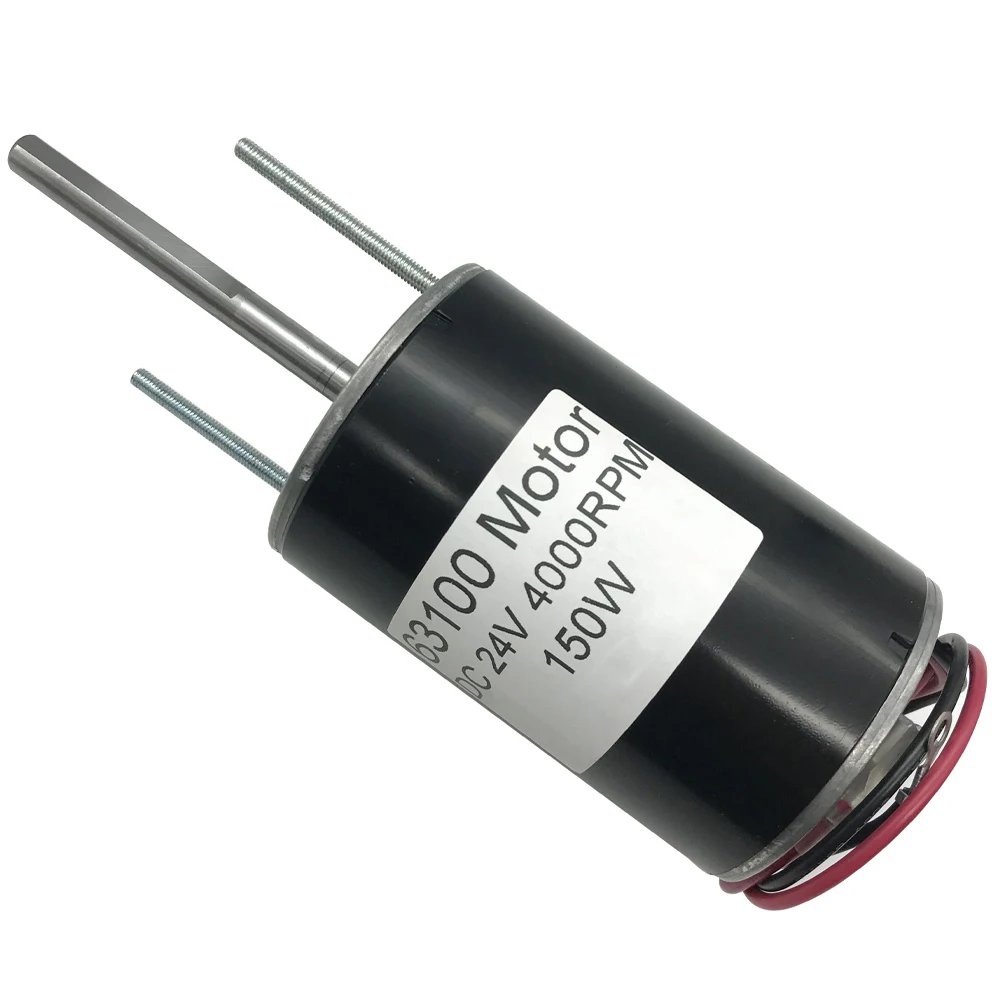

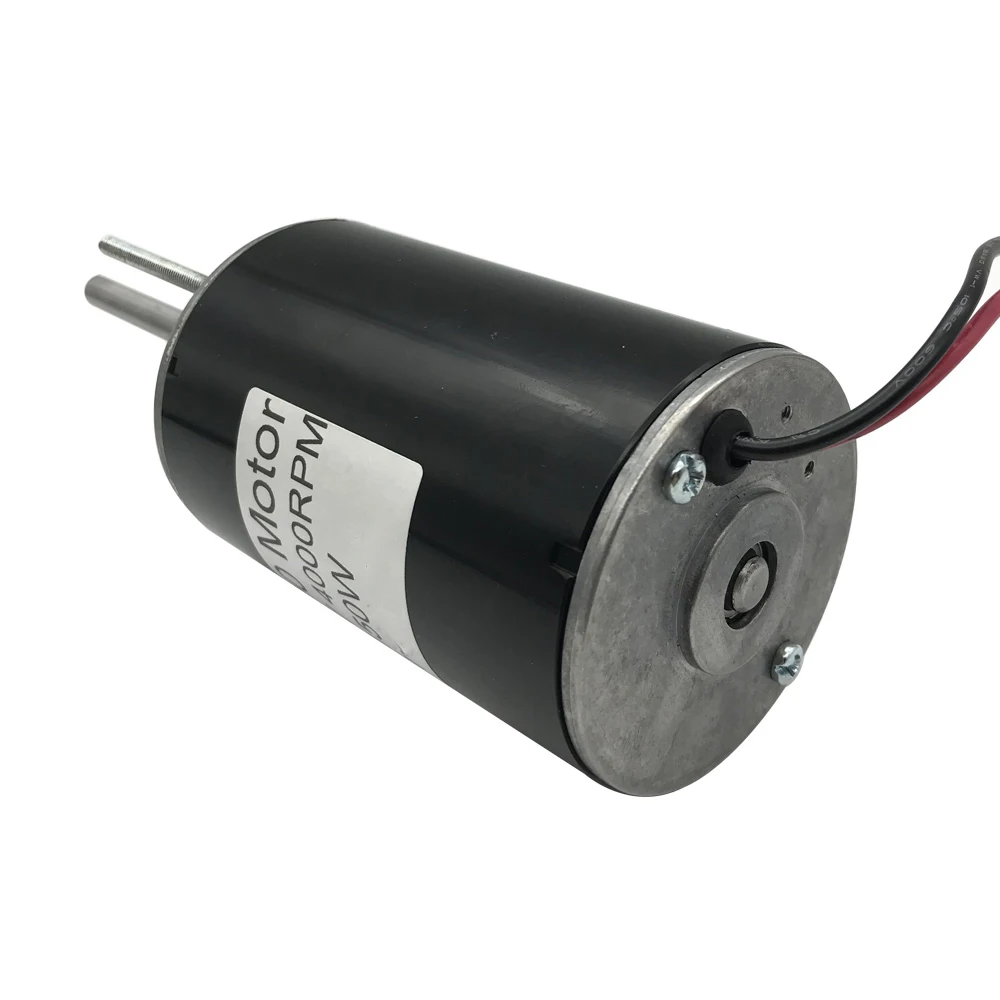

The following is the picture of the motor

Application
