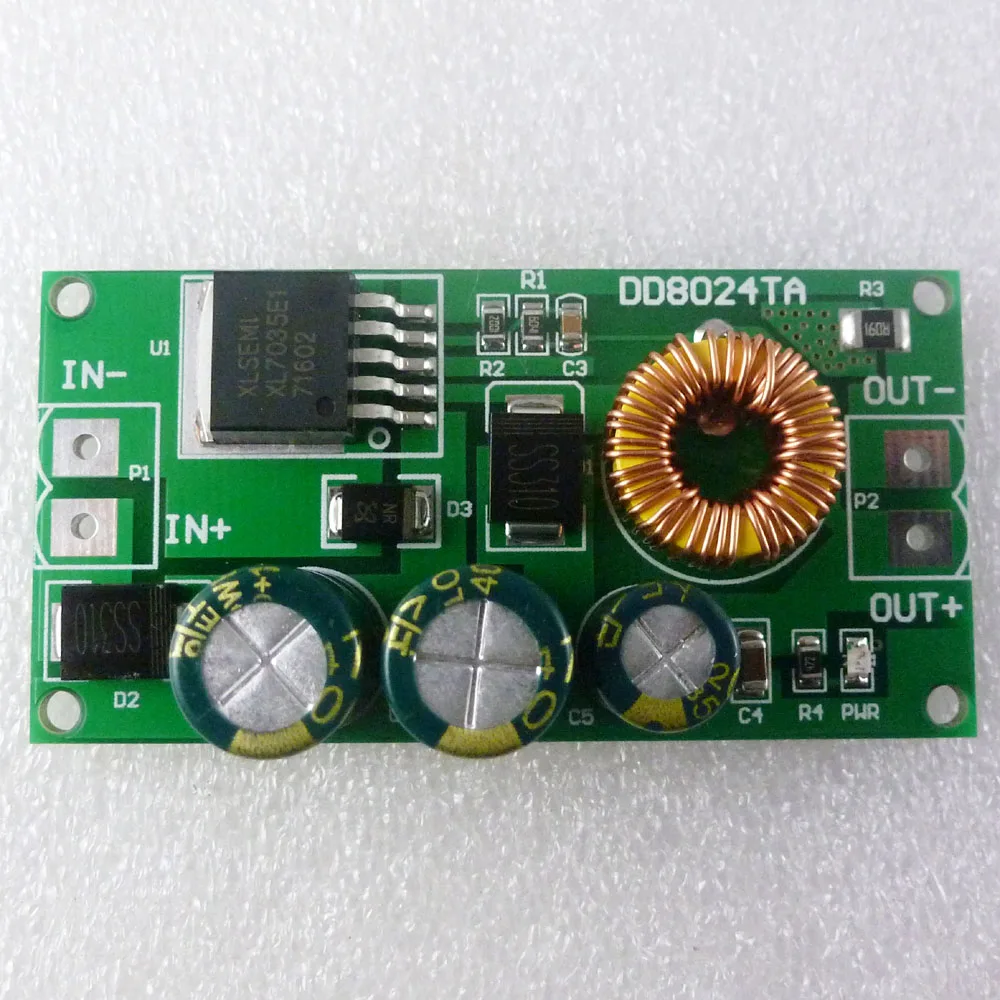

Product Name:  High-Voltage EBike DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 15V 12V 9V 6V 5V 3.3V

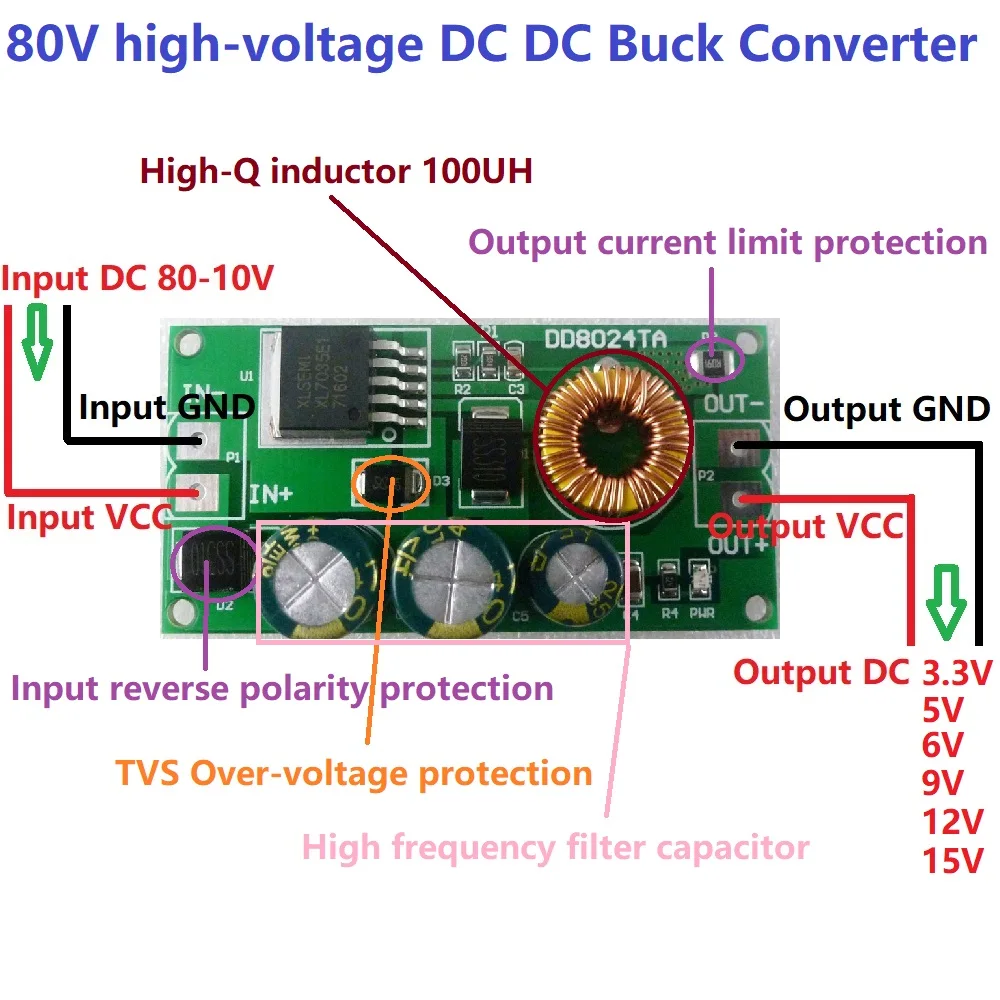

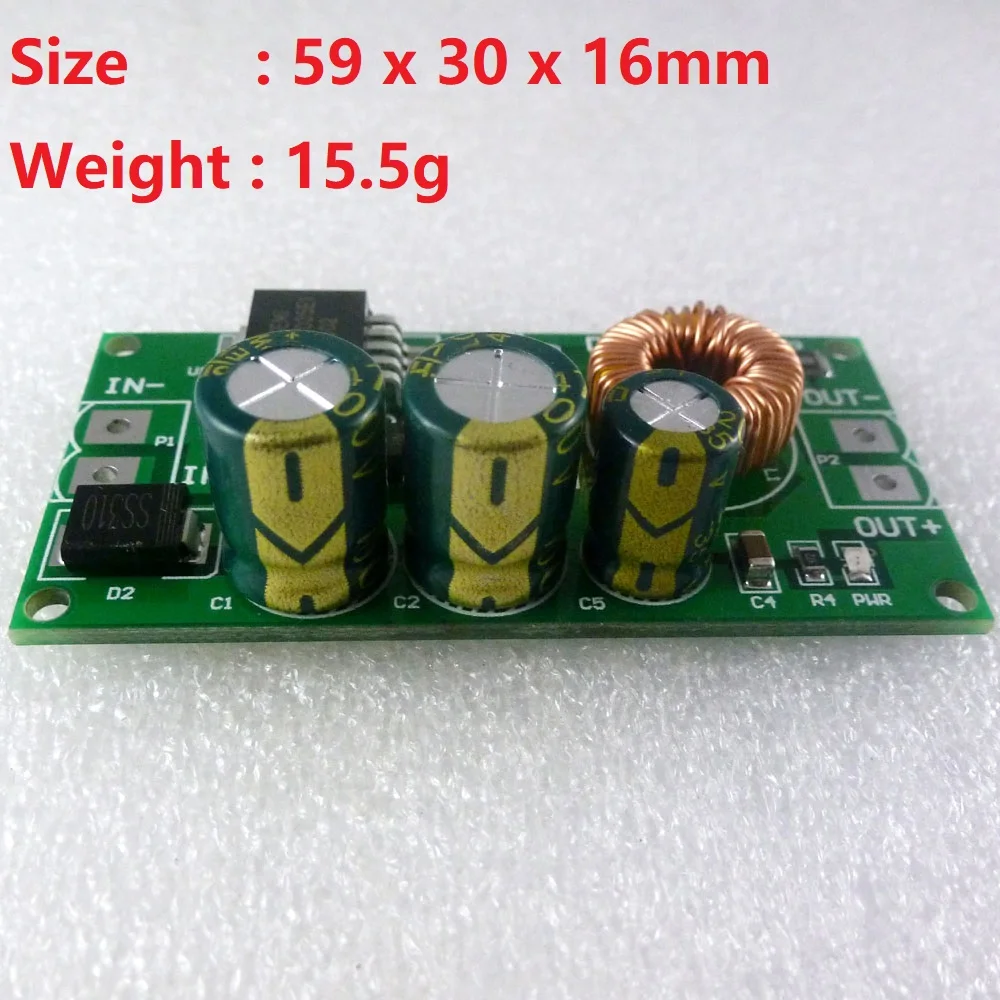

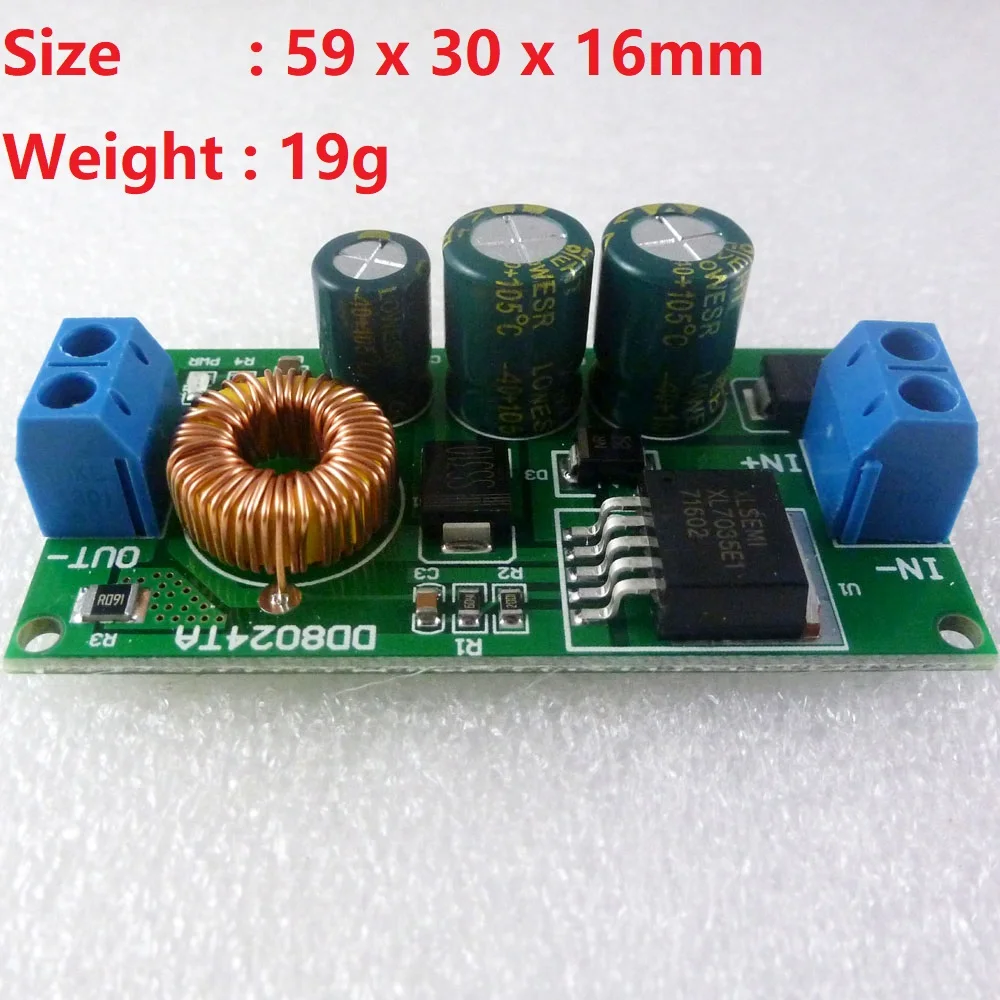

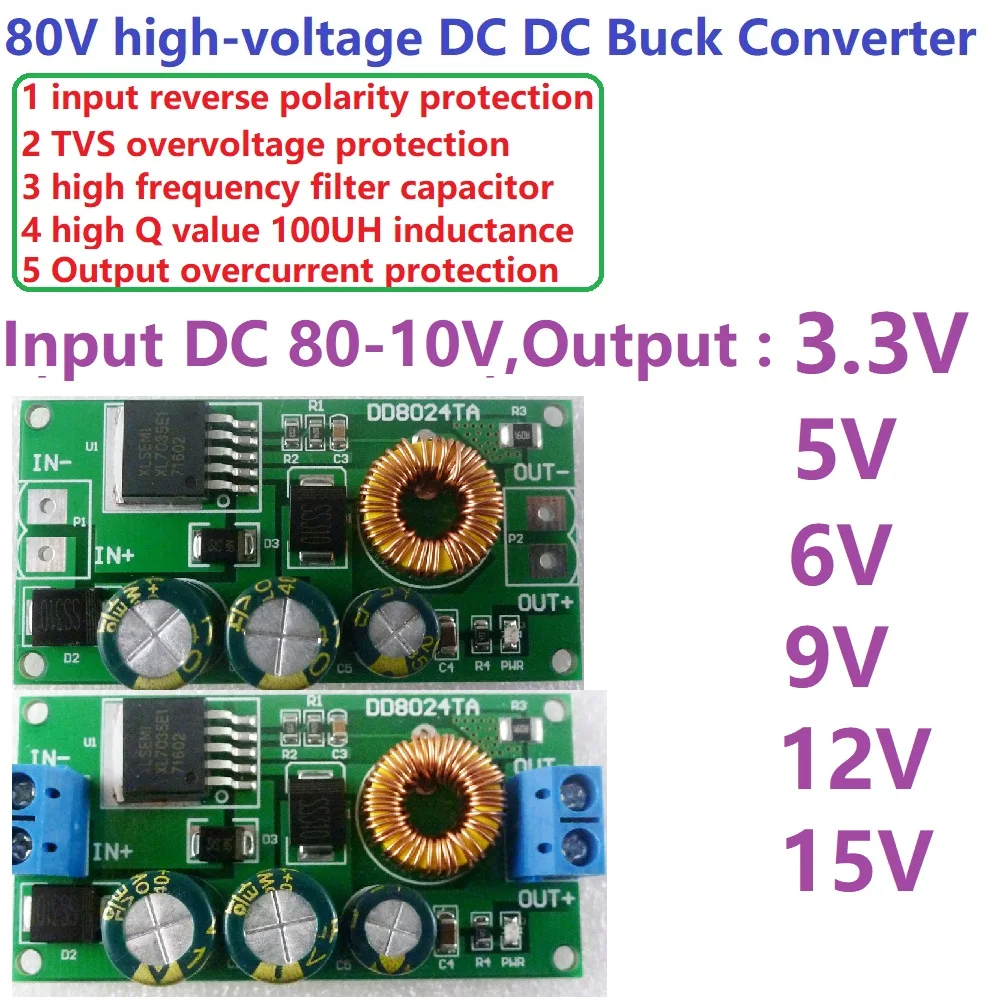

  Packing list:   1 PCS  High-Voltage DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 15V 12V 9V 6V 5V 3.3V      Description:   1 input reverse polarity protection 2 TVS overvoltage protection 3 high frequency filter capacitor 4 high Q value 100UH inductance 5 Output overcurrent protection 6 Over temperature protection 7 Output short circuit protection   For high power versions, Please click on the image below.         3.3V :    Input voltage 10~80V,output 3.3V   Maximum output current 1A   DC-DC high-voltage Step-Down Converter module working frequency 150KHz. Maximum conversion efficiency is 85% .   Quiescent current: about 2.5mA   Operating Temperature : –40°C to +85°C   Size : 59 x 30 x 16mm   Weight : With terminal 19g;No terminal 15.5g    5V :    Input voltage 10~80V,output 5V   Maximum output current 1A   DC-DC high-voltage Step-Down Converter module working frequency 150KHz. Maximum conversion efficiency is 85% .   Quiescent current: about 2.5mA   Operating Temperature : –40°C to +85°C   Size : 59 x 30 x 16mm   Weight : With terminal 19g;No terminal 15.5g    6V :    Input voltage 10~80V,output 6V   Maximum output current 1A   DC-DC high-voltage Step-Down Converter module working frequency 150KHz. Maximum conversion efficiency is 85% .   Quiescent current: about 2.5mA   Operating Temperature : –40°C to +85°C   Size : 59 x 30 x 16mm   Weight : With terminal 19g;No terminal 15.5g   9V :    Input voltage 10~80V,output 9V   Maximum output current 0.75A   DC-DC high-voltage Step-Down Converter module working frequency 150KHz. Maximum conversion efficiency is 85% .   Quiescent current: about 2.5mA   Operating Temperature : –40°C to +85°C   Size : 59 x 30 x 16mm   Weight : With terminal 19g;No terminal 15.5g   12V :    Input voltage 14~80V,output 12V   Maximum output current 0.75A   DC-DC high-voltage Step-Down Converter module working frequency 150KHz. Maximum conversion efficiency is 85% .   Quiescent current: about 2.5mA   Operating Temperature : –40°C to +85°C   Size : 59 x 30 x 16mm   Weight : With terminal 19g;No terminal 15.5g   15V :    Input voltage 17~80V,output 15V   Maximum output current 0.75A   DC-DC high-voltage Step-Down Converter module working frequency 150KHz. Maximum conversion efficiency is 85% .   Quiescent current: about 2.5mA   Operating Temperature : –40°C to +85°C   Size : 59 x 30 x 16mm   Weight : With terminal 19g;No terminal 15.5g      Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself





Applications:    Electric bicycle EBike motorcycle DC 80V 72V 64V 60V 48V 36V 24V  CCTV camera RS485 Modbus equipment Motor ​Toy Wifi Router Network equipment Multimeter instrumentation Electric toys Smart home / home automation Battery powered equipment
