EMPOWER SCIENTISTS AND ARTISTS OF THE FUTURE

For Arduino Education creates the next generation of STEM programs that empower students on their learning journey through middle school, high school, and university and help them thrive.

WHY CHOOSE ZHIYITECH?

Zhiyitech provide all necessary high-quality made hardware with each of our products, so teachers, students and beginners can focus on the learning experiences.

LEARN TODAY, FOR TOMORROW

Bring STEM lessons to the real world with zhiyitech hands-on kits built for blended learning. Take you on a fun and inspiring journey through the world of programming and electronics.

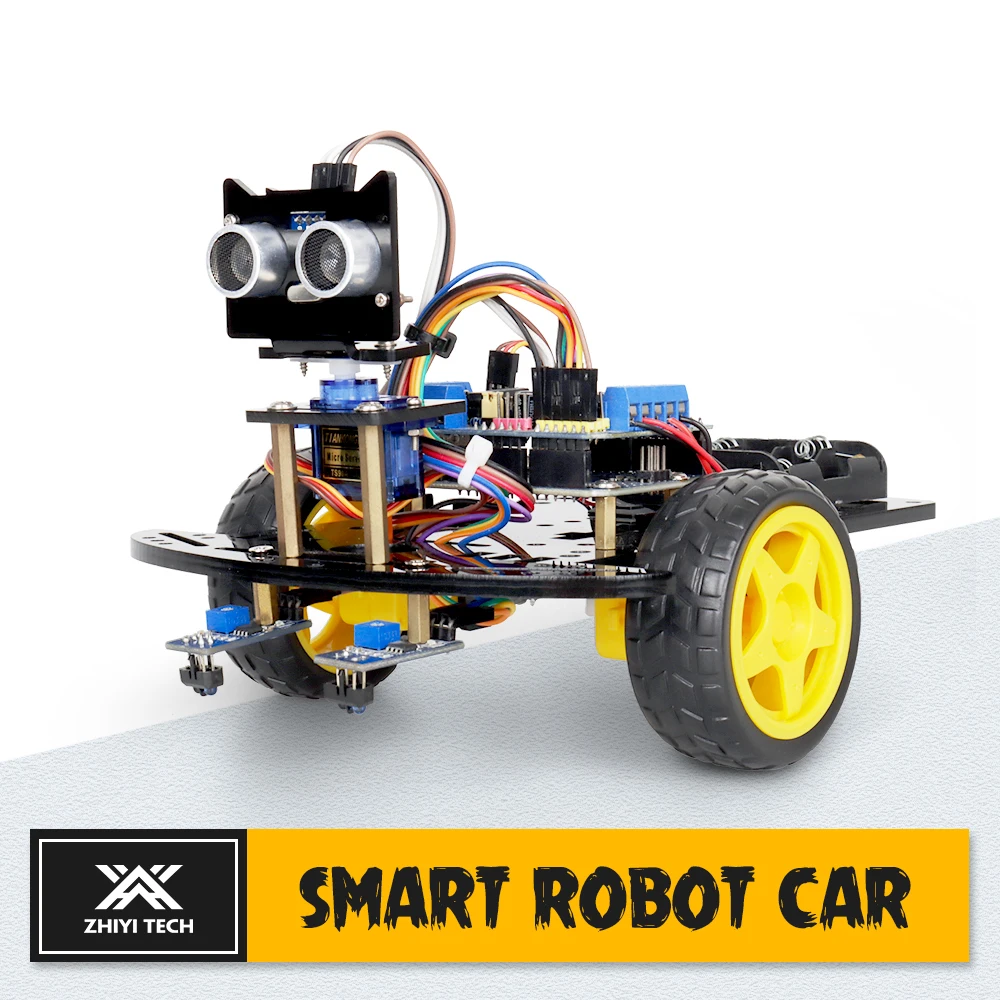

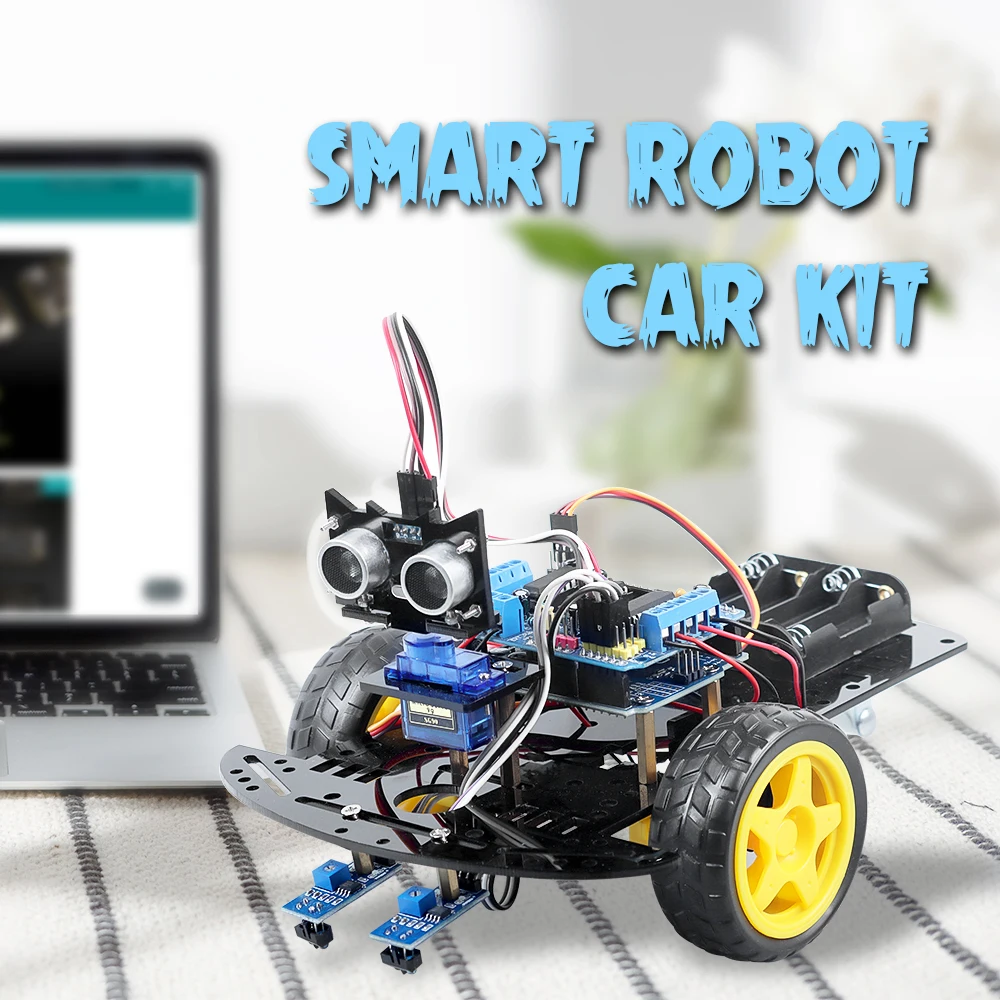

Description:

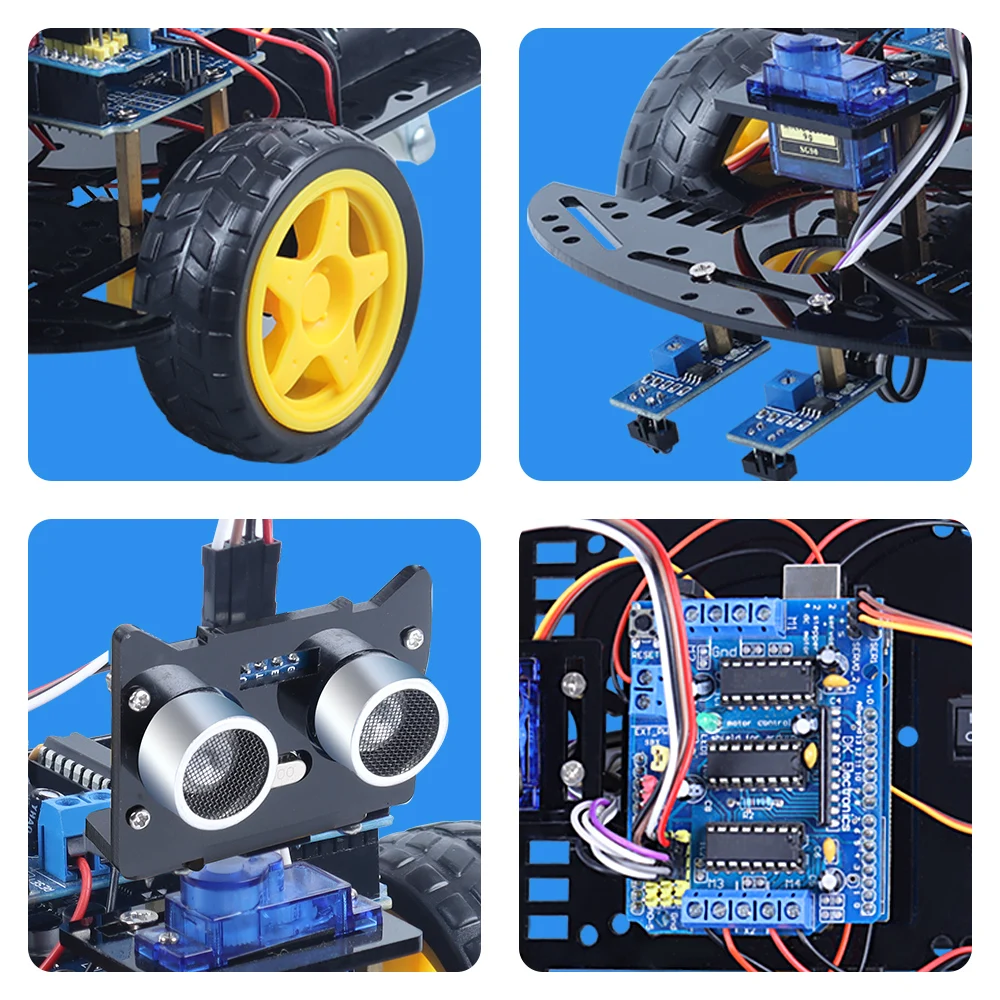

1. The main body of the chassis is made of laser-cut black acrylic plate, which can be fixed on both sides with two gear motors and one supporting universal casters.

2. It also has four AA (unattached) compartments with battery terminals protruding from the case for servicing from the top.

3. One side of each tt motor has fixed wheels, while the other side is connected to the code plate.The chassis has sufficient holes and openings for mounting sensors, servos, motor drivers and control modules.

4. This kit can be used to build robots for range sensing, obstacle avoidance, line follower, flame detector, speed tester, wireless remote control car, and any other creative work.

Feature:

1. This is a cost-effective and interesting robotic car kit, with simple mechanical structure, beautiful system and easy installation.

2. Use the tutorial to write code, which will take you into the world of intelligent programming robot world.

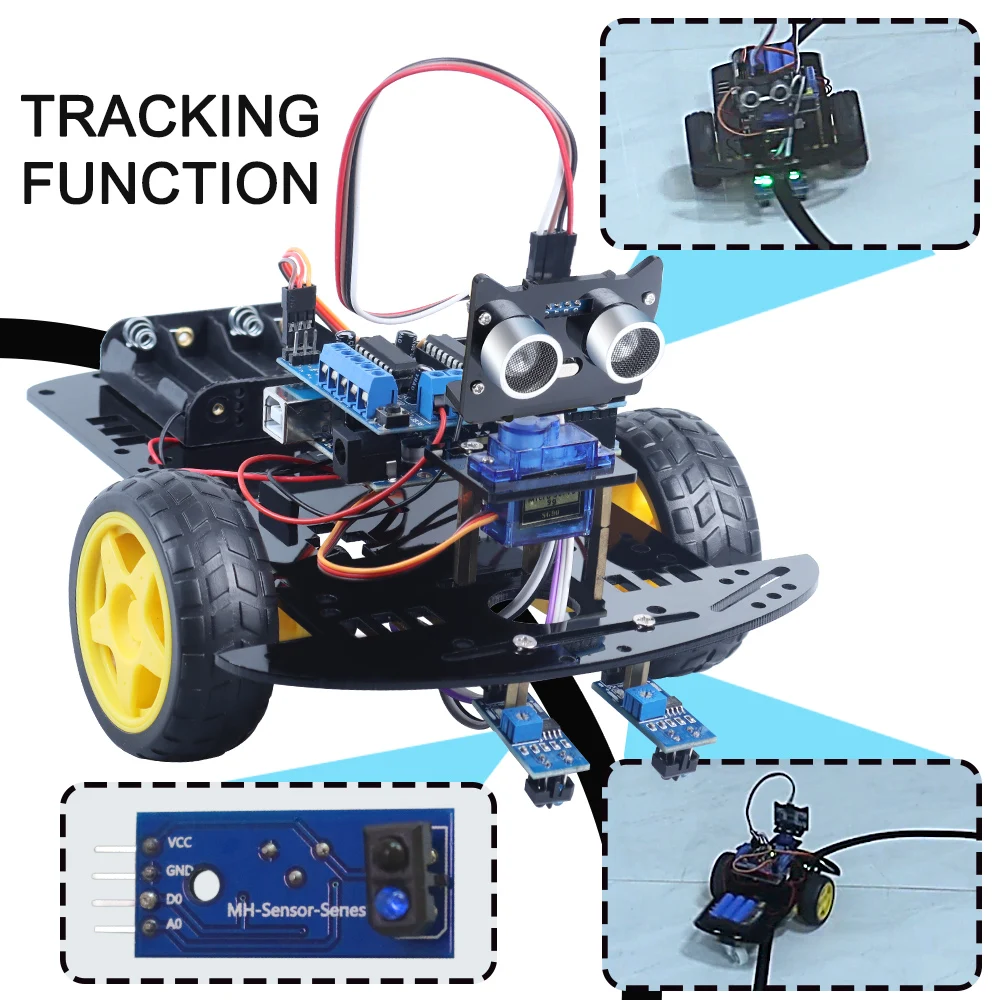

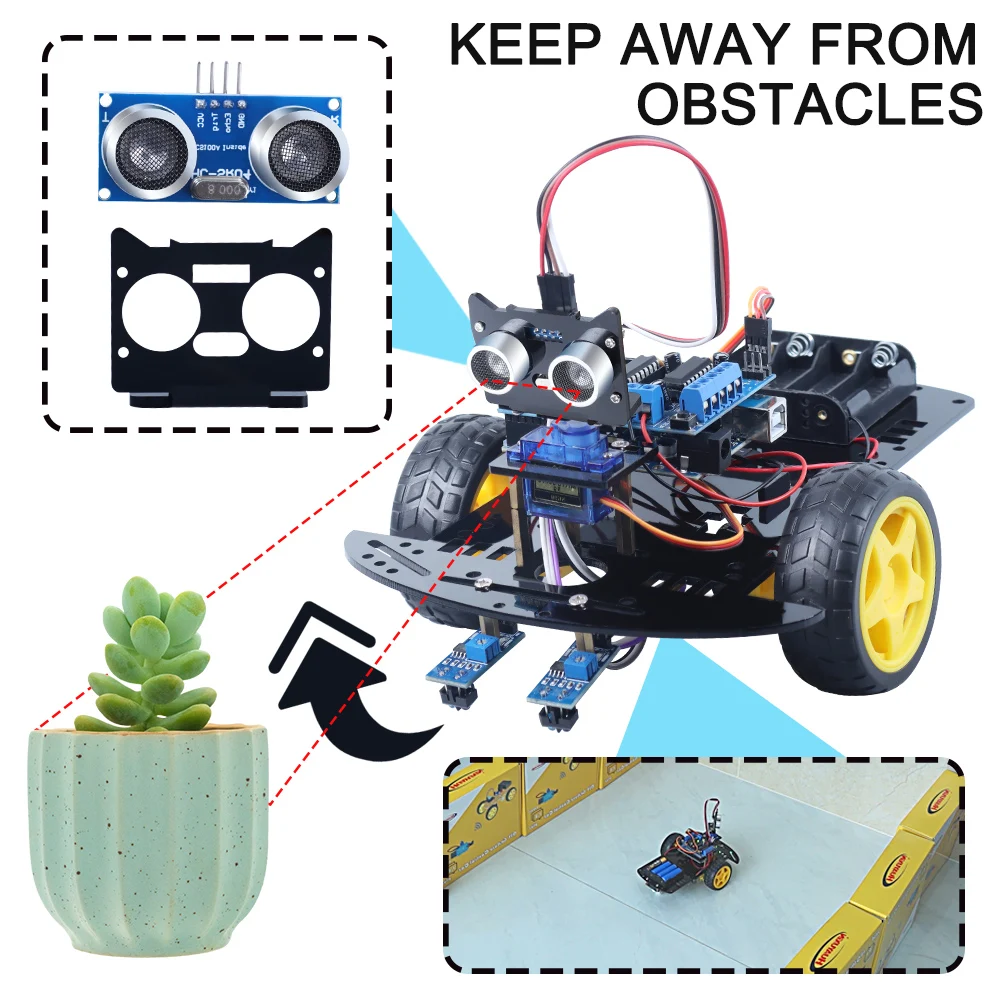

3. Keep the car away from obstacles with a lively and interesting ultrasonic sensor suite; at the same time, two infrared tracking modules are used to make the smart car have the line tracking function.

Specification

Motor voltage range: 1-6V

Motor shaft length: 10mm

Motor gear ratio: 1:48

Speed: 6.0V 100rpm / min

Wheel diameter: 66mm

Chassis material: Acrylic

Package: Standard Anti-static Poly Bag Plastic Box

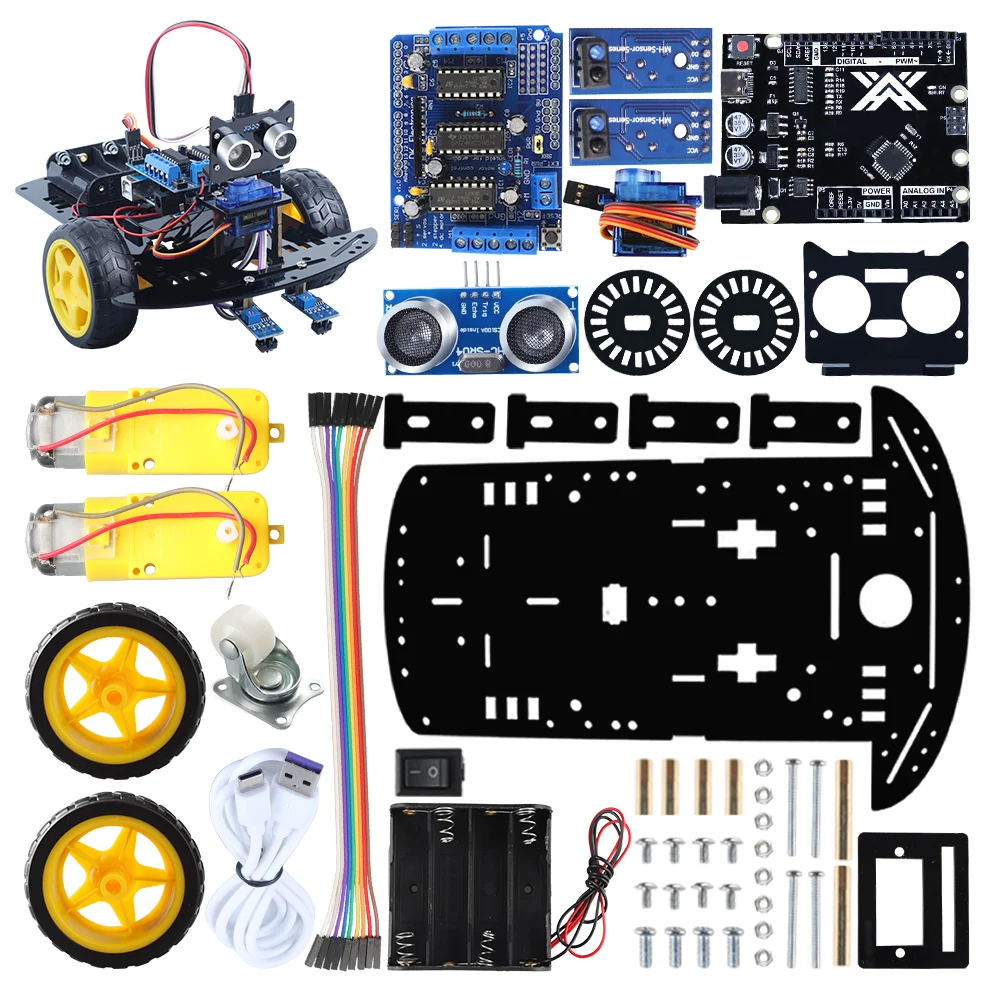

Packing List:

1 piece x 2WD Smart Car Chassis with 4 AA holder

1 piece x ATmega328 Development Board Improved Version

1 piece x L293D Motor Drive Shield Expansion Board

1 piece x Ultrasonic Sensor HC-SR04 and acrylic bracket

2 pieces x TCRT5000 Infrared Reflective Sensor Tracking Module

1 piece x SG90 180 Degrees 9G Micro Servo and acrylic bracket

10 pieces x 20cm Female to Female 40Pin Jumper Wire

NOTE: Due to the shipping reason, We'll ship the kit in pieces, not an assembled set, and doesn't contain batteries.
