5PCS Normally closed KSD301 temperature control sensor 10A 250V 40/45/50/55/60/65/70/75/80/85/90/95℃ Sensors - купить

Купить 5PCS Normally closed KSD301 temperature control sensor 10A 250V 40/45/50/55/60/65/70/75/80/85/90/95℃ | Sensors

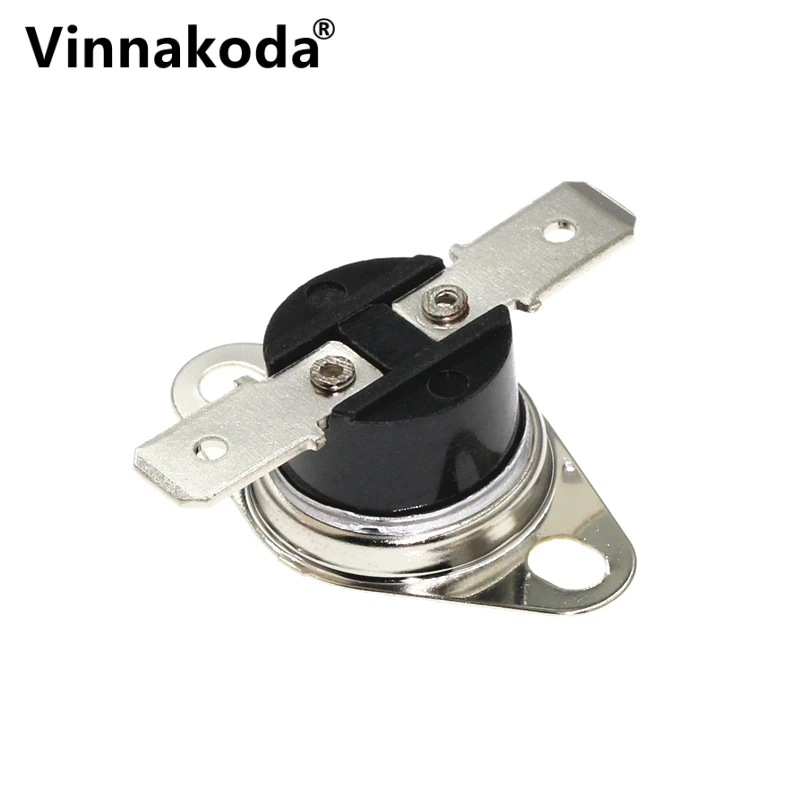

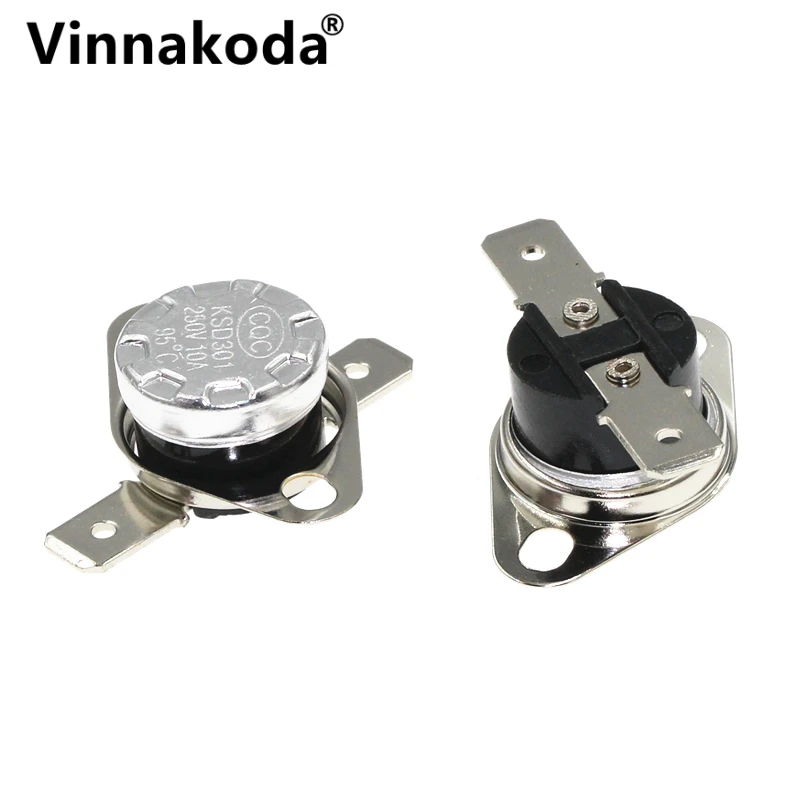

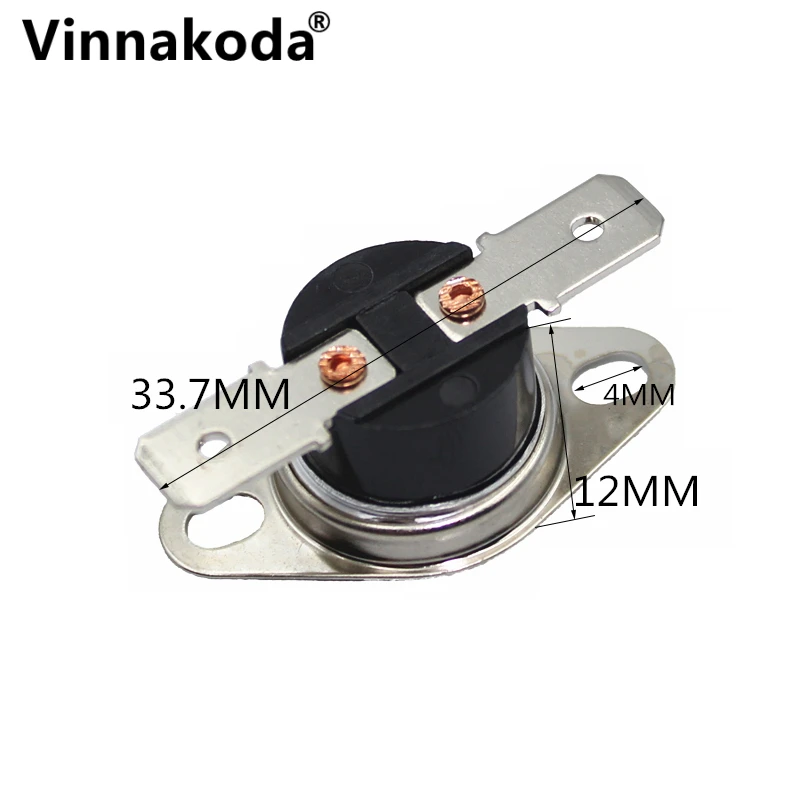

Product name: Sudden jump temperature control switch

Product name: Sudden jump temperature control switch

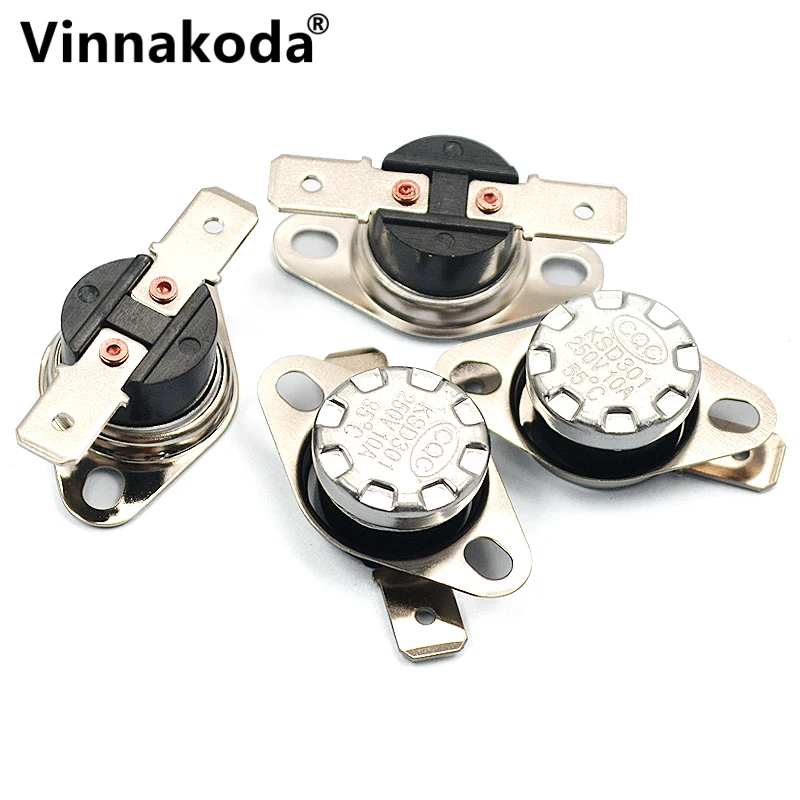

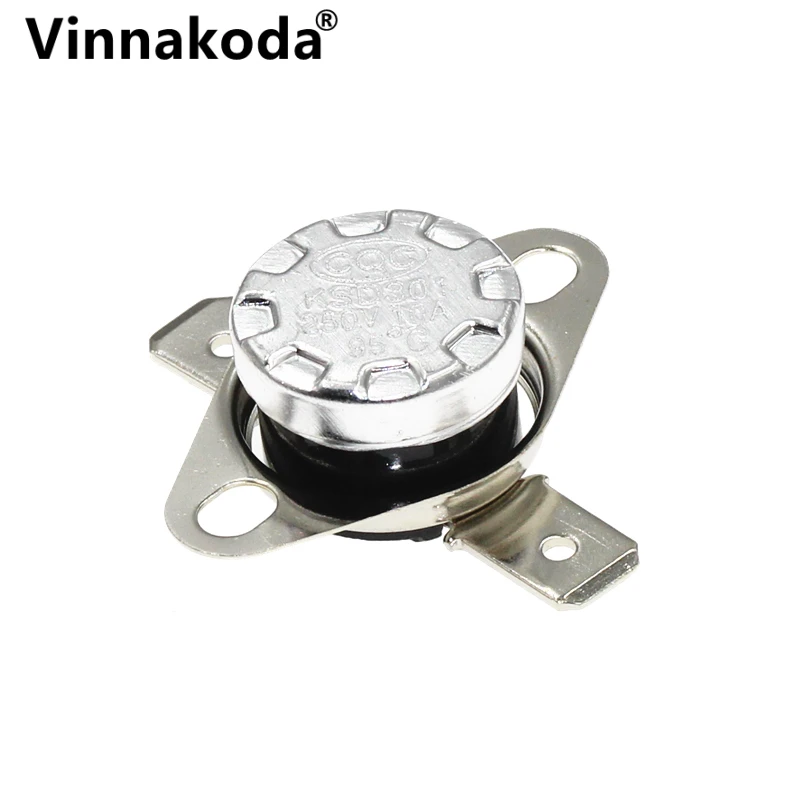

Model: KSD301

Body material: ceramic (this)

Switch type: normally closed / normally open

Working voltage: 250V

Overload current: 10A,

Action temperature: 0 degrees to 300 degrees (℃)

Life: 50000 (times)

Product features, usage and working principle

The company specializes in the production of various series of bimetal thermal protectors, thermostats, temperature switches and RH low melting point alloy thermal fuses. The products are assembled from various imported materials, sophisticated production equipment, and complete testing methods. The company has strong technical force and rich production experience as a strong backing for quality assurance.

Product features: bimetallic type, contact sensor, quick-acting type, sensitive, reliable, safe, fixed operating temperature, long service life, no arc phenomenon.

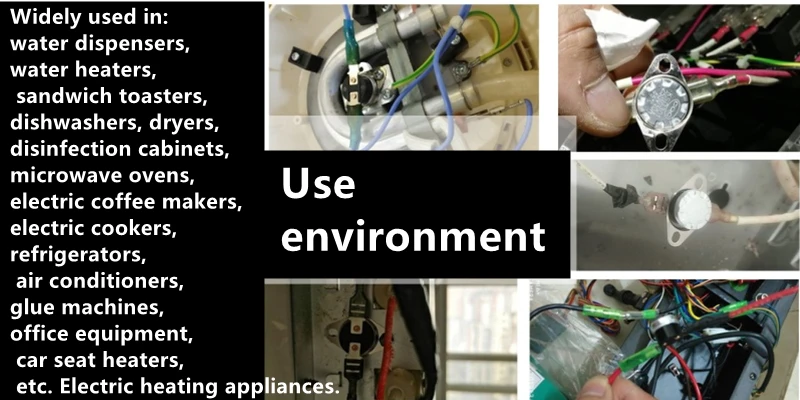

Product use: Mainly used in electrical appliances such as motor-motor water dispensers, electric boiling water bottles, disinfection cabinets, coffee shells, electric irons, clothes dryers, air conditioners, water heaters, electronic clay pots, heaters, detox cupboards and motor vacuum cleaners.

Working principle: Since the disc-shaped bimetallic sheet is used as the temperature sensing component, the working principle of the thermostat is: when the temperature rises, the disc-shaped sheet will deform correspondingly, and when the temperature reaches the disc-shaped sheet, the deformation will occur. When the value is reached, the sudden jump of the disc relies on the mechanical transmission of other devices to make the contacts move quickly to connect or cut off the current.

Technical specifications:

1) Rated voltage: 250V/10A,

2) Action temperature accuracy: ±3, ±5

3) Operating temperature range: 0℃-300℃ (other specifications can be specially designed according to needs).

4) Contact life: more than 50000 times (number of actions)

5) Contact resistance: less than 100m (can be customized according to design requirements)

6) Electric strength: AC50Hz, 2000V/min, no breakdown and arcing.

7) Insulation resistance: more than 100 m (DC500V ohmmeter)

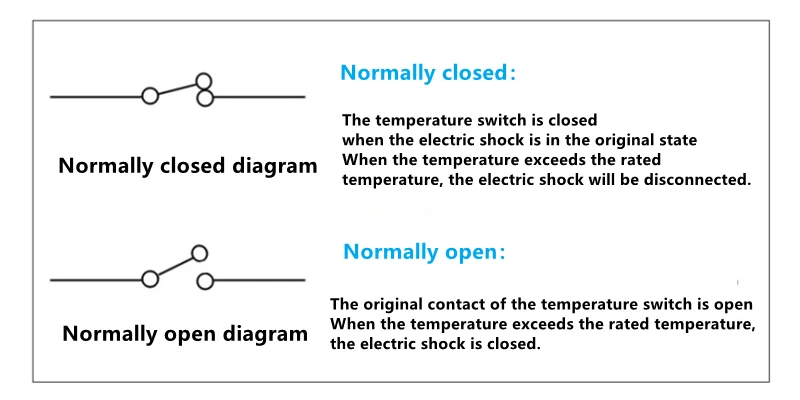

8) Contact status: normally closed (normally open) at room temperature, the contact opens (closed) when the temperature reaches the preset point

9) Heat resistance: operating temperature +35℃

KSD301 temperature switch thermostat normally closed temperature control normally closed 45 degrees to 170 degrees have an interval every 5 degrees

45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170

Electric pressure cooker electric rice cooker/disinfection cabinet/water dispenser fast electric kettle KSD301 sudden jump thermostat switch KSD301 thermostat switch thermostat normally closed thermostat
