NFLIXIN Variable Frequency Drive Single Phase 220VAC Input 3-Phase 380VAC Output 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW Frequency Converter Motor Drive VFD

Promotion: This product is changed to a black model

1.Output Power: 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/11kw

2.Rated Frequency :50hz/60hz

3.Output Frequency Range:0~400Hz

4.Input Voltage Range:1 phase (1 phase) 220V±15%

5.Output Voltage Range:3 phase 380V±15%

6.Control way: Open loop vector control(SVC) V/F control

7.Main function: Control and adjust the speed of the ac motor

Feature:

1. Humanized keyboard design, convenient operation and clear display

2. The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable

3. Double-layer board design, reasonable structure and safety, greatly reducing the failure rate

4. Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety

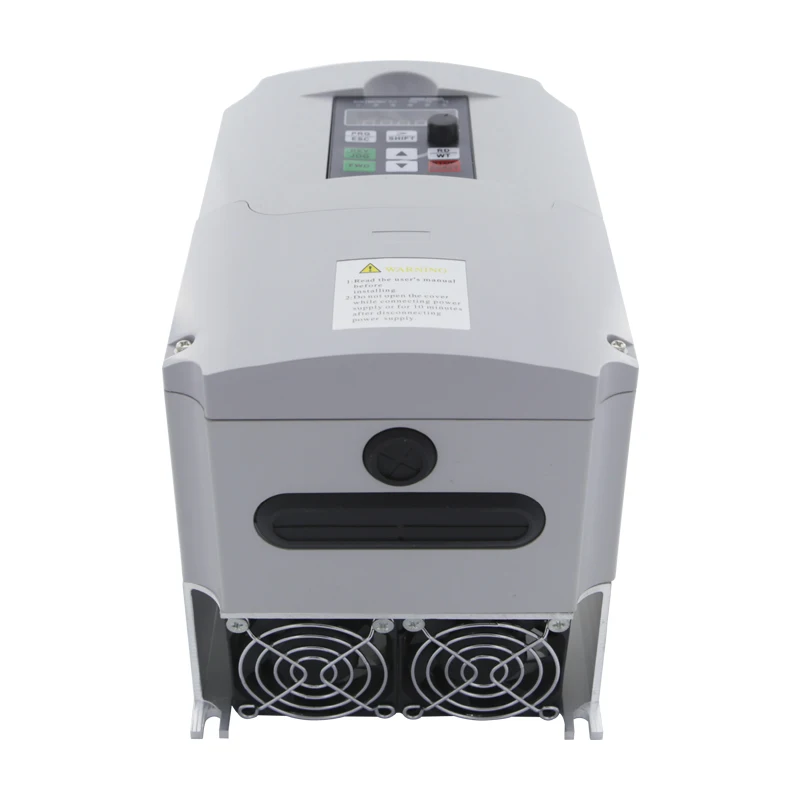

5. Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation

6.Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.

Specification:

IteItem Type: Variable Frequency Drive

Brand: NFLIXIN

Model: 1T3-00075G / 1T3-00150G / 1T3-00220G / 1T3-00400G / 1T3-00550G / 1T3-00750G / 1T3-01100G

Input Voltage: AC 1PH 220V ± 15% 50Hz-60Hz

Output Voltage: AC 3PH 0V-380V 0Hz-650Hz

Matching Motor Power: 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW

Rated Current: 2.5A / 3.7A / 5A / 8.5A / 13A / 16A / 25A

Voltage Type: AC220V to AC380V

Output Voltage Adjustment Mode: PWM control

Control Method: Current vector

Filter: Built-in filter

Protection Level: IP20

Product Function:

Low frequency and large torsion

Sensorless vector control

Standard V / F control

Multi-speed adjustable

Built-in RS485 communication

Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower

Demonstration video of inverter from 220V to 380V 11kw

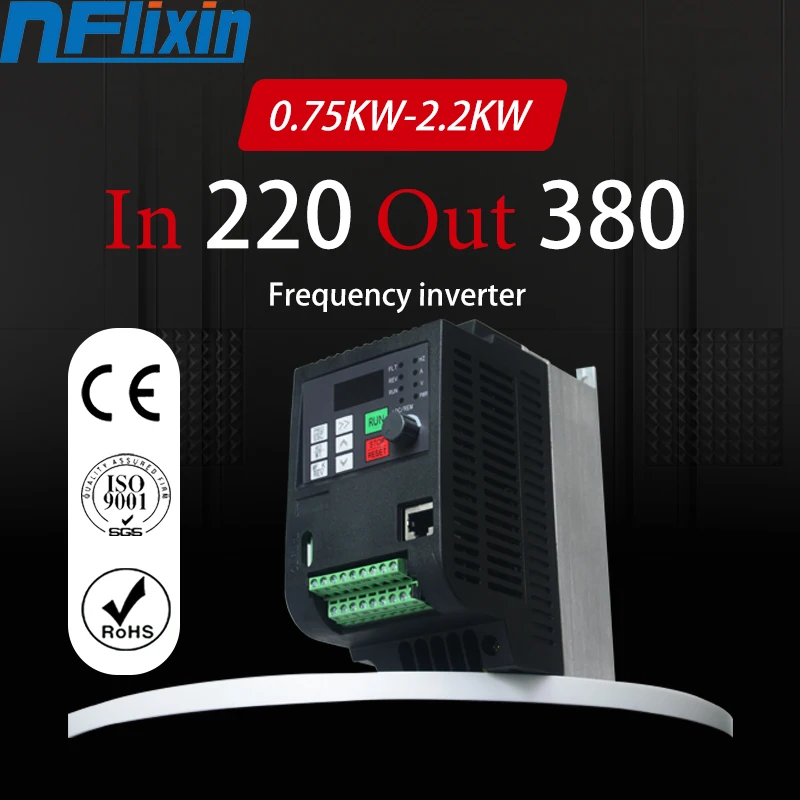

220V TO 380V 0.75KW / 1.5KW / 2.2KW Frequency inverter

Size: 85mm*125mm*150mm

Dear buyer, please contact me if you need instructions.

1.Output Power:0.75KW/1.5KW/2.2KW

2.Rated Frequency :50hz/60hz

3.Output Frequency Range:0~400Hz

4.Input Voltage Range:1 phase 220V±15%

5.Output Voltage Range:3 phase 380V±15%

6.Control way: Open loop vector control(SVC)      V/F control

7.Main function: Control and adjust the speed of the ac motor

8.Size: 82mm*135mm*155mm

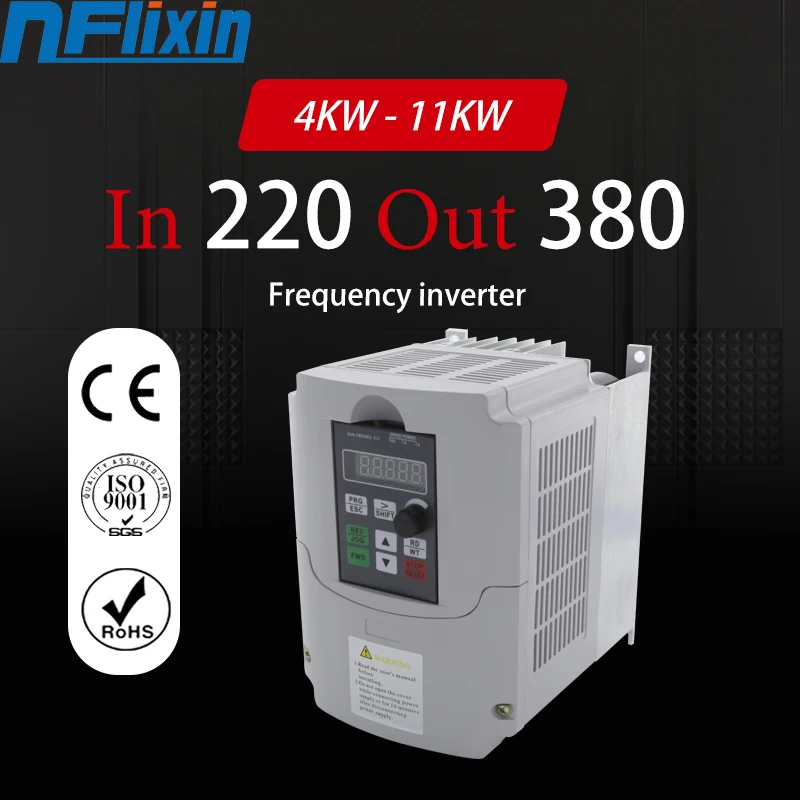

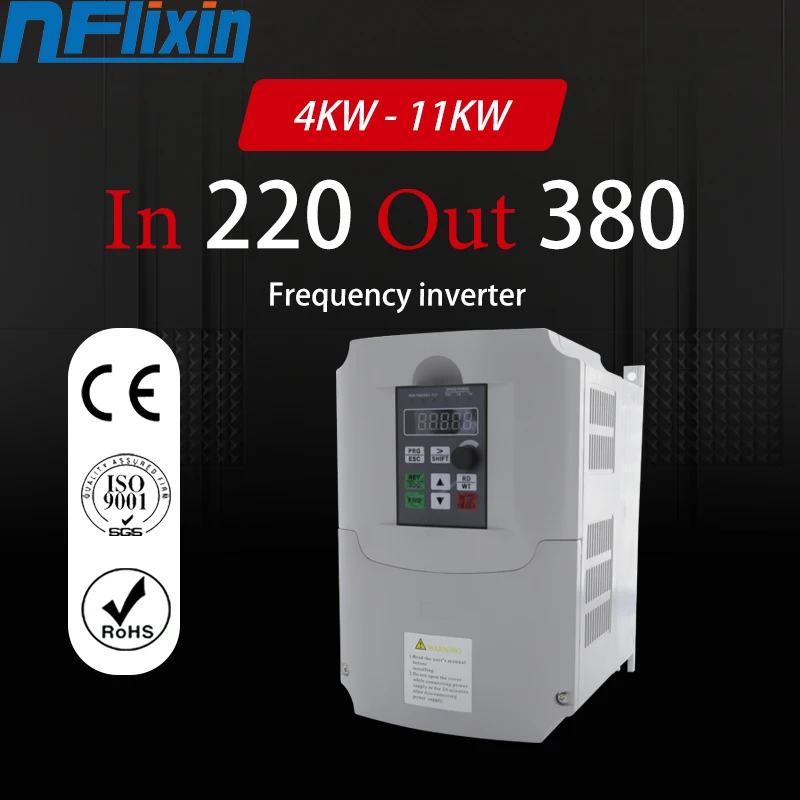

220V TO 380V 4KW / 5.5KW Frequency inverter

Size: 172mm*125mm*165mm

Dear buyer, please contact me if you need instructions.

1.Output Power:4KW/5.5KW

2.Rated Frequency :50hz/60hz

3.Output Frequency Range:0~400Hz

4.Input Voltage Range:1 phase 220V±15%

5.Output Voltage Range:3 phase 380V±15%

6.Control way: Open loop vector control(SVC)      V/F control

7.Main function: Control and adjust the speed of the ac motor

8.Size: 172mm*125mm*165mm

220V TO 380V 7.5KW / 11kw Frequency inverter

Size: 220mm*152mm*179mm

Dear buyer, please contact me if you need instructions.

1.Output Power:7.5kw/11kw/

2.Rated Frequency :50hz/60hz

3.Output Frequency Range:0~400Hz

4.Input Voltage Range:1 phase 220V±15%

5.Output Voltage Range:3 phase 380V±15%

6.Control way: Open loop vector control(SVC)      V/F control

7.Main function: Control and adjust the speed of the ac motor

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:

1 V/F control, vector control  and output torque control;

2 Built-in RS-485 communication interface

3Compact size, easy to install;

4 With a speed potentiometer and external panel;

5 Built-in synchronous control and proportional synchronization control;

6 16 speed control modest,Can run automatically;

7 Can choice multiple running commands or frequency channel;

8 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);

9 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;

10 6 digital opto-isolated inputs, 100 kinds of ways optional;

11 3 analog input, 1 analog output channel;

12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;

13 Built-in user timer / counter;

14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.

15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.
