Комплект для сварки платы 12V с использованием точечной сварки: инструменты и устройства аккумуляторов 18650/26650/32650 - купить

Купить Домашний набор для сварки платы цепи 12V PCB Spot Welder Welding Pen Tool Kit Device для аккумулятора 18650/26650/32650 Machine on.

Brand NameNoneModel NumberDIY PCB Circuit Board For Spot WeldersOriginMainland ChinaCertificationNONEUsageSpot WeldingIs Smart DevicenoRated Capacity12VMax. Welding Thicknessabout 0.1mm-0.15mmMeasurement unitpiece/piecesEach pack11 907,52 ₽-30%1 907,52 ₽-30%1 334,79 ₽1 334,79 ₽there are seller's couponsAdd to CartBuy now1 334,79 ₽loaderDescription

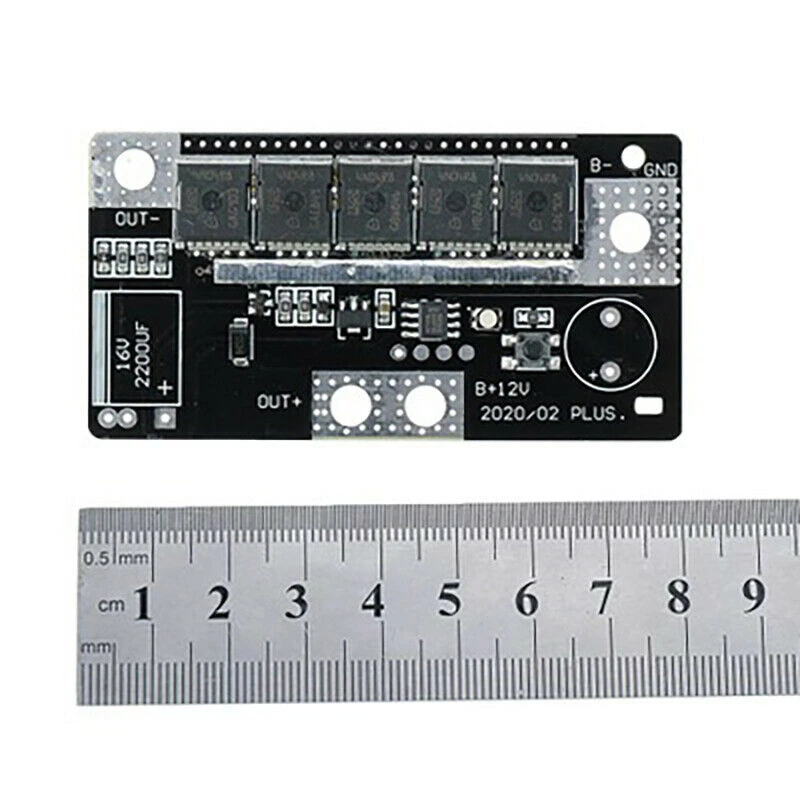

This product is very useful in daily life, with an battery, it will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries practical, easy to operate and use, wide application range, has a long service life. Come on and try it.

Features:
There is a window on the back of the drive part, you can add copper or tin by yourself.
The external pads for the LED and the on-board buttons are added to facilitate the connection of the LEDs and buttons on the board to other places.
The upper and lower MOS design is bold and tinned to make the internal resistance smaller and the current stronger.
Using 25V low internal resistance and high frequency capacitors makes the power supplies more stable.
This circuit with a 12-V battery will become an energy storage spot welding machine for welding nickel pieces such as lithium batteries and nickel-chromium batteries. According to different configurations, the thickness can be about 0.1mm-0.15mm

Specifications:
Material: PCB
Suitable for: 18650/26650/32650 lipo battery
System voltage: 12-V-14.6V
Working current: 90-150A
Suggested battery: (not included)
20-45ah Lead-acid battery with fine performance and small internal resistance
3.5-5.5ah 45C 3S aeromodel lithium battery pack
30-35ah capacity 18650 battery pack
Package size: 190 * 110 * 30mm / 7.5 * 4.3 * 1.2in


Note:
If the battery is pretty  and the internal resistance is very low, and then there may be large current overload.
If you are not sure about your battery, it's better to extend the wire by around 1 meter with 2.5² or 4² wire, then it will reduce the risk of power tube burnt.

Packing list:
1 x Spot Welder Set

---
