Specification:

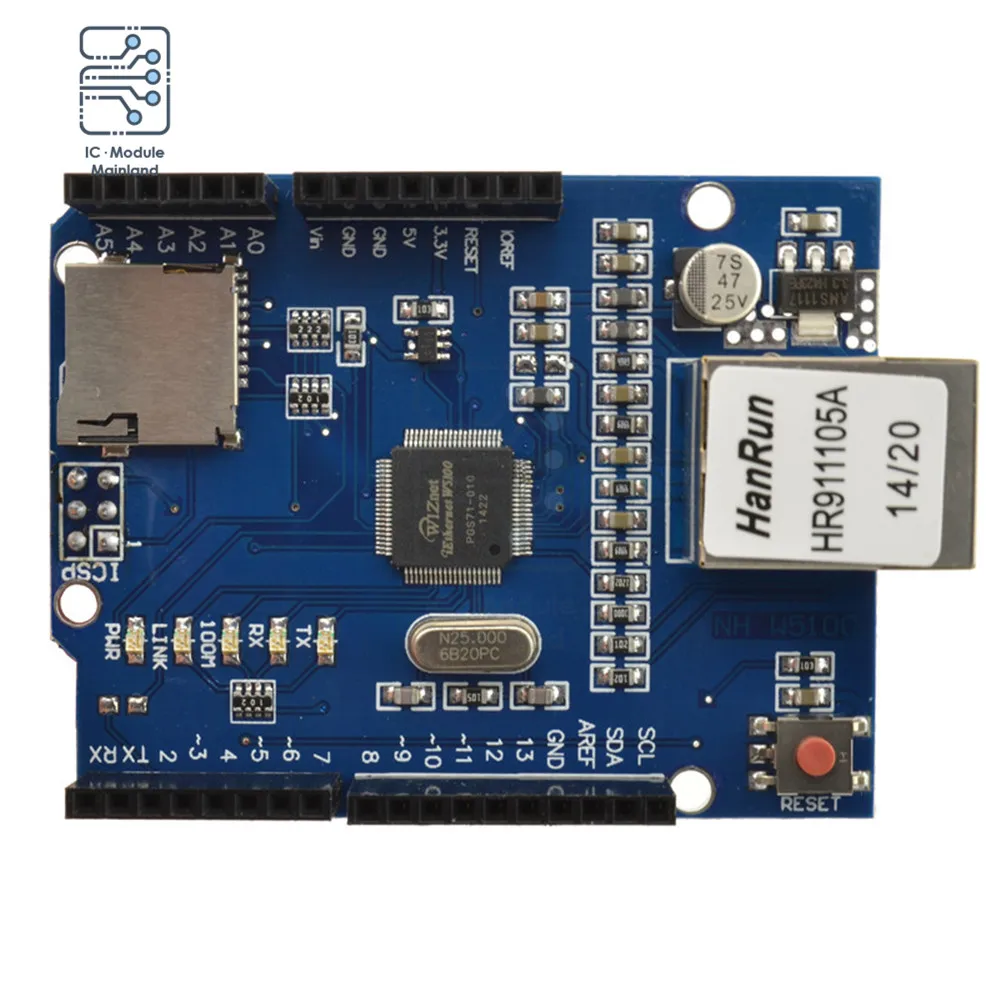

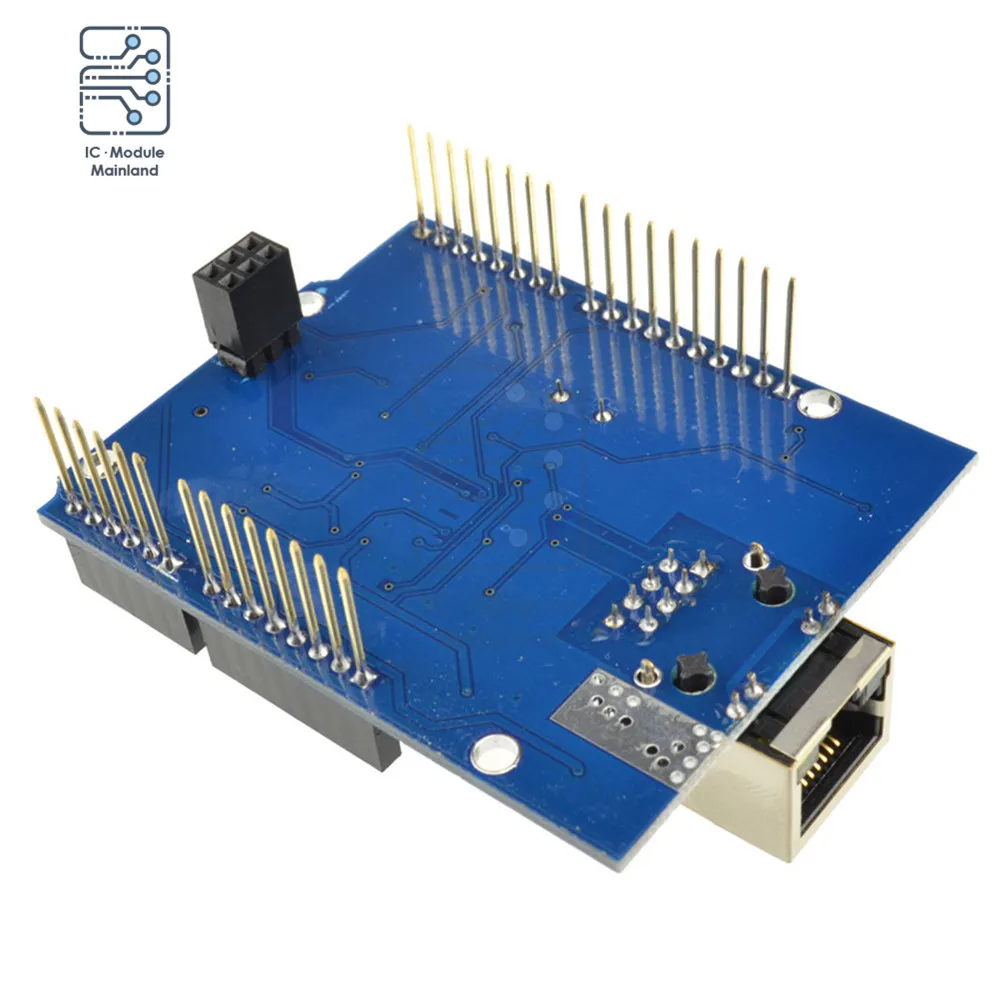

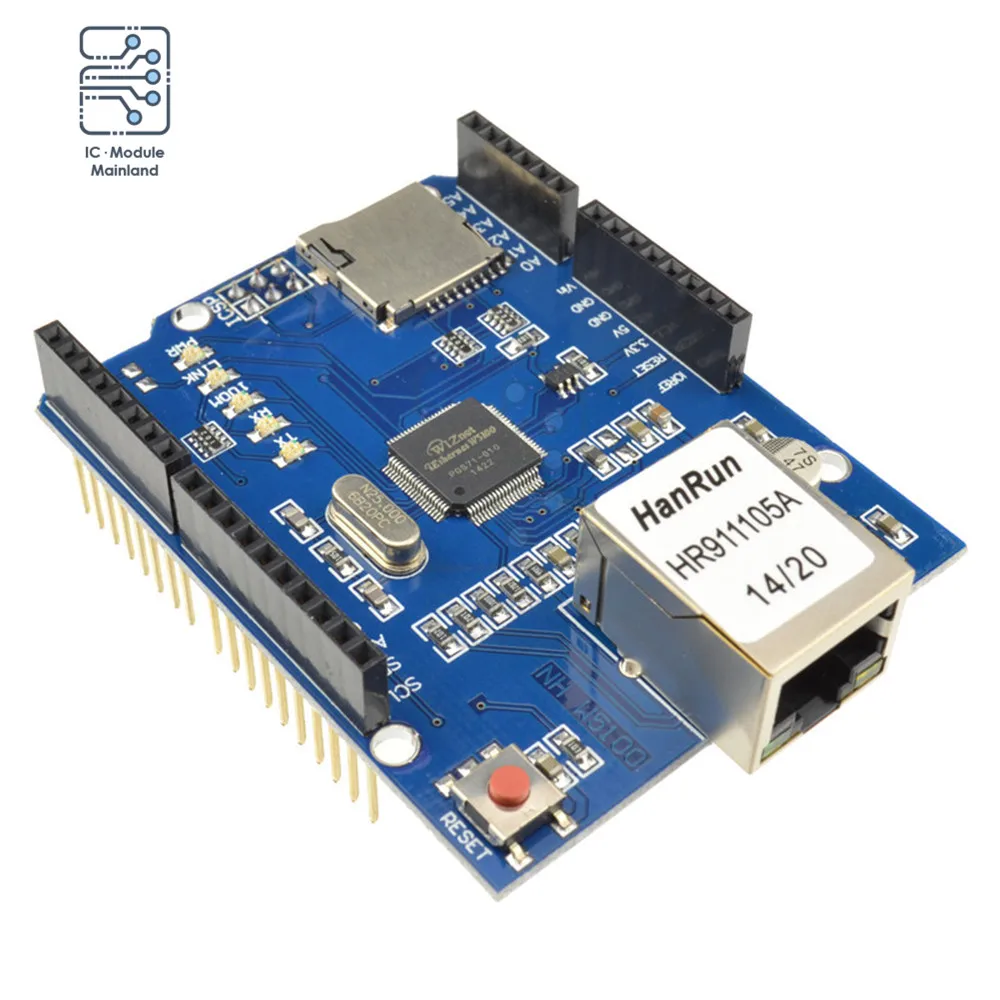

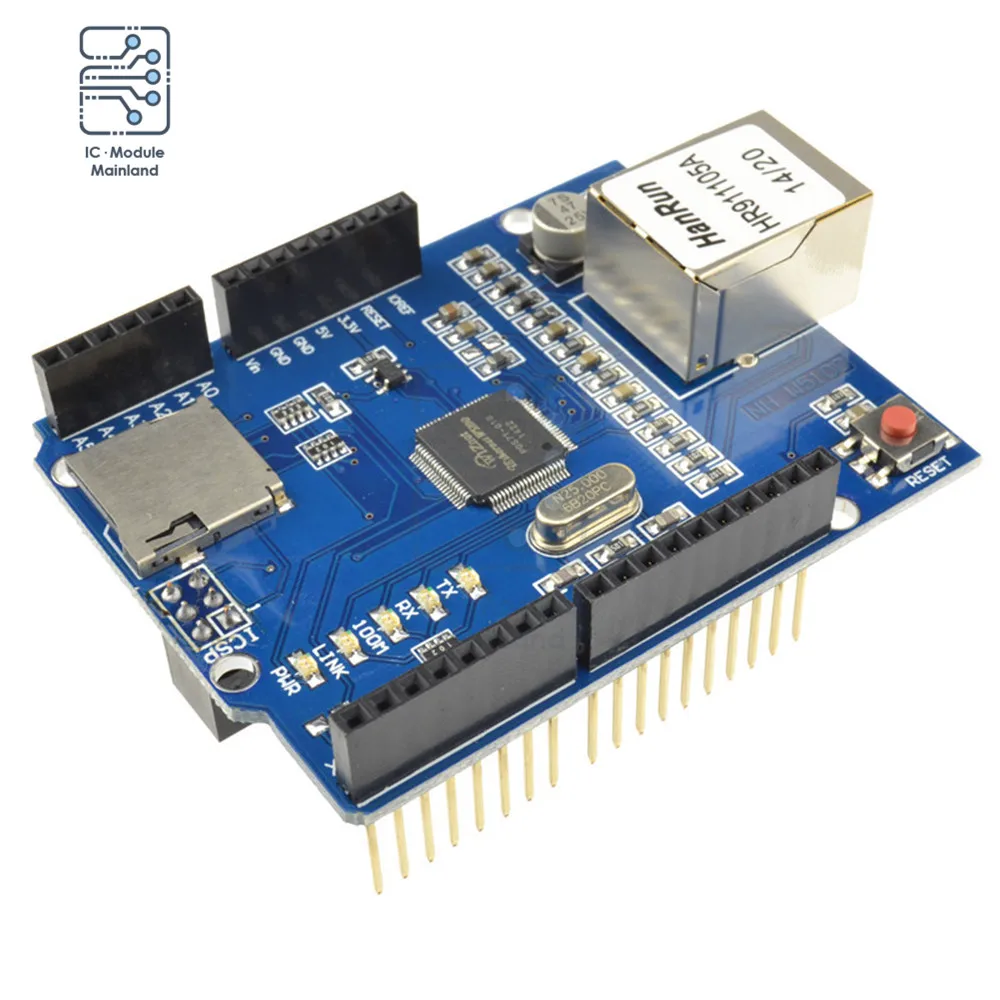

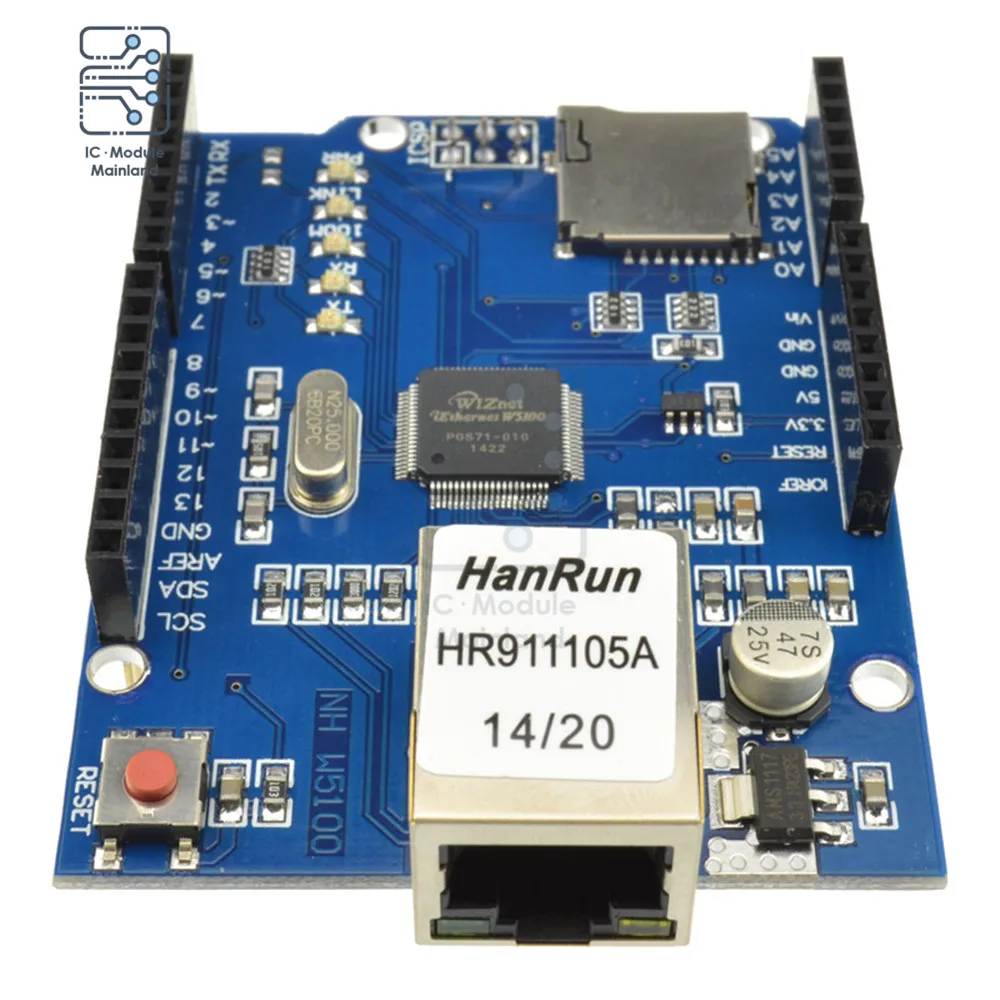

With this Ethernet Shield, with Arduino board can be used to connect to internet.

Can be used as server or client.

Directly plug puzzle board, no soldering required.

Controller: W5100.

This is the latest version of the Ethernet Shield.

This For Arduino Ethernet Shield which is based on the Wiznet W5100 Ethernet Chip gives you an easy way to Arduino Online.

It is directly supported by Arduino official Ethernet Library.

It adds a micro-SD card slot, which can be used to store files for serving over the network.

It is compatible with Arduino Duemilanove (168 or 328), as well as Mega (1280/2560) and can be accessed using the SD library.

The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.

It supports up to four simultaneous socket connections.

Use the Ethernet library to write sketches which connect to the internet using the shield.

Fits all version for arduino Main board,2009, mega 1280, mega 2560.

Size:7cm x 5.4cm x 2.4cm - 2.76inch x 2.12inch x 0.94inch.

address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED byte [] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

Package Included:

1 x Ethernet Shield W5100 R3 Network Expansion Board For Arduino Mega2560 NEW
