Product Introduction

ST-LINK/V2 is a development tool that can simulate and download STM8 and STM32 online!

Basic Attributes

• ST-LINK/V2 is a development tool designed by ST STMicroelectronics to evaluate and develop STM8 series and STM32 series MCUs, which integrates online simulation and download.

• STM8 series are connected with ST-LINK/V2 through SWIM interface;

STM32 series are connected with ST-LINK/V2 through JTAG/SWD interface.

• ST-LINK/V2 is connected to the PC via high-speed USB2.0.

Supported Software

• Directly support ST official IDE (integrated development environment software) ST Visual Develop (STVD) and burning software ST Visual Program (STVP).

• Support STM32 integrated development environment such as ATOLLIC, IAR and Keil, TASKING.

Supported Devices

• Support all STM8 series single-chip microcomputers with SWIM interface

• Support all STM32 series microcontrollers with JTAG/SWD interface

New devices are constantly increasing...

Microcontrollers supported by STVP release 3.2.5

Product lineMicrocontroller

STM32 STM32F100xx, STM32F101xx, STM32F102xx, STM32F103xx, STM32F105xx, STM32F107xx, STM32F2xxx, STM32F4xxx,

STM32L15xx6, STM32L15xx8, STM32L15xxB, STM32L151xC, STM32L151xD, STM32L152xC, STM32L152xD, STM32L162xD,

STM32TS60,

STM32W108C8, STM32W108xB, STM32W108xC, STM32W108xZ

STM8 STM8AF51x, STM8AF52x, STM8AF61x, STM8AF62x, STM8AH51x, STM8AH61x,

STM8S003K3, STM8S003F3, STM8S005C6, STM8S005K6, STM8S007C8, STM8S103xx, STM8S105xx, STM8S207xx, STM8S208xx, STM8S903F3, STM8S903K3,

STM8L101xx, STM8L15x, STM8L16x,

STM8T141, STM8T142, STM8T143_Rev1, STM8T143_Rev2, STM8TL53x4

Function and Performance

•Programming function: Can burn and write FLASH ROM, EEPROM, AFR, etc.

•Simulation function: support various debugging methods such as full-speed operation, single-step debugging, breakpoint debugging, etc., and you can view IO status, variable data, and so on.

• Simulation performance: using USB2.0 interface for simulation debugging, single-step debugging, breakpoint debugging, fast response speed!

•Programming performance: USB2.0 interface is adopted for SWIM / JTAG / SWD download, and the download speed is fast!

Connection interface with target board

• ST-LINK/V2 specifies the SWIM standard interface and JTAG/SWD standard interface.

Firmware upgradeability

• The firmware can be updated. ST will launch more STM8 and STM32 models, and will also add new device models to the STVD device support list. When you need to use new models in future development, upgrade STVD and upgrade firmware, you will be able to support the new Model.

•The upgrade method is automatic upgrade.

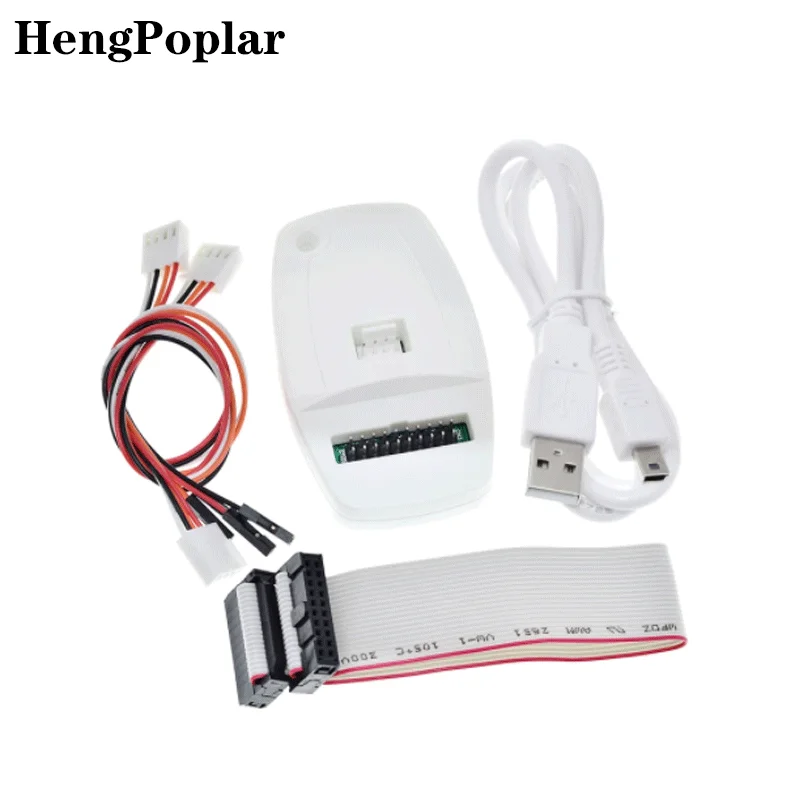

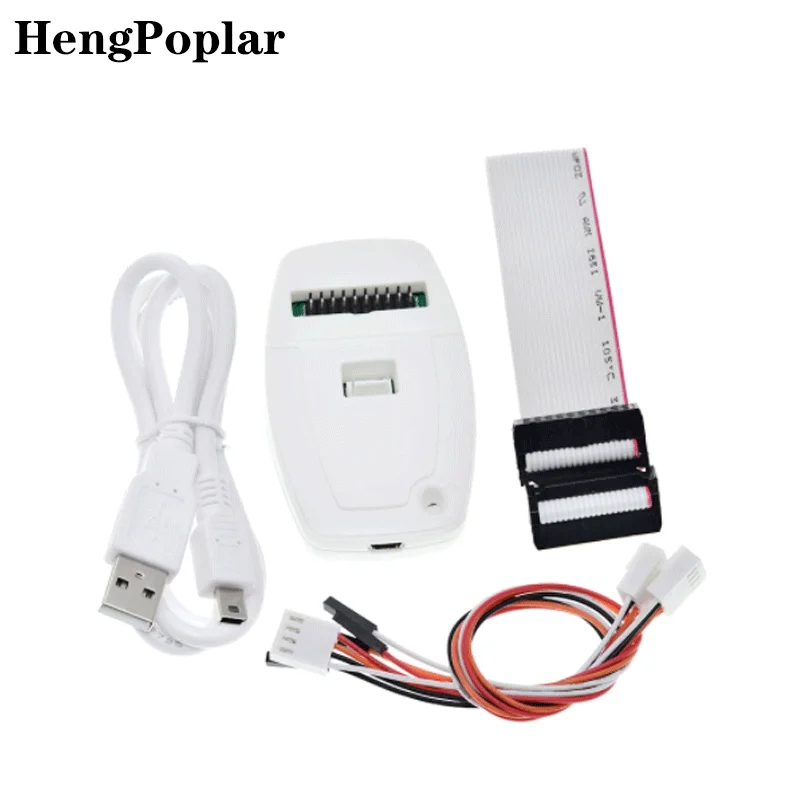

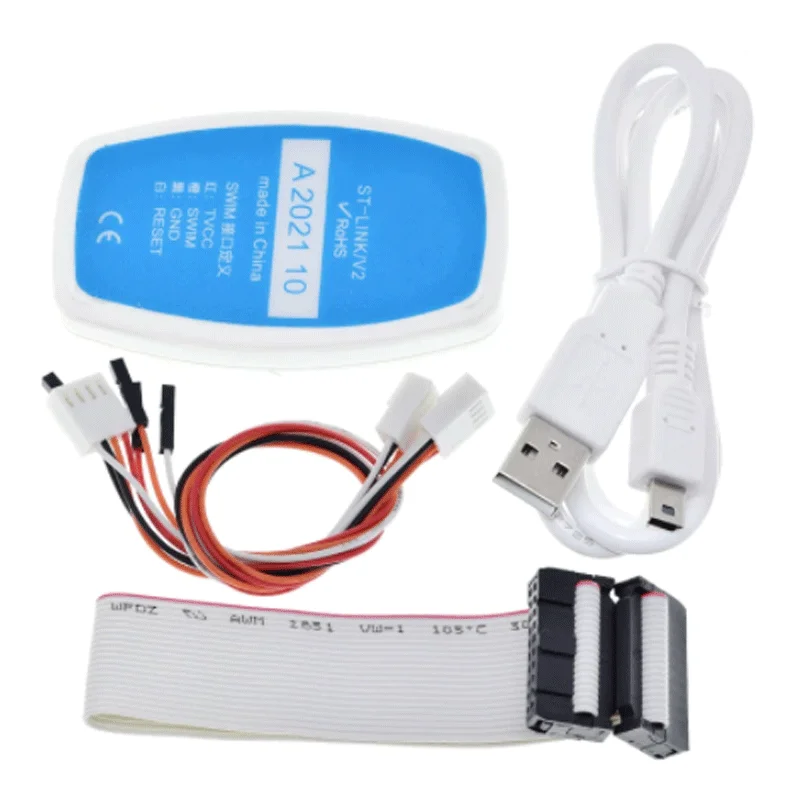

Packing List

1.ST-LINK/V2 host *1

2.USB data cable*1

3.20 core gray cable *1

4.SWIM connection line*2
