5ШТ MATEK ФИЛЬТР НАПРЯЖЕНИЯ SPIKES XT60-TVS 470uF НИЗКОЕСР ЭЛЕКТРОЛИТИЧЕСКИЙ КОНДЕНСАТОР 6S LIPO ДЛЯ RC FPV ДРОНОВ DIY ЧАСТЕЙ ON - купить

Купить 5ШТ MATEK ФИЛЬТР НАПРЯЖЕНИЯ SPIKES XT60-TVS 470uF НИЗКОЕСР ЭЛЕКТРОЛИТИЧЕСКИЙ КОНДЕНСАТОР 6S LIPO ДЛЯ RC FPV ДРОНОВ DIY ЧАСТЕЙ ON.

Description

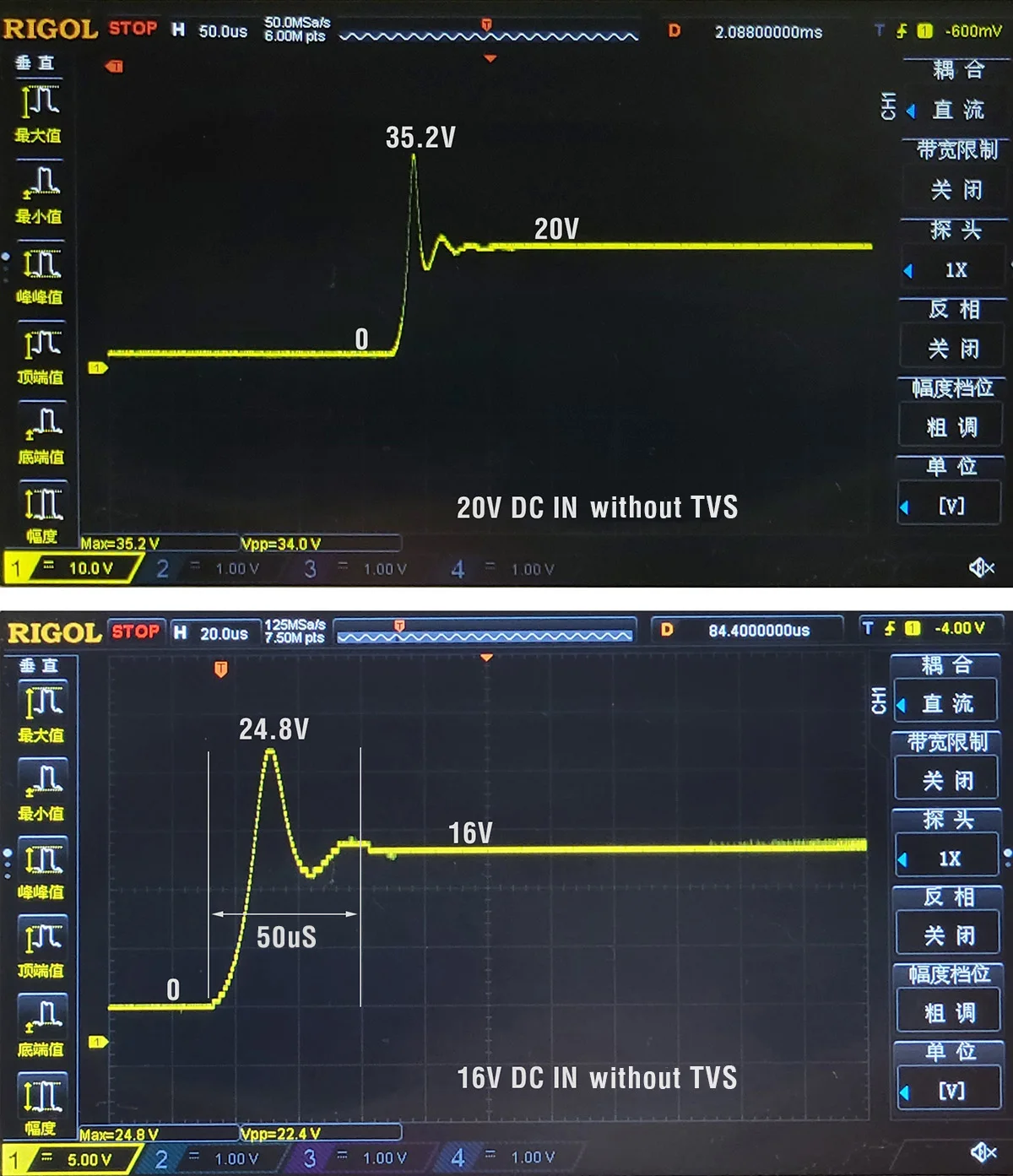

What is a TVS Diode and How Does it Work? The Transient Voltage Suppression diode (TVS) is a component that is commonly used for transient protection. (Not to be confused with zener diode or schottky diode.) It consists of a p-n semiconductor junction that becomes conductive during a transient voltage spike. In normal circumstances, it appears as an open circuit despite a small leakage current. When the voltage on the transient voltage suppressor rises across its threshold voltage, the avalanche effect of the semiconductor causes the p-n junction to become a low-impedance path that channels away the excessive current. The response time of the TVS diode is extremely fast, often expressed in picoseconds. TVS Clamping Voltage (VC) – The clamping voltage is the voltage limited by the TVS diode in the event of a transient within the limit of the specified peak current.  for 6S LiPo, 26~28V VC is is recommanded.  choose 32V Clamping Voltage for 8S LiPO. The placement of the TVS diode is also important. It is a good practice to place TVS diodes as close to the power source as possible.

---
