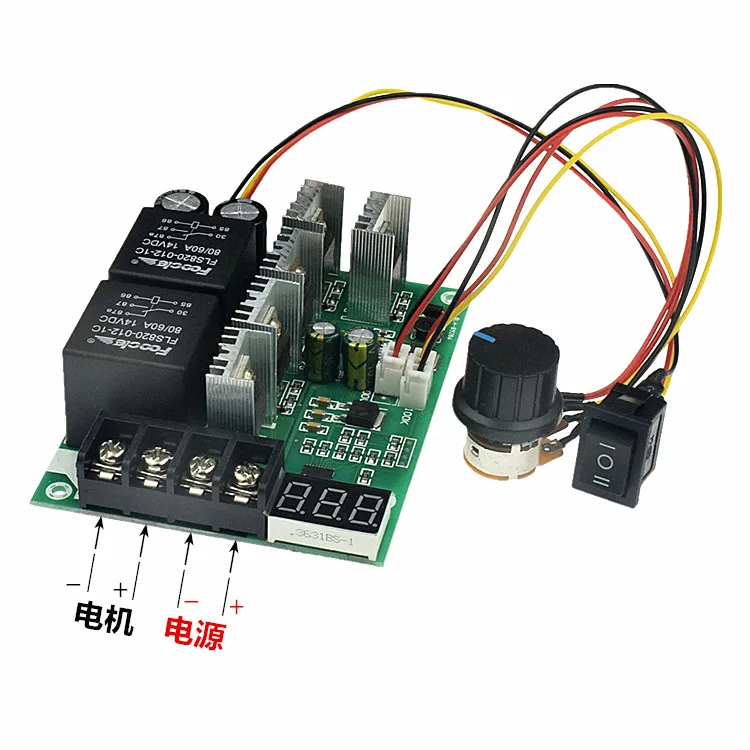

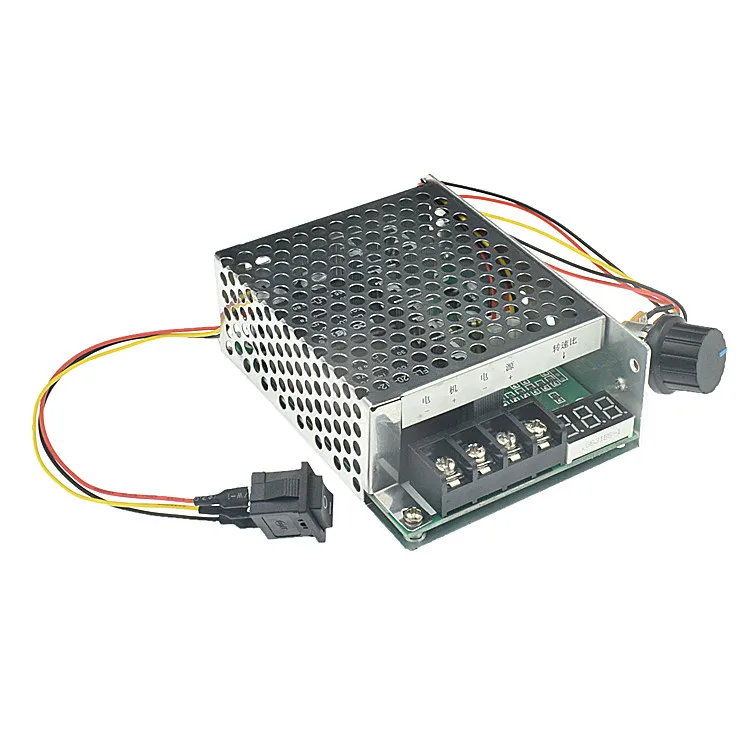

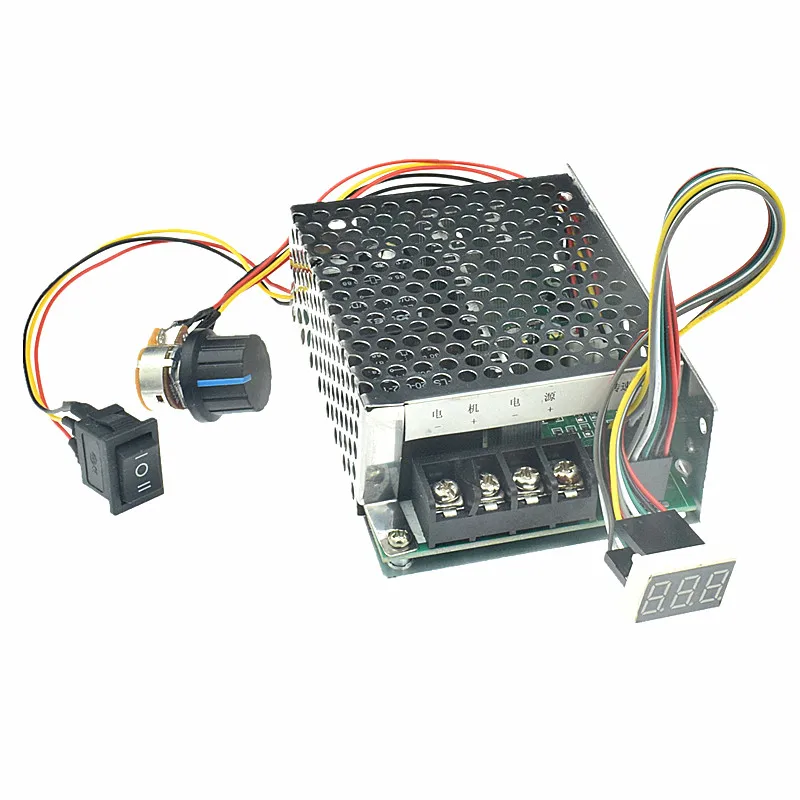

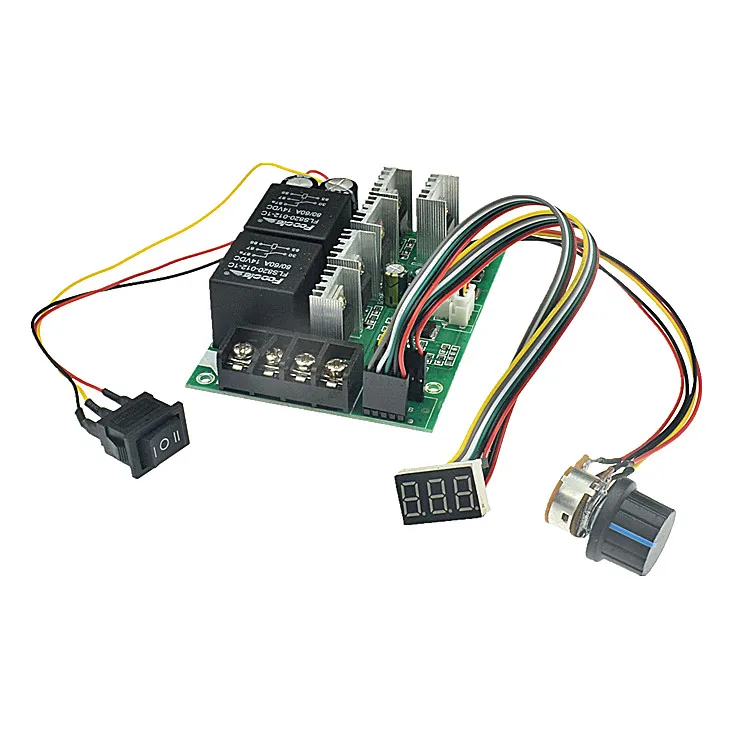

PWM Motor Speed Controller DC 10-55V 60A Speed Controller CW CCW Reversible Switch Digital Display 12 V Motor Speed Controller

Features:
This motor speed controller can be installed to accomplish reversing the motor's direction.
Designed with a digit display that shows the rate in percent of actual speed to maximum speed.
Well design case can protect the controller board from damage as well as dissipate heat.
The input voltage can be DC 10V to 55V.
This speed controller with high power allows setting rotation direction.
Elegant appearance and stable performance.
High quality circuit board can ensure a longer service life.

Specifications:
Input Voltage: DC 10V-55V
Max. Current: 60A
Output Voltage: Linear with load
Continuous Current: 40A
Speed Range: 0% to 100%
Control Frequency: 15KHz
Regulation Method: Potentiometer(linear)
Regulation Type: Regulating Current
Forward & Reverse: Support
Suitable for: Brushed DC motor
Wiring Type: Screw terminal
Dimensions: 11.1x7.8x5cm/4.37x3.07x1.97" (approx.)
