2 шт. Антенна BETAFPV Moxon V2 / Loop 4 ГГц 915 МГц для ELRS Micro Nano TX FRSKY Taranis TBS Tango радиоуправления - купить

Купить 2 шт. Антенна BETAFPV Moxon V2 / Loop 2,4 ГГц 915 МГц для ELRS Micro Nano TX FRSKY Taranis TBS Tango радиоуправления.

Brand NameRadioLinkModel NumberMoxon AntennaOriginMainland ChinaMaterialotherRecommend Age12+yRC Parts & AccsotherFor Vehicle TypeHelicoptersTool SuppliesotherFour-wheel Drive AttributesotherUpgrade Parts/AccessoriesotherRemote Control Peripherals/DevicesotherMeasurement unitpiece/piecesSold insell_by_lotEach pack2Package weight0.050Package size - length (cm)5Package size - width (cm)5Package size - height (cm)5

Unavailable in

Reviews

4,7

7 reviews60100Top reviewsWith photosFrom Russia

All stars

All starsAdditionalIGOR C.

Color: 2PCS Moxon V2 915MHZ

29 January 2023·Show original

The seller sent 1 antenna, there must be 2. no reply to messages.

Show moreAdded 31 January 2023·Show original

The seller replied, promised to resend the missing antenna.

Show moreShulzhenko D.

Color: 2PCS Moxon V2 915MHZ

26 February 2023·Show original

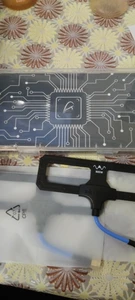

The antennas came for the Ministry. Standard packing box + more plastic box in the sets. Self-antenna without overfishing

Show moreAlexey R.

Color: 2PCS Loop 2.4G

29 March 2023·Show original

It's good, as described. The shipment is fast, the packaging is excellent (plastic box).

Show moreOpen 7 reviewsDescription

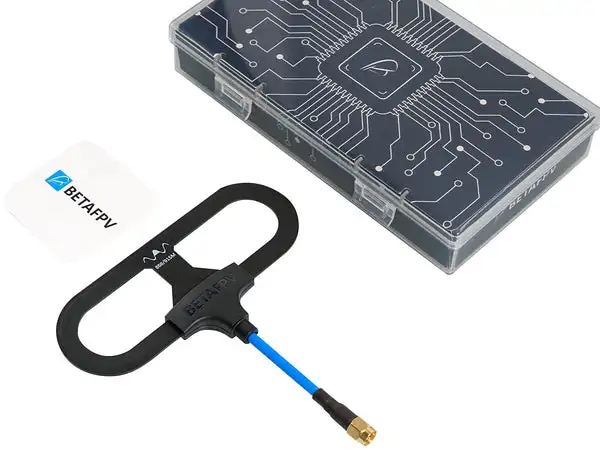

BETAFPV Loop Antenna

Designed and manufactured by BETAFPV, the Loop Antenna is used for 2.4G/915MHz TX modules or radios. It is an omnidirectional antenna that provides a 360-degree horizontal radiation pattern with a gain of 2.3dBi, covering a wider range. Besides, by soldering the coaxial cable to the antenna, it features less signal transmission loss for better performance.

Specification

Coaxial cable length: 65mm (2.4G)/90mm (868MHz/915MHz) Connector: SMA Male Gain: 2.3dBi (2.4G)/2.3dBi (868MHz/915MHz) VSWR: <1.5 (2.4G)/<2.0 (868MHz/915MHz) Polarization type: Linear polarization Suggested for: BETAFPV Nano TX Module/BETAFPV Micro TX Module, Any 2.4G/868MHz/915MHz TX module or radios Loop Antenna or Moxon Antenna

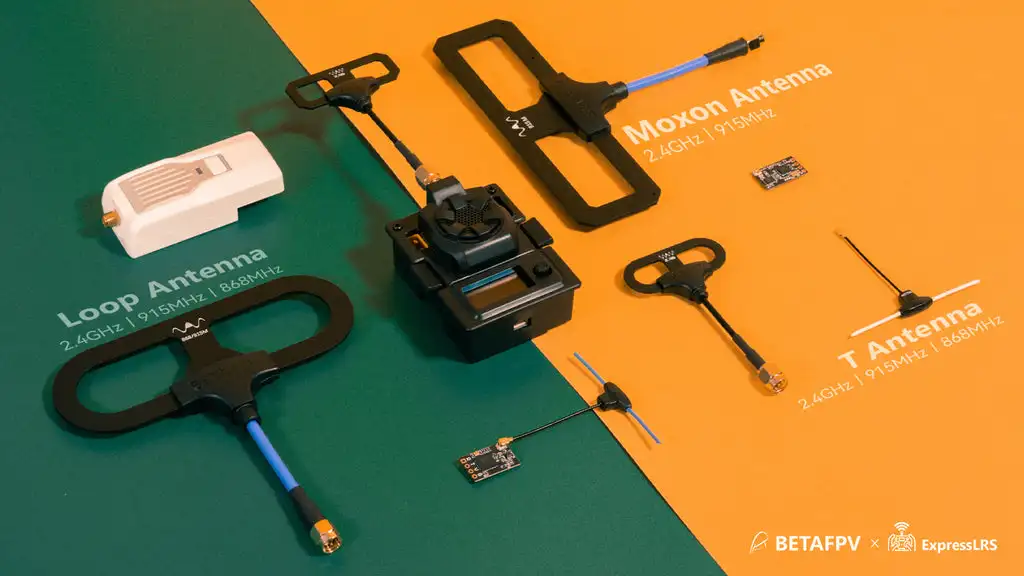

All antennas have a specific use case and choosing a suitable antenna is important to fly a quadcopter. BETAFPV Loop antenna is an omnidirectional antenna that radiates and receives the RF energy equally, providing a 360-degree radiation pattern that allows connectivity in all horizontal directions. BETAFPV Moxon antenna is a directional antenna that focuses RF energy in a required direction. For example, if pilots fly a quadcopter around within a certain range, the Loop antenna is a good choice. When flying a quadcopter for long distances in one direction, the Moxon antenna works better.

The BETAFPV Loop antenna is omnidirectional with a 360-degree horizontal radiation pattern. Below is the antenna 3D radiation pattern image. Note that do NOT use the antenna with the wrong frequency. Even if they look almost the same, they will have different performances at the wrong frequency.

Package

2 * BETAFPV Loop Antenna (2.4G or 868MHz/915MHz)

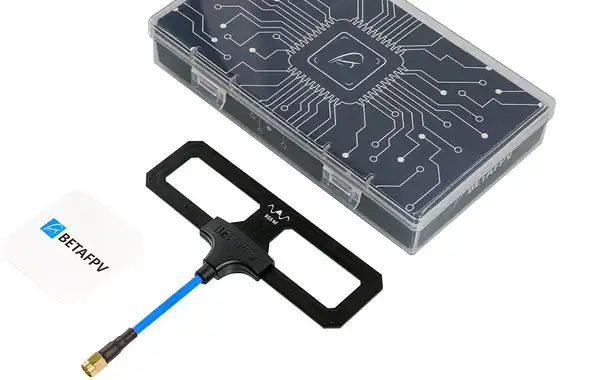

Moxon Antenna

The Moxon antenna is designed and manufactured by BETAFPV for the 2.4G/915MHz TX module. The Moxon antenna is a directional antenna with a high gain of 5.5dbi to the front.

Specification

Moxon Antenna

Coaxial cable length: 49mm(2.4G)/72mm(915M/868M) Connector: SMA Male Gain: 5.6dBi(2.4G)/5.7dBi(915M)/5.7dBi(868M) VSWR: <2.0(2.4G)/<2.0(915M)/<2.0(868M) Suggested for: BETAFPV Nano TX Module/BETAFPV Micro TX Module, Any 2.4G/868MHz/915MHz TX module or radios

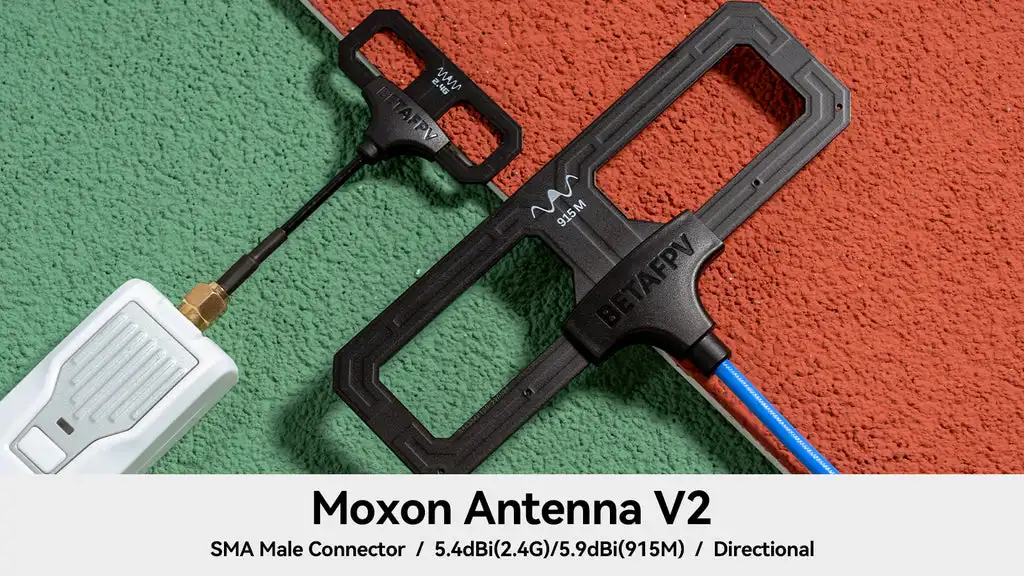

Moxon Antenna V2

Coaxial cable length: 65mm(2.4G)/90mm(915M) Connector: SMA Male Gain: 5.4dBi(2.4G)/5.9dBi(915M) VSWR: <2.0(2.4G)/<2.0(915M) Polarization type: Linear polarization Suggested for: Any 2.4G/915MHz TX module or radios Suggested for: BETAFPV Nano TX Module/BETAFPV Micro TX Module, Any 2.4G/868MHz/915MHz TX module or radios New Features on Moxon Antenna V2

BETAFPV Moxon Antenna has been very popular with pilots since its release. By taking the features of Moxon and adding some new ones, the coaxial cable of Moxon V2 is soldered to the antenna, decreasing the signal transmission loss for better performance. Besides, the soldered joint is protected by an injection molding cover, making it a whole unit and very easy to install.

Which antenna should I choose? Can it replace the stock radio antenna on the Frsky Taranis series or TBS Tango series?

Pilots would upgrade their radios that already support swappable antennas with this Moxon antenna. Note that do NOT use the antenna with the wrong frequency. Even if they look almost the same outside, they will have totally different performances at the wrong frequency point.

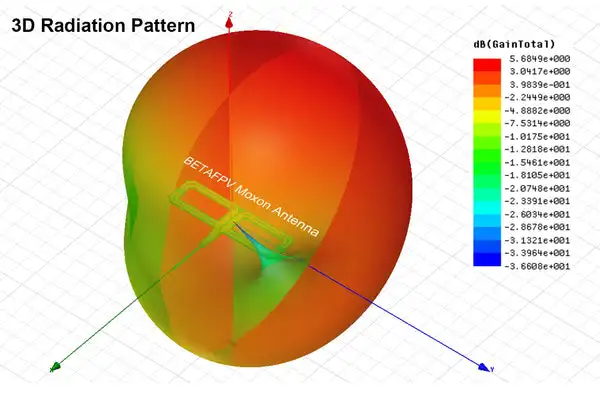

The BETAFPV Moxon antenna is directional to the front. Below is the antenna 3D radiation pattern image.

Package 2 * BETAFPV Moxon Antenna or 1 * BETAFPV Moxon Antenna V2

---
