Вакуумный насос из алюминиевого сплава для холодильного оборудования автомобилей и промышленности - купить

Купить Алюминиевый сплав электрического одноступенчатый роторно-лопастной вакуумный насос обслуживания холодильного оборудования для автомобилей и промышленности

Direct connection integration and large starting torque design are adopted, and is specially designed for low temperature environment. It is a basic equipment used to extract gas from seal-ed container to obtain vacuum.

Features:
Shock absorbing rubber rings are used to buffer vibration during vacuum pump operation.
All aluminum alloy body, high temperature resistance, has a long service life.

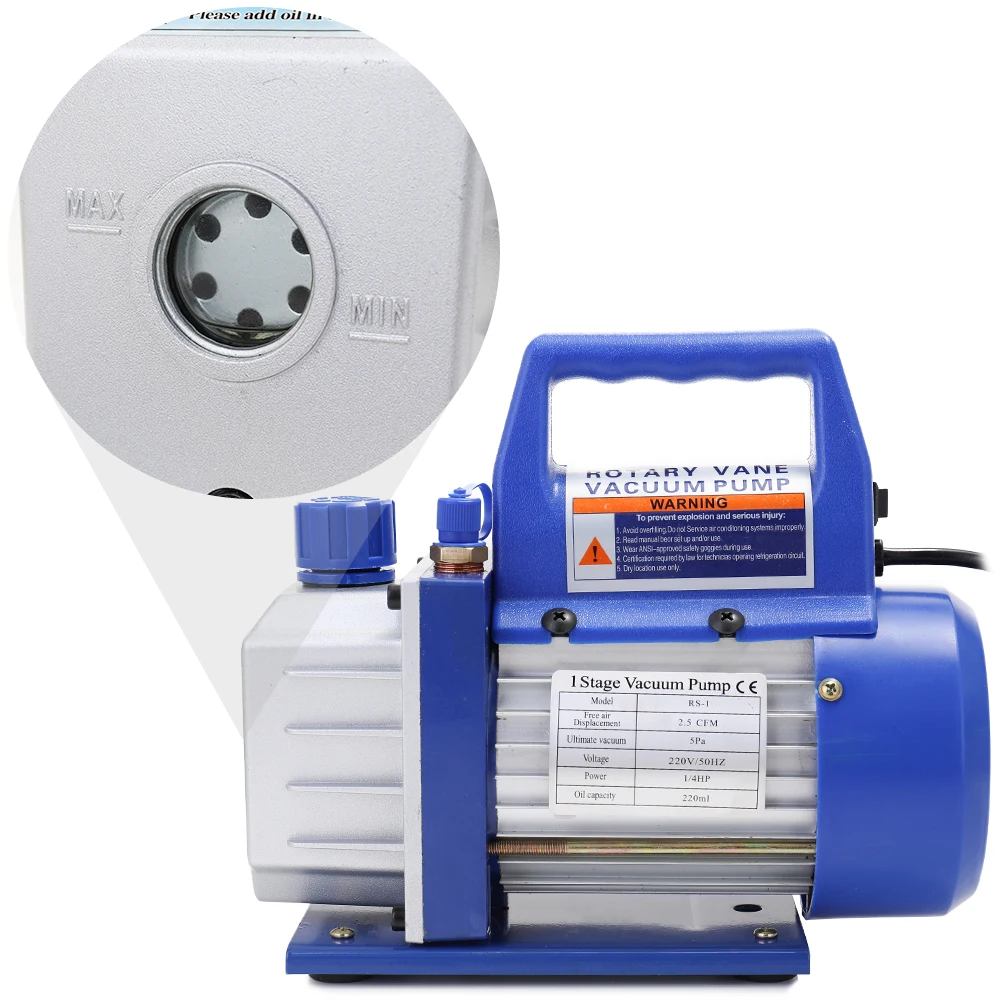

Large oil mirror window is easy to observe and prevents the oil shortage.
The vents can dissipate heat quickly, work stably for a long time, and increase the service life.

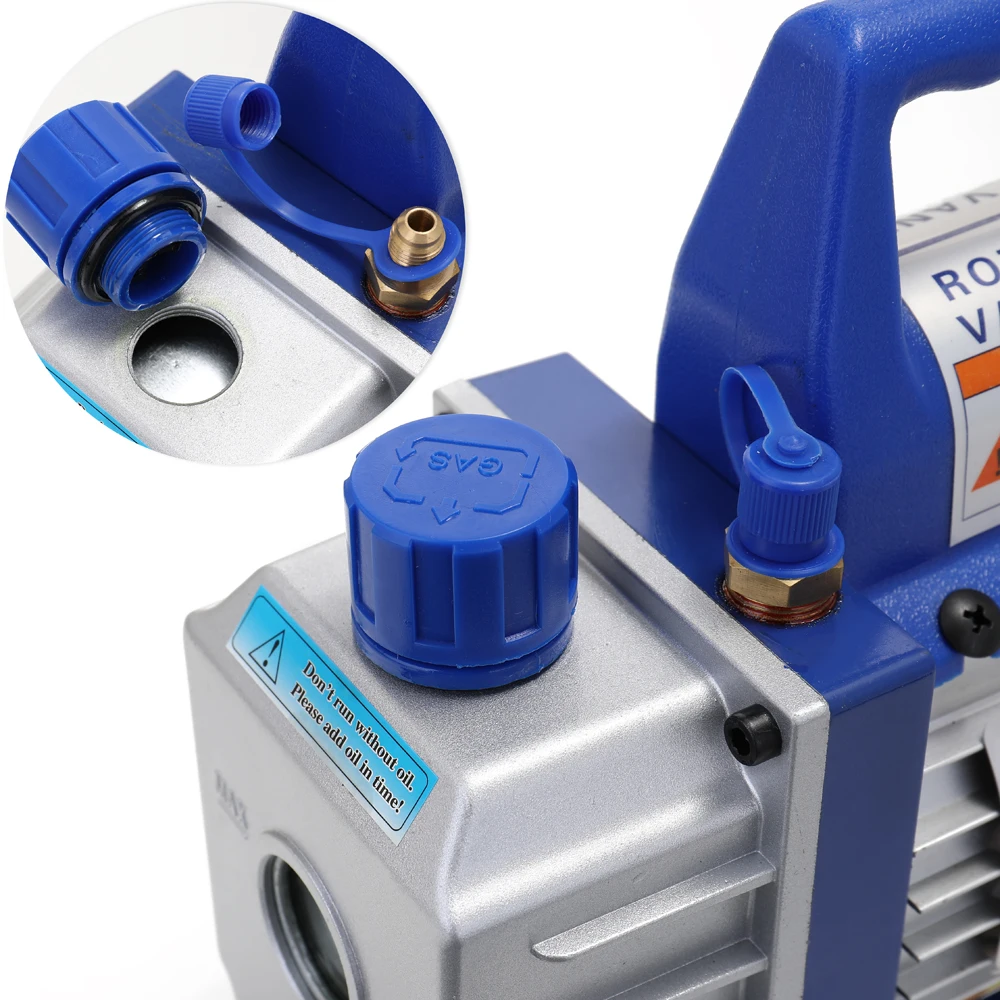

The pure copper connector of the inlet port is 1/4 inch.
It is guaranteed to start normally at low temperatures in winter.

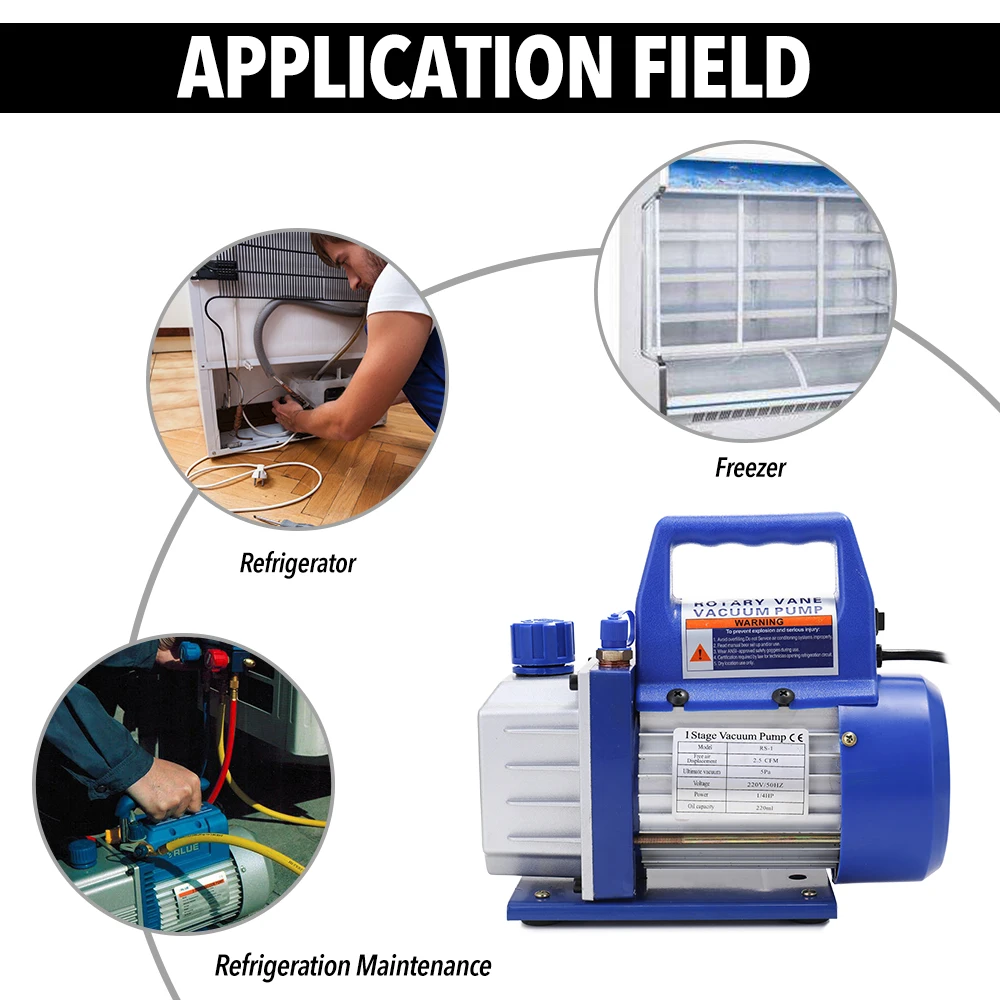

Can be widely used in refrigeration maintenance, automotive industry, automatic control, printing machinery, packaging machinery, food preservation, environmental detection systems, oxygen production in the plateau, etc.

Specifications:
Material: aluminum alloy
Color: silver+blue
Inlet port connector size: 1/4"

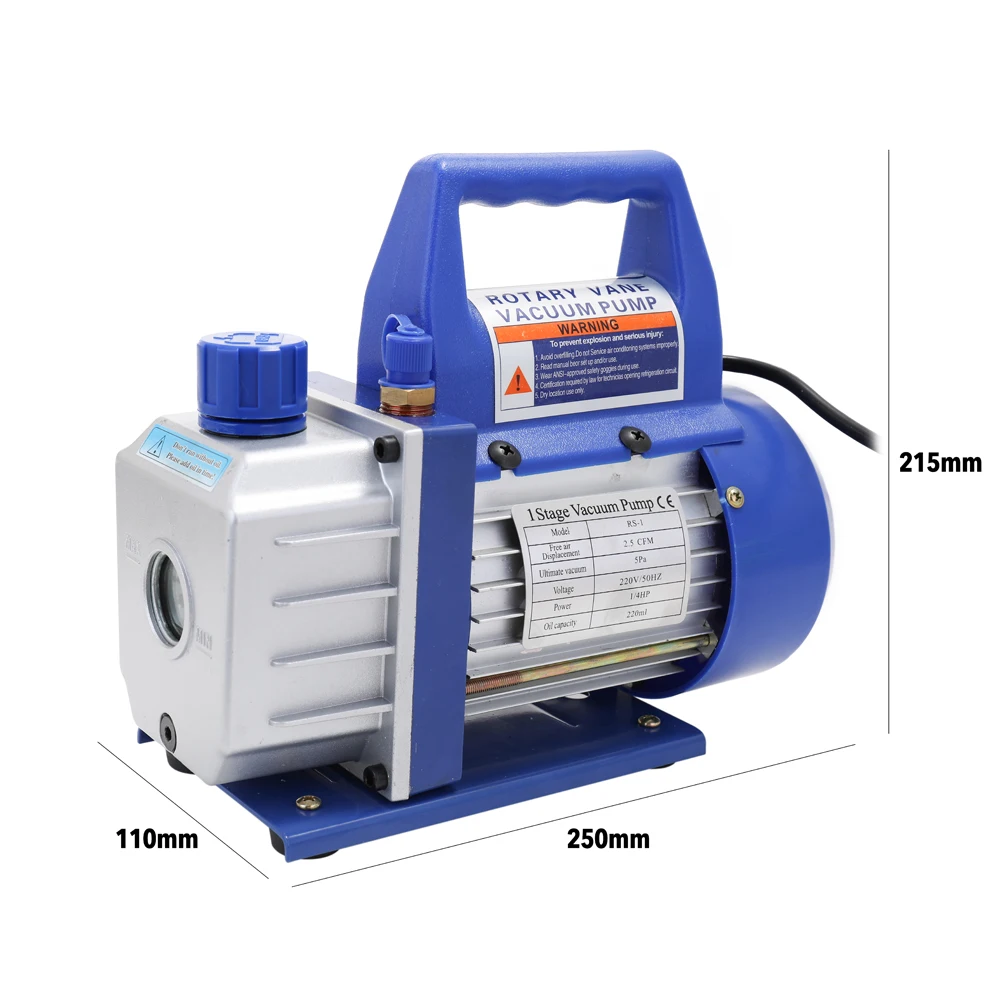

Item size: 250 * 215 * 110mm / 9.8 * 8.5 * 4.3in
Item weight: 4497g / 9.9lb
Package size: 355 * 260 * 160mm / 14.0 * 10.2 * 6.3in
Package weight: 5434g / 12.0lb

110V:
Frequency: 60Hz
Free air displacement: 3CFM
Ultimate vacuum: 5Pa (0.05Mbar)
Rotating speed: 1720rpm
Power: 1/4HP
Oil capacity: 220ml

220V:
Frequency: 50Hz
Free air displacement: 2.5CFM
Ultimate vacuum: 5Pa (0.05Mbar)
Rotating speed: 1440rpm
Power: 1/4HP
Oil capacity: 220ml

Package list:
1 * Vacuum Pump with Plug
1 * User Manual
