Item Number	TH-9800
General
Frequency Range	RX(AM and FM):26-33mhz,47-54mhz ,  108-180mhz,320-512mhz,750-950mhz  (Cellular Blocked)  TX(FM): 26-33mhz,47-54mhz,144-148MHZ  (144-146MHZ/144-148MHZ),420-450MHZ  (430-440/430-450MHZ)
Channel Capacity	809 Channels
Channel Spacing	2.5 /5 /6.25 /10 / 12.5 /15 /20 /25 /50 kHz
Modes of emission	F3
Antenna Impedance	50 Ohms,unbalanced (Antenna Duplexer built-in)
Frequency Stability	±5PPM@-140℉~+140℉(-10℃～+60℃)
Operating Voltage	-4℉~+140℉(-20℃～+60℃)
Operating Temperature Range	13.8VDC (±15%),Negative ground
Current Consumption(Approx)	RX:0.5A(Squelched)  TX:8.0A(50/430MHZ),8.5A(29/144MHZ)
Case size(W×H×D)	140*41.5*168 mm (w/o knobs & connectors)
Weight	1.2kg
Transmitter
output power	50/20/10/5W(29/50/144MHZ),40/20/10/5W(430MHZ)
Modulation Type	Variable Reactance
Maximum Deviation	Better than -60dB(29MHZ: Better than -50dB)
Modulation Distortion	Less than 3%
Microphone Impedance	2kΩ
Receiver
Circuit Type	Double-conversion super-heterodyne
Intermediate Frequency	49.95MHz/450KHz (left band)  38.85MHz/450KHz (right band)
Sensitivity (for 12dB SINAD)	Better than 0.2μV
Squelch Sensitivity	Better than 0.16μV
Selectivity(-6dB/-60dB)	12KHz/30 KHz
Maximum AF output	2W@8Ω for 5% THD
AF output Impedance	4-16Ω

Specification

item	value
Certification	FCC, CE
Place of Origin	China
	Fujian
Brand Name	TYT
Model Number	TH-9800
Type	Mobile radio
Dimensions	140mm*41.5mm*168mm
809Frequency Range	26-33MHz/47-54MHz/136-174MHz/400-480MHz
Storage Channel	809
Talk Range	20km
Product Name	Analog quan band mobile radio
Warranty	12 Months
Output Power	50W / 40W

Product Description TYT TH-9800 Amatuer mobile Quad Band Transceiver vehicle radio Function: Quad band operation Wide band AM and FM receiving Cross-band repeater function 50W output power More than 800 memory channels CTCSS/DCS 2T/5T DTMF Scrambler Wide/mid/narrow bandwidth selectable Packing & Delivery The standard of packing

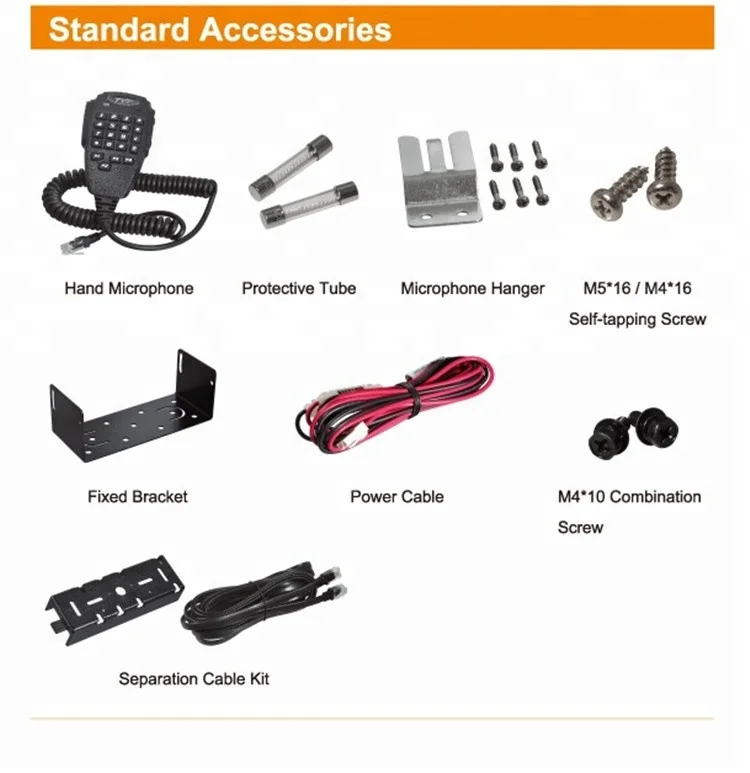

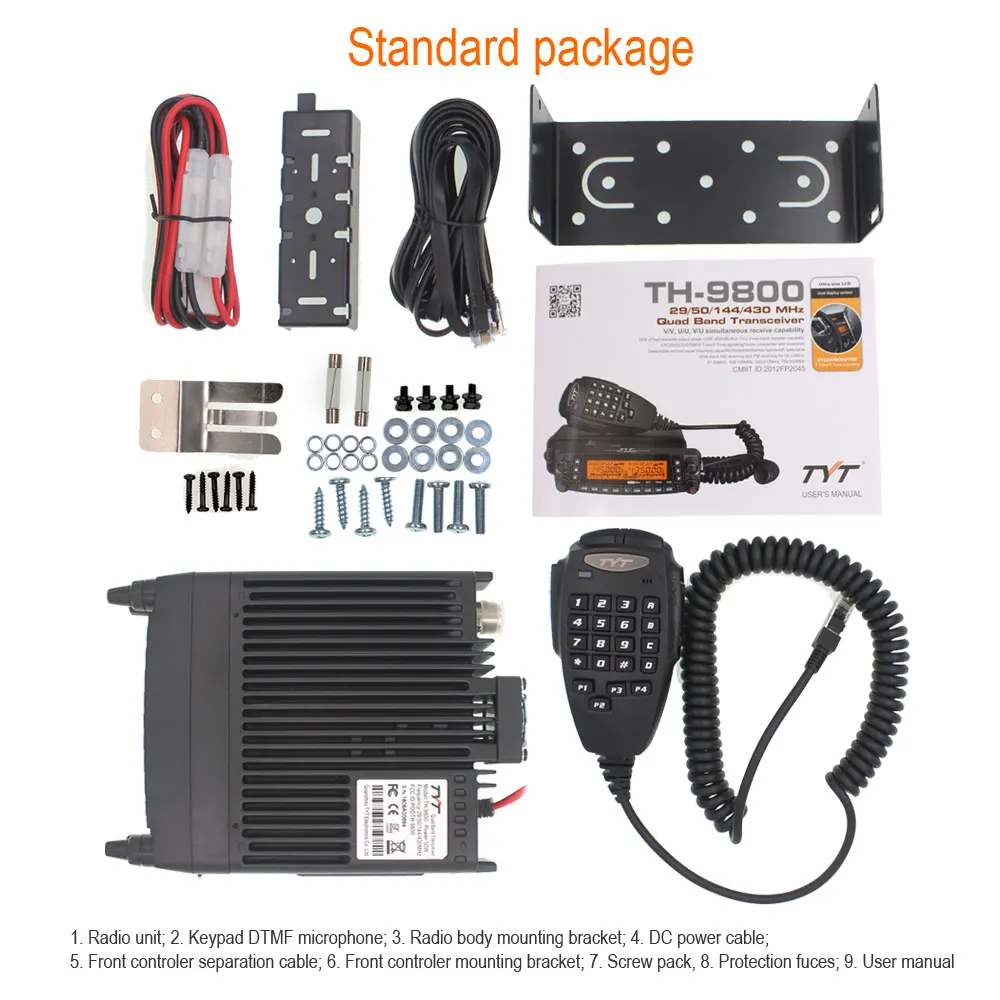

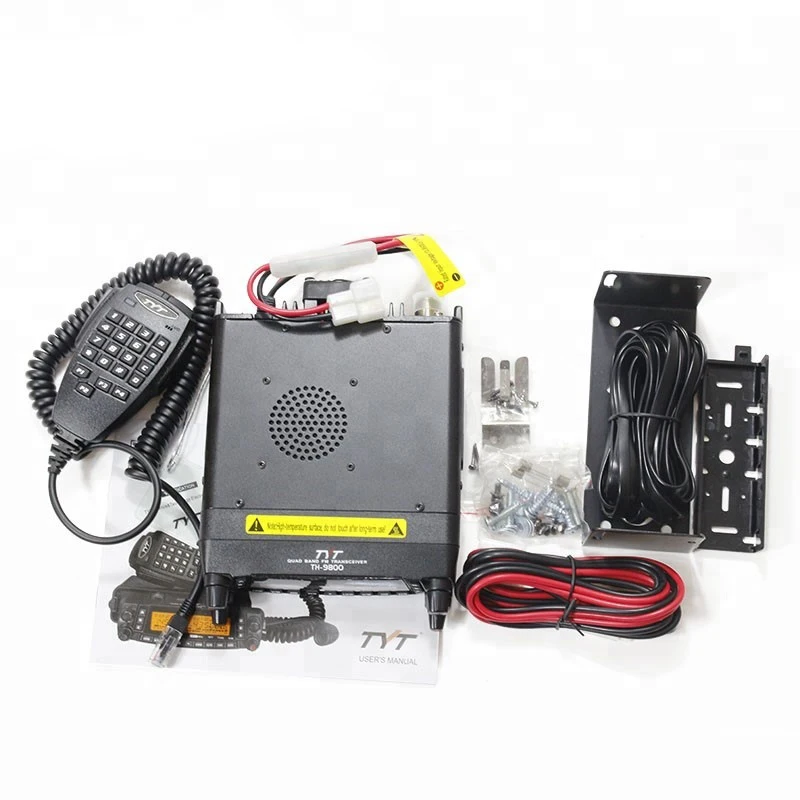

1 radio with standard accessories in a box, 10 boxes in a carton.
