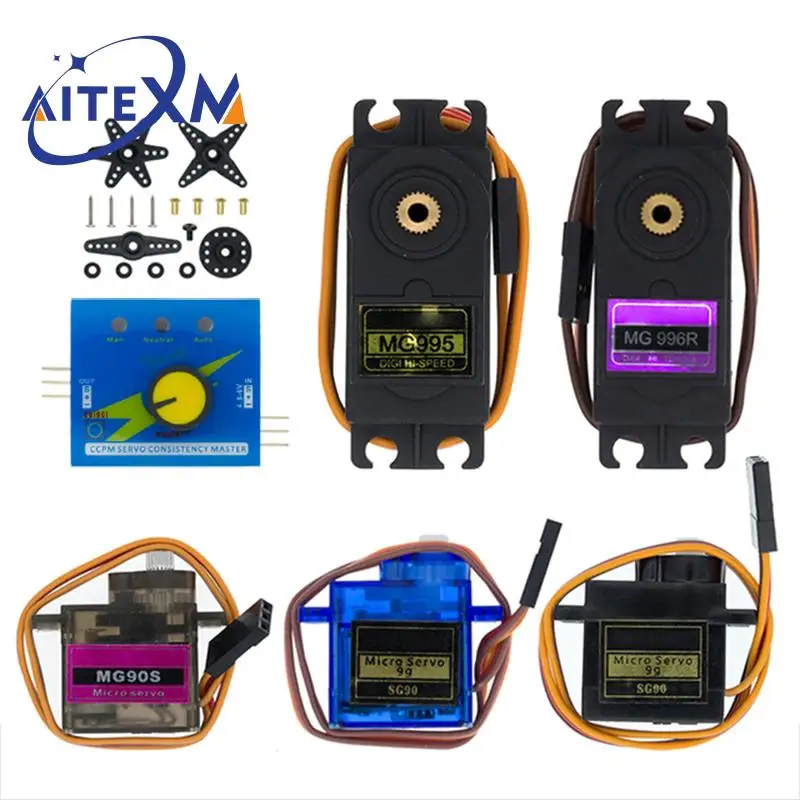

Smart Electronics Rc Mini Micro Classic Servo Tester SG90 MG90S MG995 MG996 Metal Gear for Arduino Model Helicopter Boat DIY KIT - купить

产品规格书

Products Specifcation

Products No.

Item

Specifcation

储存温度Storage Temperature Range

-30°C～80°C

运行温度Operating Temperature Range

-25°C～70°C

Item

Specifcation

温度 Temperature Range

-25°C～70°C

湿度 Humidity Range

65%±10%

Item

Specifcation

舵机尺寸 Size

22.4*12.5*22.8mm

重量 Weight

10g±5%

齿轮类型 Gear type

5 Plastic,

机构极限角度 Limit angle

200°±5°

轴承 Bearing

NO

出力轴 Horn gear spline

20T直径:4.9mm

摆臂 Horn type

Plastic, POM

外壳 Case

Engineering plastics(PBT)

舵机线 Connector wire

250mm±5mm

马达 Motor

Carbon brush motor

防水性能 Splash water resistance

No

工作电压 Operat voltage

4.8V

静态电流Idle current

mA

空载转速No load speed

0.09sec/60°

空载电流Runnig current

90mA

堵转扭矩Peak stall torque

1.3kg.cm

堵转电流 Stall current

750mA±10%

Item

Specifcation

控制信号 Command signal

Pulse width modification

放大器类型 Amplifier type

Analog controller

脉冲宽度范围 Pulse width range

500～2500usec

中点位置 Neutral position

1500usec

旋转角度 Running degree

180°±3°(when 500～2500usec)

死区宽度 Dead band width

8 usec

旋转方向 Rotating direction

Counterclockwise (when 1000～2000usec)
