Дождемер с ковшовым дождеприемником из нержавеющей стали и выходом RS485 импульсным сигналом толщиной 0 2 мм - купить

Купить 0.2MM PULSE RS485 OUTPUT HIGH STAINLESS STEEL TIPPING BUCKET RAIN GAUGE | Sensors

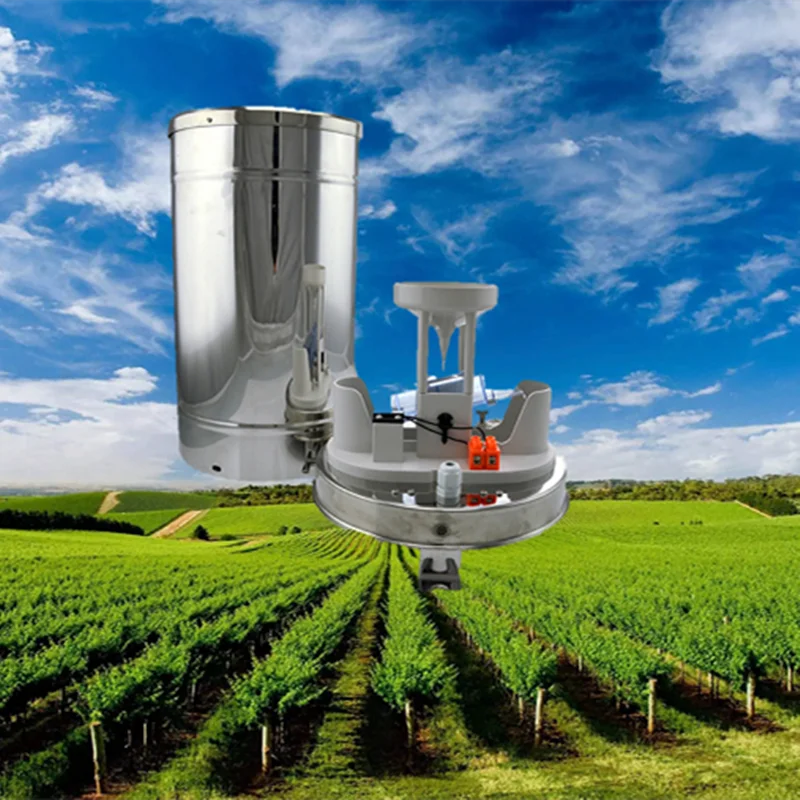

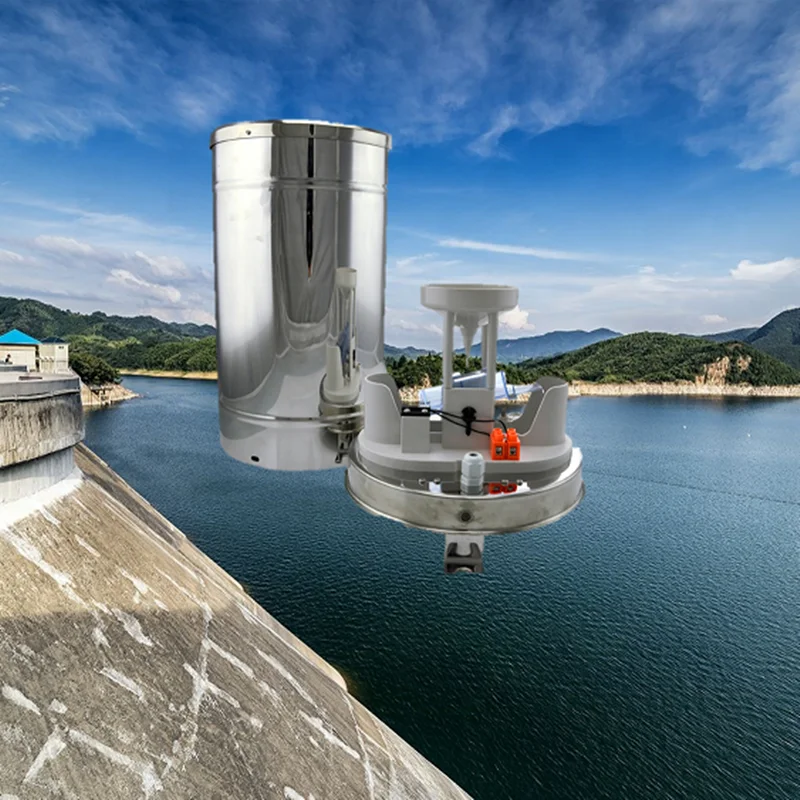

DescriptionProduct DescriptionBrife IntroduceThe tipping bucket rain sensor is a hydrological and meteorological instrument that measures rainfall in nature and converts
rainfall into digital information output in the form of a switch to meet the needs of information transmission, processing, recording and display. The core part of the instrument has a three-dimensional streamlined design, which makes the tipping bucket more smooth and easy to clean.

Product Name	0.2mm stainless steel double tipping bucket Rain Gauge
Resolution	0.2mm
Rain inlet size	φ200mm
Sharp edge	40～45 degree
Rain intensity range	0.01mm~4mm/min (allows maximum rain intensity of 8mm/min)
Measurement accuracy	≤±3%
Resolution	1mg/Kg(mg/L)
Power supply	5~24V DC (when the output signal is 0~2V, 0~2.5V, RS485)
	12~24V DC (when the output signal is 0~5V, 0~10V, 4~20mA
Battery life	5 Years
Way of sending	Two-way reed switch on and off signal output
Working environment	Ambient temperature: -10 ° C ~ 50 ° C
Relative humidity	<95%(40℃)
Size	φ216mm×460mm
Output signal
Signal mode	Data conversion
Voltage signal 0~2VDC	Rainfall=50*V
Voltage signal 0~5VDC	Rainfall=20*V
Voltage signal 0~10VDC	Rainfall=10*V
Voltage signal 4~20mA	Rainfall=6.25*A-25
Pulsesignal(pulse)	1 pulse represents 0.2mm rainfall
Digitalsignal(RS485)	Standard MODBUS-RTU protocol, baudrate 9600; Check digit:None,data bit:8bits,stop bit:1 (address defaults to 01)
Wireless output	LORA/LORAWAN/NB-IOT,GPRS

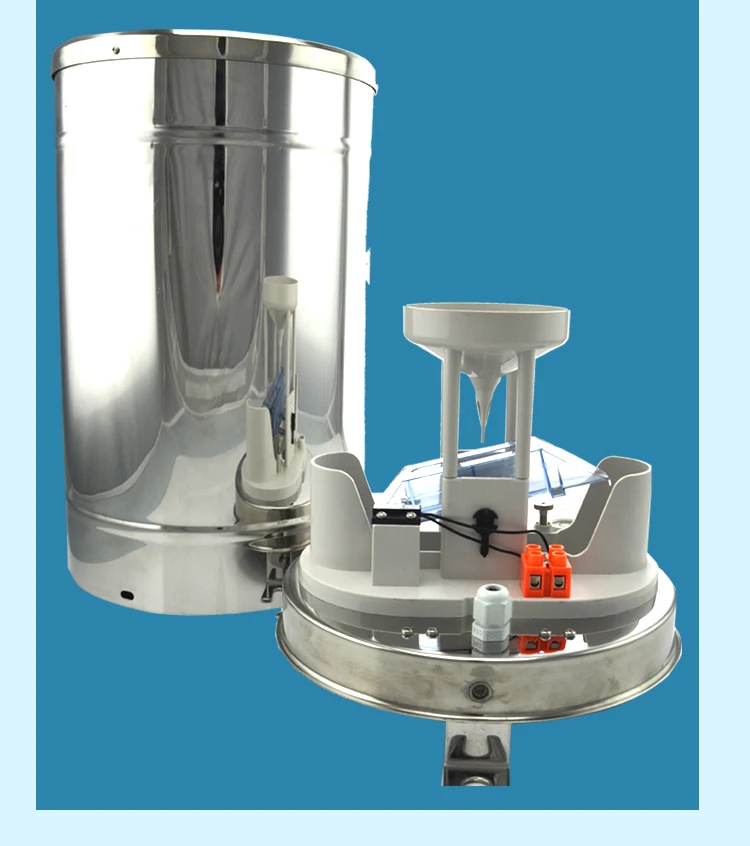

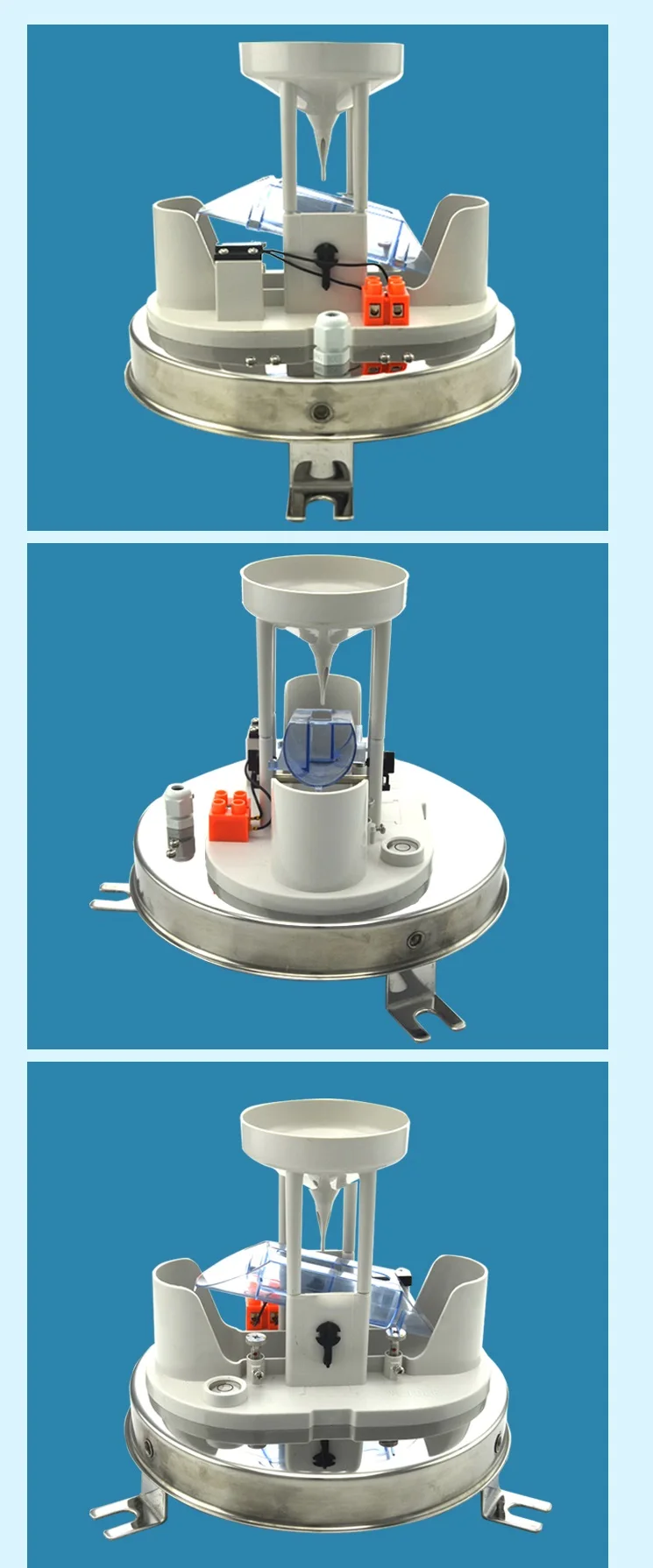

Details ImagesFeatures1. High precision, good stability, small size and easy installation.

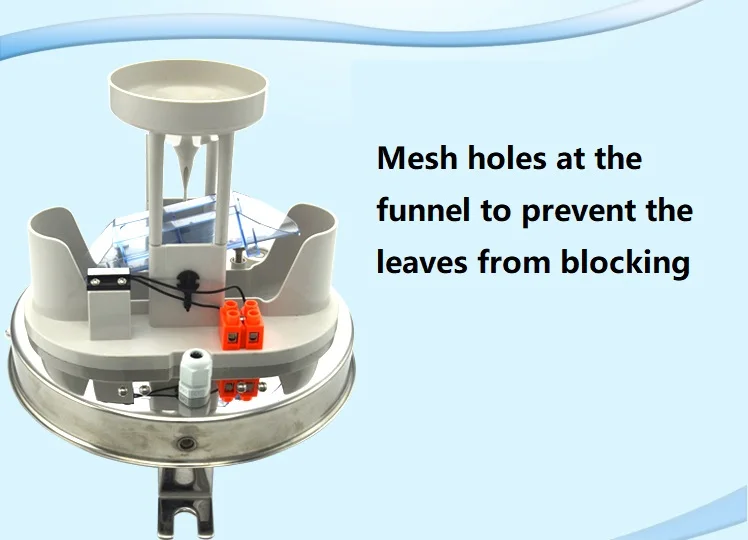

2. Good linearity, long transmission distance and strong anti-interference ability. 3.The mesh is designed at the funnel to prevent debris and other debris from blocking the downstream flow.     4. The tipping member support system is well-made and the friction torque is small, so the tipping member is turned over sensitively, the
performance is stable, and the work is reliable.

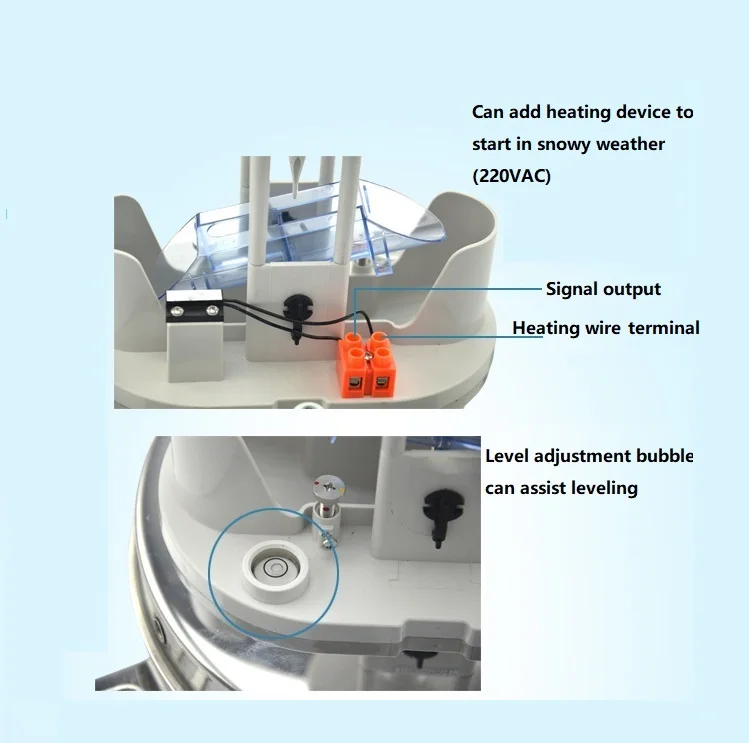

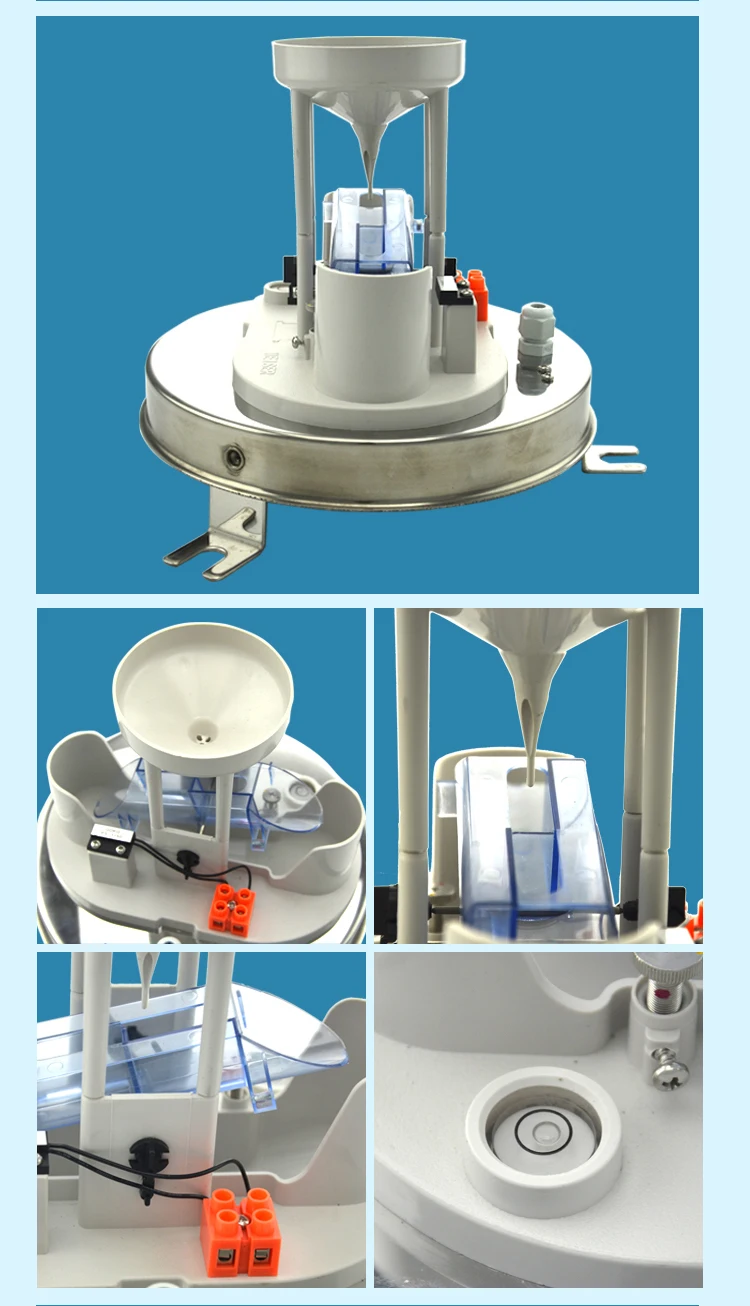

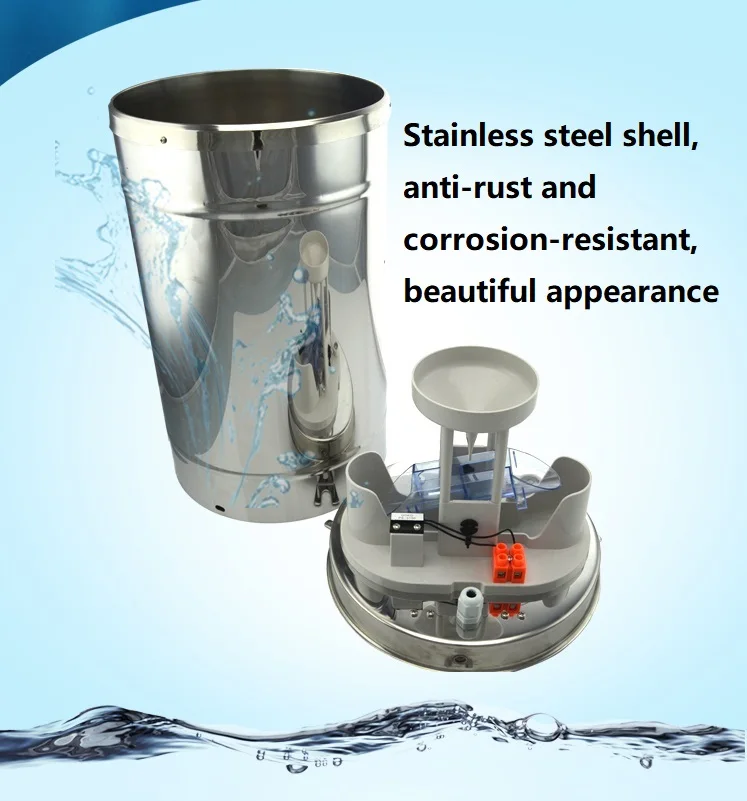

5. The instrument casing is made of stainless steel, which has strong rust resistance and good appearance.  6. The rain inlet is made of stainless steel and is fully rammed. The finish is high and the error caused by water retention is small.     7. The inside of the chassis is equipped with a horizontal adjustment bubble, which can help the bottom angle to adjust the equipment to a good level.8. When the instrument is shipped from the factory, the tipping angle of the bucket has been adjusted and locked at the optimal
tilting position. When installing the instrument, you only need to install the tipping bucket and the level of the adjusting base according to the
requirements of this manual. It can be put into use, and the tipping angle adjustment screw cannot be adjusted on site. 9. Support the LORA/LORAWAN,NB-IOT,GPRS wireless transmission.
 Related ProductsPacking&ShippingCompany IntroductionRaindao Science and Technology CO.,Limited founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise. We are looking forward to working with you to make our life better due to the blessing of science and technology.FAQQ: How can I get the quotation?A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.. Q: What's the main characteristics of this rain gauge sensor?A: It is stainless steel double tipping bucket Rain Gauge with the measure resolution with 0.2mm. Q:Could I get samples?A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q: What's the lifetime of this battery?A: Normally 5 years or more. Q: May I know your warranty?A: Yes, usually it's 1 year. Q:What's the delivery time?A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity.

---
