Кабель экранированный скрученной пары RVSP 2 метра с проводами 26/24/22/20/18AWG на 2/4/6/8 жил для сигнальной линии RS485 управления аудиосигнала медным оловянным покрытием - купить

Купить Кабель экранированный скрученной пары RVSP 2 метра с проводами 26/24/22/20/18AWG на 2/4/6/8 жил для сигнальной линии RS485, управления, аудиосигнала, с медным оловянным покрытием.

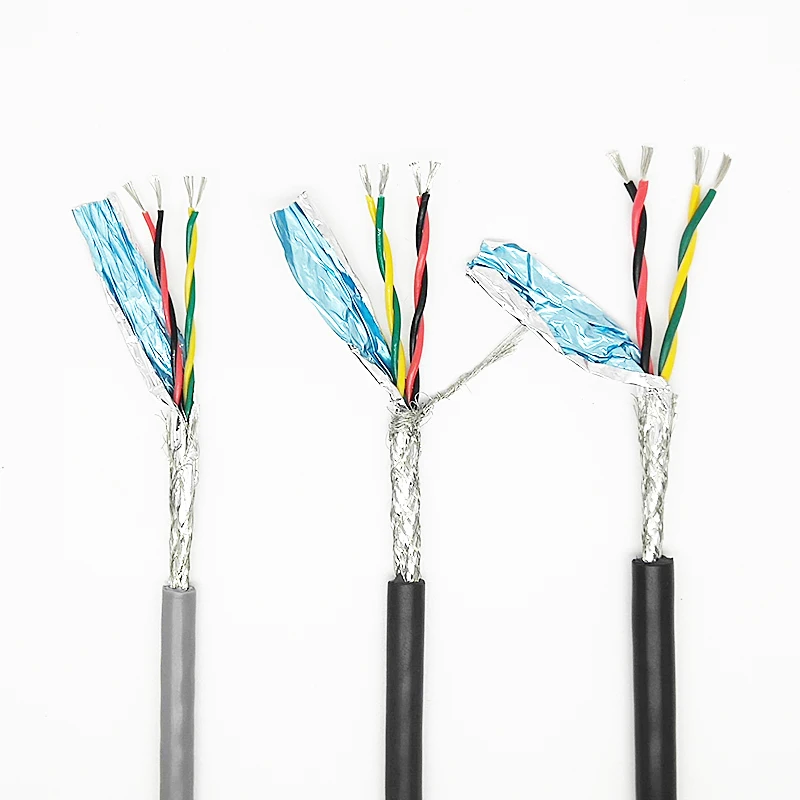

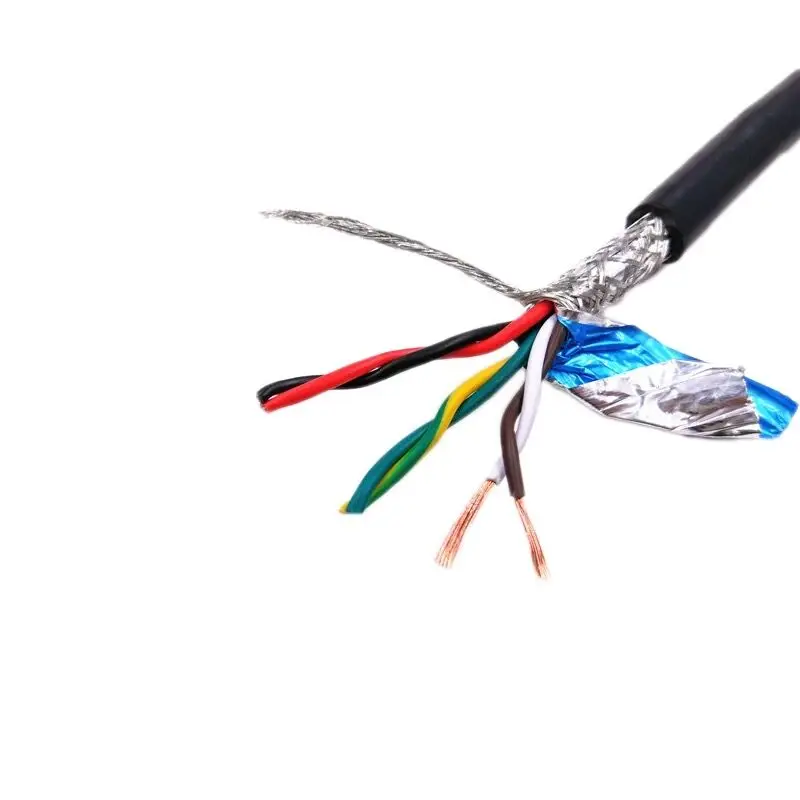

Due to the use of tinned copper wire braided shield, aluminum foil shield, twisted pair core, strengthen the ability of electromagnetic interference, especially suitable for the harsh electromagnetic environment. It is suitable for communication, audio, broadcasting, sound system, anti-theft alarm system, intelligent automation system, automatic meter reading system, fire protection system and other places that need more efficient shielding.

2Cores 26Awg(0.15mm²) Outer Diameter: 4.1±0.15mm
4Cores 26Awg(0.15mm²) Outer Diameter: 5.4±0.15mm
6Cores 26Awg(0.15mm²) Outer Diameter: 5.8±0.15mm
8Cores 26Awg(0.15mm²) Outer Diameter: 6.3±0.15mm

2Cores 24Awg(0.2mm²) Outer Diameter: 4.3±0.15mm
4Cores 24Awg(0.2mm²) Outer Diameter: 5.8±0.15mm
6Cores 24Awg(0.2mm²) Outer Diameter: 6.6±0.15mm
8Cores 24Awg(0.2mm²) Outer Diameter: 7.3±0.15mm

2Cores 22Awg(0.3mm²) Outer Diameter: 5.1±0.15mm
4Cores 22Awg(0.3mm²) Outer Diameter: 6.4±0.15mm
6Cores 22Awg(0.3mm²) Outer Diameter: 7.3±0.15mm
8Cores 22Awg(0.3mm²) Outer Diameter: 8.3±0.15mm

1. 26AWG (0.15mm²) ~22AWG (0.3mm²) are tinned copper, 22AWG (0.5mm²) ~18AWG (0.75mm²) are oxygen-free copper.
2. 26AWG (0.15mm²) is grey PVC sheath, 24AWG (0.2mm²)~18AWG (0.75mm²) is black PVC sheath.

Tin-plated copper mesh + aluminum foil:High shielding performance, stronger anti-jamming, more stable

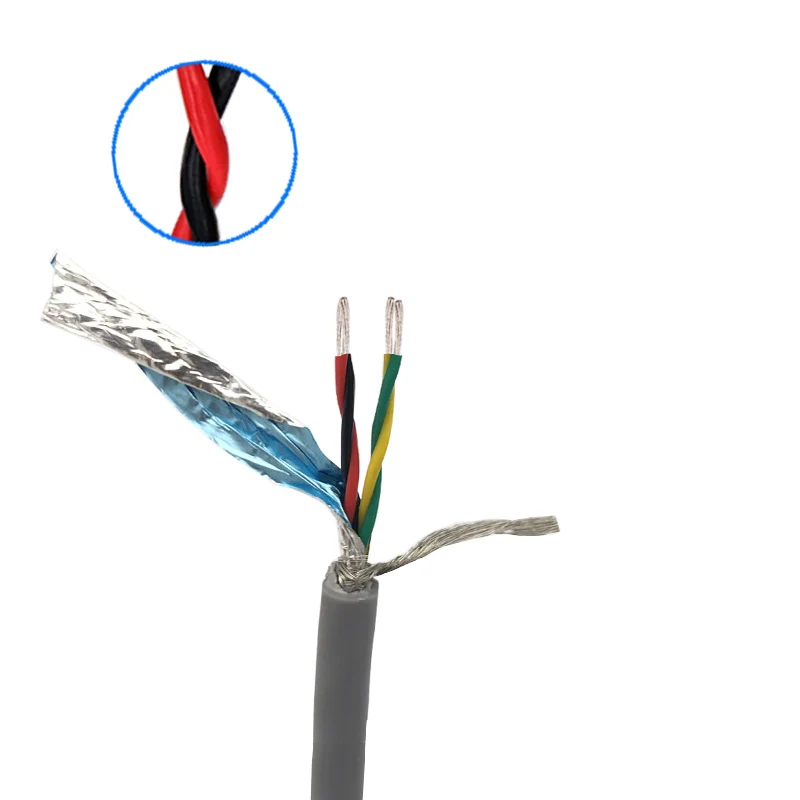

Twisted pair

In this way, not only can resist a part of the electromagnetic interference from the outside world, but also can reduce the mutual interference between many pairs of twisted wire, shielding performance is stronger and better.

Low core eccentricity

The use of advanced equipment, to ensure the low eccentricity of the wire, uniform thickness, effectively prevent current breakdown, to ensure the safety of electricity.

Soft Cable

The wire body is soft and ductile, and the winding is not easy to break,It protects the wire core and ensures the power supply.

Flame retardant wire

Adopt high quality PVC plastic, safe and flame retardant, automatically extinguish after leaving the open fire.
