Экономичная система вентиляции с восстановлением тепла для подачи свежего воздуха и удаления отходов - купить

Купить Cheap Fresh Air Supply Waste Extractor Fan Ventilation Heat Recovery System |

Brand NameNoneOriginMainland ChinaCertificationNONEMeasurement unitpiece/piecesEach pack1Showroom LocationPhilippines, Ukraine, UzbekistanVideo outgoing-inspectionProvidedMachinery Test ReportProvidedMarketing TypeOrdinary ProductWarranty of core components1 YearCore ComponentsMotorConditionNewPlace of OriginBeijing, ChinaStructurePlate Heat ExchangerLiquid Flow Rate0Maximum Working Pressure0Voltage220Weight31 KGDimension(L*W*H)1030x770x376Warranty1 YearKey Selling PointsLow Maintenance CostMotor3 speedPower supply220v/1ph/50HzHeat exchangerLatent heat exchangerTemp. Efficiency68~73%Filter alarmYesHumidity controlOptionalCO2 controlOptionalBMS controlOptionalTypeheat recovery extractor fanDefrostingAuto defrostingAfter Warranty ServiceVideo technical support, Online supportLocal Service LocationUnited Kingdom, Philippines, Ukraine, UzbekistanCertificationceAfter-sales Service ProvidedFree spare parts, Video technical support, Online support77 377,06 ₽77 377,06 ₽there is store discountAdd to CartBuy now77 377,06 ₽loaderDescription



Fresh Air Supply Waste Air Extractor Fan Ventilation Heat Recovery System



Product Description

Product features:

- 3 speed control, airflow is adjustable;
- enthalpy heat exchanger, high heat recovery performance;
- auto bypass for natural ventilation;
- double filters to ensure air clean;
- multi-functional intellegent controller with auto-restart, external on/off, auto-defrosting, timer, filter alarm, optional CO2 control, optional humidity control and BMS control etc.



 Product Specification

Model	Airflow m3/h			External pressure (Pa)			Enthalpy Efficiency (%)						Temp. Eff.(%)			Noise dB(A)			Current(A)			Input power (W)			N. W. (Kg)
							Summer			Winter
	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
XHBQ-D2TH	150	200	200	60	70	75	60	55		55	63		59	59		75	70	70	25	30	31.5	220	0.5	105	23
XHBQ-D3TH	250	300	300	75	82	85	62	57		57	65		61	61		73	68	68	27	34	34.5	220	0.56	117	25
XHBQ-D4TH	350	400	400	80	85	88	62	57		57	65		60	60		74	69	69	31	37	37.5	220	0.72	150	31
XHBQ-D6TH	500	600	600	89	92	97	63	59		59	67		61	61		76	70	70	29	35	39	220	0.96	200	36
XHBQ-D8TH	700	800	800	92	96	100	57	55		55	63		57	57		74	68	68	34	39	41	220	1.7	355	60
XHBQ-D10TH	900	1000	1000	80	85	86	60	58		58	64		62	62		76	70	70	34	38	42	220	2.1	440	70
XHBQ-D13TH	1000	1300	1300	75	85	90	58	56		56	62		59	59		76	70	70	38	41	43	220	3.4	710	79

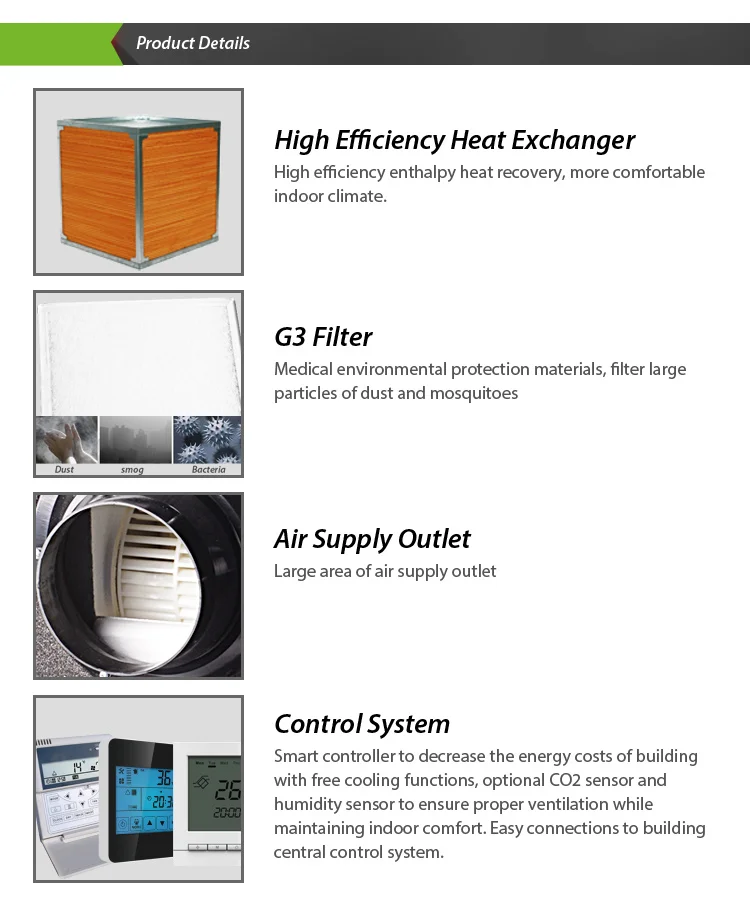

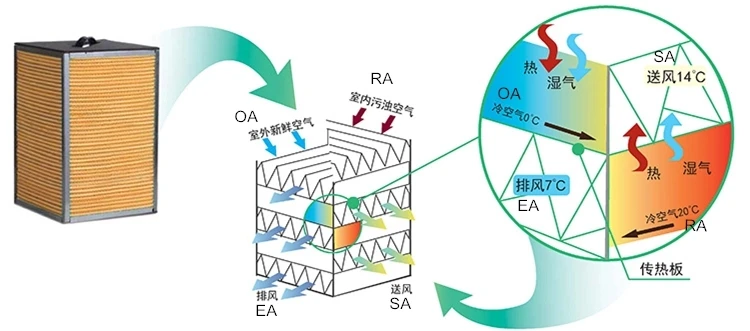

Independent R&D 3rd Generation HOLTOP Heat Exchanger

Heat exchanger of  Suspended installation 80% efficiency corssflow heat recovery ventilator is made of ER paper which is featured by high moisture permeability, good air tightness, excellent tear resistance, and aging resistance. The clearance between the fibers is very small, so only the moisture molecules of small diameter can go through, the odor molecules of larger diameter are unable to pass through it. By this means, the temperature and humidity can be recovered smoothly, and prevent the pollutants infiltrating to the fresh air.

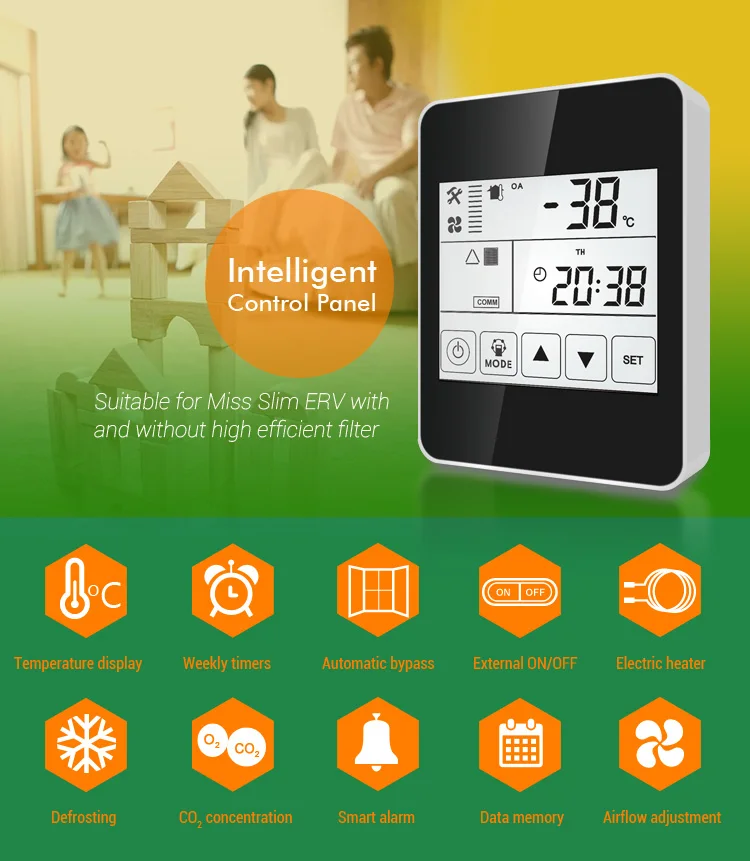

Touch Screen Intelligent Controller for option

- Various fan speed control to offer different supply air volume and ESP - Individual supply and exhaust fan control to create positive or negative indoor air - Temperature display to monitor indoor and outdoor temperature constantly - Auto bypass to supply outdoor comfortable fresh air in transition seasons. - Power to auto restart allow ventilator recover automatically from power cut down - Alternative EA fan defrosting or OA electrical heater solution to suit different climate in Winter - Optional CO2 concentration control - Optional humidity sensor to control indoor humidity - RS485 connectors available for BMS central control - Weekly timer function ensures the perfect indoor air quality at the same time to minimize power consumption. - External control and on/error signal output to allow administrator monitor and control the ventilator easily - Night free cooling function available to save air conditioner running cost - Filter alarm to remind user cleaning the filter in time - Working status and fault display

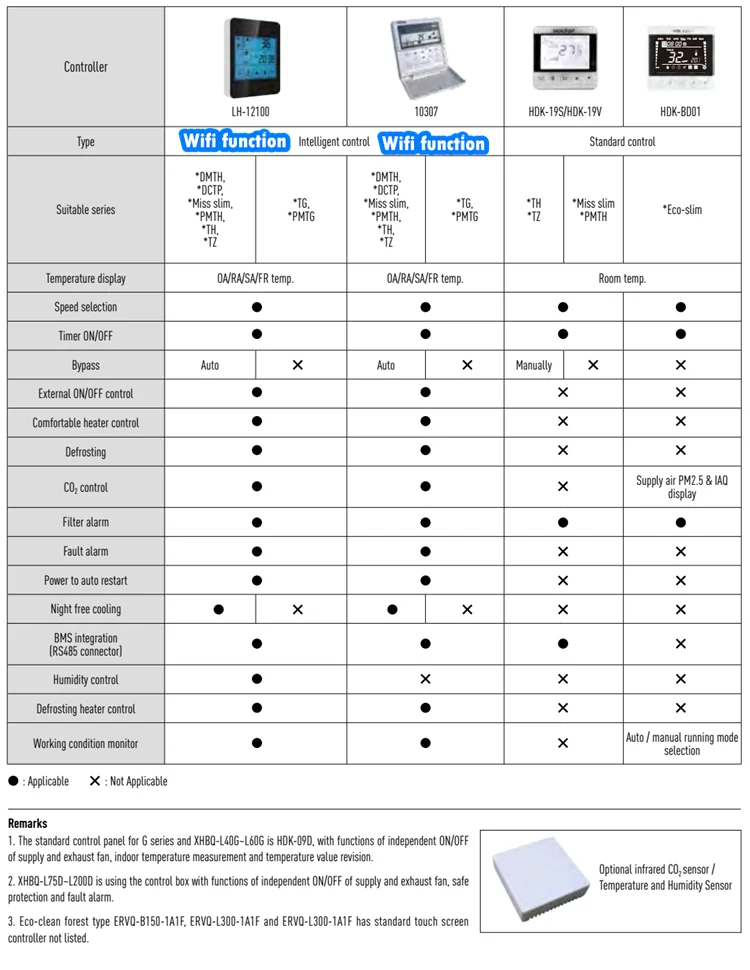

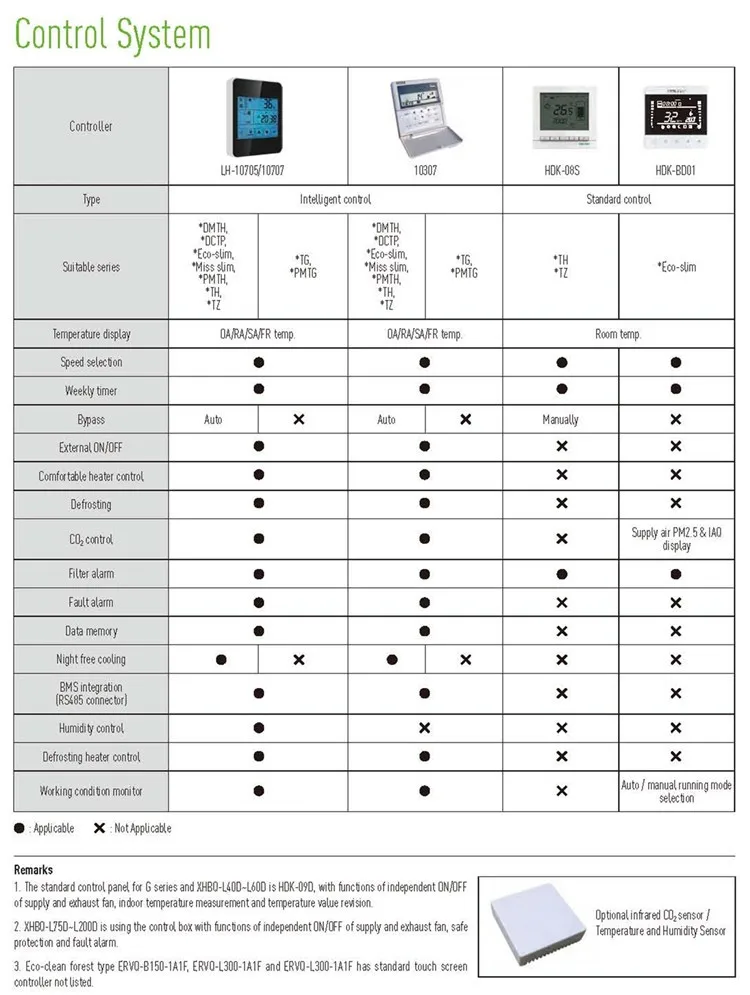

Controllers

Different controller models for different ERV series. Please confirm the latest suitable models with Holtop sales team.

Intelligent controller Function

1) Individual supply and exhaust fan speeds and ESP control (AC 3 speeds DC 10 speeds)

2) outdoor temperature, indoor temperature, supply air temperature and exhaust air temperature display

3) weekly timmer function

4) Auto bypass and auto defrost funciton

5) Intergated RS485 connector for BMS control(on PCB)

6) External on/off control and fire alarm control, inter lock function (on PCB)

7) Faulty signal output for monitoring function (on PCB)

8) Night free cooling function (on PCB)

9) Optional CO2 sensor and humidity sensor to control CO2 concentration and indoor humidity

10)Optional electical heater for supply air or outdoor air (alternative for comfort ventialtion or extremly winter low temperture defrost)

11)Optional central control by one multi controller (up to 16pcs ERV controlled by one controller)

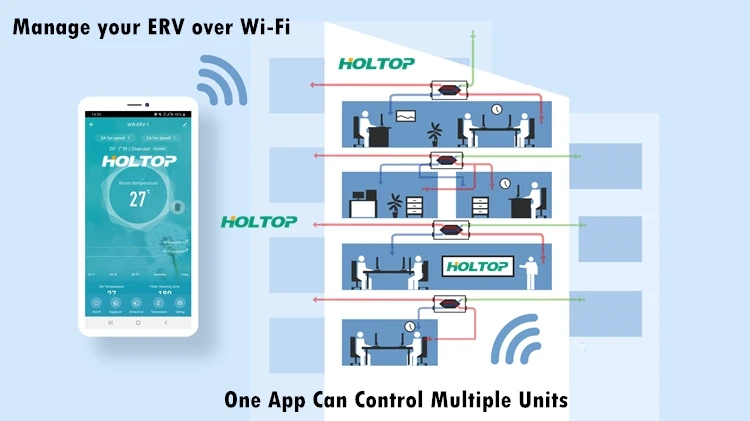

App is available to IOS and Android phones with the following functions:

1. Monitoring indoor air quality

Monitor local weather, temperature, humidity, CO2 concentration, VOC at your hand for healthy living.

2.Variable setting

Timely switch, speed settings, bypass/timer/filter alarm/temperature setting.

3.Optional language

Different language English/French/Italian/Spanish and so on to meet your requirement.

4.Group control

One APP can control multiple units.



---
