Модулятор-демодулятор протокола USB HART для замены оператора данных 475 модуля установки Разъемы - купить
Специальная цена *
Категория товара: Connectors
История изменения цены
Купить HART Modem USB Protocol Modulator Demodulator Replace 475 Hand Operator Data Setter Module | Connectors
Brand NameNoneOriginMainland ChinaCertificationNONEMeasurement unitpiece/piecesEach pack1Unavailable in
Descriptionmodname=ckeditor
Technical indicators
Power supply: 5VDC, USB power
Current: 1.5 mA @ 5 VDC
Specification: 72 * 19 * 8mm (l/W, H)
Cable length: 1.4 m
Connector: Two nonpolar test pins or clips,
Type of signal: HART signal, FSK frequency shift keying signal conforming to Bell202 standard.0.5± 0.1vPP sine wave @1200/2200Hz
Communication rate: 1200bps
USB Interface type: USB-A virtual serial port
Communication rate: 1200bps
HART interface protection: 1.5KV isolation. ESD: IEC 6100-4-2, L4 (15 kv air discharge) surge: IEC 61000-4-4, L3 (2 kv / 1 ka)
Operating temperature: -20℃-+50℃
Humidity: 0-95%.
Storage temperature: -40℃-+85℃
Provide Informations Including USB interface driver software, HART protocol related to the gift of Chinese and English materials, upper computer programming VB, VC, Delphi, Labview routine, including HART command read and write test software, so that you timely verify the communication performance of the product.Shipping list

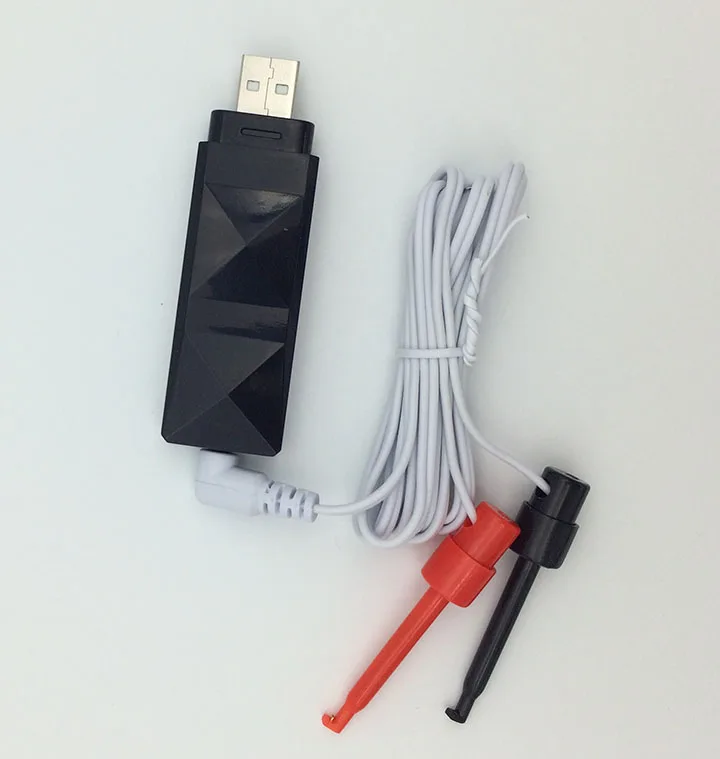

1. HART converter x1
2. Test cable x1
3. Metal film resistance: 300 ohms /1W x1
4. Operation Manual (electronic file)
5. Software data package
Method of use Method A
The second method
Product UsageWide range of intelligent instrument configuration, field commissioning, process control and other fields, can be pressure, temperature transmitter, radar, liquid level meter, flowmeter, actuator with HART function instrument equipment communication.It is used for debugging the HART intelligent transmitter of voltage, temperature and liquid level of Rosemount, ABB, Cologne, Siemens, E+H, Yokogawa, etc. It can also be used with Siemens PDM and PACTwate software to manage the HART intelligent equipment. It is suitable for field debugging, laboratory and system integration of HART equipment.
