We only supply genuine Leadshine servo motor drive with reasonable price, if your budget is limit, please contact our service man online and he she will recommend you the low price other supplier.

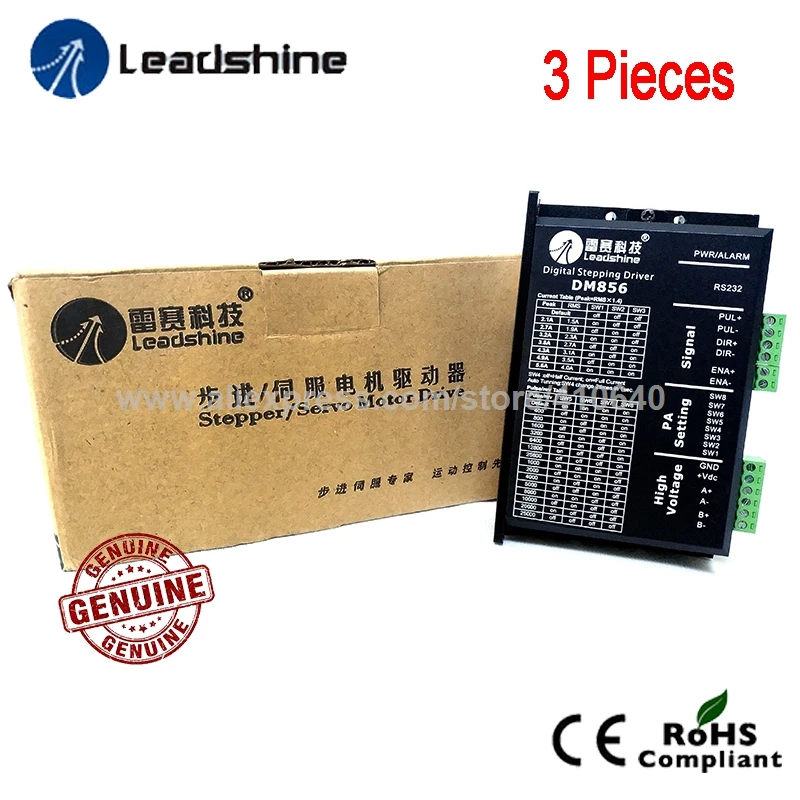

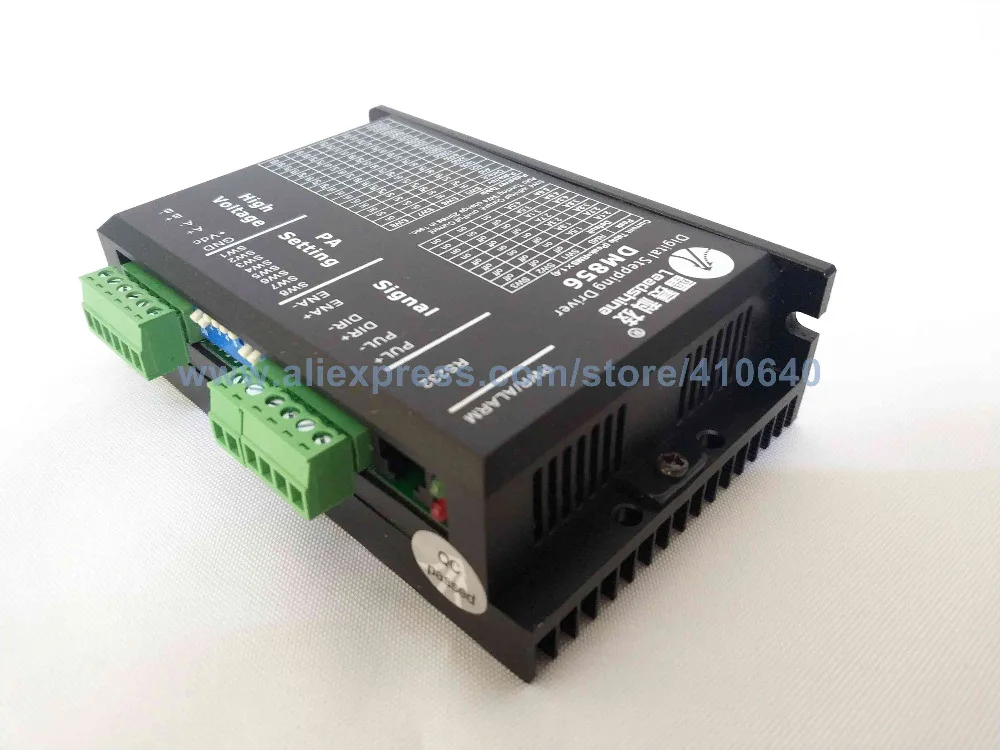

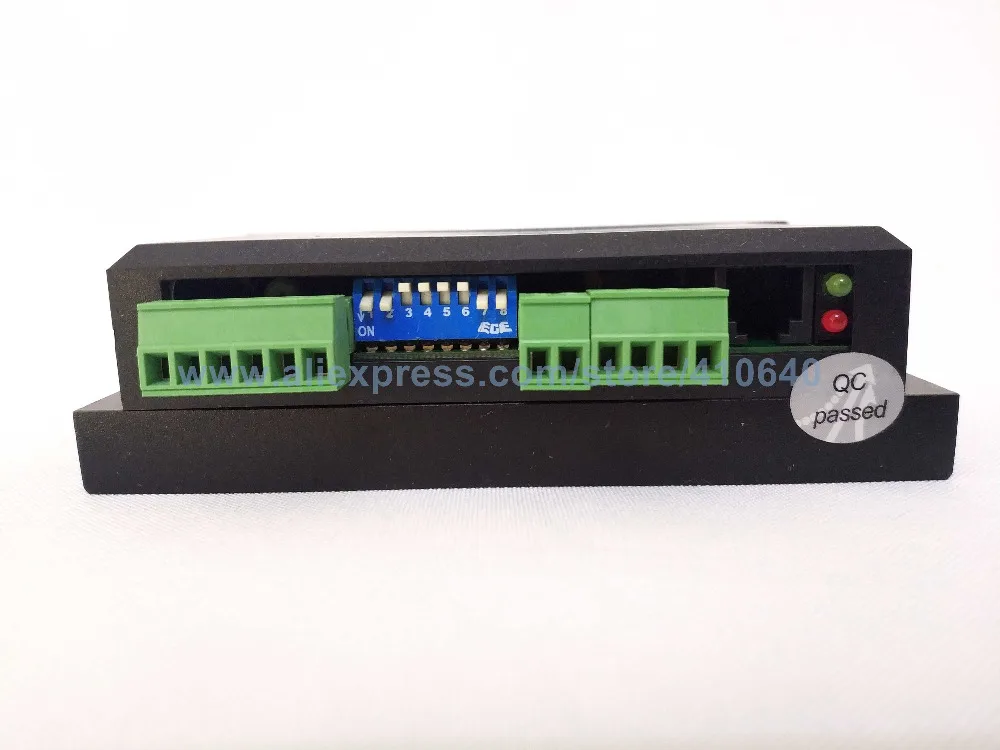

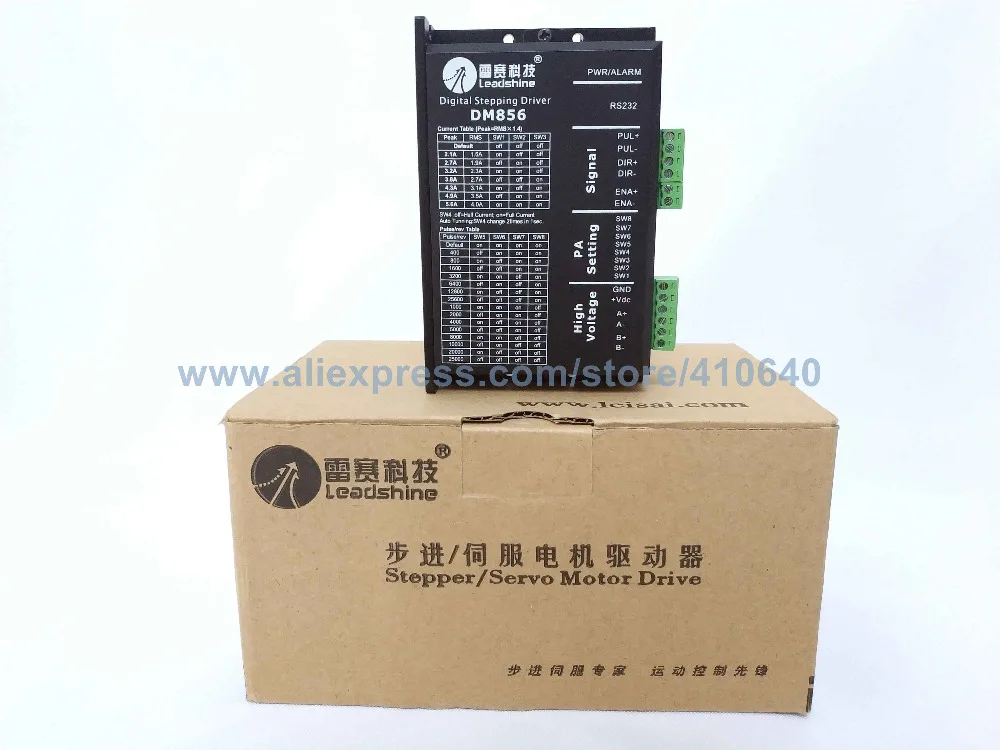

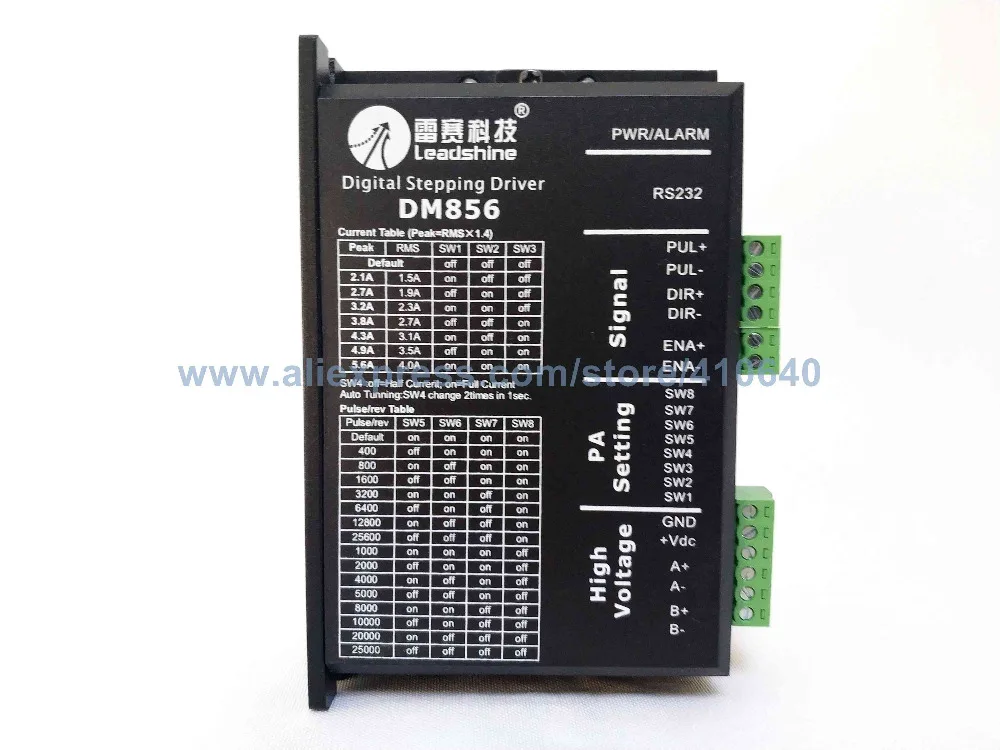

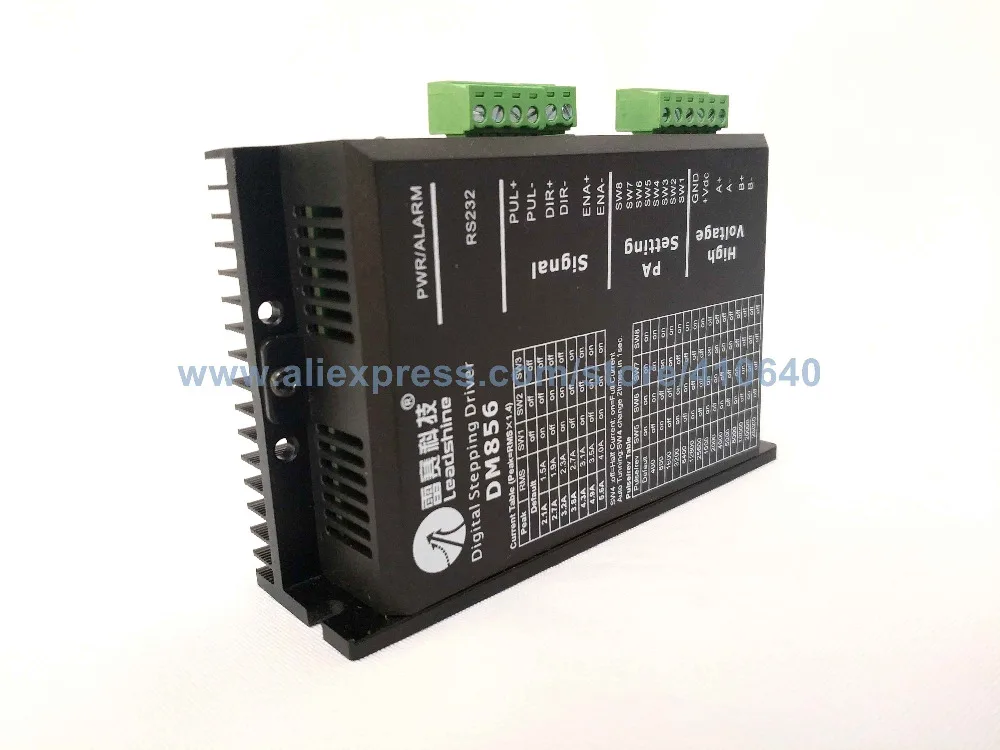

DM856 2-Phase 32-Bit DSP Digital Stepper Drive

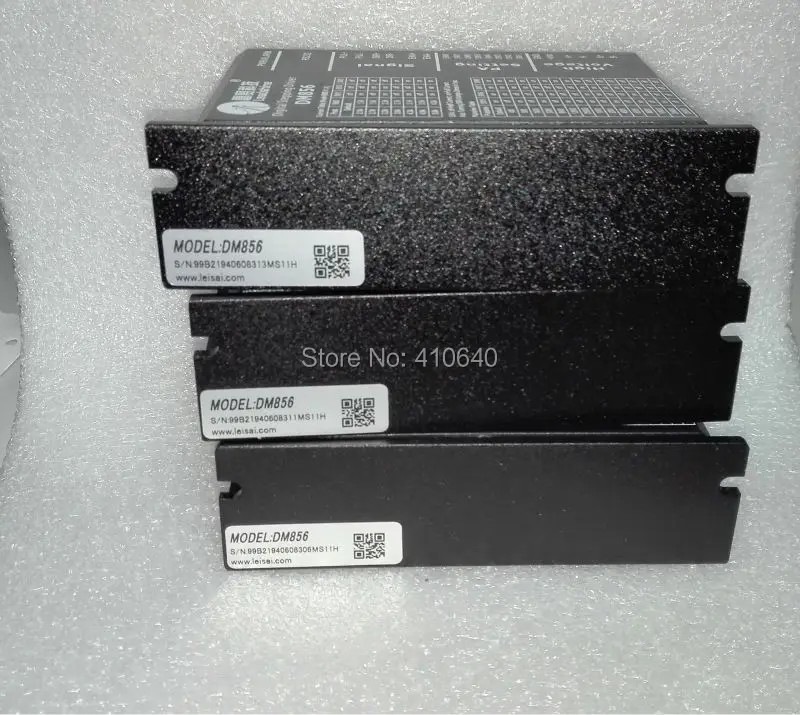

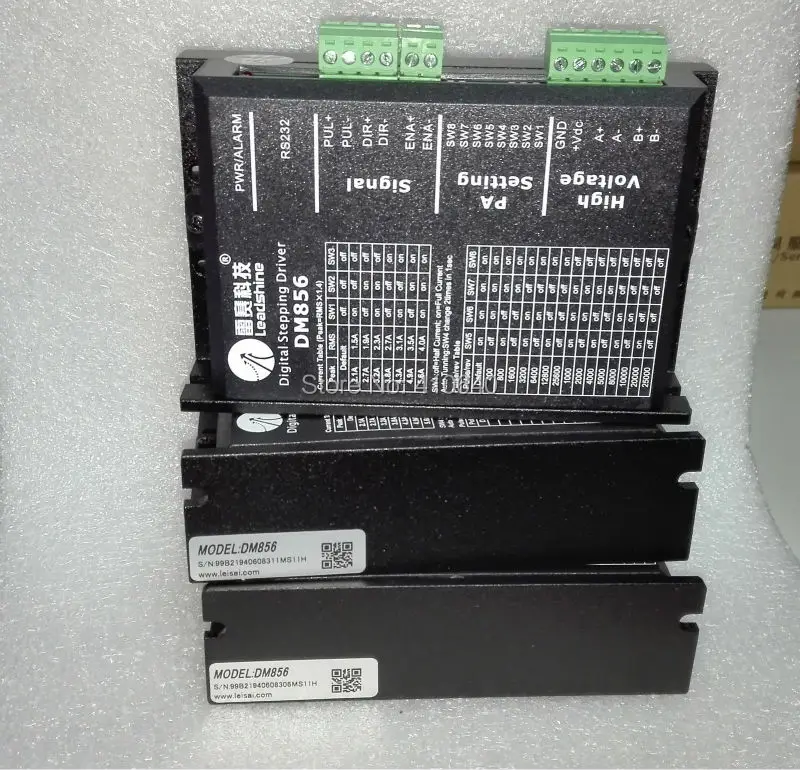

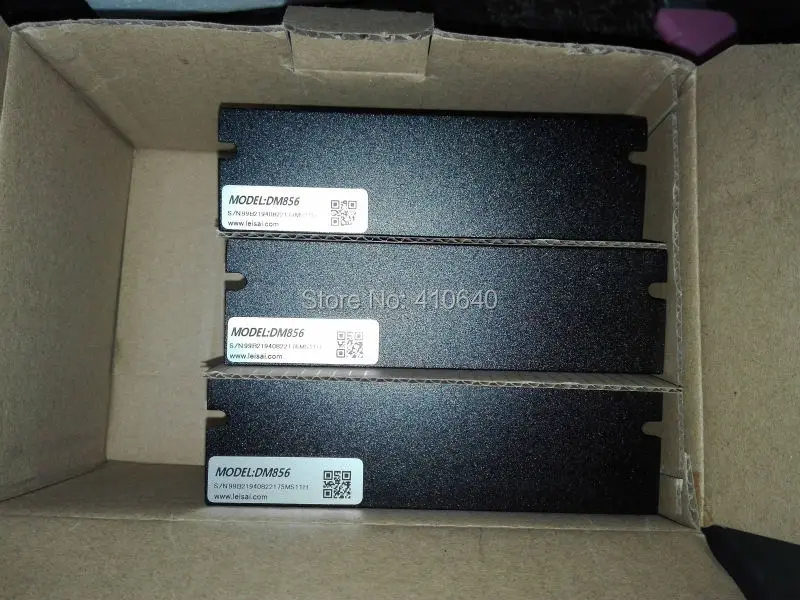

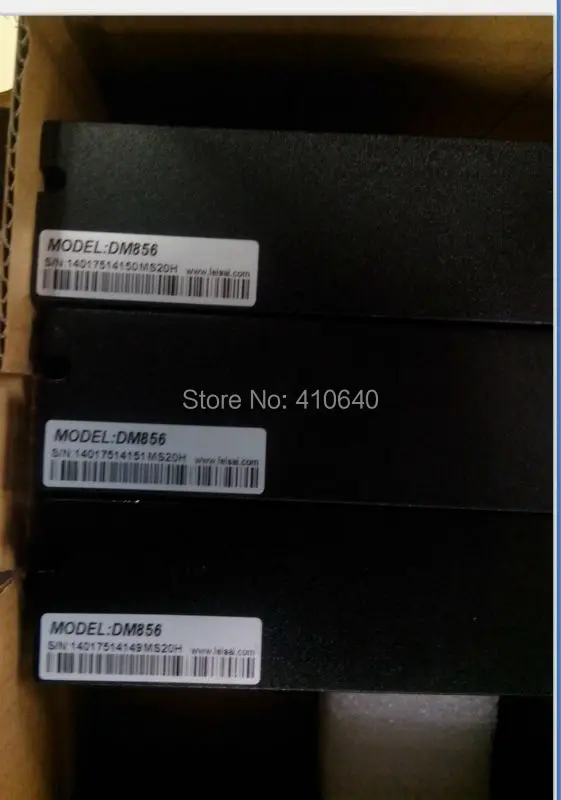

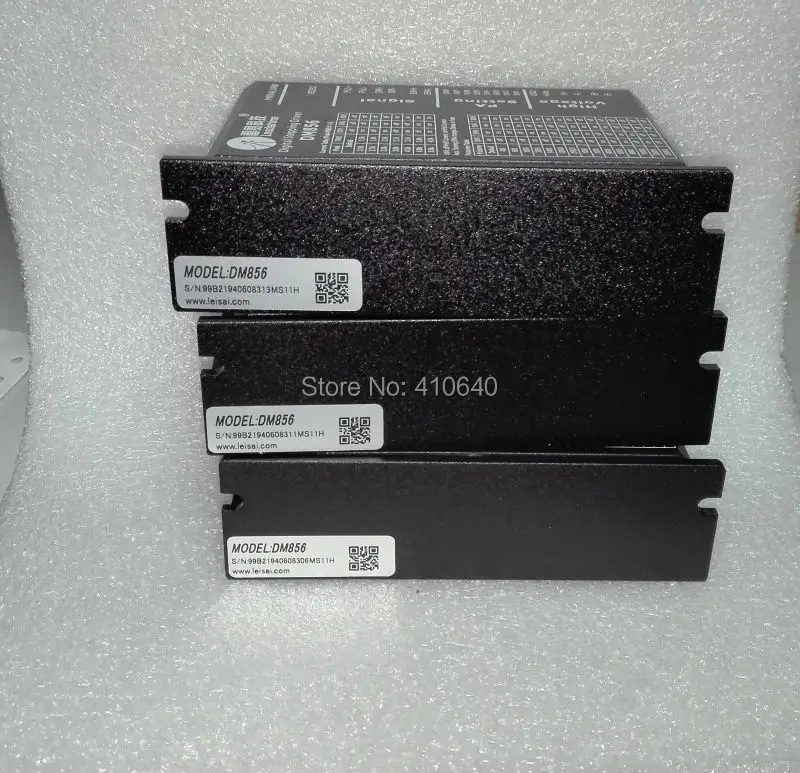

(3 peices per lot )

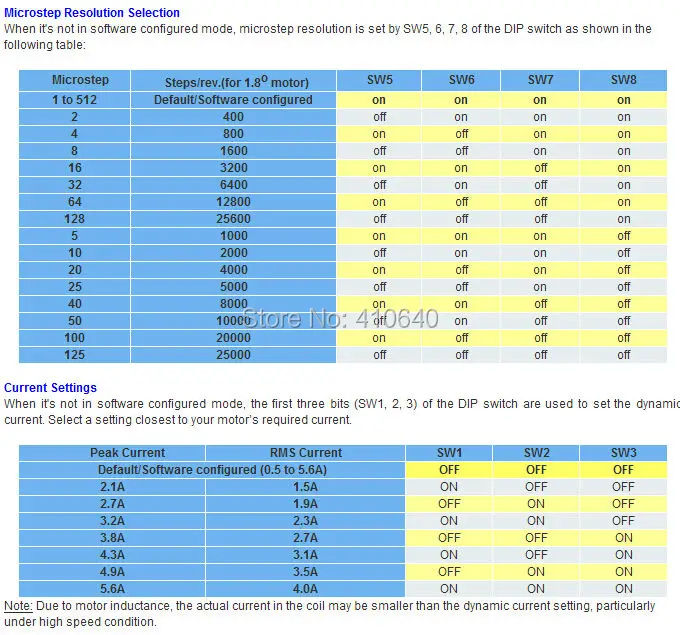

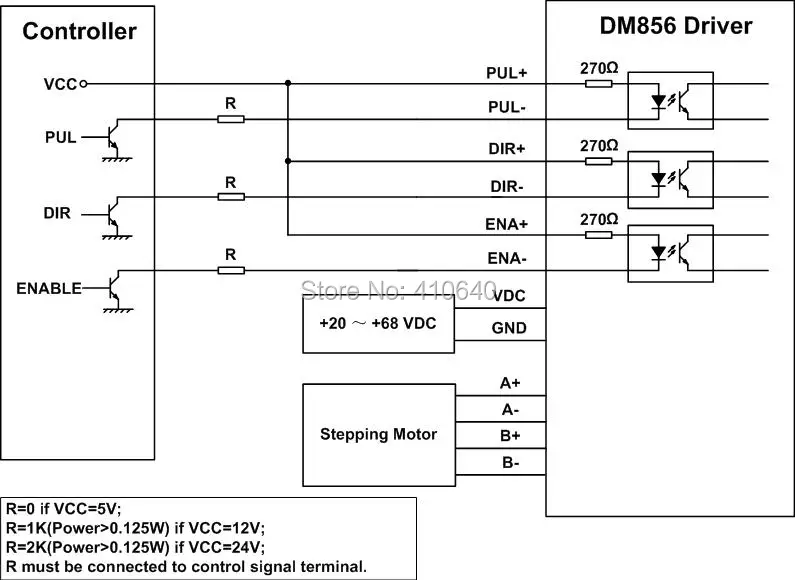

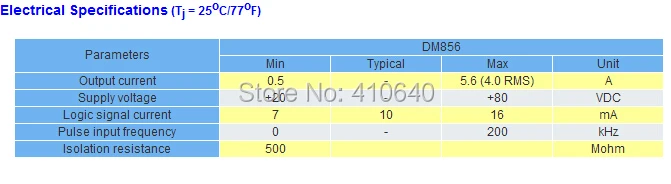

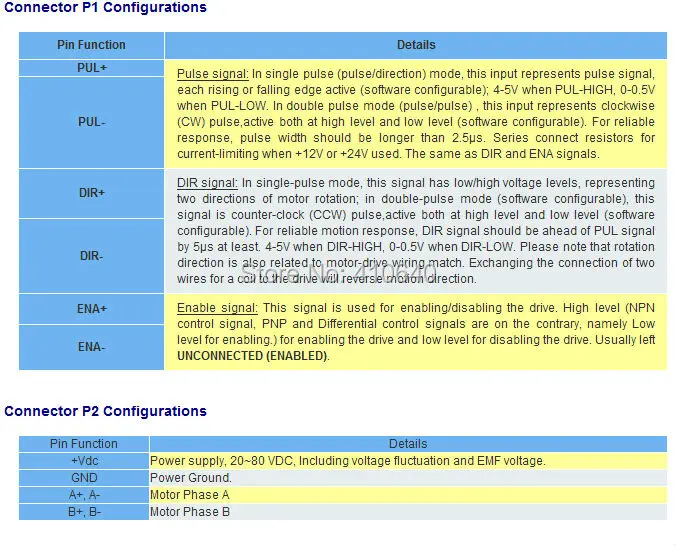

The DM856 is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives on the markets. Its unique features make the DM856 an ideal solution for applications that require low-speed smoothness.   Features: Extra-low motor noise offers excellent quietness Anti-Resonance, provides optimum torque and nulls mid-range instability Self-test and Auto-configuration technology, offers optimum responses with different motors Microstep resolutions programmable, from full-step to 102,400 steps/rev   Supply voltage up to +80 VDC   Output current programmable, from 0.5A to 5.6A  Pulse input frequency up to 200 KHz   Automatic idle-current reduction  Supports PUL/DIR and CW/CCW modes   Specification: Model: DM856 Phase: 2 Control Mode: Step & Dir Max Input Frequency: 200Khz Input Voltage Range: 20 - 80 VDC Suggested Power Supply Voltage Range: 24-72 VDC Output Current: 0.50 - 5.60 A Software Cofig. Resolution Range: 200 - 102,400 (increased by 200) # of DIP Switch Resolution Configurations: 15 DIP Switch Resolution Setings: 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000 Software Cofig Current Range: 0.50 - 5.60A (increase by 0.1A) # of DIP Switch Current Configurations: 7 DIP Switch Current Configurations: 2.1A, 2.7A, 3.2A, 3.8A, 4.3A, 4.9A, 5.6A Logic Current Range: 7-16mA      (10mA typical) Logic Voltage Range: 4-5 VDC for pulse active high (default) , or 0-0.5V for pulse active low Communication Type: RS232 Pulse enabled at: Rising edge Idle Current Percent: 50 % Software Config. Idle Current Percent: 0-100% # of Digital Inputs: 3 Step Width: 2,500 ns Minimal Direction Setup Time: 5,000 ns Protection: Over current; over voltage; phase error Isolation Resistance: 500M Ohm Environment: Avoid dust, oil fog and corrosive gases Ambient Temporature: 0-50°C Humidity: 40–95% RH Operating Temporature: 0-70°C Vibration: 5.9 m/s2 Max Storage Temporature: -20-65°C Specification: 4.65 X 2.97 X 1.30 Inches Weight: 0.60 lb   Electrical Specifications       Connector       Microstep Resolution Selection And Current Setting     Typical Connection     Mechanical Specification     Companion products 57HS09 (Stepper Motor) 57HS13(Stepper Motor) 57HS22 (Stepper Motor)   SPS407 (Power) SPS407-L (Power) SPS608 (Power) SPS608-L (Power) RPS369 (Power) RPS488 (Power) RPS705 (Power) RPS705-L  (Power)   Real Photo:

Notice:

1: The default delivery mehod is based on free shipping by Registered Post Service.

2: Becuase there is the dlivery cost of fluctuation of the DHL,UPS, Fedex or TNT, if you are in need of these faster service, please contact our online consultant, and will offer you lowest cost for these express

3: If you are in need of other products with different model, please contact our online sales, will offer you best price and lowest delivery cost--based on GENUINE  products.
