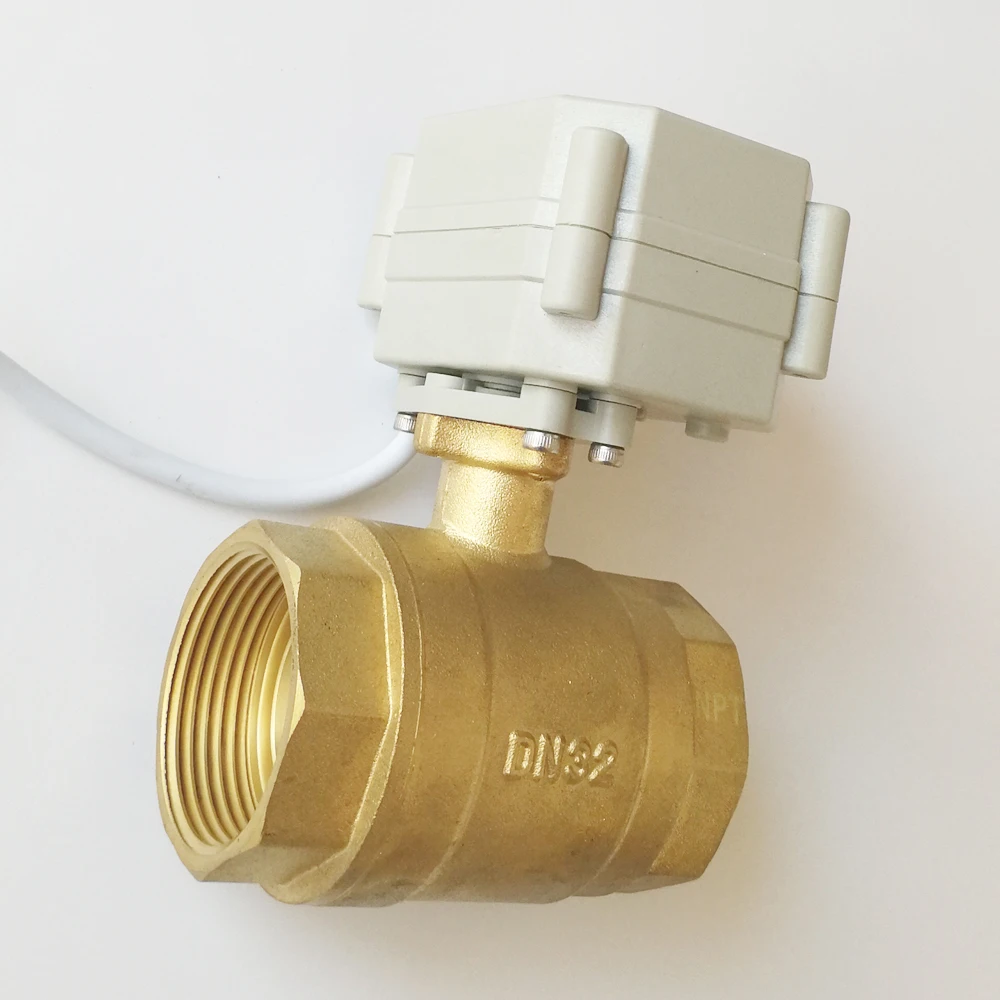

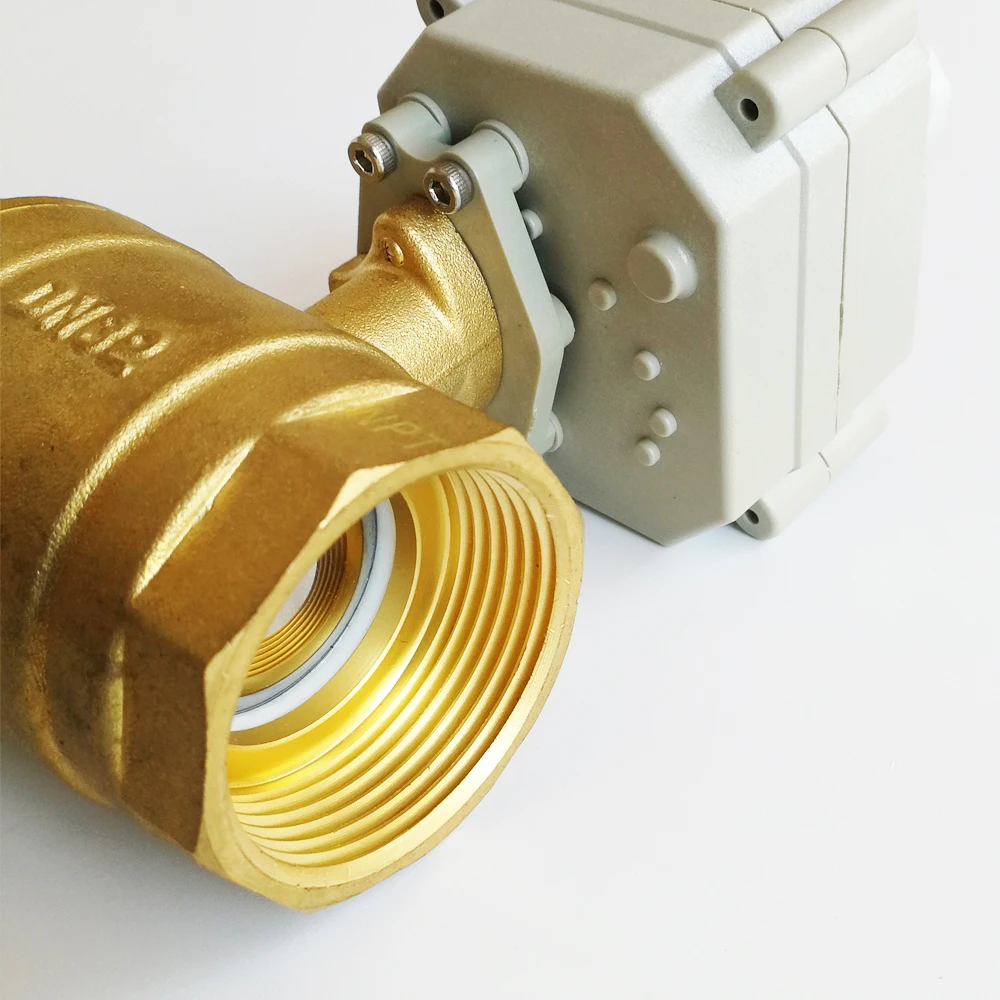

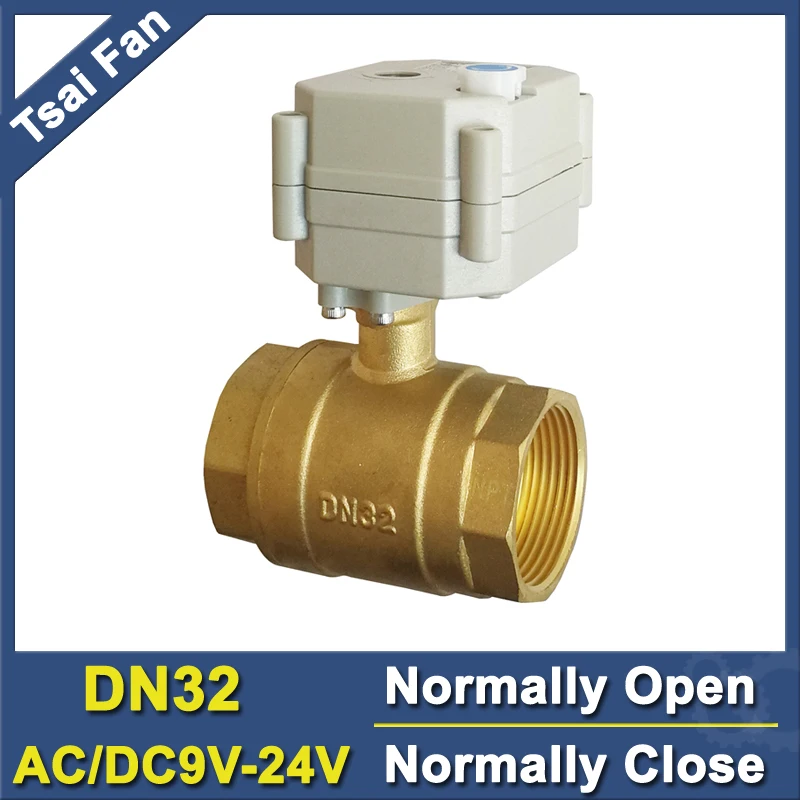

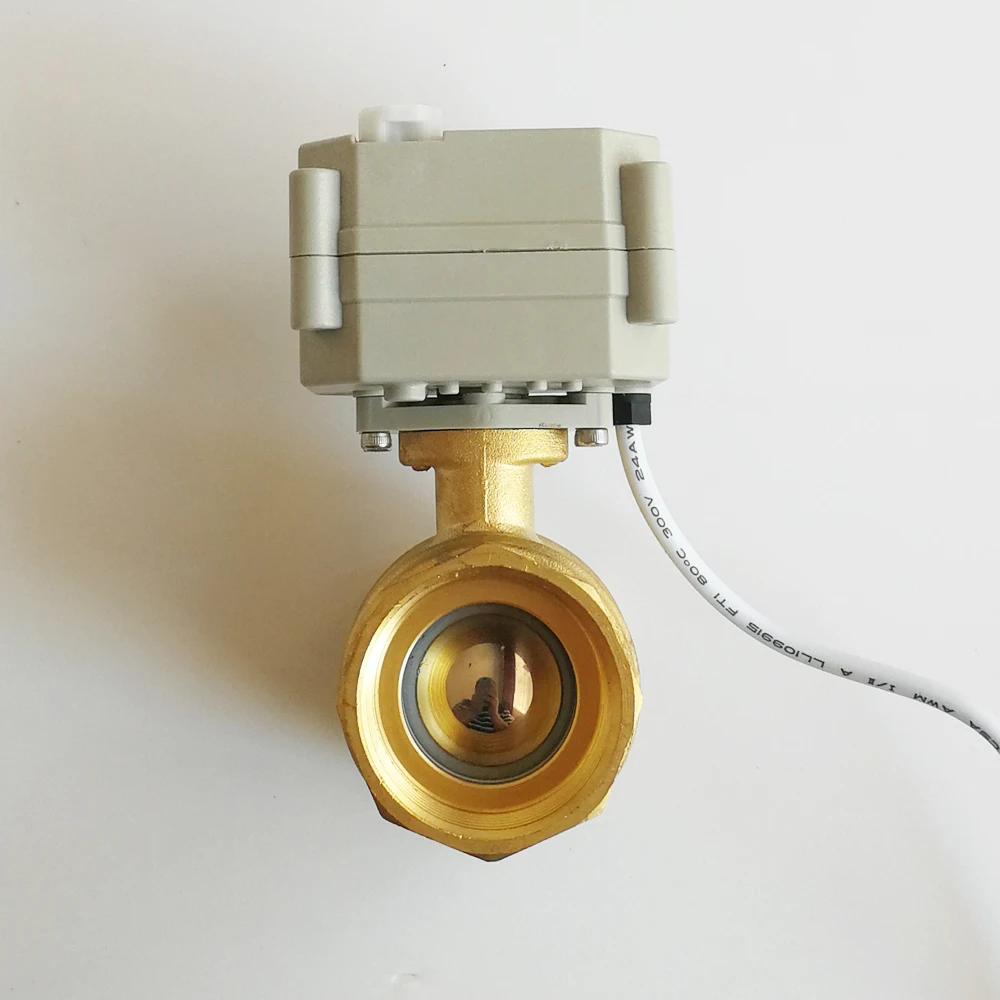

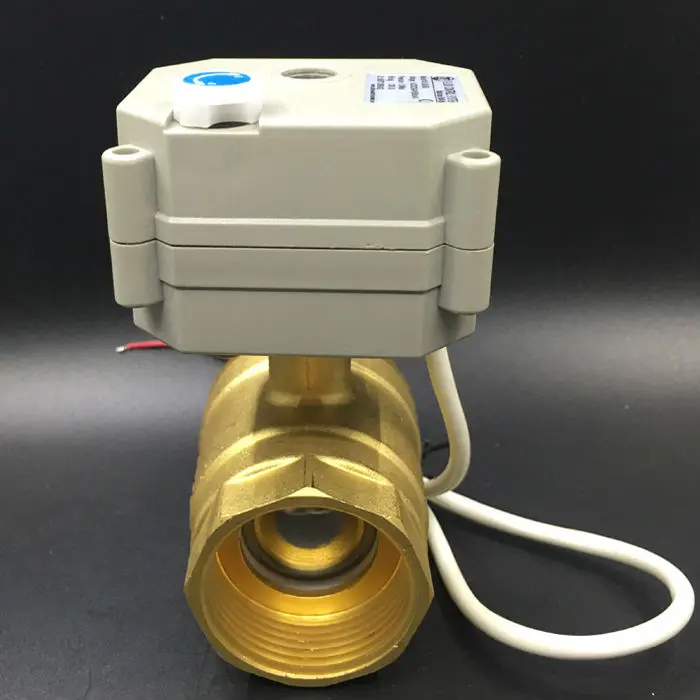

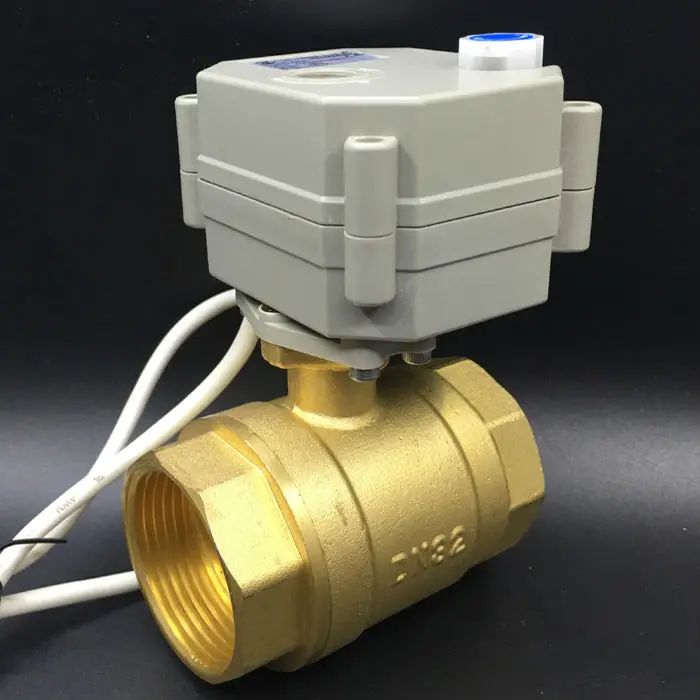

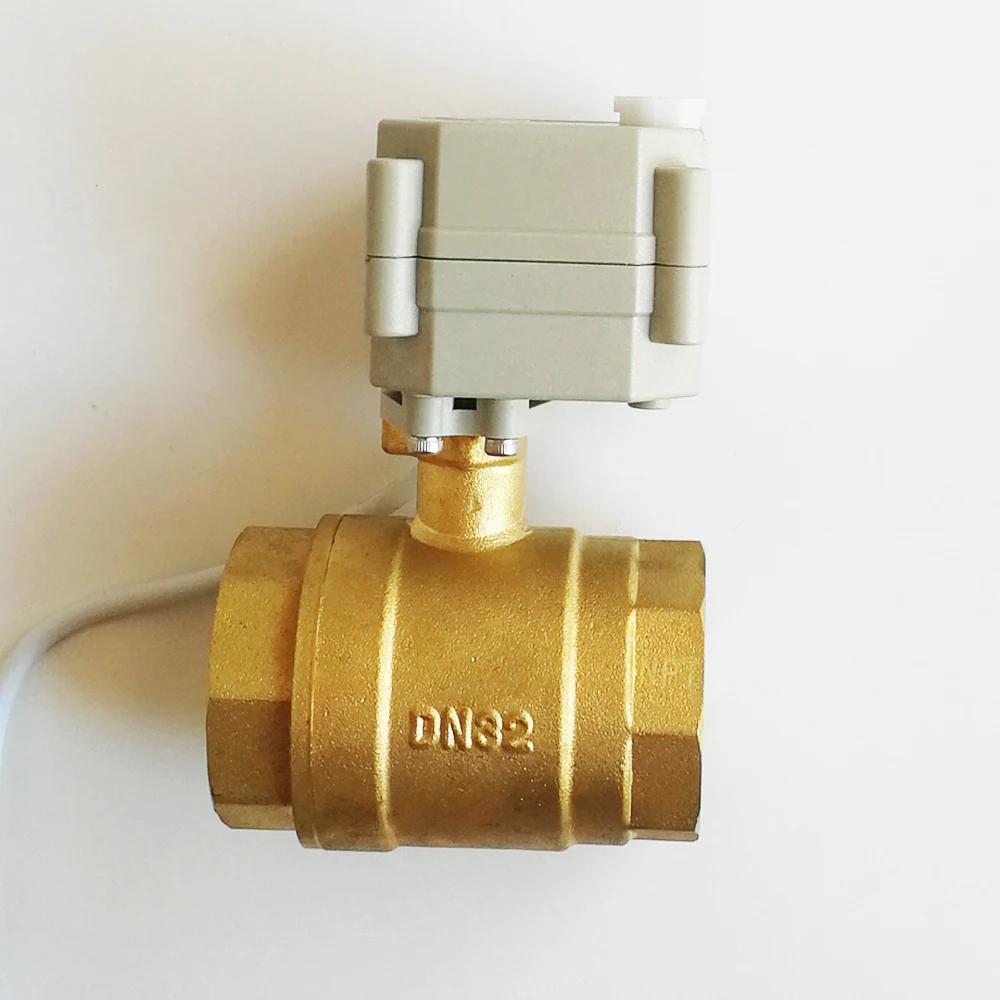

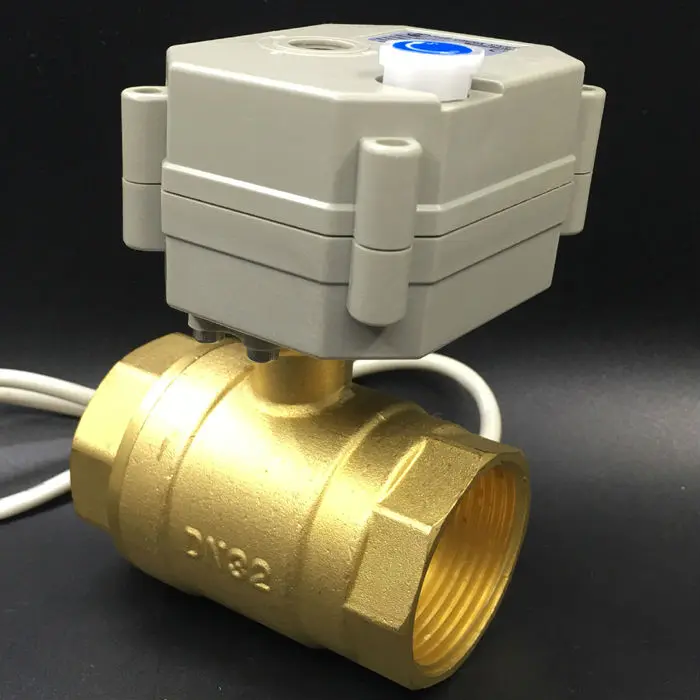

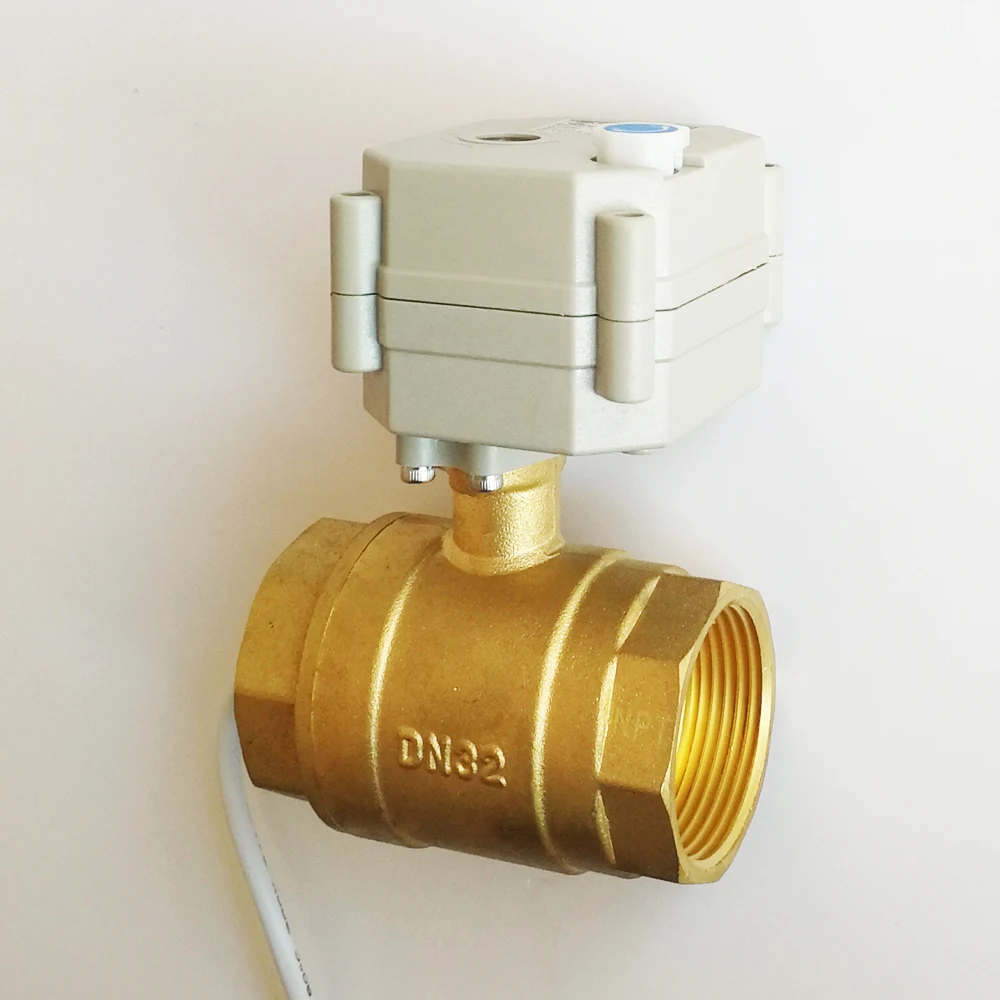

TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32 - купить

Специальная цена от US $36.61 - 38.55 руб.*




Категория товара: Valve

Наличие: На складе

Продавец:


История изменения цены

*Внимание! Указанная цена US $36.61 - 38.55 уже могла изменится, перед тем как купить данный товар перейдите на страницу продавца и проверьте актуальную стоимость.

Месяц Мин. Макс. Цена
12.06.2026 43.70 45.62 44 руб.
12.05.2026 42.10 44.42 43 руб.
12.04.2026 36.85 38.28 37 руб.
12.03.2026 42.27 44.10 43 руб.
12.02.2026 36.0 38.78 37 руб.
12.01.2026 41.27 43.98 42 руб.
12.12.2025 41.18 43.62 42 руб.
12.11.2025 40.46 42.56 41 руб.
12.10.2025 40.54 42.2 41 руб.

Купить TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32 |

TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32 TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32 TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32 TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32 TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32 TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32 TF32-B2-B AC/DC9V-24V BSP/NPT 1-1/4'' Normal Open Normally Closed Electric Motorized Valve With Manual Override 2 Way DN32



Product size: BSP/NPT 1-1/4",  DN32Bore Size: 29mmValve Body Material:BrassWorking Voltage:AC/DC9V-24V Open/close Time:5 SecWiring Control Methods: CR202 / CR502 (Optional)Maximum Working Pressure: 1.0MPaCirculation Medium: Fluid, AirWorking Current:≤80MA (500 mA shown on the lable means the minimum current of external power)Life time: 100,000 timesActuator Material: Engineering PlasticsSealing Material: EPDM & PTFEActuator Rotation: 90°Max. Torque Force:2 N.MCable Length: 0.5mEnvironment Temperature: -15°~50°Liquid Temperature: 1°~95°Manual Override:YesIndicator: YesProtection Class: IP67******************************************************************************************

Normal Closed Valve: (Normally open valve is opposite)



The valve usual stay at fully close position.


Valve turn open when connect it to AC/DC9V-24V power (12V, 24V).


Valve return to close position automatically after power off.





******************************************************************************************

Most of our old clients used TF brand motorized valve for

water applications as bellow:


1. Automated Leak Detection & Water Shut-off System

2. Water heater&boiler system

3. Centre heating system

4. Water treatment, water reclying, water purification

5. Electric Brewing system

6. Smart water meters, solar water systems.

7. Drinking water equipment, washing machine

8. Chemical process, water softener

9. HVAC, central air conditioning, fan coil

10. Water saving irrigation, automatic control system, industrial mini automatic control equipment.

******************************************************************************************

How about the quality control of TF brand motorized ball valve?


1, Actuator housing use high quality engineering plastic for prevent aging and UV;

2, Metal gear system can guarantee the valve operation steady and long life working;

3, 200 times electronic performance testing before sending out, each valve should open/closed 200 times by power in this testing;

4, Type ID number to each batch valves;

5, The protection class is also IP67, all actuators are fully sealed to IP67 specifications to prevent water ingress;

6, Floating seal structure, no leak, suitable for heavy dirt or long time working. No leaking, high protection class, NEMA 6 equivalent;

7, Most of other supplier offer reduce port only. TF series motorized valve features a full port ball valve, the valve do not lose any water flow or pressure on the working.

8, Offer NPT thread valve for America and Canada market, and offer BSP thread valve for other country.

9, Different wiring control methods for option which include 2/3/5 wires control, normal open/closed, signal feedback etc.

10. Acquired CE certification and ISO certification.

******************************************************************************************
