Купить Set of 2X Stroke 400mm=16inches/ DC 12V/ 1500N=150KG 330lbs 16" Mini Electric Linear Actuator Tubular Motor Motion | Обустройство
Set of 2X Stroke 400mm=16inches/ DC 12V/ 1500N=150KG 330lbs 16" Mini Electric Linear Actuator Linear Tubular Motor Motion
Features:
1. 100% Brand New and high quality
2. Heavy Duty and Long Lasting Motor
3. High quality aluminum alloy material
4. High performance motor
5. Built-in high quality limit switch
6. The low noise design, noise level below 42 dB
7. Multiple Purpose Applications Linear Actuator
8. Commonly Used In Automotive, Medical Devices and Engineering Industry.
Specification:
|
Product Name |
Linear Actuator |
|
Condition |
100% new |
|
Input Voltage |
DC 12V |
|
Stroke Length |
400mm/16inch |
|
Load capacity |
1500N/330lbs |
|
Speed |
5.7mm/s |
|
Duty cycle |
25% |
|
Operating frequency |
20% |
|
Material |
Aluminum alloy |
|
Color |
Silver grey |
|
Operation temperature |
-26 ° C ~ +65 ° C |
|
Protection Class |
IP65 |
|
Certification |
CE |
Data Sheet:
We are factory direct sales, We provide series of linear autuators, pls check as below,
|
Mode |
Rated Voltage |
Stroke Length |
Load capacity |
Speed |
Duty cycle |
Protection class |
|
50mm 12V |
DC 12v |
50mm/2 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
|
100mm 12V |
DC 12v |
100mm/4 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
|
150mm 12V |
DC 12v |
150mm/6 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
|
200mm 12V |
DC 12v |
200mm8 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
|
250mm 12V |
DC 12v |
250mm/10 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
|
300mm 12V |
DC 12v |
300mm/12 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
|
350mm 12V |
DC 12v |
350mm/14 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
|
400mm 12V |
DC 12v |
400mm/16 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
|
450mm 12V |
DC 12V |
450mm/18 inch |
1500N/330lbs |
5.7mm/s |
25% |
IP65 |
For wholesale/OEM business cooperation, OR if you need extra Stroke Length/Speed/Spec. Pls contact me freely, we will reply you ASAP.

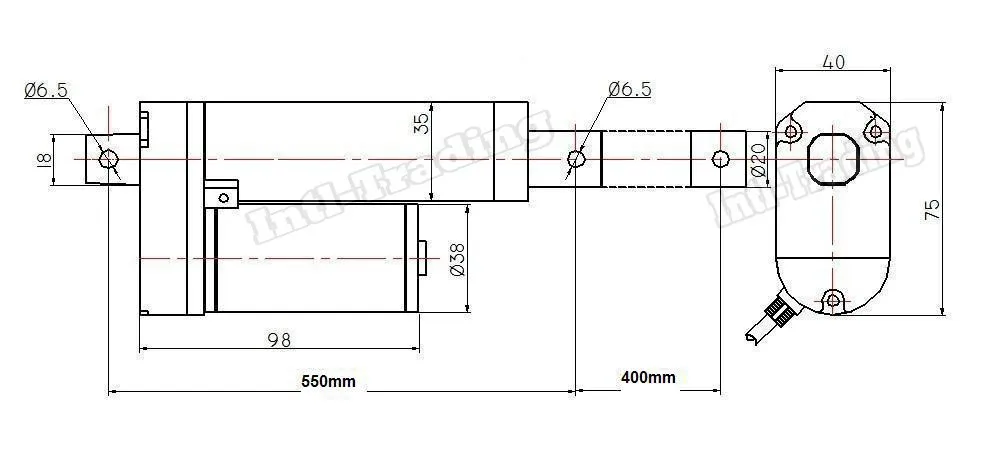

Dimensional Drawing:
|
Application:
Autos; Solar tracking system; Agricultural machinery; The wedding system; Industrial electric lifting system; The medical electric bed, surgical bed, traction bed; Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, etc; Chair for medical use: Electric wheelchair, Massage Chair, dental chair, e
|
|
Package Included:
2pcs 400mm/16inch 5.7mm/s speed linear actuators
