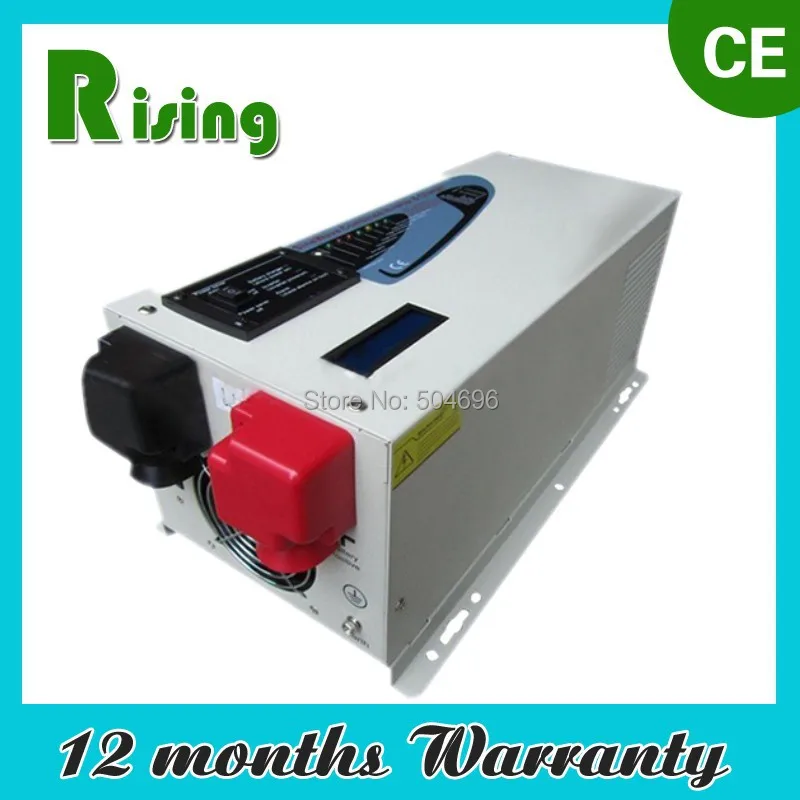

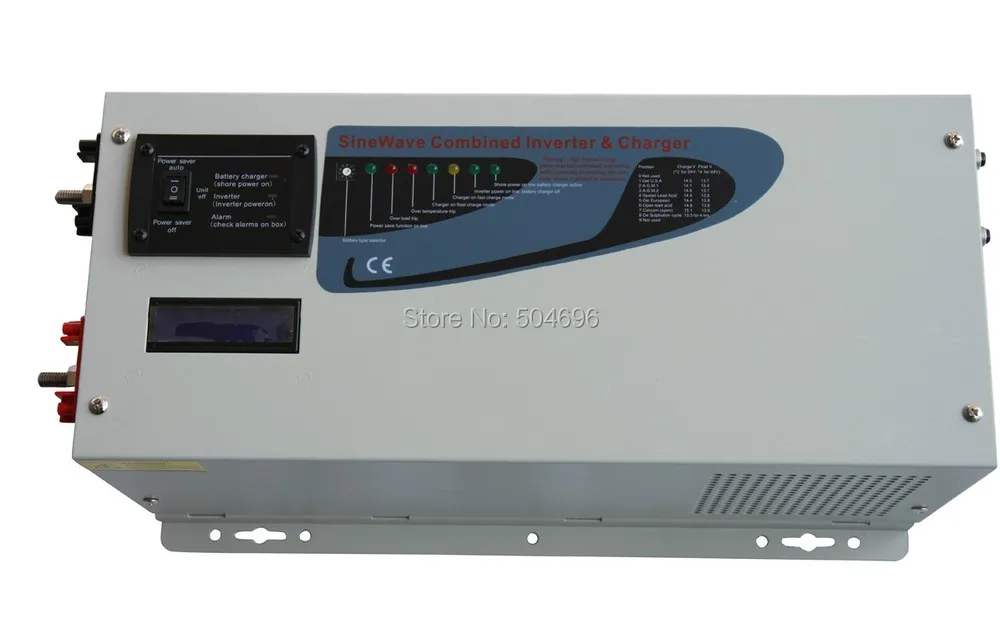

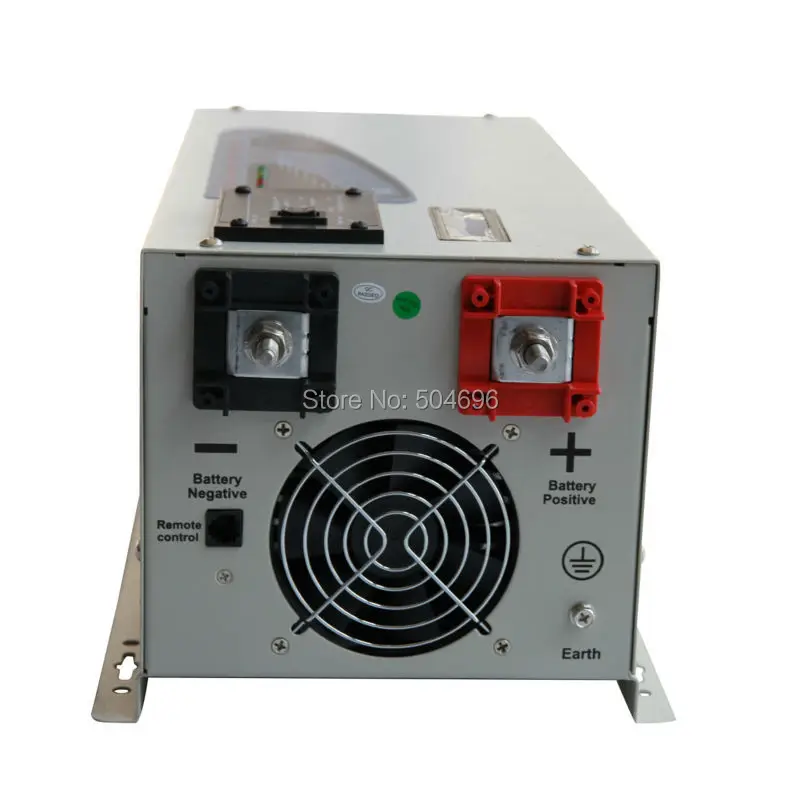

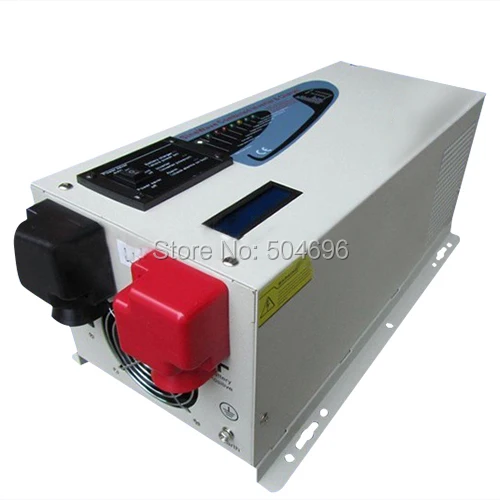

2000w Max 6000w Pure Sine Wave Inverter with Charger 35A, Solar Inverter DC 24V AC 110V/220V/230V/240V Converter LCD Remote Control, 23KG! High Quality!
Features:
Pure sine inverter with charger
low frequency power inverter better for sensitive load

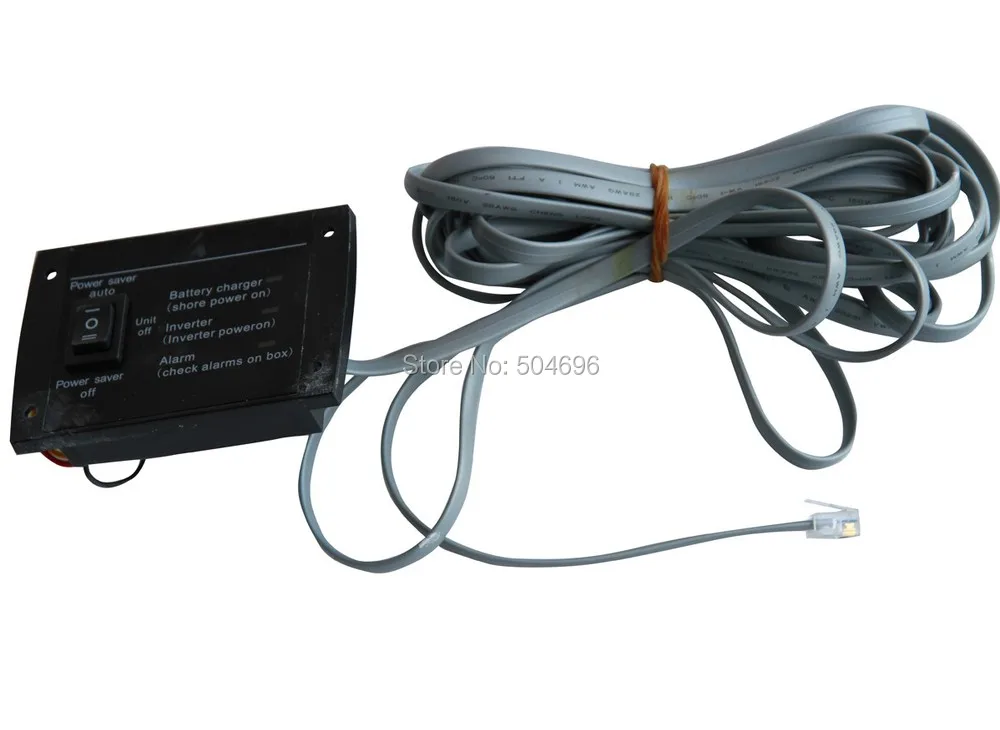

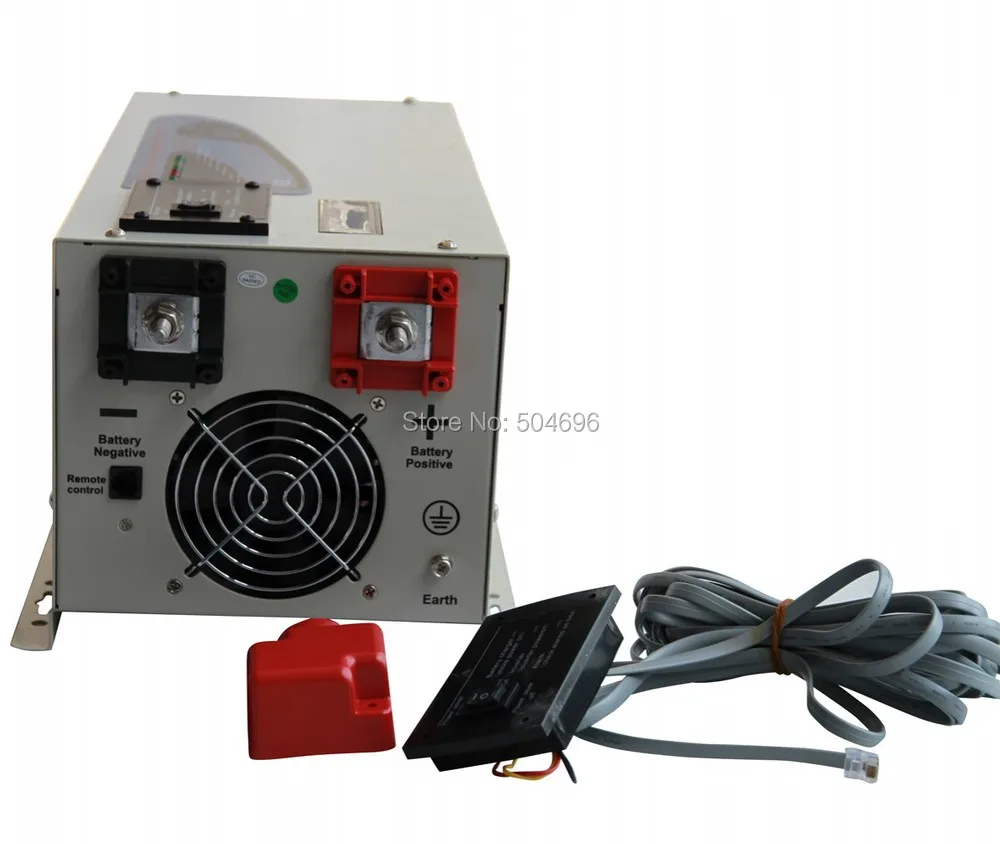

Includes 10m cable with remote

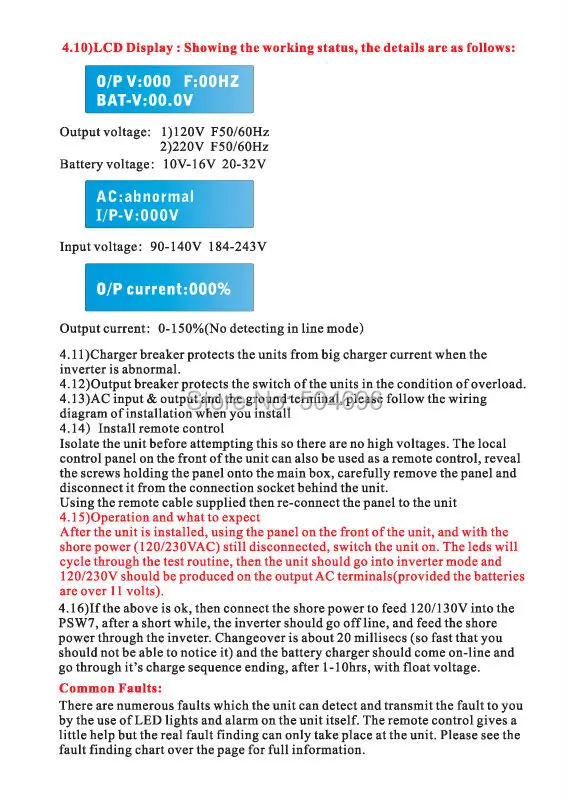

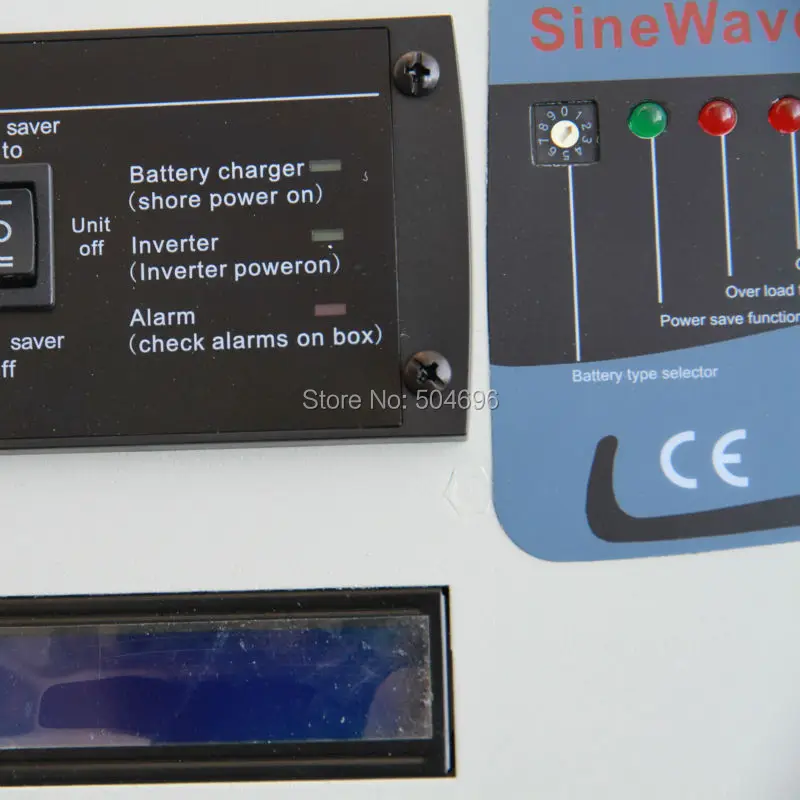

LCD status display : showing AC current,O/P current and voltage,Freqnecy,Battery Voltage
Designed and built with the highest standards

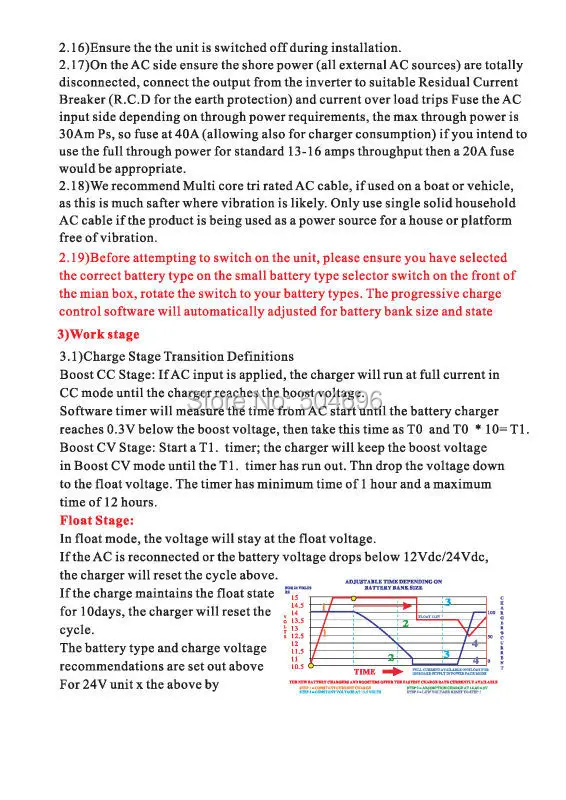

4-step progressive charging, 7 battery type selector
35Amp Battery Charger Built In
High Surge capacity (20 seconds)
Float and constant charge mode to reduce charging time
Automatic switch from inverter mode to battery charge mode
Pure Sine Generator friendly Only
Circuit Breaker protection,no need to change fuse
8 Battery types: Gel U.S.A,AGM1, AGM2, Sealed lead acid, Gel Euro, Open Lead Acid, Calcium, De-Sulphation
Protection:
Over load, over temperature, over charging, low battery
Reverse connection (optional by hard connector)
Blackouts
Why low frequency?
It is generally accepted that low frequency pure sine wave inverters are more dependable than high frequency pure sine wave inverters. Low frequency inverters are designed with a transformer, which greatly reduces the number of components via high frequency inverters. It is much heavy and more expensive, but more stable and better quality! The following advantages associated with low frequency design:
1. Higher peak power capability :The transformer inductance swing will help to start up heavy loads.
2. Greater reliability: Low frequency power products have lower component counts and consequently they are less stressed.
3. Higher efficiency and lower costs: Low frequency inverters and battery chargers have lower EMI, which requires less filtering.
4. Efficient powering of reactive loads: When using low frequency, it is transparent for 50Hz/60Hz reactive currents, which provides a greater capability to power highly reactive loads more efficiently.
| General specification |
||||||||||||||
| Model |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
||||||||
| Continuous Output Power |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
||||||||
| Surge Rating |
3000W |
6000W |
9000W |
12000W |
15000W |
18000W |
||||||||
| Output Waveform |
Pure sine wave/same as input(bypass mode) |
|||||||||||||
| Nominal Efficiency |
>88%(peak) |
|||||||||||||
| Line Mode Efficiency |
>95% |
|||||||||||||
| Power Factor |
0.9-1.0 |
|||||||||||||
| Nominal Output Voltage rms |
120/230VAC |
|||||||||||||
| Output Voltage Regulation |
±10% rms |
|||||||||||||
| Output Frequency |
50Hz ± 0.3Hz/60Hz ± 0.3Hz |
|||||||||||||
| Short Circuit Protection |
Yes( 10s after fault ) |
|||||||||||||
| Typical Line Stansfer Time |
10ms(max.) |
|||||||||||||
| THD |
<3% |
|||||||||||||
| Inverter specification/input |
||||||||||||||
| Nominal Input Voltage |
12V |
24V |
48V |
|||||||||||
| Minimum Start Voltage |
10V |
20V |
40V |
|||||||||||
| Low Battery Alarm |
10.5V |
21V |
42V |
|||||||||||
| Low Battery Trip |
10V |
20V |
40V |
|||||||||||
| High Voltage Alarm |
16V |
32V |
64V |
|||||||||||
| Low Battery Voltage Recover |
13V |
26V |
52V |
|||||||||||
| Idle Consumption-Search Mode |
< 25W when power saver on |
|||||||||||||
| AC charger |
||||||||||||||
| Input Voltage Range |
95-127VAC |
194-243VAC |
164-243VAC(W) |
|||||||||||
| Output Voltage |
Depends on battery type |
|||||||||||||
| Charge Rate |
35A |
|||||||||||||
| Battery Initial Voltage for Start Up |
0-15.7V for 12V( *2 for 24V, *4 for 48V) |
|||||||||||||
| Over Charge Protection Shutdown |
15.7V for 12V (*2 for 24V, *4 for 48V) |
|||||||||||||

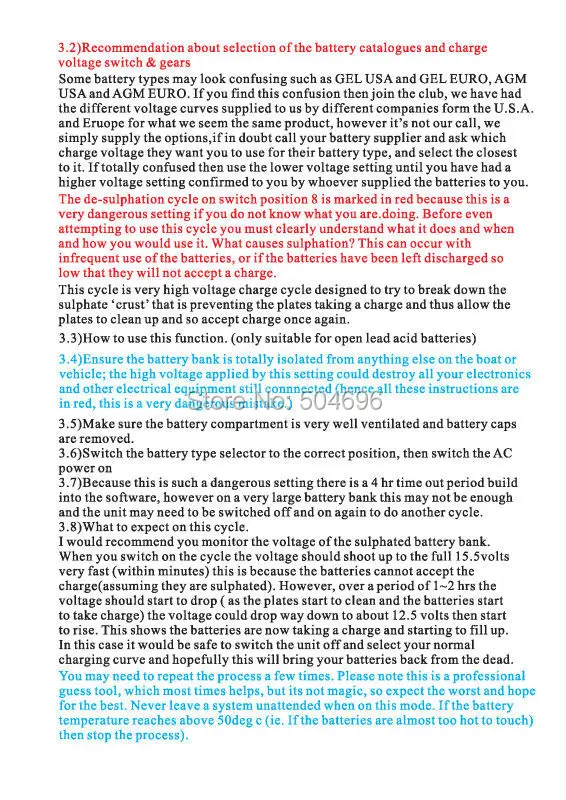

| Charger curve(4 stage constant current), battery types 4 step digital controlled progressive charge |
||||||||||||||
| Battery type |
Fast V, float V ( *2 for 24v, *4 for 48v) |
|||||||||||||
| Gel U.S.A |
14 |
13.7 |
||||||||||||
| A.G.M 1 |
14.1 |
13.4 |
||||||||||||
| A.G.M 2 |
14.6 |
13.7 |
||||||||||||
| Sealed Lead Acid |
14.4 |
13.6 |
||||||||||||
| Gel Euro |
14.4 |
13.8 |
||||||||||||
| Open Lead Acid |
14.8 |
13.3 |
||||||||||||
| Calcium |
15.1 |
13.6 |
||||||||||||
| De-sulphation |
15.5 for 4hrs |
|||||||||||||
| Remote Control |
Yes. |
|||||||||||||
| By pass & protection |
||||||||||||||
| Input Voltage Waveform |
Sine wave (grid or generator) |
|||||||||||||
| Nominal Voltage |
120VAC |
230VAC |
||||||||||||
| Low Voltage Trip |
90V±4% |
184V/154V±4% |
||||||||||||
| Low Voltage Re-engage |
100V±4% |
194V/164V±4% |
||||||||||||
| High Voltage Trip |
140V±4% |
253V±4% |
||||||||||||
| High Voltage Re-engage |
135V±4% |
243V±4% |
||||||||||||
| Max. Input AC Voltage |
150VAC |
270VAC |
||||||||||||
| Nominal Input Frequency |
50Hz or 60Hz (auto detect) |
|||||||||||||
| Low Freq Trip |
47Hz± 0.3Hz for 50Hz, 57Hz± 0.3Hz for 60Hz |
|||||||||||||
| Low Freq Re-engage |
48Hz± 0.3Hz for 50Hz, 58Hz± 0.3Hz for 60Hz |
|||||||||||||
| High Freq Trip |
55Hz± 0.3Hz for 50Hz, 65Hz± 0.3Hz for 60Hz |
|||||||||||||
| High Freq Re-engage |
54Hz± 0.3Hz for 50Hz, 64Hz± 0.3Hz for 60Hz |
|||||||||||||
| Overload Protection |
Circuit breaker |
|||||||||||||
| Short Circuit Protection |
Circuit breaker |
|||||||||||||
| Transfer Switch Rating |
30amp |
40amp |
||||||||||||
| Bypass Without Battery Connected |
Yes |
|||||||||||||
| Max. Bypass Current |
30amp |
40amp |
||||||||||||
| Bypass Over Load Current |
35amp: alarm |
45amp: alarm |
||||||||||||
| Size and Weight |
||||||||||||||
| Dimensions(L*W*H) |
442*218*179mm |
598*218*179mm |
||||||||||||
| Inverter Weight |
21KG |
23KG |
27KG |
38KG |
48KG |
48KG |
||||||||
| Shipping Weight |
23KG |
25KG |
29KG |
40KG |
50KG |
50KG |
||||||||
| Display |
LEDs+LCD |
|||||||||||||
| Standard Warranty |
1 year |
|||||||||||||
