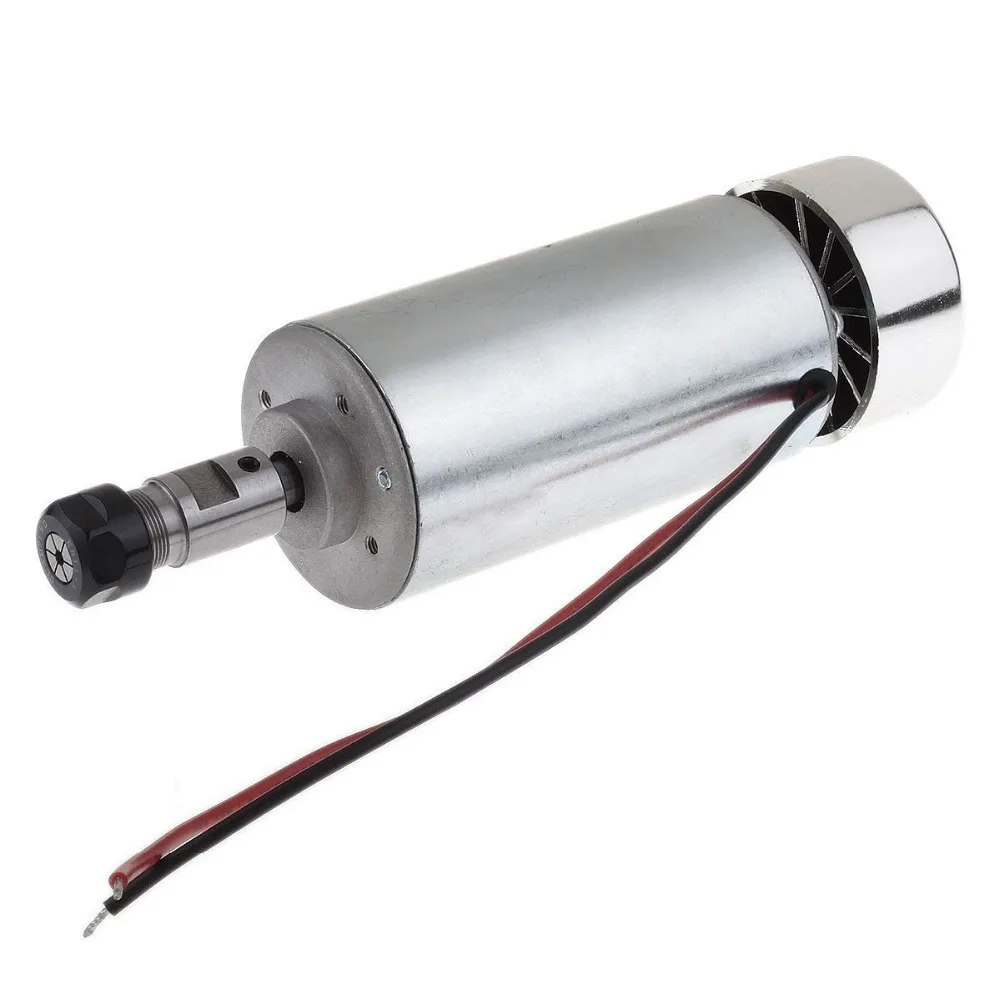

400W 12V 24V 36V 48V DC Engraving Machine Carving Milling Grinding Spindle Motor Обустройство дома - купить

Купить 400W 12V 24V 36V 48V DC Engraving Machine Carving Milling Grinding Spindle Motor | Обустройство дома

Working voltage :12-48VDC (DC)

Power: 400W

Speed :3000-12000r / min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Torque: 500mN.m

Insulation resistance:> 2 megohms

Dielectric strength: 400V

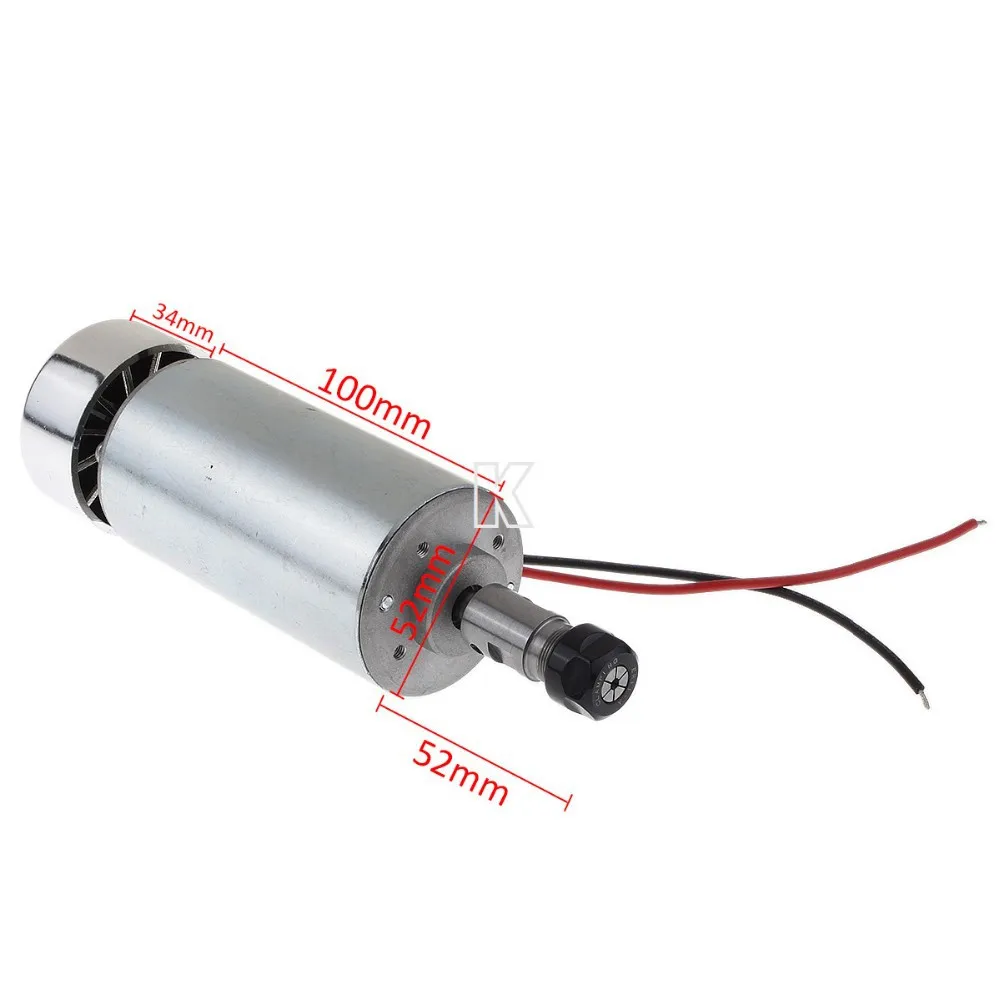

Diameter: 52mm

Chuck Part Length: Arbor parts 35mm, (including nuts and sandwich 43mm)

Part chuck diameter: 16mm

Motor length: 186mm (including gripping parts and motor)

Spindle Net Weight: 0.9KG

Spindle runout of about 0.01-0.03.

Can be used for engraving metal or nonmetal materials.

This comes with air-cooled spindle can work long hours.

Package List:

1 * 400W Spindle Motor
