WT600F-65 KZ25 Head Big High Flow Industrial Lab Intelligent Dispensing Peristaltic Dosing liquid Pumps (IP65) 0.25~6000 ml/min - купить

Купить WT600F-65 KZ25 Head Big High Flow Industrial Lab Intelligent Dispensing Peristaltic Dosing liquid Pumps (IP65) 0.25~6000 ml/min |

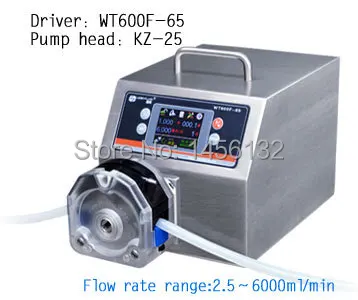

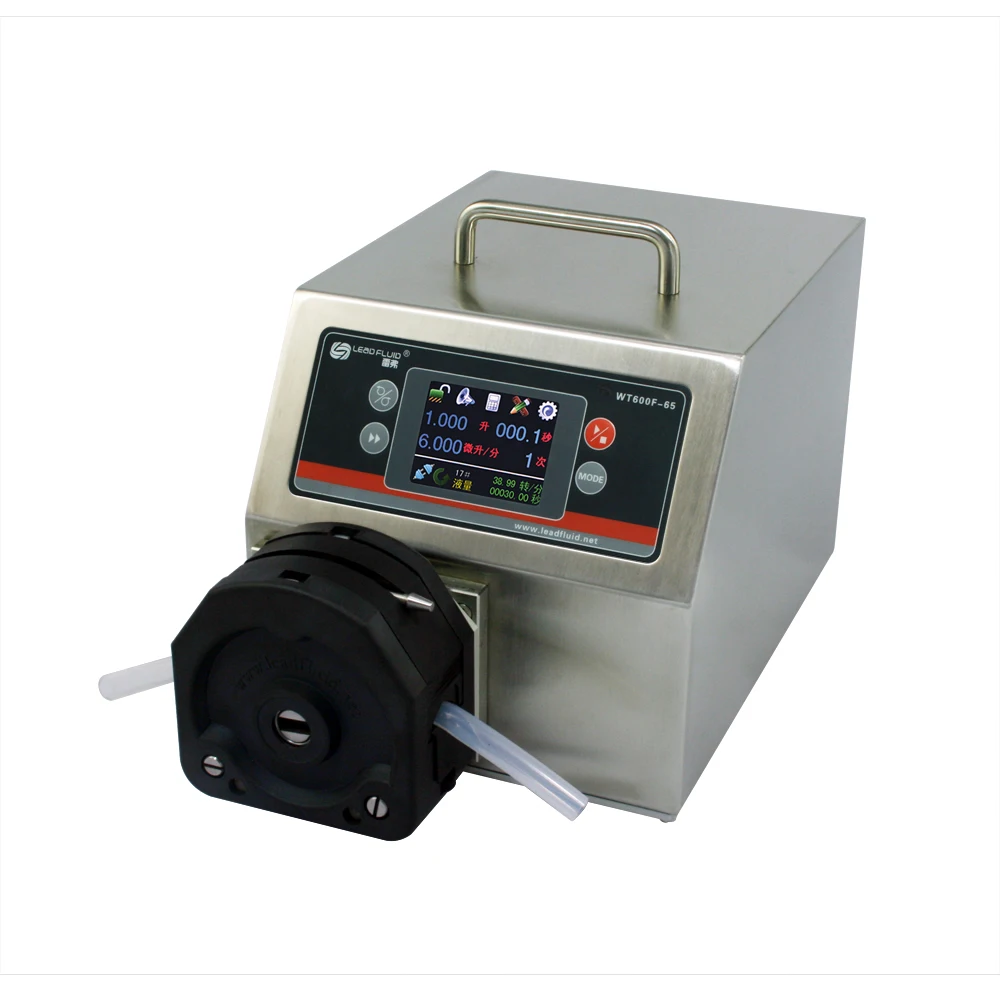

WT600F-65 Precise dispensing/dispenser intelligent peristaltic pump water liquid industry laboratory KZ25 Pump head (IP65)

Introduction:

WT600F-65 intelligent dispensing peristaltic pump adopted color LCD touch screen with intuitive and clear displaying interface. Four working model:volume dispensing,time dispensing,copy dispensing are suitable for different working requirements. Brushless servo motor drive with large torque,no maintenance. The pump adopts intelligent temperature-control technology to reduce working noise. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC. Stainless steel housing easy to clean ,corrosion resistant.

Functions and features:

Color LCD displaying, touch screen and keypad for operating.
Three types of distributing mode: time dispensing mode; volume dispensing mode; copy dispensing mode.
Automatically store five groups of working parameters.
Precious controlling technology for motor's rotating angle increases the dispensing accuracy comparing to traditional time dispensing mode.
Remote infrared controlling function.
Reversible direction, start/stop and full speed, state memory (power-down memory).
Speed resolution is 0.1rpm.
Display and control flow rate, accumulate dispensing volume automatically.
Calibrating flow function.
The operating expert system guides users setting parameters correctly.
Intelligent temperature-control technology reduces working noise.
External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.

RS485 interface, MODBUS protocol is available, easy to connect other equipments.
Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof.
Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid,alkali,sodium and the organic solvents.
Can drive multi-channels and various types of pump heads.
Optional footswitch or timer for dispensing fluid.

Suitable for pump head: YZ15, 2xYZ15,YZ25,2xYZ25,KZ25.

The IP grade is IP65. The housing adopts full seal design, suitable for more harsh environment application,
such as high humidity or water sputtering place.

Technical Specifications

Flow range :0.06-6000ml/min

Flow accuracy:<0.5%
Speed range:0.1-600rpm.
Speed resolution: 0.1rpm
Power supply :AC 180-264V 50Hz/60Hz(standard);AC 90-132V 50Hz/60Hz(optional)

Power consumption:<100W
External control:Input electrical level 5V, 12V (standard),24V(optional).
External control analog 0-5V(standard),0-10V,4-20mA(optional)
External communication interface:RS485 communication interface,
upport the MODBUS protocol.
Ambient temperature:0 ~ 40 degree
Relative humidity:<80%
IP grade:IP65
Dimensions(LxWxH):330mmX220mmX235mm
Weight:7.1KG

WT600F-65 Applicable pump head ,tubing and flow parameters

WT600F-65 Drive and different pump heads

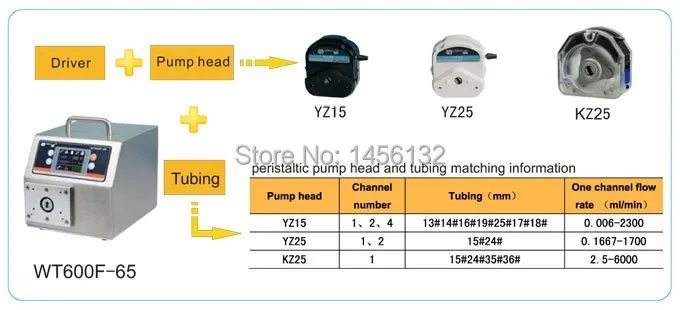

Peristaltic pump head and tubing matching information
