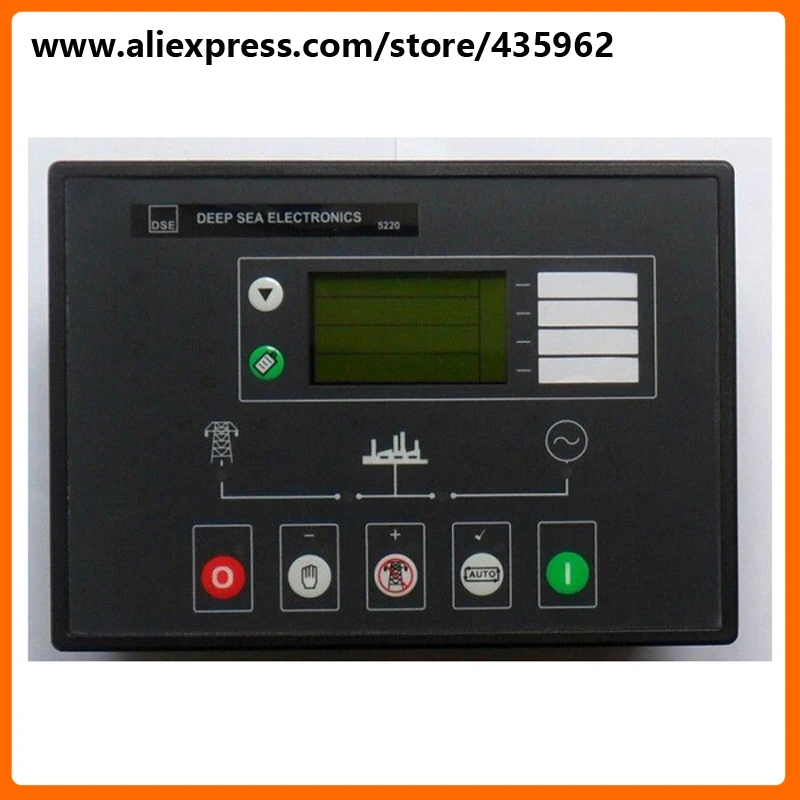

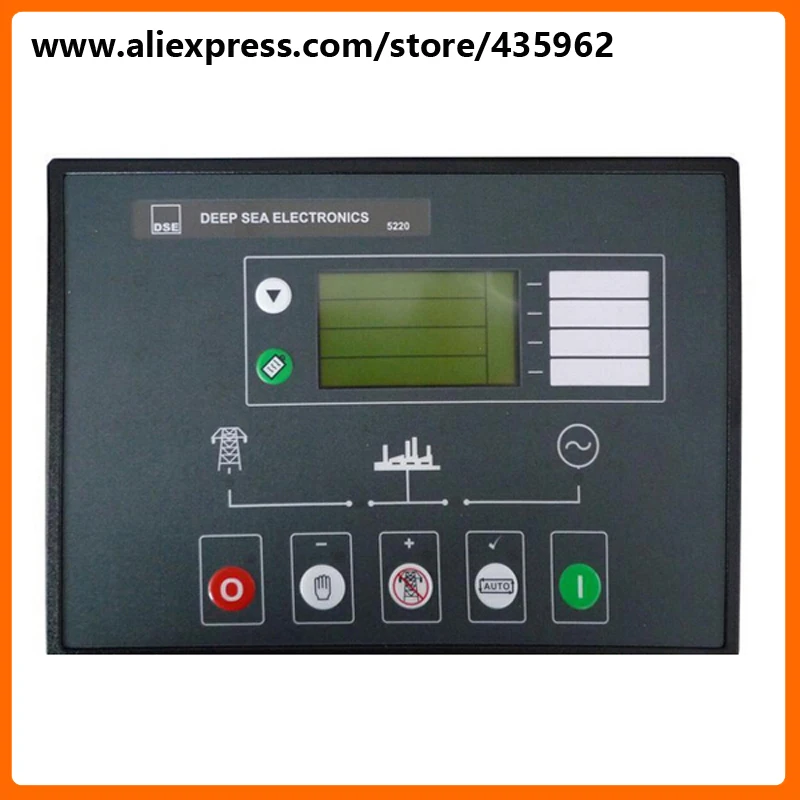

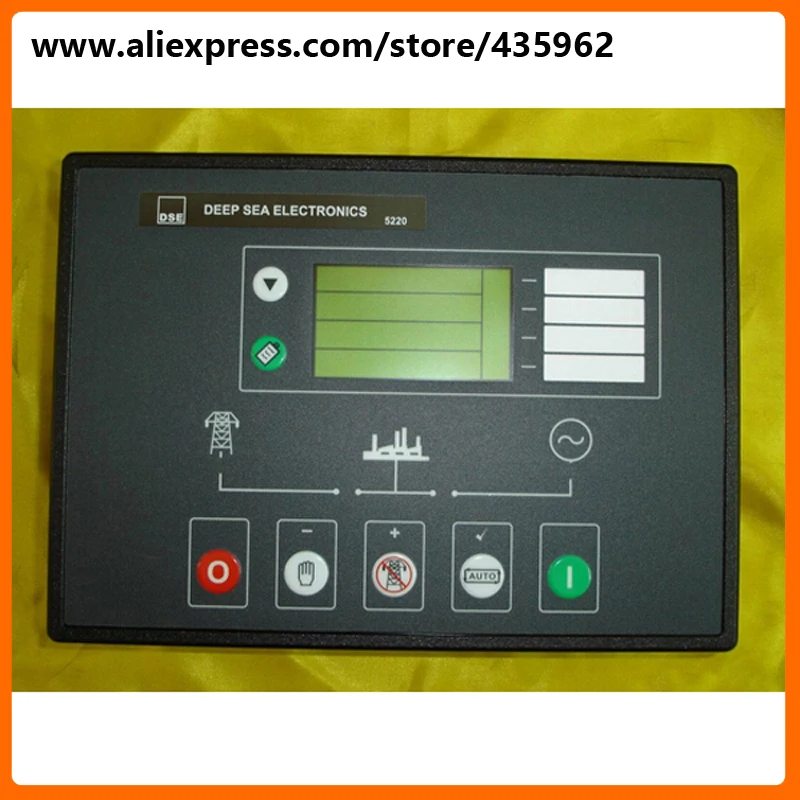

DSE5220 Generator Controller
DSE5220 is an automatic mains failure control module designed to provide advanced load share functionality for diesel and gas generating sets that include non-electronic/electronic engines.
*The module also provides excellent engine monitoring and protection features.
*The module monitors the mains (utility) supply and upon detection of a loss in power automatically starts thegenerating set.
*The module has the ability to monitor under/over generator volts, over current, under/over generator frequency, under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, low/high DC battery volts, fail to stop, generator short circuit protection, reverse power, generator phase rotation error, earth fault protection, loss of speed signal, fail to open, fail to close, out of sync, MPU open circuit failure, negative phase sequence and loss of excitation.
| DC Supply |
8 to 35 V Continuous |
| Max. Operating Current |
425mA at 12 V & 215mA at 24 V |
| Max. Standby Current |
250 mA at 12 V & 125 mA at 24 V. |
| Alternator Input Range |
75V(ph-N) to 277V(ph-N) AC (+20%) |
| Alternator Input Frequency |
50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N) |
| Magnetic Pick-up Voltage Input Range |
+/- 0.5 V to 70 V Peak |
| Magnetic Input Frequency |
10,000 Hz(max) |
| Start Relay Output |
16 Amp DC at supply voltage |
| Fuel Relay Output |
16 Amp DC at supply voltage |
| Auxiliary Relay Outputs |
5 Amp DC at supply voltage |
| Dimensions |
240mm x 172mm x 57mm(9½' x 6¾' x 2¼' ) |
| Charge Fail / Excitation Range |
0 V to 35 V |
| Operating Temperature Range |
-30 to +70°C |
| Mains Sensing Input Range |
15V(ph-N) to 277V(ph-N) AC (+20%) |
| Mains Sensing Input Frequency |
50 - 60 Hz |
| Generator loading Relay Output |
8 Amp AC 250V |
| Mains loading Relay Output |
8 Amp AC 250V |
Note:
This is not original DSE product. But it can replace DSE. All functions are the same.
