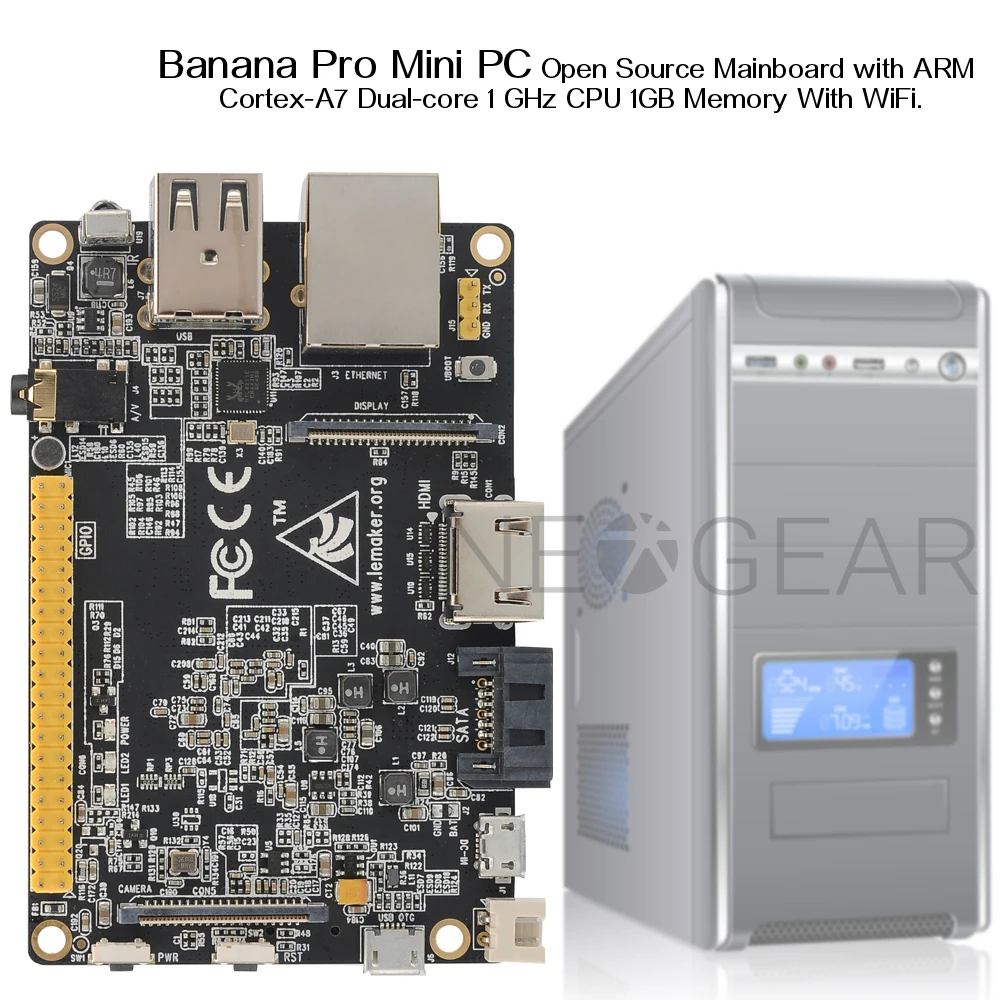

Banana Pro Mini PC Open Source Mainboard

Banana Pro Mini PC Open Source Mainboard with ARM Cortex-A7 Dual-core 1 GHz CPU 1GB Memory and has a 40 pin 28 x GPIO, onboard Ethernet and Wi-Fi as well as USB ports, OTG, micro SD card and SATA 2.

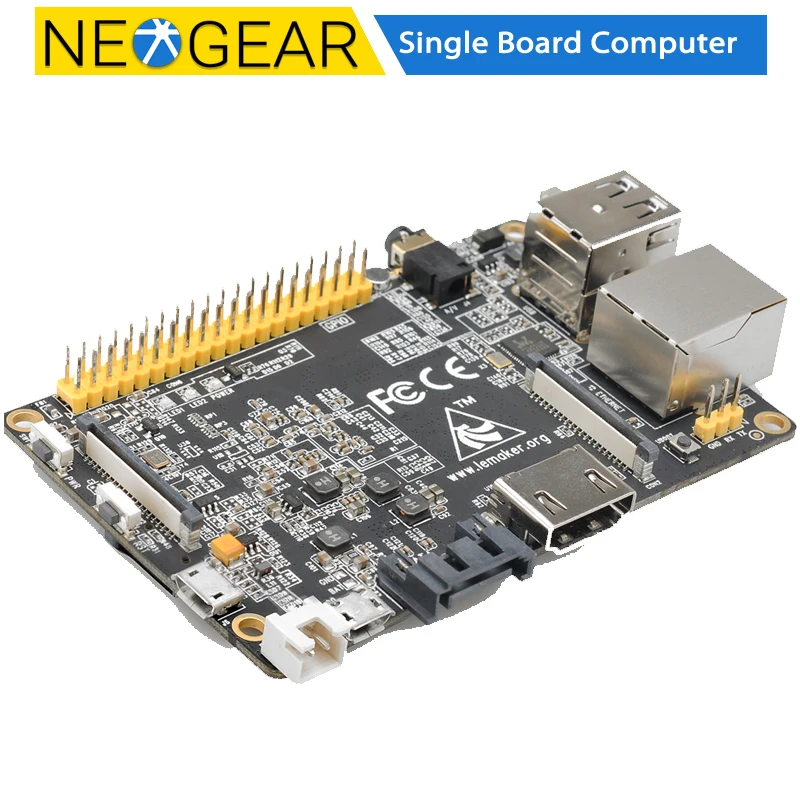

Banana Pro Single Board Computer

The Banana Pro is an updated version of the Banana Pi and was developed by LeMaker. This all in one, single board computer is compatible with Linux based operating systems such as Android, Ubuntu, Raspbian, Debian and more. It has a wide range of applications such as building a low cost computer, making a home server and as a video game emulator to name but a few.

Like the Raspberry Pi and Banana Pi it can be used as a great educational tool allowing for multi-media and programming projects as well as for controlling robots or for use with drag and drop programming languages.

Where the Banana Pro really shines is its Dual Core 1GHz ARM Cortex CPU and 1 GB of DDR3 RAM. This makes is a very powerful single board computer that blows the competition away. Added to these power specs is great connectivity as this Pro version comes with Wi-Fi and also a SATA 2 port letting you connect a HDD.

This last feature opens it up to huge potential as now you are no longer limited for storage. With Gigabit Ethernet it really takes off and the possibilities for the Banana Pro are almost endless. So if you're a hardware fan and want to tinker with a high end SBC then the Banana Pro offers a great experience at a fanatic price.

This product is in stock now, we guarantee next working day shipping and offer a 6 months warranty on all our products. Brought to you by the leader in electronic devices as well as wholesale single board computers, NeoGear

At a Glance...

    Allwinner A20 Dual Core CPU
    1GB DDR3 RAM
    Integrated Composite Video and Audio Output
    On-board WiFi 802.11 b/g/n

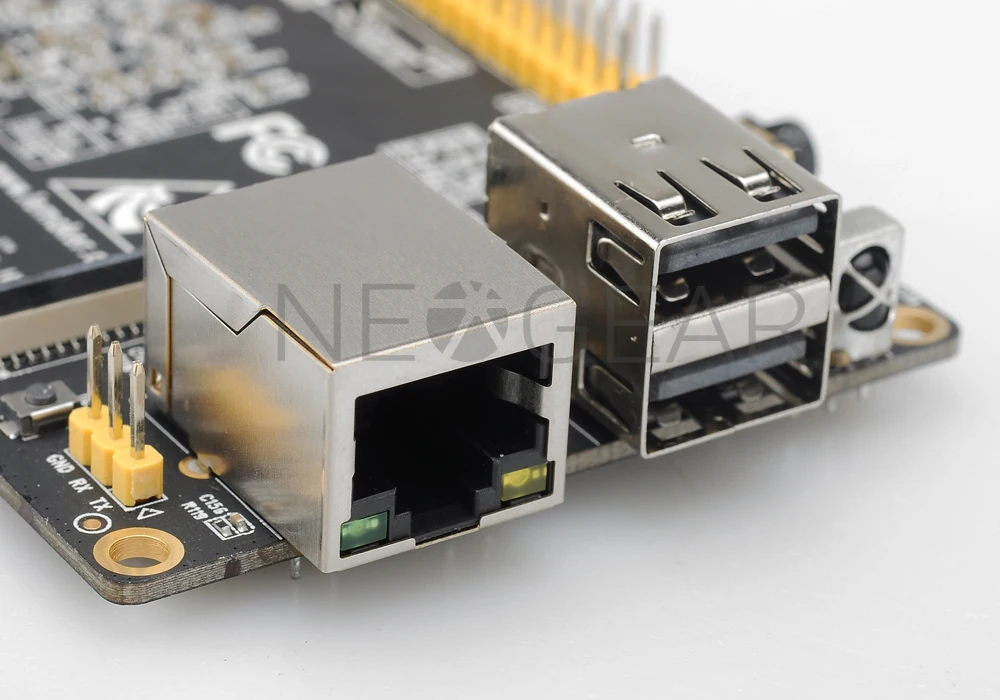

    10/100/1000 Ethernet Connector
    40 pin 28 x GPIO

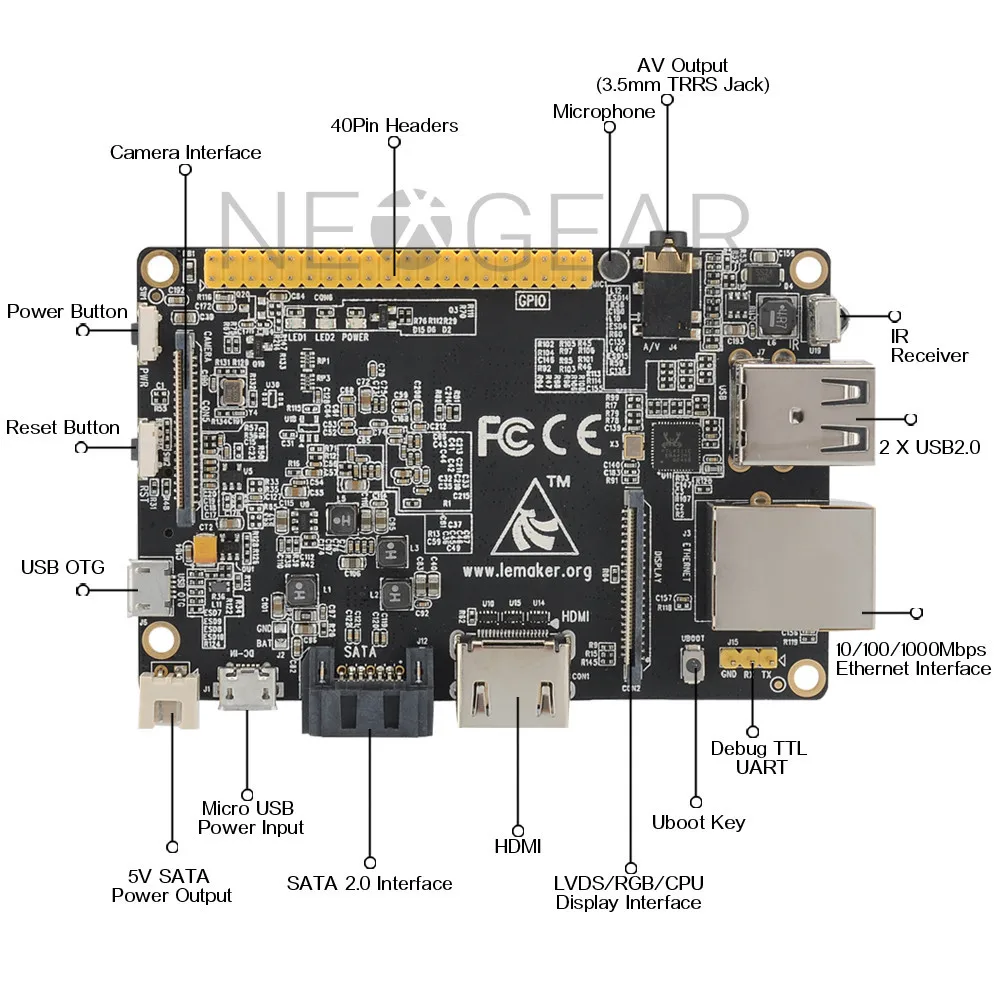

                           Manufacturer Specifications


General

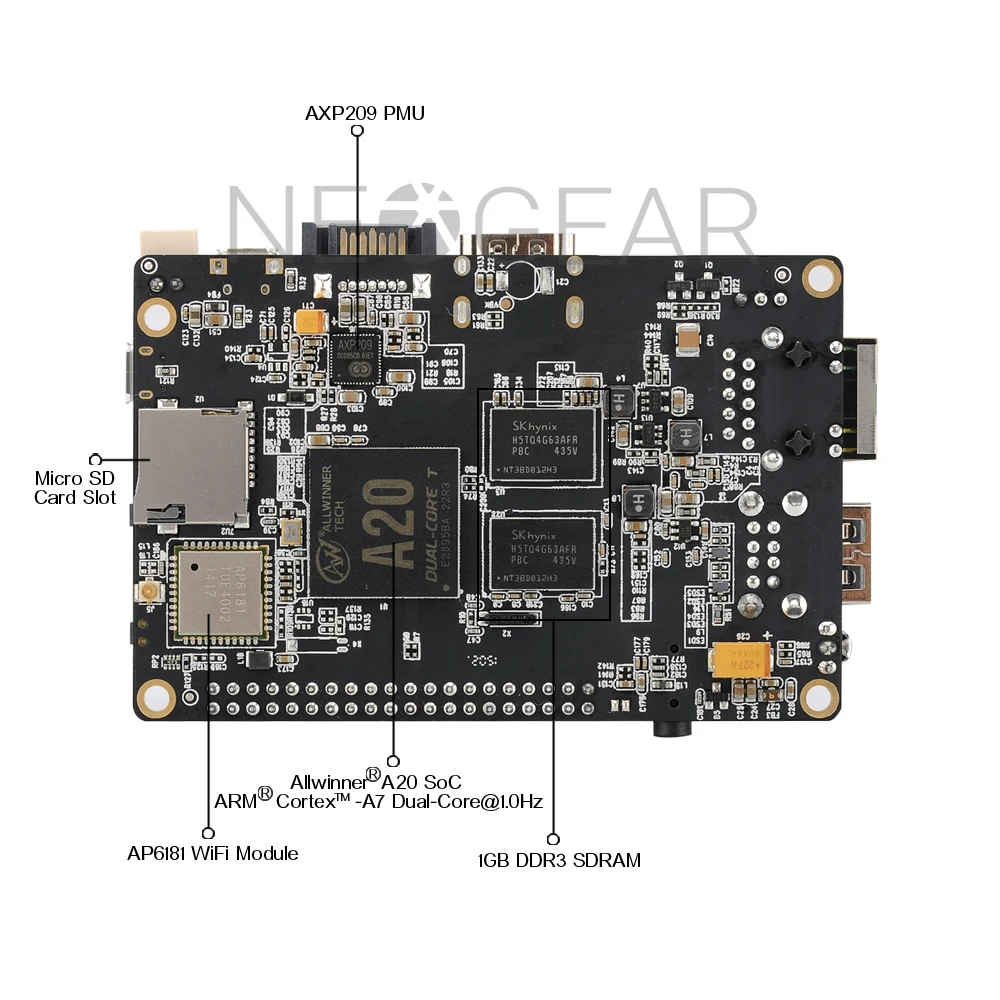

    SoC : Allwinner A20
    CPU: C1 GHz ARM Cortex-A7 Dual Core, 1.0GHz
    GPU: Mali400 MP2 - complies with OpenGL ES 2.0/1.1
    Memory: 1GB DDR3 (Shared with GPU)
    Power: 5V-2A via Micro USB (DC in only) and/or Micro USB (OTG)
    PMU: AXP209
    USB: 2 USB 2.0 hosts, 1 USB 2.0 OTG (All direct from A20 chip)
    Onboard Storage: Micro SD card, SATA 2.0
    Onboard Network: 10/ 100/ 1000 Ethernet RJ45, 150Mbps WiFi 802.11 b/g/n rtl8189es


Display

    Supports Multi-channel HD Display
    HDMI 1.4 (Type A - full)
    Composite video (PAL and NTSC) (Via 3.5 mm TRRS jack shared with audio out)
    LVDS/ RGB/ CPU display interface (DSI) for raw LCD panels
    11 HDMI resolutions from 640×480 to 1920×1080 plus various PAL and NTSC standards


Video

    HD H.264 2160p Video Decoding
    Mutil-format FHD Video Decoding: Including Mpeg1/2, Mpeg4, H.263, H.264. H.264 high profile
    1080p, 30fps or 720p, 60fps encoding
    Camera: Parallel 8-bit camera interface


Low-level peripherals

    40 pin 28 x GPIO, some of which can be used for specific functions including
    URAT, I2C, SPI, PWM, CAN, LRADC, ADC, LINE-IN, FM-IN, HP-IN
    Audio Outputs: HDMI, Analog audio (3.5mm phone jack)
    Audio Input: On board microphone
    Buttons: Reset, Power, U-boot


Support OS

    Android, Android 4.4, Debian, Ubuntu, Raspbian


Dimensions

    Main Product Dimensions: 94 x 67 x 16.5 mm (L x W x D)
    Main Product Weight: 46g
    Weight/dimension is for the main item of this boxed product, to help you compare product sizes before buying: please do not base your shipping calculations on this price - shipping prices depend on your cart contents, shipping destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

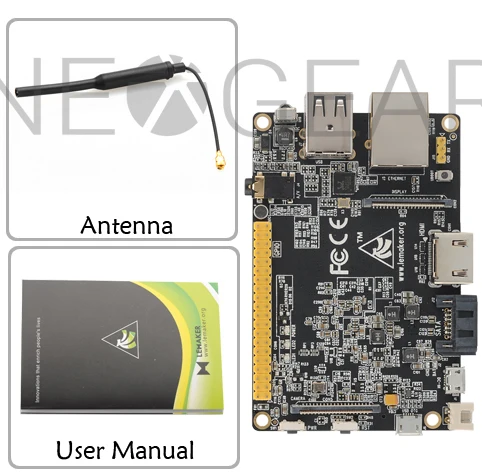

Package Contents

    Banana Pro
    User Manual
    Antenna


Ordering from NeoGear provides you with the following benefits:

    Orders processed and shipped within 1 Working Day
    6 month warranty
    In-house QC
    Member discounts
    Award winning customer support
    Quantity order discounts
    Worldwide Shipping
    Certification: CE, FCC, RoHS
