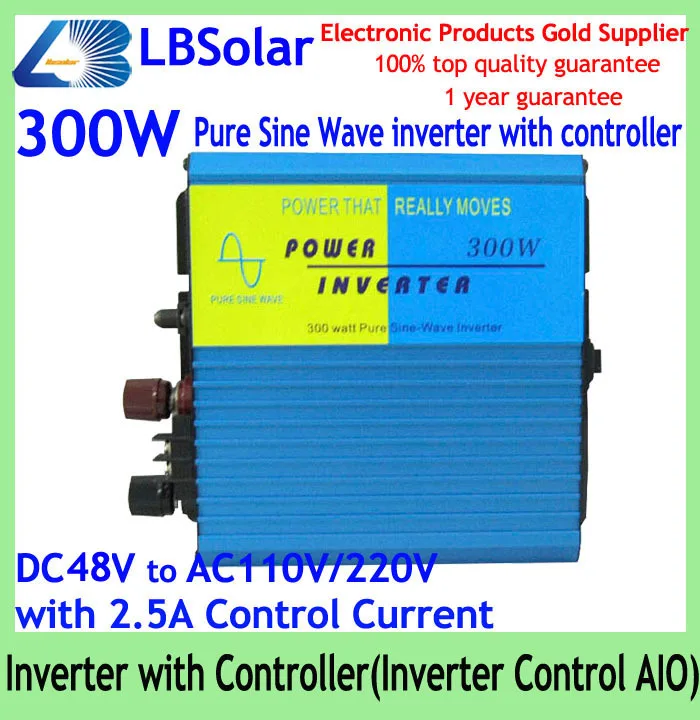

LBSolar 300W Pure Sine Wave Inverter with Controller DC 48V to AC 110V or 220V Control AIO 2.5A Current CE RoHS Обустройство дома - купить

Купить LBSolar 300W Pure Sine Wave Inverter with Controller DC 48V to AC 110V or 220V Control AIO 2.5A Current CE RoHS | Обустройство дома

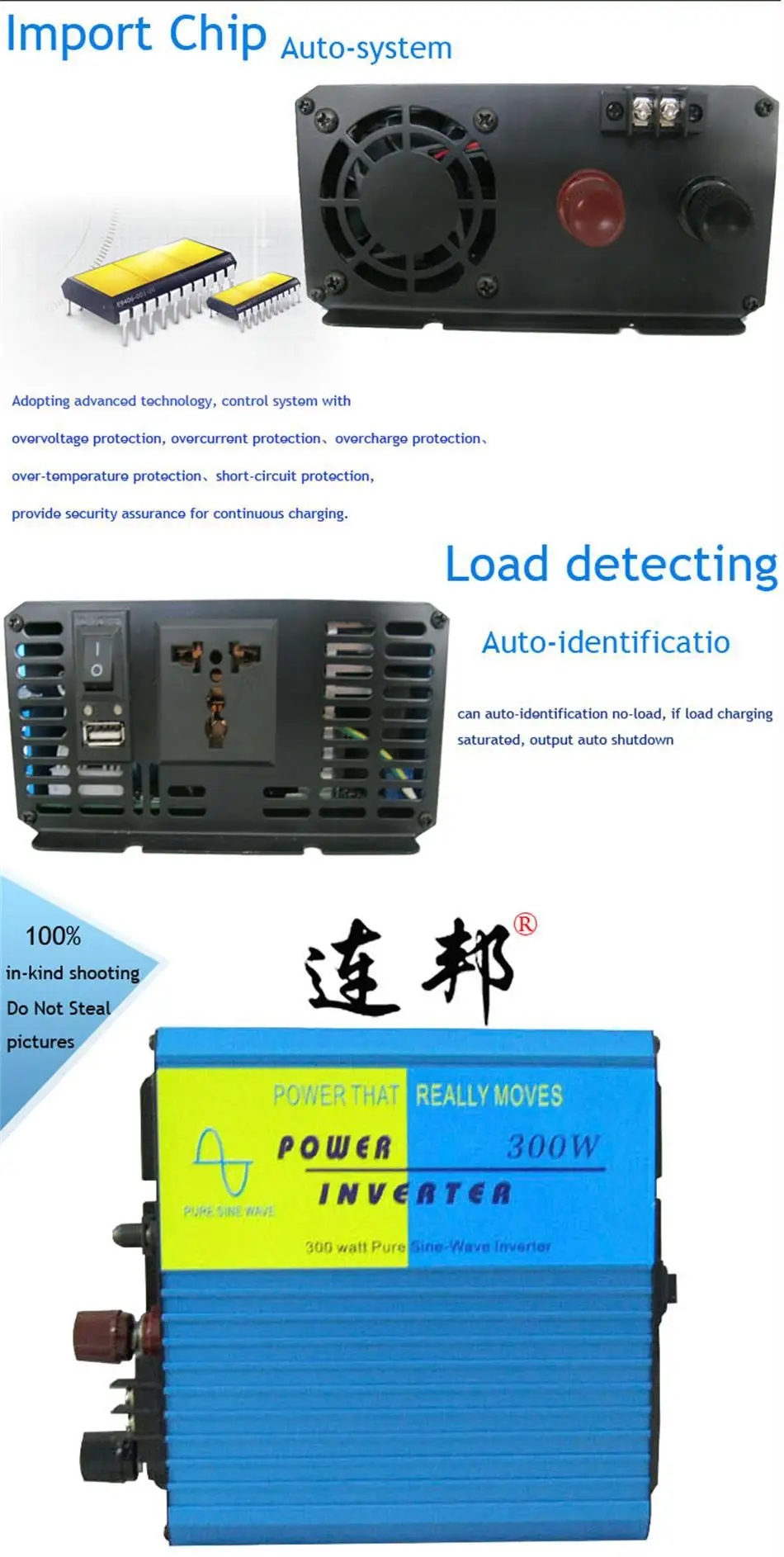

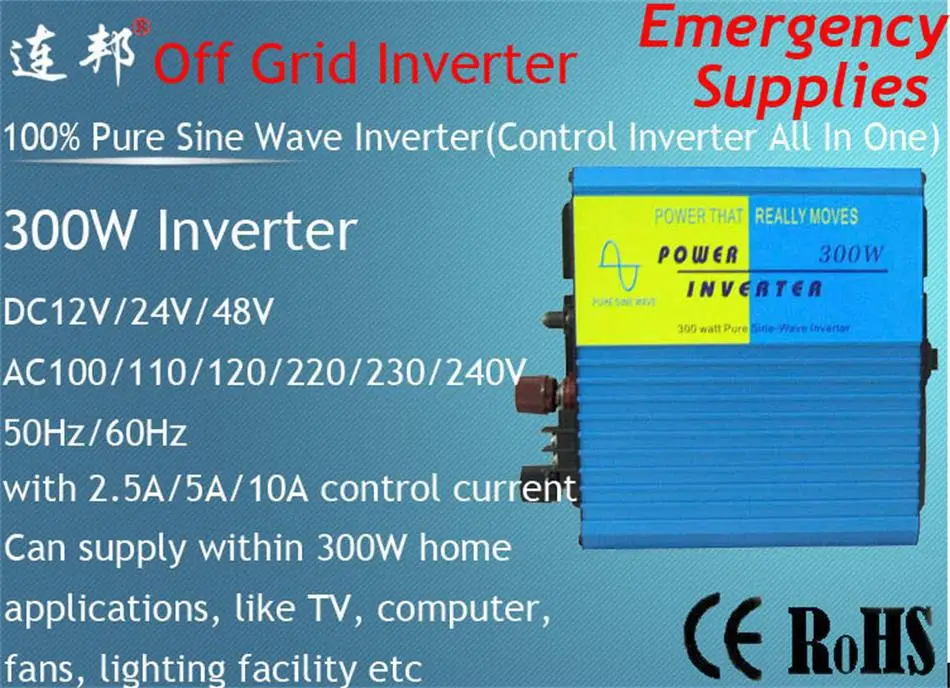

LBSolar 300W Pure Sine Wave Inverter with Controller DC 48V to AC 110V or 220V Control Inverter AIO 2.5A Control Current CE RoHS Feature Pure sine wave output Countinuous power:300W Peak power:600W Frequency:50Hz/60Hz Efficienvy:>88% THD:<4% No load current draw:<0.6A Protection:Low voltage/Over voltage/Over temperature/ Overload/Short circuit    Bulid-out fuses USB port Soft Start With 120W control power Specification

Output	Countinuous power:		300W
	Peak power:		600W
	AC voltage:		100/110/120/220/230/240V AC
	Frequency:		50/60 Hz
	Waveform:		pure sine wave output
Input	DC voltage:		48V
	Controller Current		2.5A
	DC voltage range:		40-60V
Protection at input	Low battery alarm:		42±0.8V
	Low battery shutdown:		40±2V
	Over voltage shut down:		60±2V

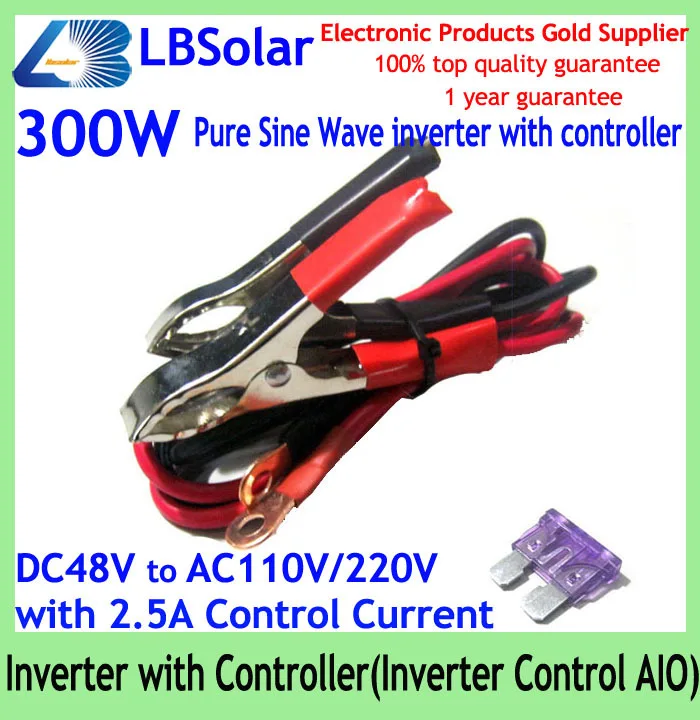

	Out-build fuses:		15A*1
Protection at output	Over temperature:		The inverter will shut down when heating over 75°C
	Over load:		The inverter will shut down when the power over 360W for 10 Sec,then it will restart in senconds.
	Short circuit:		The inverter will shut down when short circuit,then it will will restart in senconds.
Environment	Working temperature:		Between -10°C and +50°C
	Working humidity:		20%~90%RH non-condensing
	Storage temperature:		Between -30°C and +70°C
Describtion	Dimension:		190*150*50mm
	N.W:		1.2±0.1 KGS
Package	Packing:		12PCS/CTN
	Carton dimension:		530*400*300 MM
	G.W.:		15.8 KGS
Others	Soft Start:		in 3-5 sec when start working

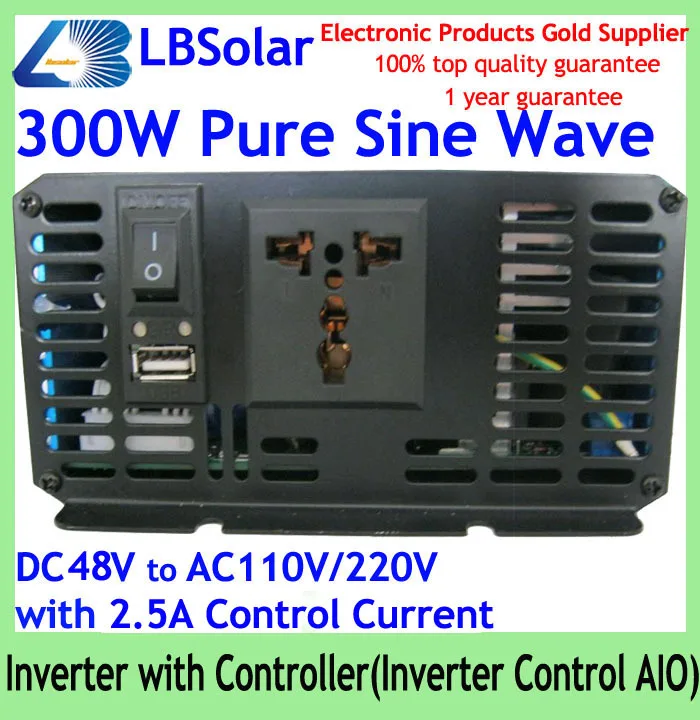

	USB output:		5V,1A current
	Colour:		Bule/Black/Silver/Red/Orange(optional)

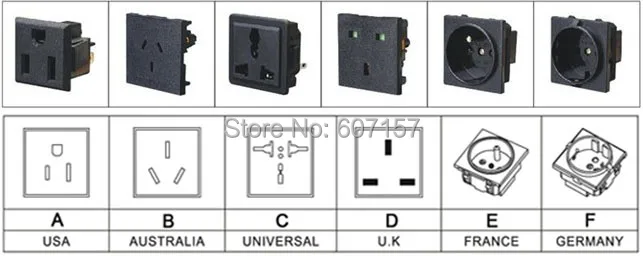

Socket(optional)

	Continuous power	Peak Power	DC Voltage	AC Voltage	Control Current	Control  Voltage	Control Power	Frequency
NO 1	300W	600W	12V	110V/220V	10A	12V	120W	50Hz/60Hz
NO 2	300W	600W	24V	110V/220V	5A	24V	120W	50Hz/60Hz
NO 3	300W	600W	48V	110V/220V	2.5A	48V	120W	50Hz/60Hz

Please noted that:

When you order this inverter, please confirm

DC voltage,  AC Voltage, Control current, Frequency, Socket

Drawing

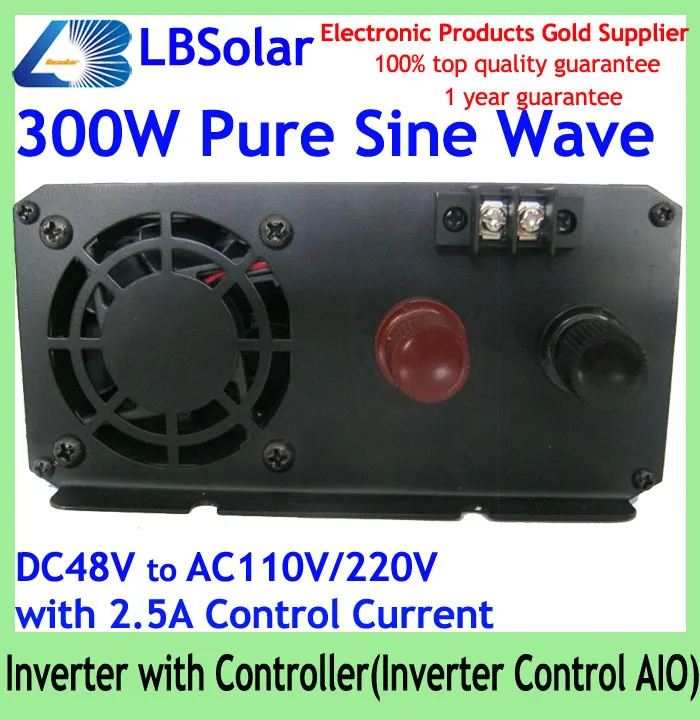

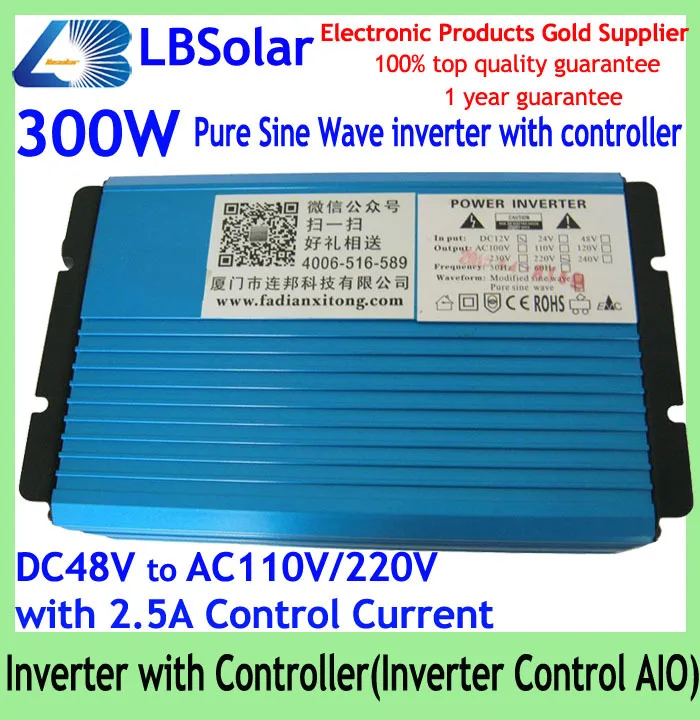

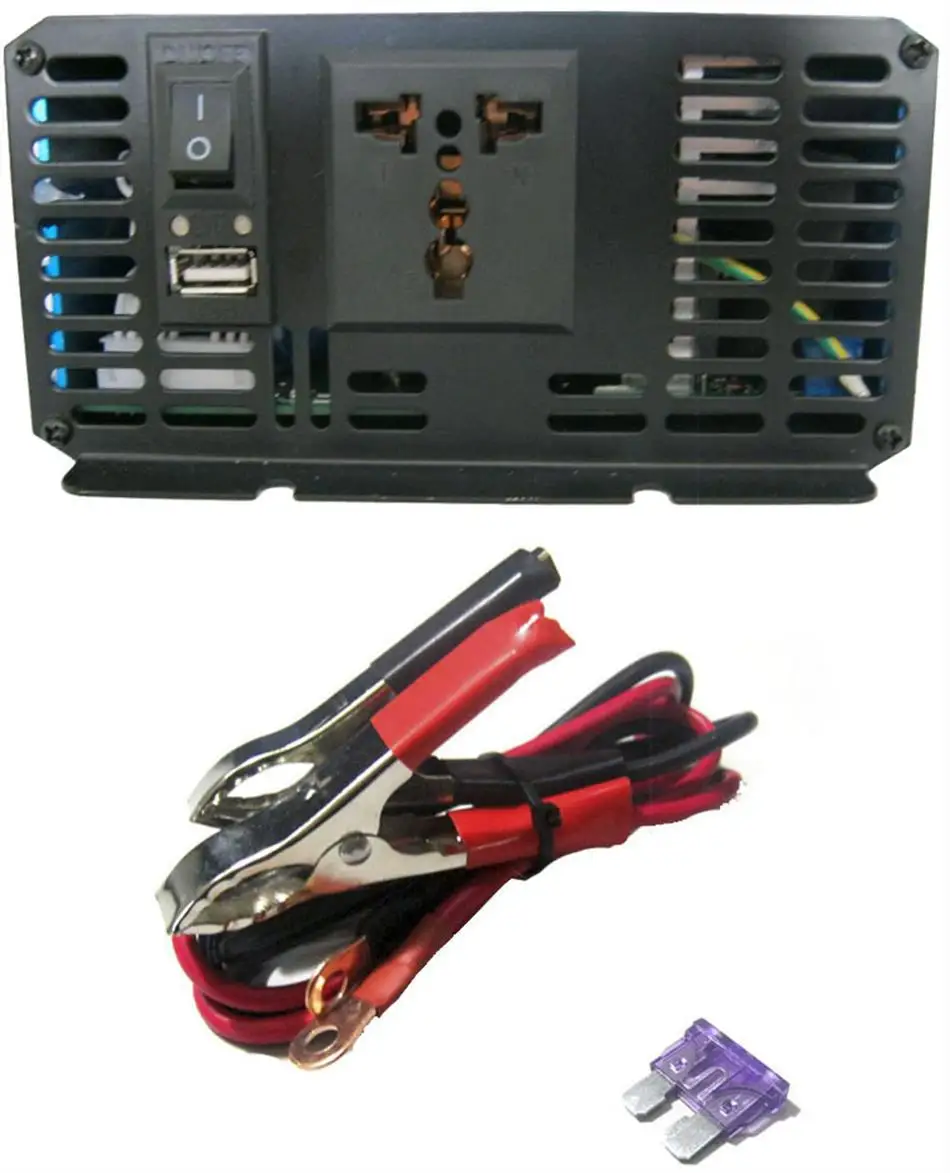

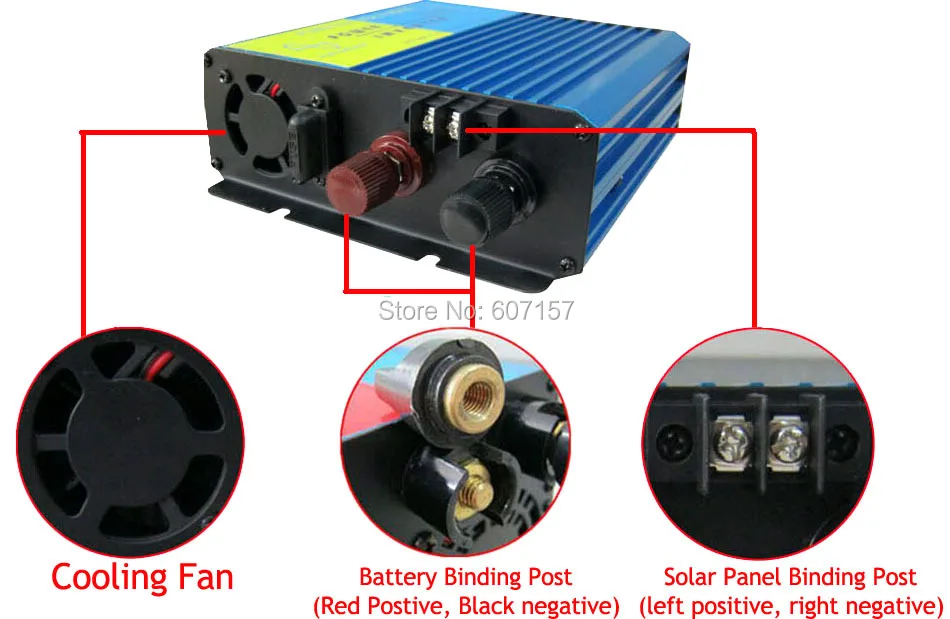

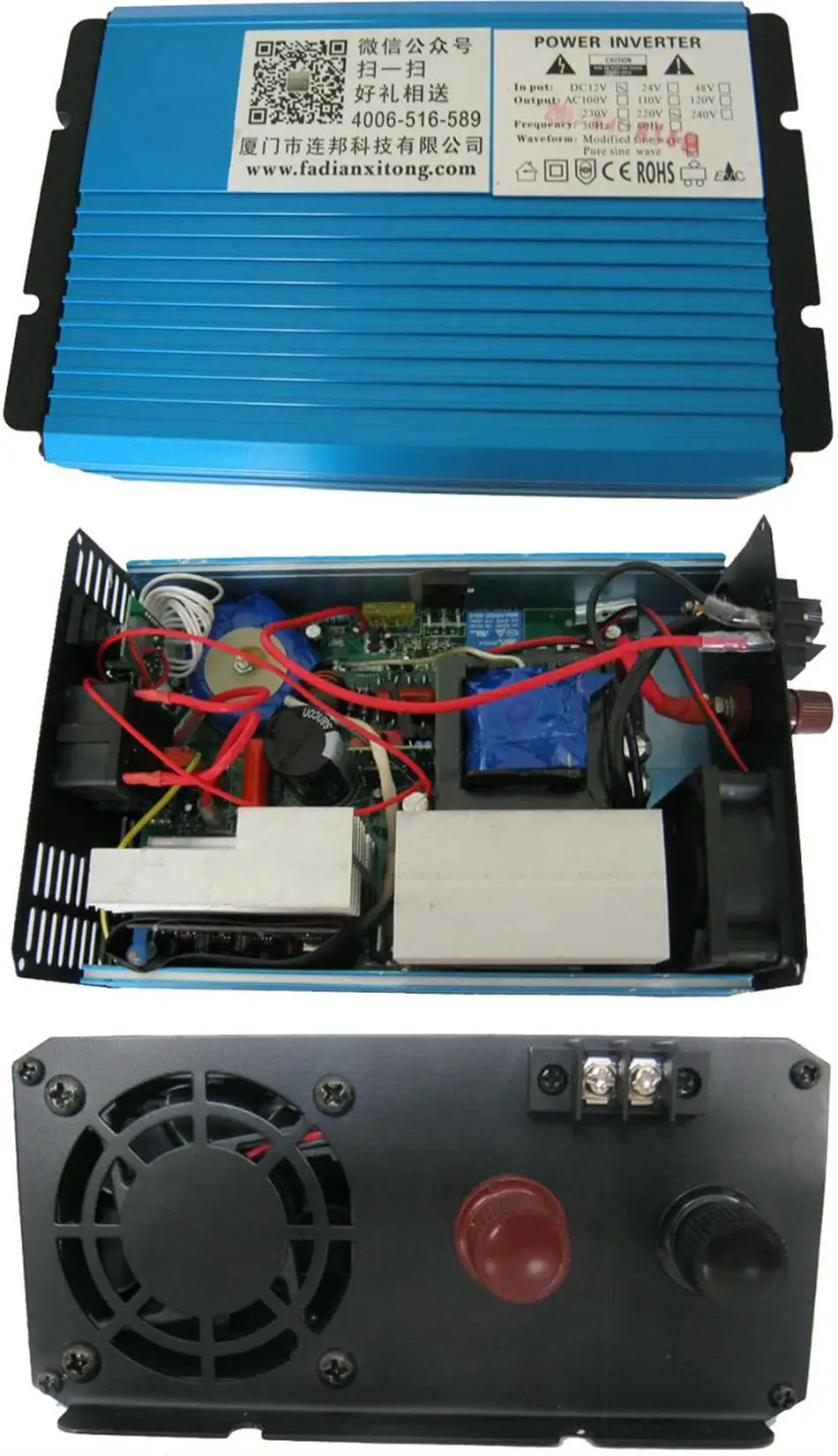

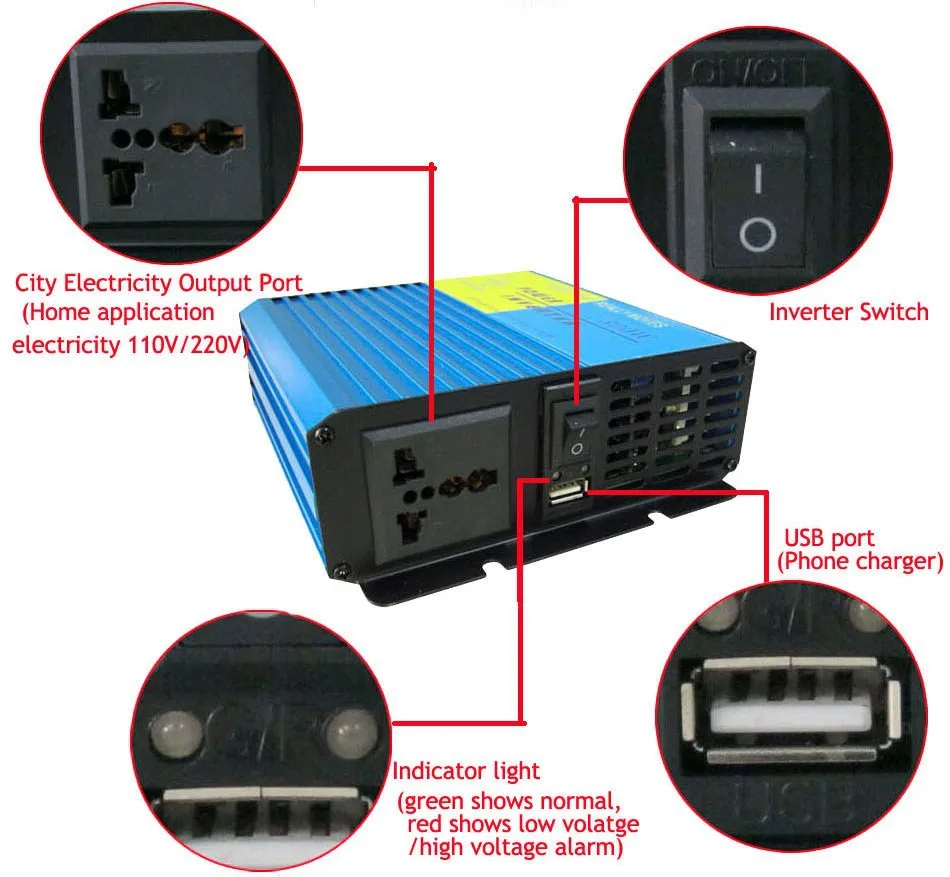

Product Show

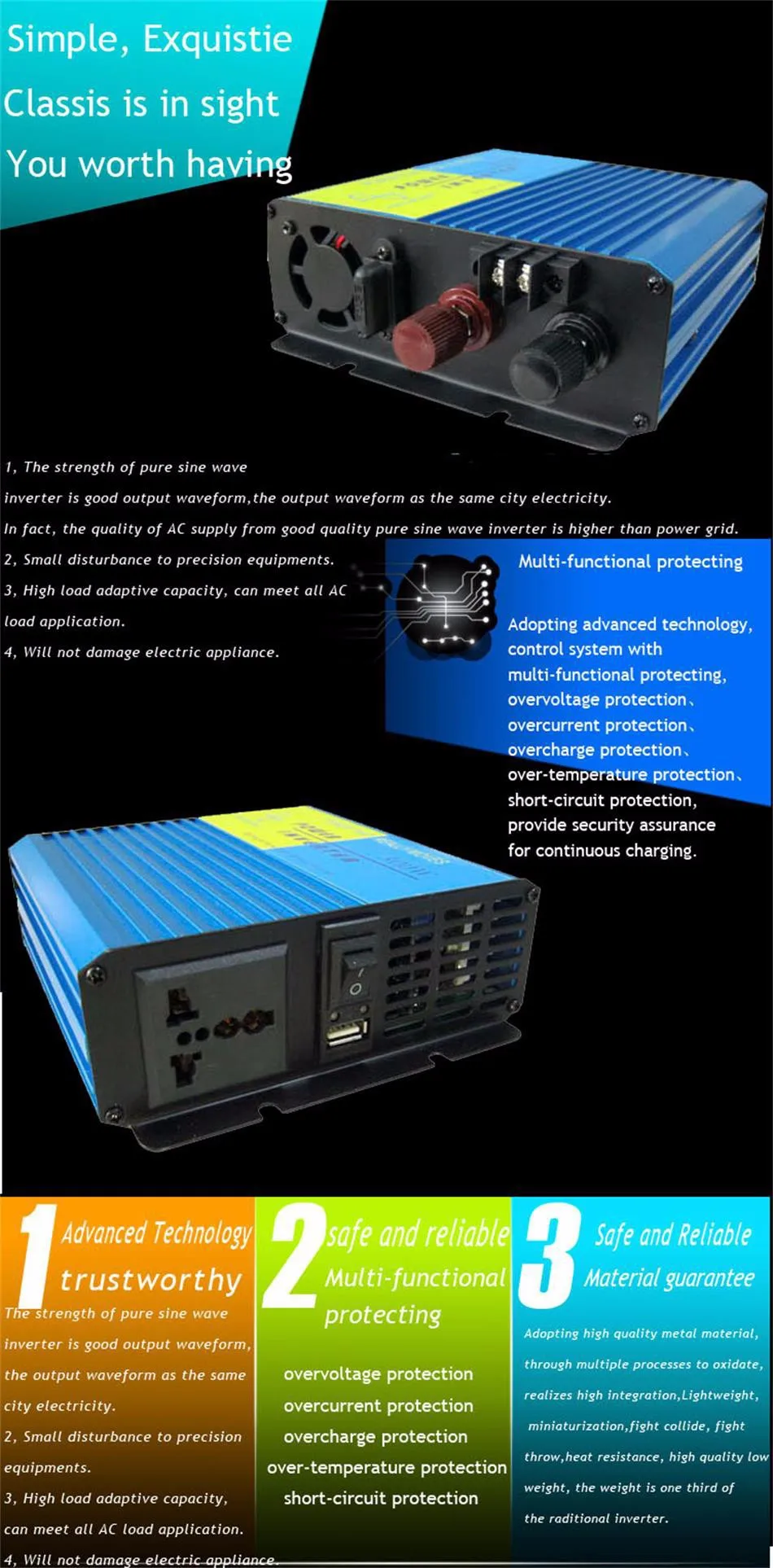

Our Advantage

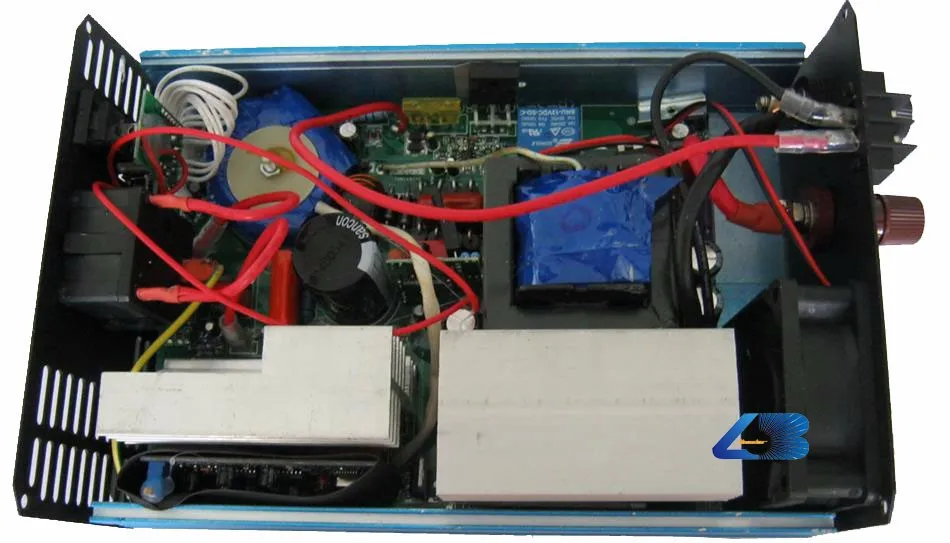

Take our 800W pure sine wave inverter(Inverter Control All In One) internal structure for you reference:

1.100% true pure sine wave output, FULL power guaranteed.

2.100% New Electric Components.

3.Wider case, better for heat dissipation.
4.Every component is distributed to rationality, greatly improving the reliability and life time of the inverter.
5.All around protections greatly reduce the possibility of damage.

6, We can make inverter according to your specification,parameter, appearance, color etc..

Product Application

This power inverter instantly convert low voltage DC power to high voltage AC household power. High reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology. Pure sine wave output. Small, light and artistic, benefited from adopting the SMD pastern technology. Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

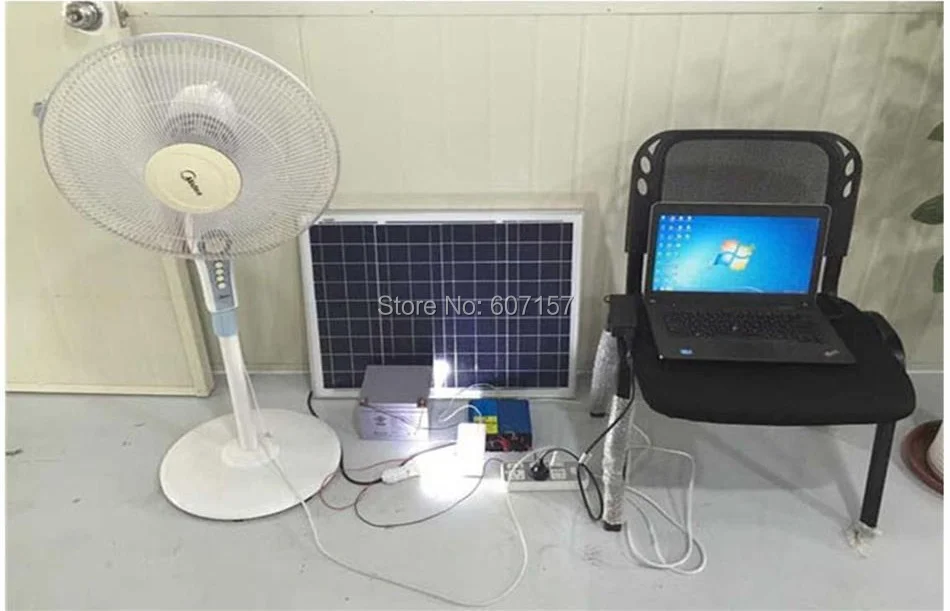

 You can use in  many places. Such as Solar electric energy generation, Wind power generation, Communication equipment, Industrial intellectual control system, Small sized emergency power supply system and so on.

1. Field operations : lighting, drilling, disaster relief, commercial promotions.

2. Hospital emergency rescue: surgical lighting, equipment use, etc.

3. Home Appliances: TV, Air Conditioner, Cooker, DVD, GPS, Fridge, Cleaner, Washer, Fan, Light etc.

4, Office Equipment: PC laptop, Printer etc..

5, Industrial Equipment: Pump, Compressor, Motor etc.

6. Energe: solar system, wind system and so on.

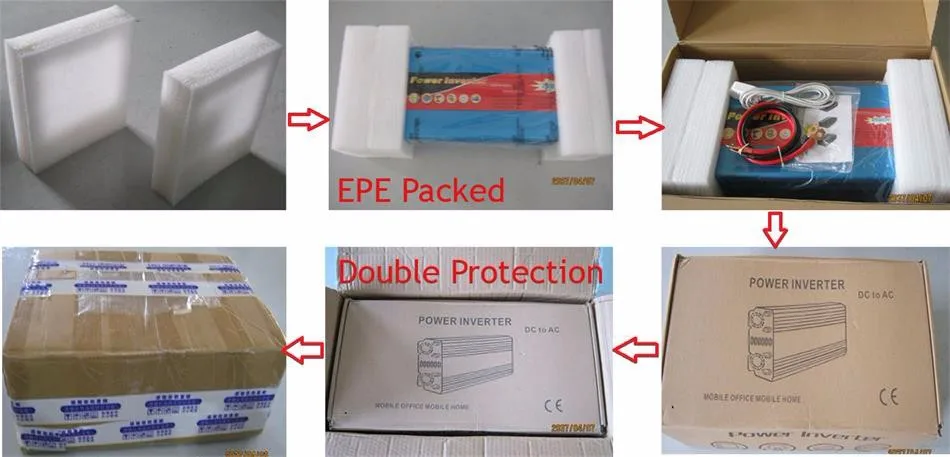

Package

No damage during the transportation.

1.EPE packed.
2.Double Protection. Color box inside and thick brown packing paper outside.
3.Strong box tape sticked.
4.PET plastic steel packing belt for bulk packing.

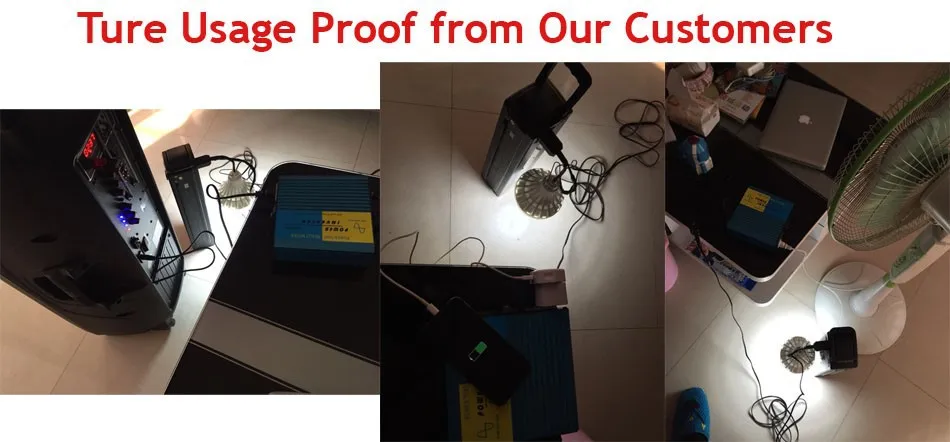

Customers Experience



Payment

1, We accept Alipay, T/T, Western Union, Paypal

2, Payment must be made within 5 days before shipment.

Shipment

Generally, items will be shipped out within 5 working days after payment received.

Delivery time

By China Post Air Mail: about 18-25 working days

By International Express: about 4-7 working days

Warranty

We promise more than 12 months warranty.

Generally, you take some pictures and video when you meet problems.  Please send to us and we will analyze to help you to solve the problems.  If it is only need to replace some parts, we will free send to you.  If it need to send back to us repair, we will be share the shipping charges with you.

Notices for International Buyers

1, From Brazil, Russia, Greece buyers, your local customs may charge high import tax, so please make sure that you are able to do customs clearance well or you are ready for this.  We suggest shipping by EMS.

2, Euro customers: if you choose by FedEX, please supply your EORI number to us.

3, Brazil customers: if you choose by International Express, please supply your CNPJ number to us.

4, We will charge extra shipping fee if you location is remote or we will use other delivery way.

5, When you receive the package, please open the package and check all the items are working in good condition before you sign.  Don’t sign if the items are broken, and ask the delivery company to make a “damage certificate” otherwise, we will not provide any warranty and refund.

Local Taxes and Import Duties

1, Local taxes and import duties are not included in the amounts shown.

2, Any import charges or fees are the buyer's responsibility, the buyer or recipient of the shipment is responsible for all such taxes and duties.

3, in order to ensure you receive your order tax less or free upon import, we will declare it as a gift or sample with a lower value.  This lower price does not reflect the total price you paid or the market value of the product and may not apply to countries with different tariff rules If need to using the true value, or any other requests please write down the information on the notes when you complete order.

FAQ

Q: Why are your prices so low?

A: Because you will pay for the Factory Price!

Q: How about your quality & Brand new?

A: Quality is the life of LBSolar, we have our own brand, we use only the best quality (original) components to ensure the standard of our product range is of the highest caliber.  All products we sold out are strictly selected and tested by our QC department.  All our items are assured to be brand new and carried with fully at least 12 months warranty.

Q: How do I pay for my purchase?

A: We accept Alipay, credit card, T/T, Western Union, PayPal etc..

Q: I would like to buy many pieces of your items, what’s the wholesale price?

A: If you would like to buy large quantity, please contact us by email, we will give our best price to you, thanks.

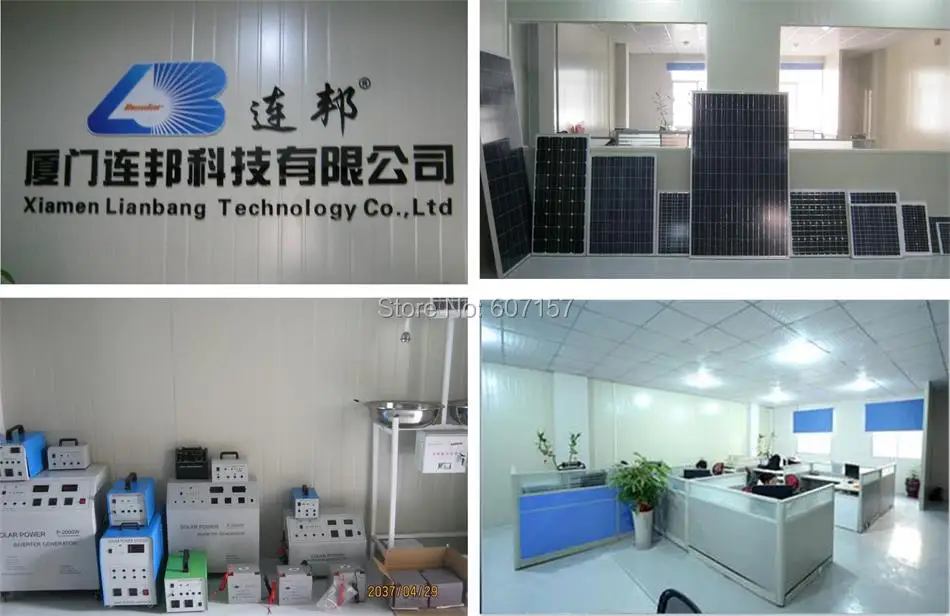

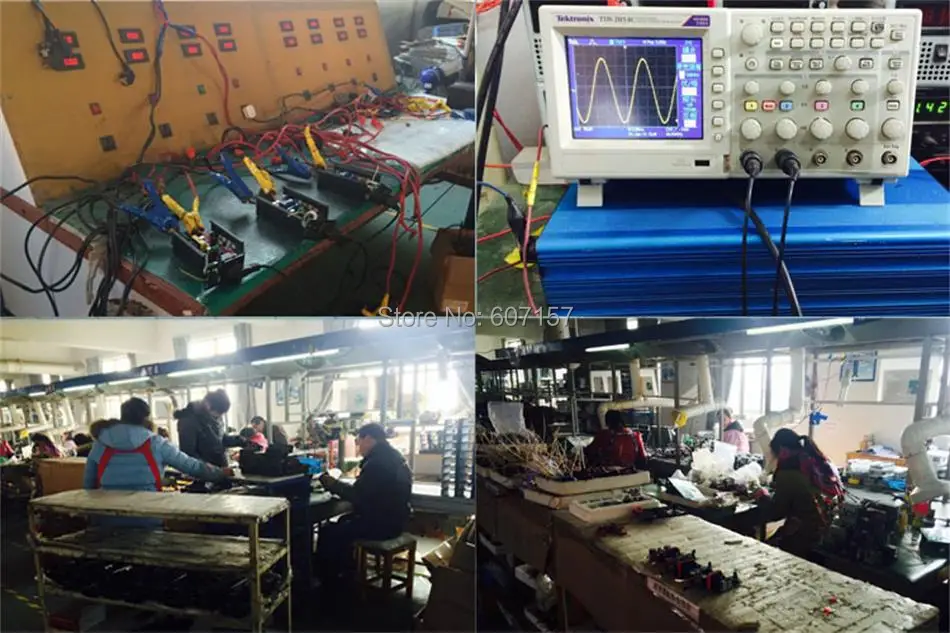

About Our Factory

Xiamen Lianbang Technology Co.,Ltd is located in Haicang District ,Xiamen City. Xiamen is also be called the Egret Island, which is a scenic coastal city  in the southeast coast of China.  Lianbang solar is committed to solar photovoltaic power generation, the design and production of complete sets of system equipment, and focuses on the distributed photovoltaic power generation projects and photovoltaic power plant construction as well as installation engineering. We are a professional manafacturer specializing in R&D, production, sales, installation and service of photovoltaic power generation of industrial, commercial and residential roofs, photovoltaic power generation in agriculture and animal husbandry as well as photovoltaic off-grid power generation system in remote areas, small solar generator and solar application products(eg, DC 12V LED lamp, pure sine wave inverter, solar controller, solar system, DC ceiling fan, etc).

We are dedicated in providing customers with reliable products, efficient services and professional solutions. we can offer OEM &ODM, product appearance design and packaging services according to customers'need.

Let's work together for the common human case of energy conservation and environmental protection.
