Leadshine 180 Вт DC бесщеточный Серводвигатель + набор для ныряния Квадратный фланец 6.7A - купить
Специальная цена от 14 878,65 руб.*
Категория товара: Двигатель постоянного тока DC
История изменения цены
*Внимание! Указанная цена 14 878,65 руб. уже могла изменится, перед тем как купить данный товар перейдите на страницу продавца и проверьте актуальную стоимость.
| Месяц | Мин. | Макс. | Цена |
|---|---|---|---|
| 12.06.2026 | 17705.14 | 18590.23 | 18147.5 руб. |
| 12.05.2026 | 17556.52 | 18434.90 | 17995 руб. |
| 12.04.2026 | 14729.64 | 15465.58 | 15097 руб. |
| 12.03.2026 | 17258.52 | 18121.7 | 17689.5 руб. |
| 12.02.2026 | 15027.38 | 15778.7 | 15402.5 руб. |
| 12.01.2026 | 16961.56 | 17809.88 | 17385 руб. |
| 12.12.2025 | 16812.46 | 17653.16 | 17232.5 руб. |
| 12.11.2025 | 16663.48 | 17496.9 | 17079.5 руб. |
| 12.10.2025 | 16515.84 | 17341.96 | 16928 руб. |
Купить Leadshine 180 Вт DC бесщеточный Серводвигатель + набор для ныряния Квадратный фланец 6.7A
Leadshine 180W DC Brushless Servo Motor Diver Kit Square Flange 6.7A 36VDC 0.57NM 3000RPM Pulse Control BLM57180-1000+ACS806
BLM57180-1000+ACS806
Applications
Suitable for small to medium automation machinery and equipment, such as large format printers, engraving machines, electronics manufacturing equipment, pick and place machines, packing machines, and etc. Particularly suited to applications requiring high speed, high precision, high reliability and low motor noise.
General Specifications:
Winding connection: Delta connection
Hall Sensor: 120
Pole Pairs (-): 2
Phase: 3
Shaft Radial Play: 0.025 mm
Shaft Axial Play: 0.025 mm@460g
Allowable radial load: 75N@20mm from the flange
Allowable axial load: 15N
Isolation Level: Class B
Isolation Strength: 500VDC for one minute
Isolation Resistance: 100M ohms
Specifications
|
|
BLM57025 |
BLM57050 |
BLM57090 |
BLM57130 |
BLM57180 |
57BL180 |
| rated voltage |
24VDC |
24VDC |
36VDC |
36VDC |
36VDC |
36VDC |
| rated power |
25W |
50W |
90W |
130W |
180W |
180W |
| nominal torque |
0.08NM |
0.16NM |
0.29NM |
0.41NM |
0.57NM |
0.43NM |
| peak torque |
0.24NM |
0.48NM |
0.87NM |
1.23NM |
1.71NM |
1.27NM |
| rated speed |
3000RPM |
3000RPM |
3000RPM |
3000RPM |
3000RPM |
3000RPM |
| Rated armature current |
1.6A |
3A |
3.45A |
5.3A |
6.7A |
7A |
| Peak Current |
4.8A |
9A |
10.35A |
15.9A |
20A |
20.5A |
| Torque Const. |
0.05 N.M/A |
0.053 N.M/A |
0.084 N.M/A |
0.078 N.M/A |
0.085 N.M/A |
0.063 N.M/A |
| Back EMF Const. |
5.2 V/RPM |
5.55 V/RPM |
8.8 V/RPM |
8.2 V/RPM |
8.9 V/RPM |
6.6 V/RPM |
| Resistance |
1.73 ohms |
0.88 ohms |
1.35 ohms |
0.63 ohms |
0.9 ohms |
0.35 ohms |
| Inductance |
3.36mh |
2.2 mh |
4.1 mh |
2.17 mh |
2 mh |
1 mh |
| Inertia |
30 kgm2x10-4 |
75 kgm2x10-4 |
119 kgm2x10-4 |
173 kgm2x10-4 |
230 kgm2x10-4 |
230 kgm2x10-4 |
| Motor Length |
45mm |
55mm |
75mm |
95mm |
115mm |
115mm |
| Weight |
0.25Kg |
0.5 Kg |
0.75 Kg |
1 Kg |
1.25 Kg |
1.25 Kg |
Brushless Servo Drive ACS306
Genneral Introduction
Leadshine's fully digital ACS and ACH series servo drives are developed with 32-bit DSP control technology based on advanced control algorithm.Because of their high performance and highly competitive price, they are ideal for replacing many popular AC servo drives available on the market.The AC servo drives accept input commands of PUL/DIR signals, so they can be used to upgrade stepping drives to ACS and ACH series servo drives without modifying control systems, offering higher precision, higher speed, lower heating and lower noise performance.
Eletric lectrical Specifications (Tj = 25oC/77oF)
| Parameters |
ACS306 |
ACS606 |
ACS806 |
| Maximum Continuous Power |
150W |
200W |
400W |
| Maximum Continuous Current |
6A |
6A |
6A |
| Peak Current |
15A |
18A |
18A |
| Input Voltage |
18~30 VDC |
18~60 VDC |
20~80 VDC |
| Logial Signal Input Current |
7 ~20 mA |
7 ~20 mA |
7 ~20 mA |
| Pulse Input Frequency |
0~250KHz |
0~250KHz |
0~600KHz |
| Isolation Resistance |
500 M ohm |
500 M ohm |
500 M ohm |
| Current Provided Encoder |
100mA |
100mA |
100mA |
| Command Input |
Step/Direction |
Step/Direction |
Step/Direction |
| Enable/Disable input |
Differential |
Differential |
Differential |
| End Limit input |
NO |
NO |
Positive Negative |
| Alam signal output |
Isolated OC output |
NO |
Isolated OC output |
| In Position signal output |
No |
NO |
Isolated OC output |
| Hall Effect Sensor Feedback |
U V W (Single-ended) |
U V W (Single-ended) |
U V W (Single-ended) |
| Encoder Feedback |
A B Z (Differential) |
A B Z (Differential) |
A B Z (Differential) |
| Encoder output |
NO |
NO |
A B Z (Differential) |
| Communication interface |
RS232 |
RS232 |
RS232 |
| Braking Resistor |
NO |
NO |
Support extmal Br |

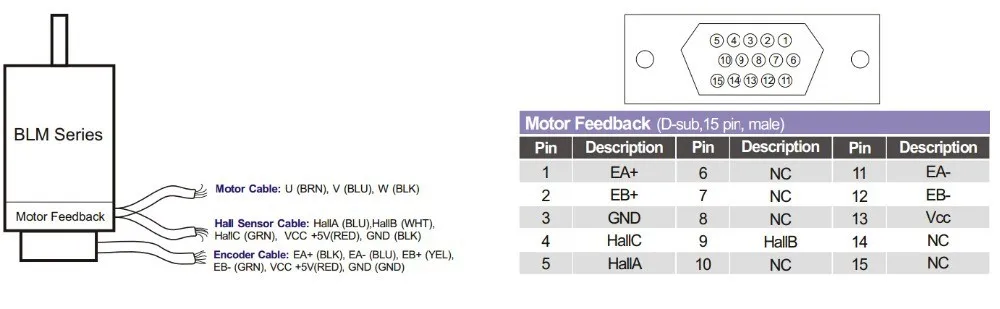

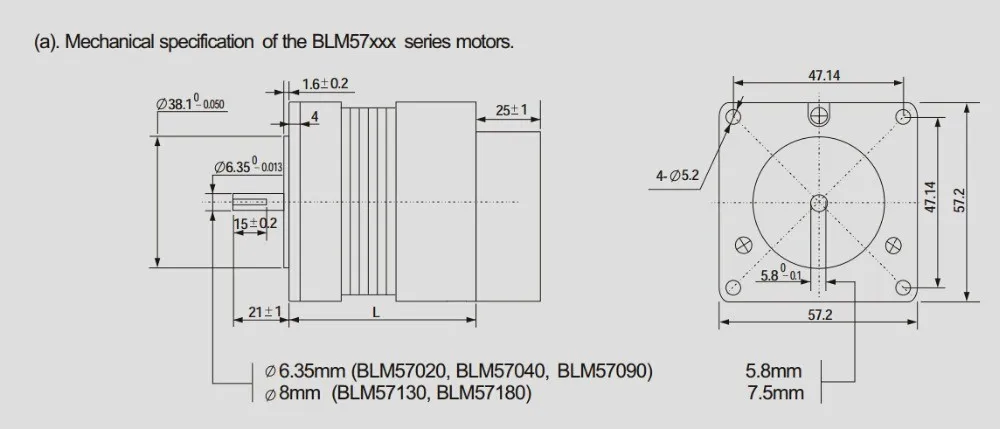

Dimension & Connection

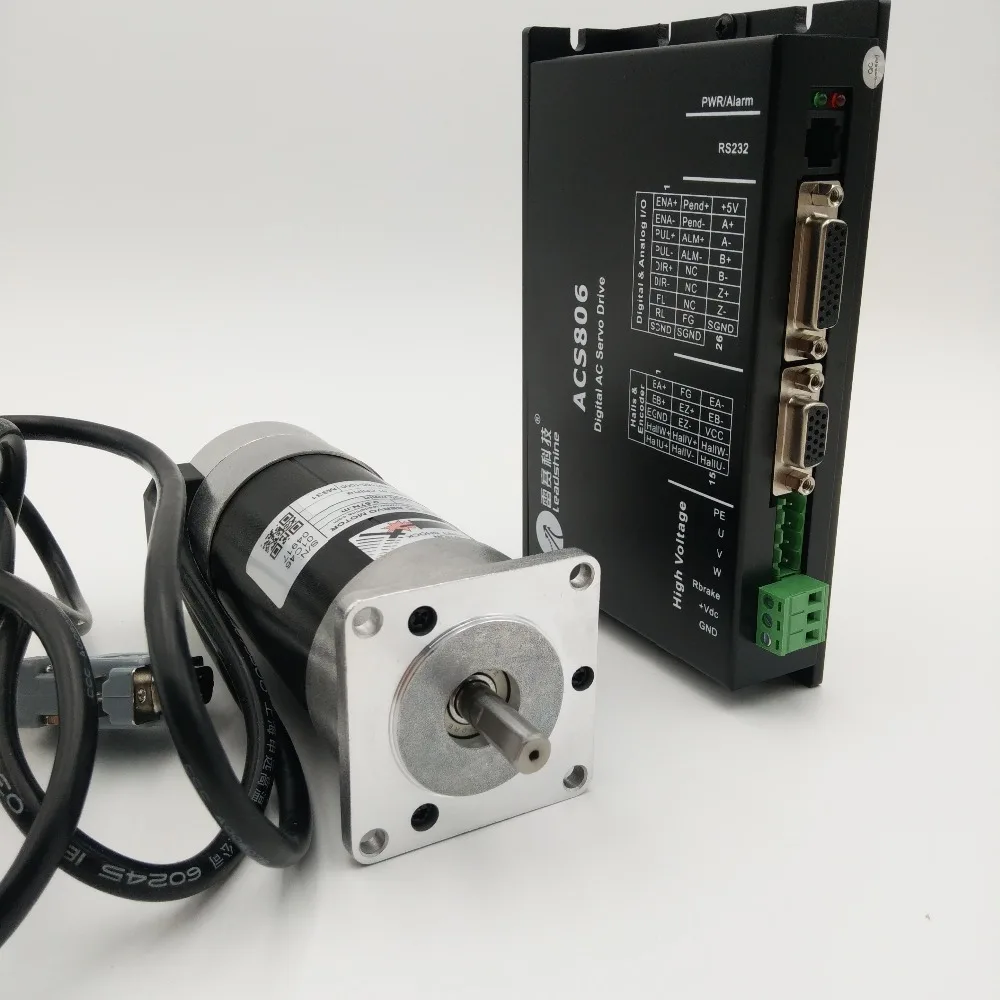

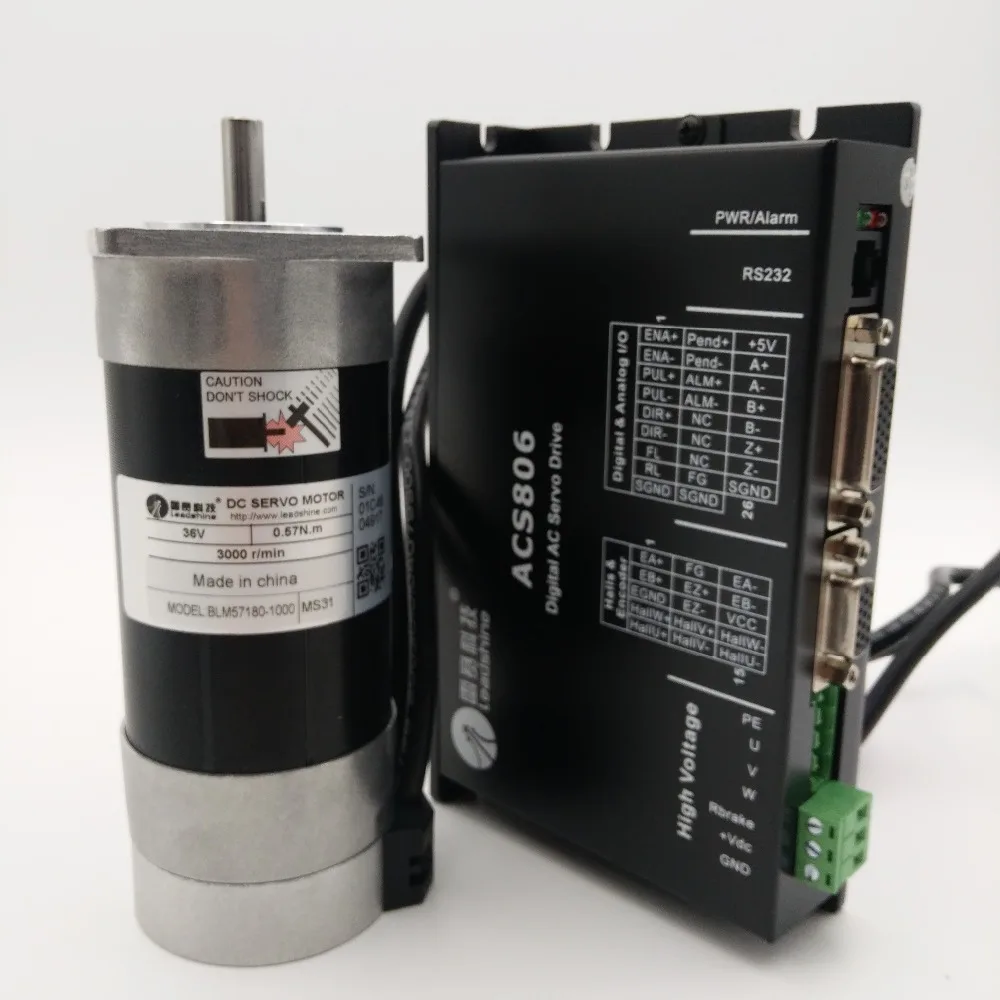

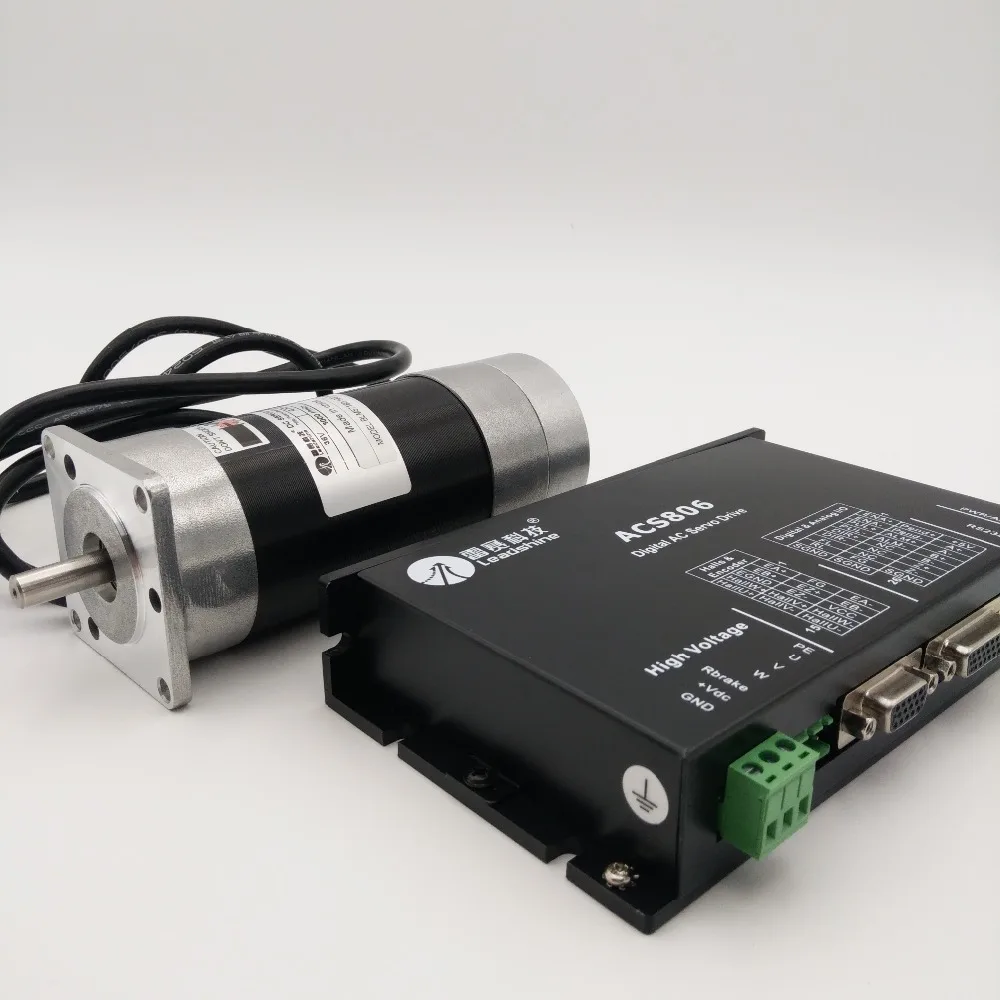

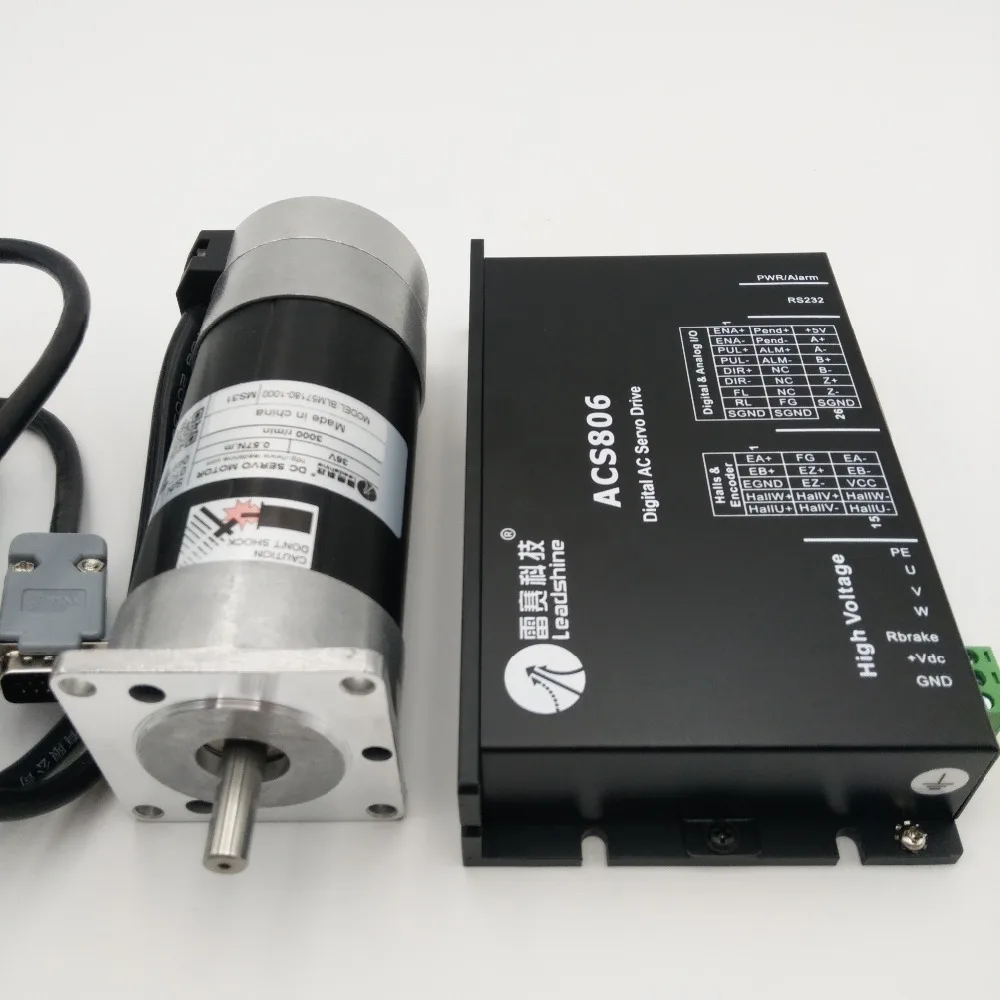

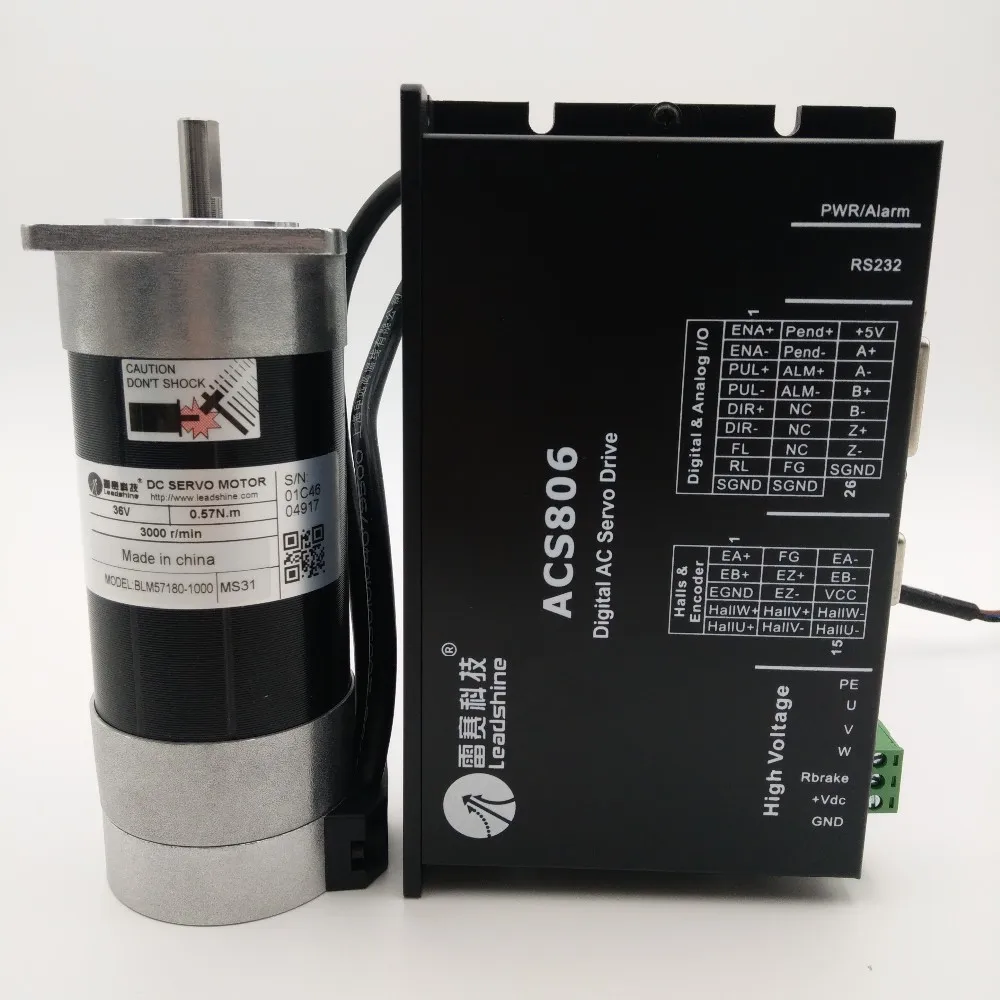

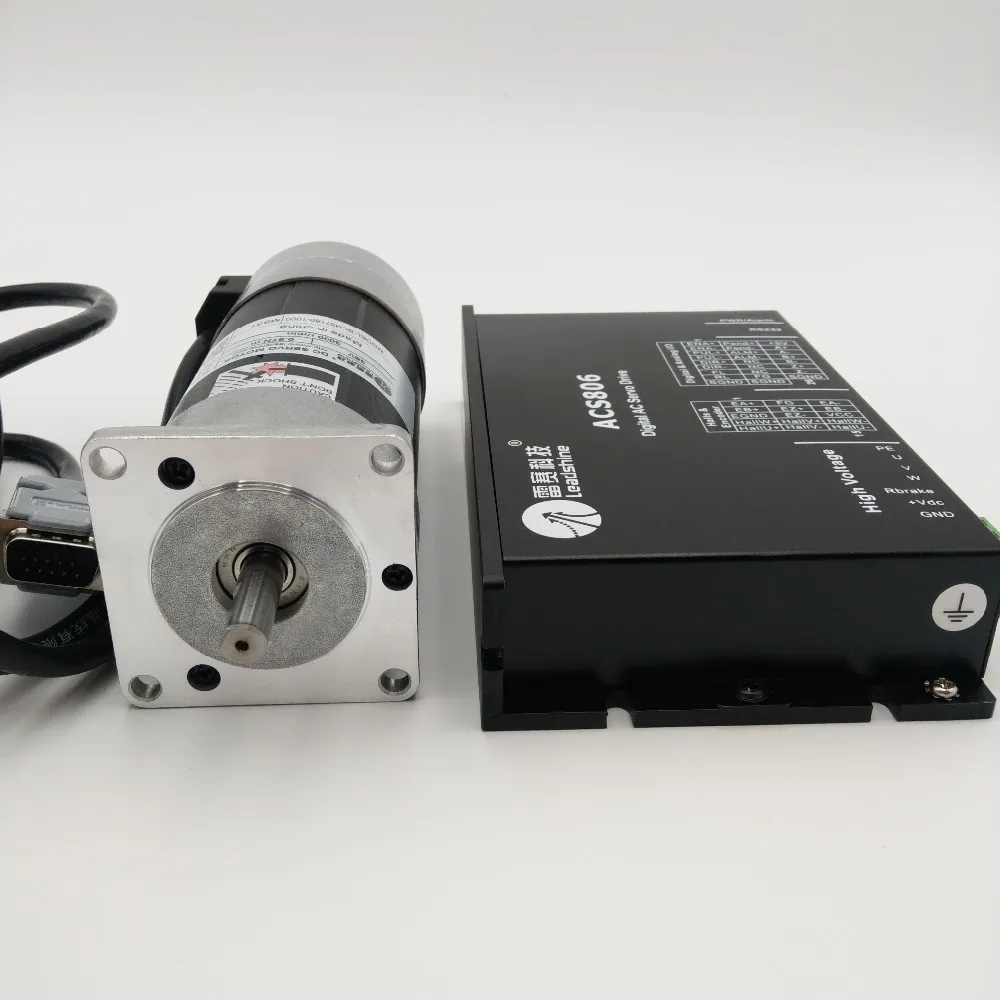

Product photos
Other available Leadshine DC brushless servo motor drive kits
| Model |
Power |
Current |
Torque |
Torque |
Speed |
Link |
| BLM57025-1000+ACS306 |
25W |
1.6A |
11.3oz-in |
0.08NM |
3000RPM |
Buy it now |
| BLM57050-1000+ACS306 |
50W |
3A |
22.6oz-in |
0.16NM |
3000RPM |
Buy it now |
| BLM57025-1000+ACS606 |
25W |
1.6A |
11.3oz-in |
0.08NM |
3000RPM |
Buy it now |
| BLM57050-1000+ACS606 |
50W |
3A |
22.6oz-in |
0.16NM |
3000RPM |
Buy it now |
| BLM57090-1000+ACS606 |
90W |
3.45A |
41oz-in |
0.29NM |
3000RPM |
Buy it now |
| BLM57130-1000+ACS606 |
130W |
5.3A |
58oz-in |
0.41NM |
3000RPM |
Buy it now |
| BLM57180-1000+ACS606 |
180W Square Flange |
6.7A |
82oz-in |
0.57NM |
3000RPM |
Buy it now |
| BLM57180-1000+ACS806 |
180W Square Flange |
6.7A |
82oz-in |
0.57NM |
3000RPM |
Buy it now |
| 57BL180D-1000+ACS606 |
180W Circular Flange |
7A |
82oz-in |
0.57NM |
3000RPM |
Buy it now |
| 57BL180D-1000+ACS806 |
180W Circular Flange |
7A |
82oz-in |
0.57NM |
3000RPM |
Buy it now |
