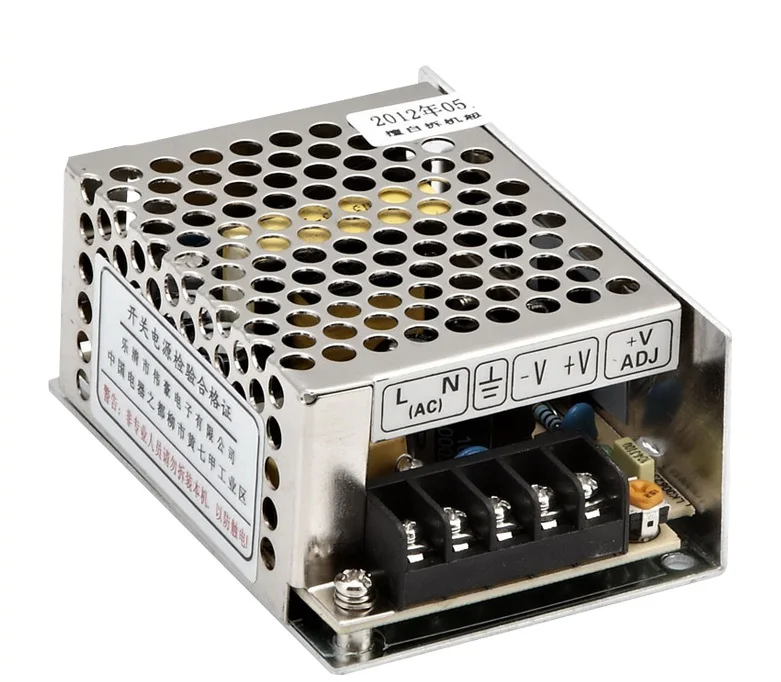

35W 12V 3a Smaller Volume MINI led driver, mini switching power supply,min power switch,mini size ac to dc smps (MS-35-12)
35W, Output: 12V, 3A
Feature&Advantages:
Low price and high reliability
105Celsius degree output capacitor
Universal AC input
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effectively
With short-circuit and overload protection
Compact size,light weight
100% full-load burn-in test
Install with EMI filter,minimum wave
| Model) (Specification) |
MS-35-5 |
MS-35-12 |
MS-35-15 |
MS-35-24 |
| DC output voltage |
5V |
12V |
15V |
24V |
| Output voltage range |
±2% |
±1% |
±1% |
±1% |
| Rated output current |
7A |
3A |
2.4A |
1.45A |
| Output current ranqe |
0-7A |
0-3A |
0-2.4A |
0-1.45A |
| Wave and noise |
75mVp-p |
75mVp-p |
75mVp-p |
50mVp-p |
| Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| Load stability |
±1% |
±0.5% |
±0.5% |
±0.5% |
| DC output power |
35W |
36W |
36W |
35W |
| Efficiency |
70% |
76% |
78% |
80% |
| Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
| AC input voltage range |
85-264VAC 47-63Hz,240-370VDC |
|||
| Input current |
0.45A/230V |
|||
| AC Inrush current |
Cold-start current 36A/230V |
|||
| Leakage current |
<0.5mA/240VAC |
|||
| Overload protection |
105%-150% Type: pulsing hiccup shutdown Reset: auto recovery |
|||
| Temperature coefficient |
±0.03%/°C(0~50°C) |
|||
| Setup, rise, hold up time |
200ms,100ms,30ms |
|||
| Vibration |
10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes |
|||
| Withstand voltage |
Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA |
|||
| Isolation resistance |
input and output internal Input and enclosure ,Output and enclosure:500VDC/100MΩ |
|||
| Working temperature and humidity |
-10°C~+60°C,20%~90%RH |
|||
| Store temperature and humidity |
-20°C~+85°C,10%~95%RH |
|||
| Overall dimension |
85X58X38mm |
|||
| Weight |
0.4kgS |
|||
| Safety standards |
Meet UL 1012 requirement(Not apply for the mark) |
|||
| EMC standards |
Meet FCC PART15 J Conduction class B |
|||
