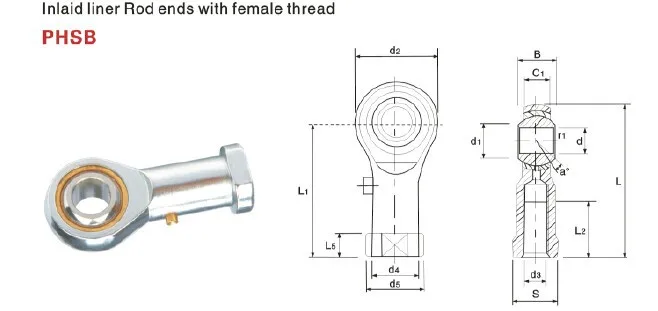

PHSB3

Net Weight : 14g



Model	Size (inch / mm)												Loading			Weight(g)
	d	d2	B	C1	S	d3	d5	L	L1	L2	l	d1	Cd	Cs
PHSB3	0.19	0.625	0.312	0.25	0.312	3/16"x32	0.406	1.375	1.06	0.562	0.187	0.306	780	2090	13	14
	4.826	15.88	7.92	6.35	7.92		10.3	34.93	27	14.3	4.75	7.77
PHSB4	0.25	0.75	0.375	0.281	0.375	1/4"x28	0.468	1.69	1.31	0.75	0.187	0.355	1030	3040	13	23
	6.35	19.05	9.53	7.14	9.53		11.9	42.9	33.3	19.1	4.75	9.02
PHSB5	0.3125	0.875	0.437	0.344	0.437	5/16"x24	0.5	1.81	1.38	0.75	0.187	0.447	1530	3800	13	36
	7.938	22.23	11.1	8.74	11.1		12.7	46	34.9	19.1	4.75	11.35
PHSB6	0.375	1	0.5	0.406	0.562	3/8"X24	0.687	2.13	1.63	0.937	0.25	0.517	2080	4980	13	59
	9.525	25.4	12.7	10.31	14.27		17.5	54	41.3	23.8	6.35	13.13
PHSB7	0.4375	1.125	0.562	0.437	0.625	7/16"x20	0.75	2.38	1.81	1.06	0.25	0.586	2520	6020	13	82
	11.11	28.58	14.27	11.1	15.88		19.1	60.3	46	27	6.35	14.88
PHSB8	0.5	1.312	0.625	0.5	0.75	1/2"x20	0.875	2.78	2.13	1.19	0.25	0.698	3330	8370	13	132
	12.7	33.32	15.88	12.7	19.05		22.2	70.6	54	30.2	6.35	17.73
PHSB10	0.625	1.5	0.75	0.562	0.875	5/8"x18	1	3.25	2.5	1.5	0.312	0.839	4500	9050	13	191
	15.88	38.1	19.05	14.27	22.23		25.4	82.6	63.5	38.1	7.92	21.31
PHSB12	0.75	1.75	0.875	0.687	1	3/4"x16	1.125	3.75	2.88	1.75	0.312	0.978	6410	12700	13	286
	19.05	44.46	22.23	17.45	25.4		28.58	95.3	73	44.5	7.92	24.84
PHSB14	0.875	1.97	1.102	0.778	1.26	7/8"x14	1.46	4.29	3.307	1.69	0.47	1.015	11200	16800	13	552
	22.225	50.05	28	19.75	32		37	109	84	43	12	25.8
PHSB16	1	2.75	1.375	1	1.5	1"x12	1.75	5.5	4.13	2.13	0.437	1.269	13300	19500	13	998
	25.4	69.85	34.93	25.4	38.1		44.5	140	105	54	11.07	32.23
