FUTV4812A IRD(8 ASI Input,2ASI 1 IP Ouput)Mux-Scrambler

R: V20150917-10-54 Data sheet   User Manual



Input:ASI   Output:IP-MPTS, IP-SPTS, ASI



Outline

FUTV4812A ASI input multiplexer scrambler is the latest multiplexing and scrambling device for digital TV broadcasting head-end system. In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.













Features

* Fully comply with ISO13818 and EN300468 standard
* Integrated multiplexing and scrambling functions
* 8ASI input
* Support 2 channels TS re-multiplexing
* SPTS and MPTS code stream multiplexing
* Supports accurate PCR adjusting
* Support PID filtering, re-mapping
* Two groups( each group has 2 channels) separate TS output
* TS over UDP output as mirrors of ASI outputs(RJ45)
* Supports PSI/SI rebuilding, editing
* Supports DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
* Support 4 different simulcrypt CAS
* Supports CAS remote connection scrambling
* Supports huge buffer memory and resists unexpected code stream
* Supports multiplexing the same program to all the output channels
* Alarming function
* Supports network remote upgrading

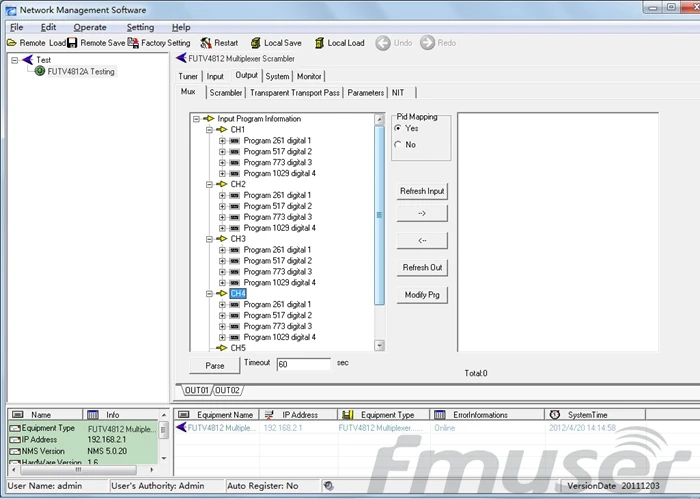

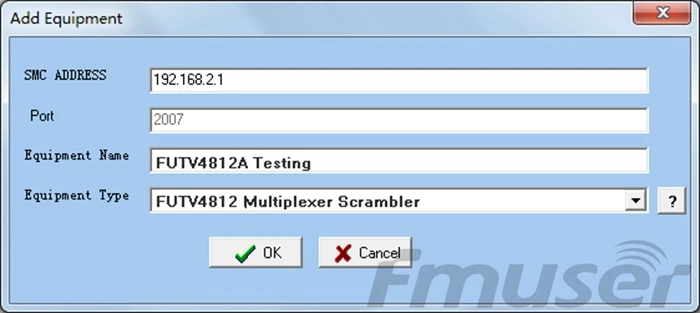

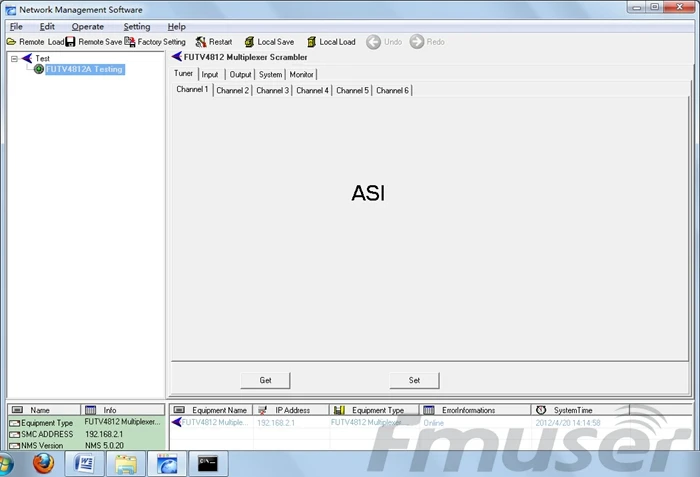

* LCD/keyboard and net management, support NMS/SNMP

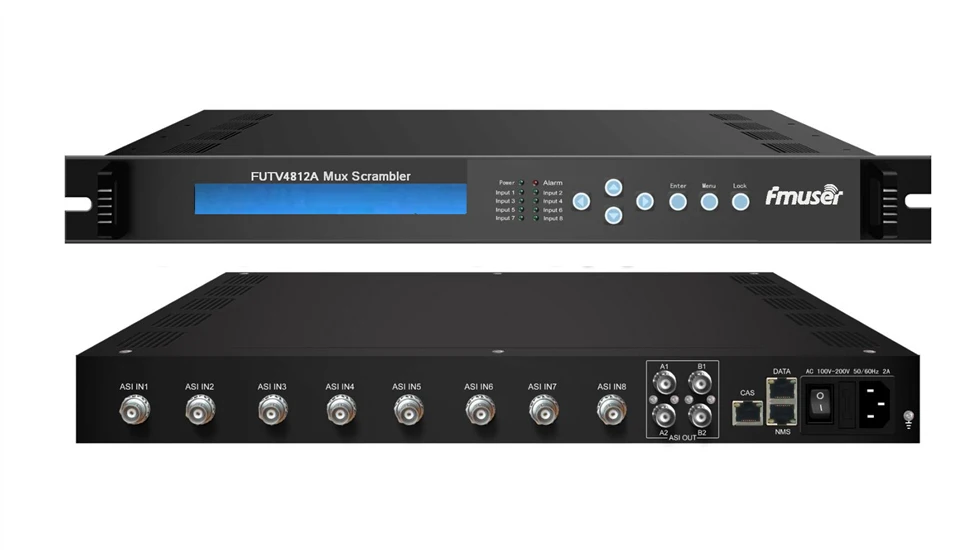

Appearance and Illustration

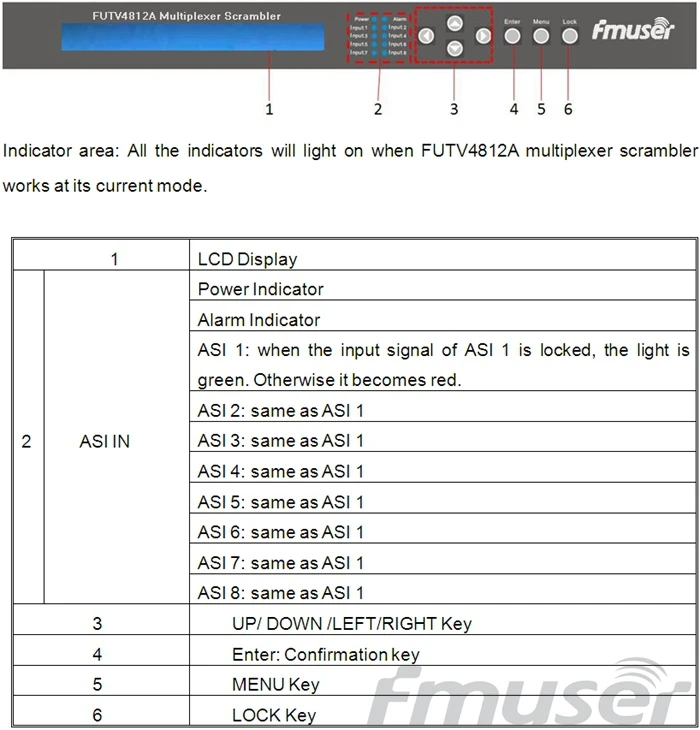

Front panel

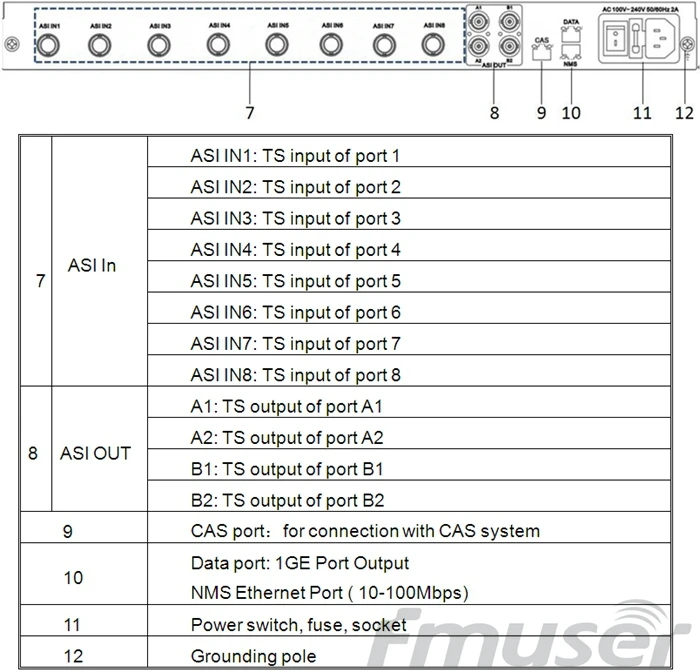

Rear panel













Specifications





Input interface	ASI	8ASI	FUTV4812A
Re-multiplex		2 channels TS re-multiplex
		PID re-mapping ( auto/manual optional)
		PCR accurate adjusting
		Automatically generating PSI/SI table
Input	Packet format	204/188 self-adaption
Scrambling	Simul-crypt CA	4
	Standard	ETR289, ETSI 101 197, ETSI 103 197
	Connection	Local/Remote connect
Output port	ASI	2 groups separate outputs (each group has 2 channels)
	IP	TS over UDP output as mirror of ASI output (RJ45)
PID	Output range	0x0000—0x1FFF
	Amount of output PID per input	64
NMS port	Ethernet port	10/100M
Miscellaneous	Demission(LxWxH)	482mm*410mm*44mm
	Weight	4kg
	Temperature	0~45C(operation),-20~80C(storage)
	Power supply	AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz
	Consumption	≈18W









Package List

FUTV4812A multiplexer scrambler	1pcs
User’s manual	1pcs
ASI Cable	1pcs
Power Cord	1pcs
