eMylo DC5V/ 6V Smart Switch Wireless RF Remote Control Switch, Light Lamp Switch 433Mhz White Long Transmitter 8X 1 Channel Relays

Main Features:

1.Eight channels of output, the output can be independent, but also inching and interlocked.
2.Using wireless encoding technique, no direction, no mutual interference
3.Adopting larger capacity relay, can control electrical equipment of more than 1000W
4.Mainly applied for: Remote control of the on and off of pump, machine-tool, LED lights and other Civil and industrial supporting remote areas.
5.Learning type can be paired with more than one control.

Specifications:

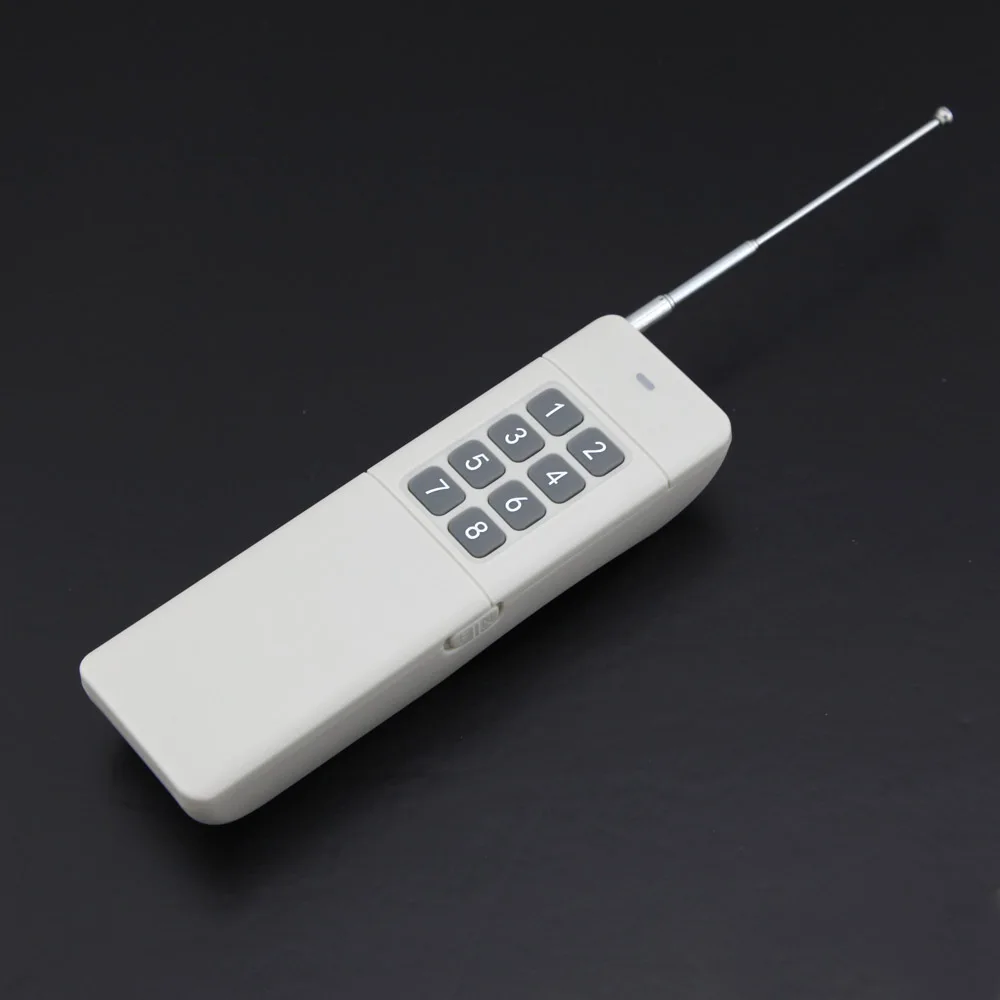

Transmitter
Operating Voltage: 12V
Operating Frequency: 433Mhz
Vibration Resistance: 4.7M
Modulation: ASK (Stable, less interference)
Encode Type: Pads
Battery Type: 12V 23A(not included)
Remote Distance: 300-500m (Theoretical value)
Ambient Temperature: -30 oC -70 oC, Humidity<95%
Product Dimension: 60x38x13mm

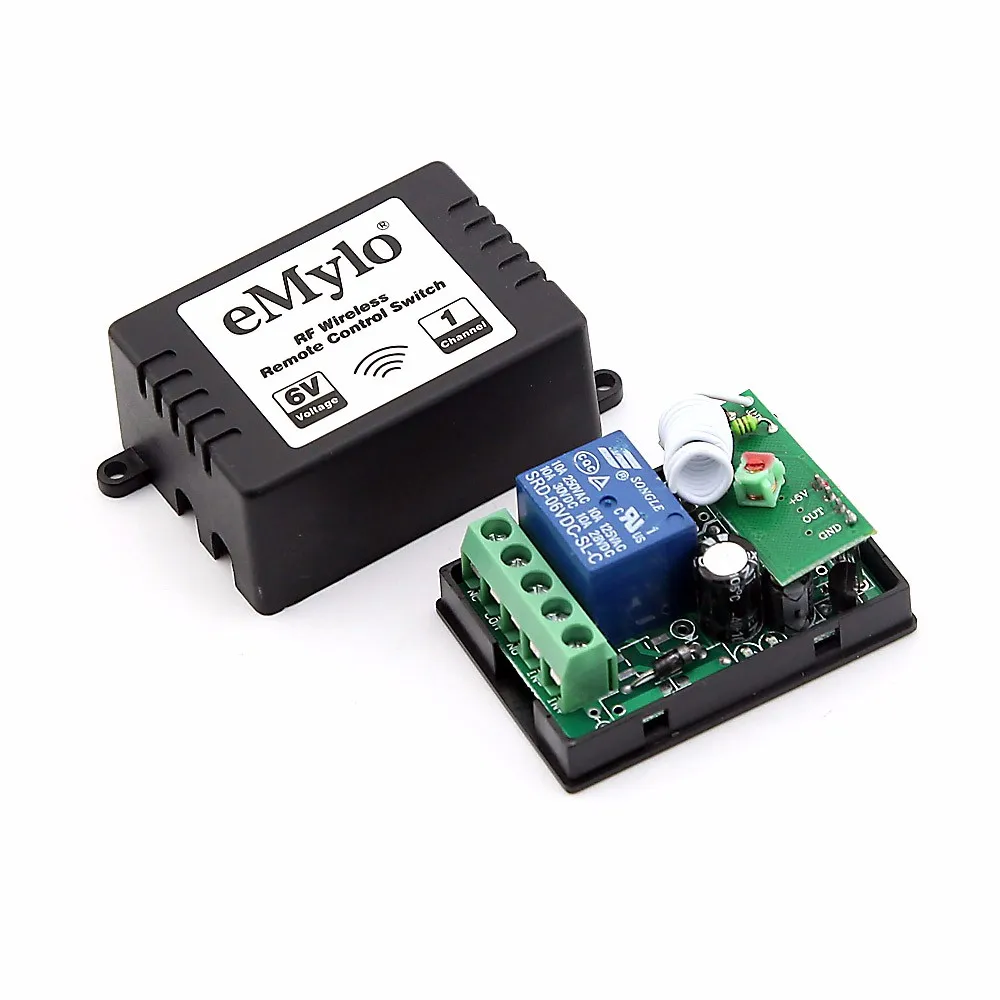

Receiver
Input Voltage: DC 6V(5V will also work)
Operating Frequency: 433Mhz

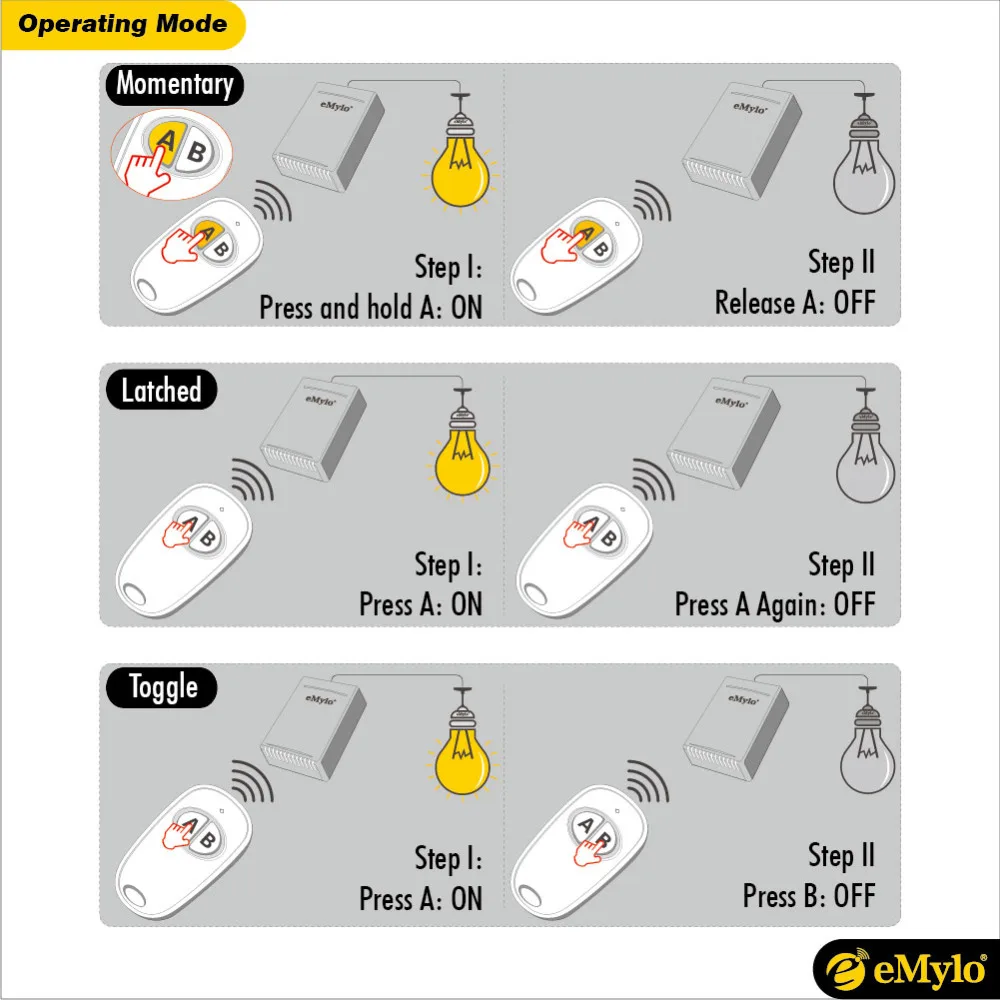

Operation Way: Inching, Self-locking, Interlocked
Coding Way: Intelligent Learning
Output Type: Passive Output
Maximum load: 10A
Ambient Temperature: -20 oC -65 oC, Humidity<95%
Factory Default: latched
Board Dimension: 69x49x17mm
Case Dimension: 75x65x29mm

FAQ:
A: I bought one, but when I receive it, it did not work?
B: When you receive the item, the first step you should do is that install the battery.
A: I installed the battery, but did the wiring, but it did not work?
B: Please wire strictly according to the layout we have given.
A: What kind of voltage I should choose?
B: Choose it according to the voltage of light, motor or other things you want to install, keep same with it.
A: I am interested in your product and want to do bussiness about it.
B: We have a great variety of remote control(more than four hundred types)which different voltage and channel. Hope we can set up a long-term relationship cooperation.

Note:

The receivers in our store are mainly used together with the related products in our company. If you want to use your own transmitter, please confirm if the operating frequency, chip type and vibration resistance of your transmitter are in accordance with ours. If not, they will fail to be linked to.

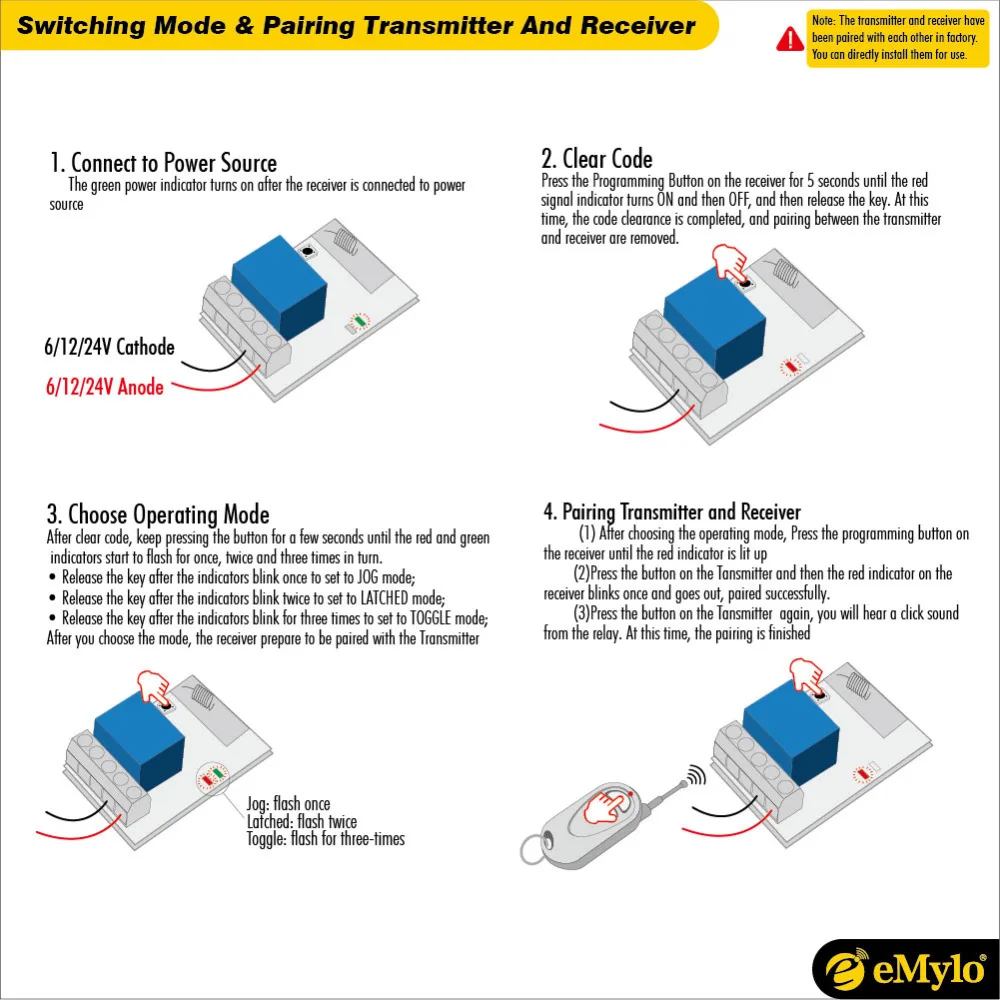

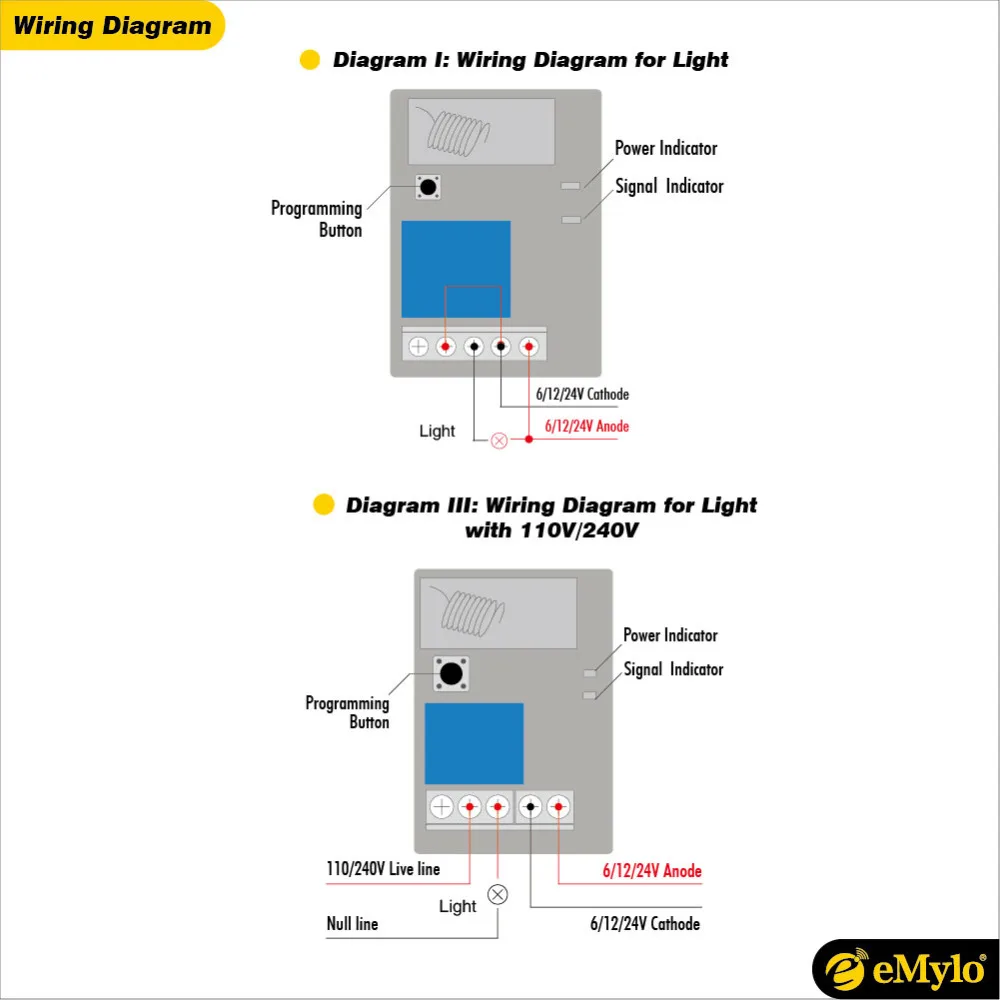

Layout

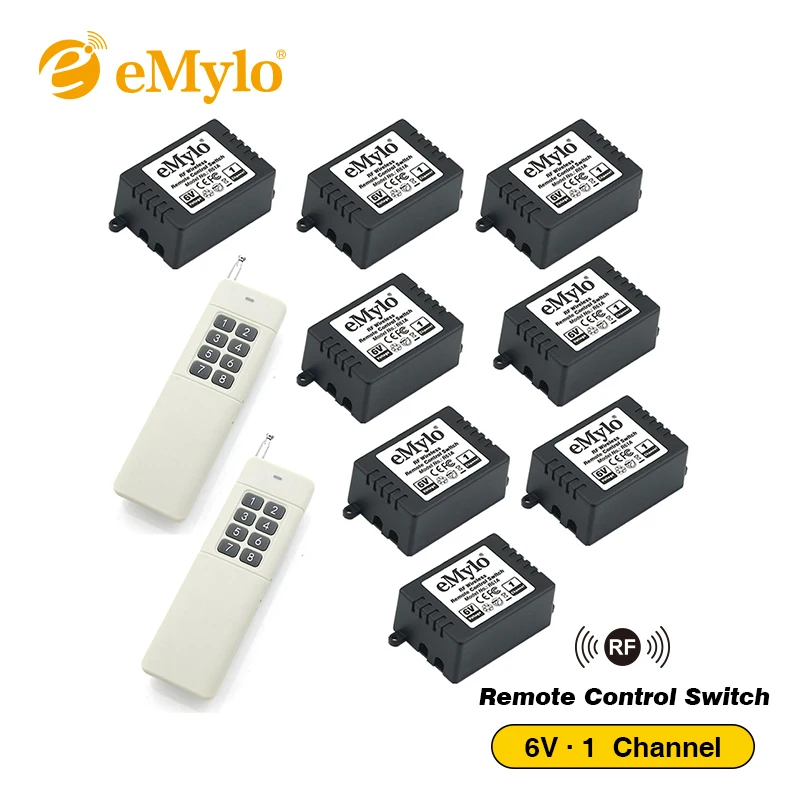

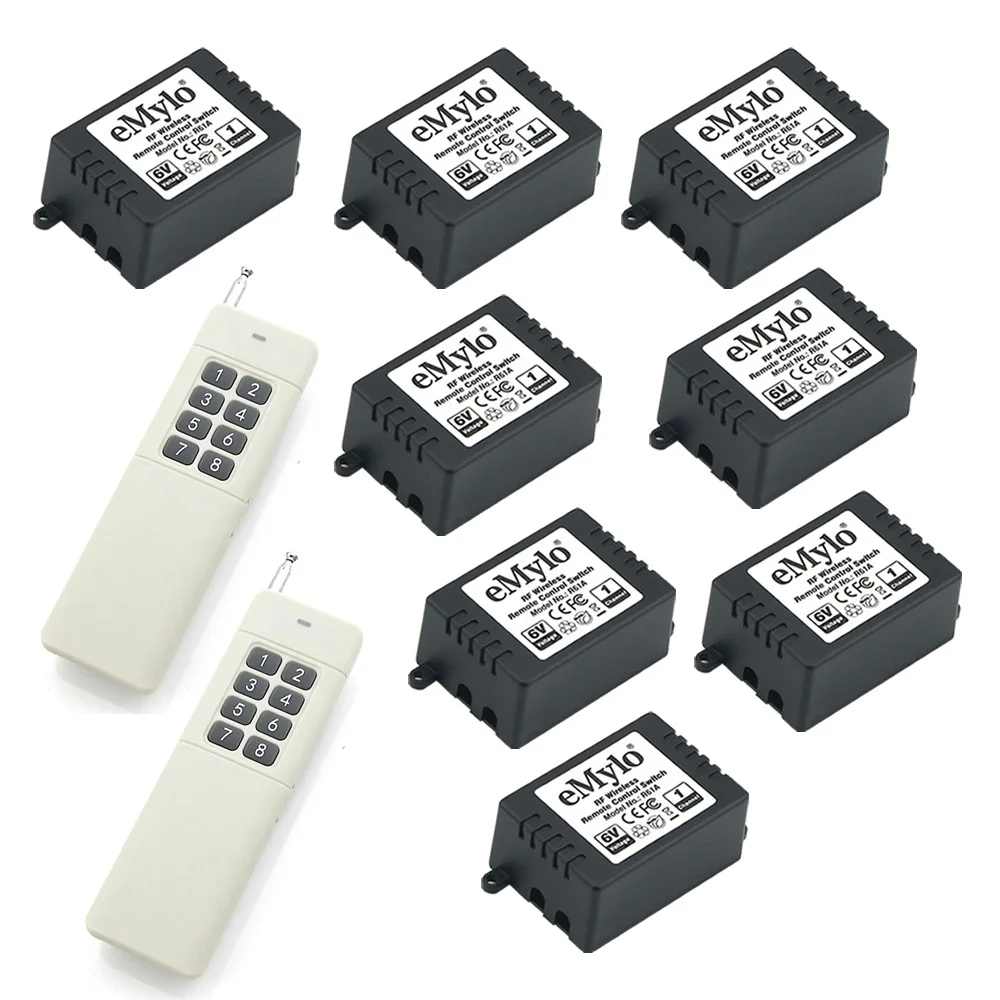

Package Includes:

2X Transmitter (Battery is not included)

8X Receivers

1X Use manual

Applications:

Mainly applied for: Remote control of the on and off of pump, machine,tool, socket, LED lights, doors, alarm system, motor bike, MP8 and other Civil and industrial supporting remote areas.
