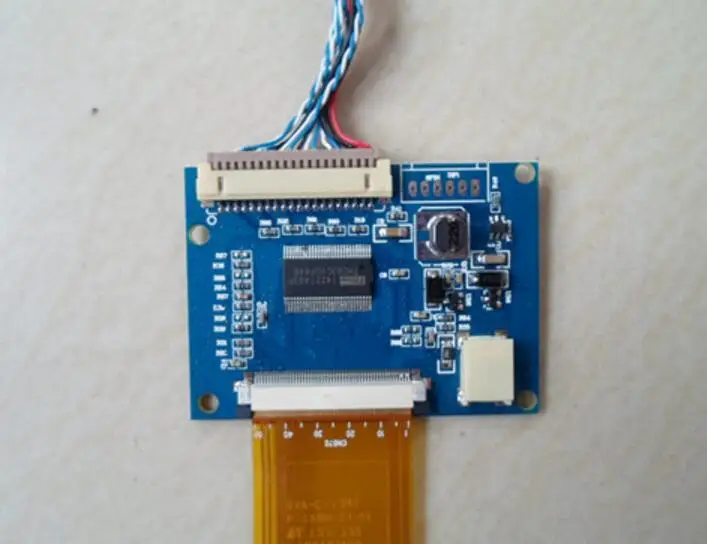

LVDS to TTL Drive Board LVDS20PIN to TTL50PIN Adapter Board

This drive board is LVDS signal input, TTL signal straight-through output signal conversion board, and integrated with LED backlight drive, at the same time can generate, AVDD, VGL, VGH, VCOM, and other multi-channel voltage LCD adapter board

This adapter board can support the following types of screens in conjunction with the drive board with audio amplifier output：

AT065TN14

AT070TN90

AT070TN92

AT080TN52V.1

AT080TN52

AT090TN12

AT090TN10

AT090TN13

EJ080NA05

EJ080NA05A

EJ080NA05B

And so on, and general 50PIN LCD screen, or LCD screen with the same definition of function

The drive board LVDS signal input adopts the standard DF1420P interface, and the interface definition is single 8 (8bit) which is common on the market. Generic LVDS signal line

The driver board defaults to the standard LVDS signal input of the 8BIT

Only a LVDS screen line connection. cheap, convenient, and simple

Capacitor element, operating temperature up to-50 to 120 degrees

Resistance element, operating temperature up to-50 to 120 degrees

The drive board comprehensive working temperature is from-20 to 50 degrees

The main conversion IC adopts THC original Japanese import, THC63LVDF84B
