Купить Handheld hydrogen bromide gas detector HBr analyzer portable with data storage and GPRS transmission | Инструменты
Handheld hydrogen bromide gas detector
Friendly Reminder
This detector has many different ranges, the displayed price is just for ordinary range. So please contact us to tell me your requested detection range before placing order, if the range is special, we need to change price, then you can place order directly.
More important is that we must make sure that you choose the right range for your application.
Thank you very much!
Overview
GASTiger 2000 pump suction portable gas detector adopts imported high performance sensor, is an intelligent high-performance detection alarm that can continuously detect and monitor gas and with function of people falling alarm. It is built-in temperature and humidity sensors, display temperature and humidity real-time. GASTiger 2000 wireless function allows the security personnel can get a real-time equipment data and alarm status in any place. Visual data displays, large 2.3 inch full-color screen and quicker response time help improve personnel safety and protection to a whole new level.
Features
Imported high-performance electrochemical sensor, 2~3 years long service life.
Active pump suction, short response time, embedded 32-bit ultra-low power microprocessor, small error and high resolution.
Built-in temperature and humidity sensors, real-time display temperature and humidity.
Intelligent temperature, humidity and zero point compensation algorithm, 3 to 8 level of the target-point automatic calibration function by software, ensure the accuracy of measurement results; auto detection working status of various sensors and components.
2.3 inch full-color screen, large and clear back light ensure measurement information can be displayed in any lighting conditions, simple UI color icon menu, 7 buttons navigation friendly user interface, shows the design of humanization, international.
Support free switch of PPM, %VOL, mg/m3, mg/L concentration unit, support Chinese and English interface free switch.
Standard 6000 mAh capacity lithium battery, more than 30 hours continuous working time, support mobile power supply and charging, USB port mobile phone charger compatible.
Standard 5V 2.1A USB quick charger, plug removable, each charger is equipped with four plugs (US, Europe, UK/HK, AU standard).
Real-time data transmission in 5 different alarm modes accurately sent to both local and remote alarm notification, including security personnel falling alarm.
First class mechanical design, high strength abrasion resistant polycarbonate enclosure, rugged, waterproof and anti-corrosion, anti-electromagnetic radiation; reasonable scientific gas chamber design, ensure sensors are not affected by environment; IP66 protection degree.
Real-time detection and timing detection 2 modes for choice, multiple storage modes such as auto storage, manual storage and single point storage. Storage interval can be customized and 300,000 groups data that can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery.
RTU short distance wireless transmission or any place that unlimited distance of GPRS wireless transmission modes are both available through the built-in wireless module. Sending the real-time detection results and alarm status to security center;
Support USB data download, support micro-portable printer, bluetooth wireless printing
Technical Parameters
| Name | Handheld hydrogen bromide gas detector |
| Model | GASTiger 2000 |
| Detection gas | Hydrogen bromide(HBr) in air |
| Working principle | Electrochemical |
| Detection range | 0~20ppm, 0~30ppm, 0~50ppm, 0~100ppm, 0~500ppm(optional) |
| Resolution | 0.01ppm(0~100ppm), 0.1(0~1000ppm) |
| Sampling method | Active pump suction, built in air pump can open or close independently Flow speed: 500mL/min |
| Accuracy | ≤±3% F.S. |
| Repeatability | ≤±1% |
| Zero drift | ≤±1%(F.S./year) |
| Response time | ≤20s(T90) |
| Recovery time | ≤30s |
| Dimensions | 80mm×200mm×58mm(L*H*W) |
| Shell material | High strength abrasion resistant polycarbonate enclosure Stainless steel |
| Weight | 0.52kg |
| Battery | Standard 6000 mAh capacity lithium battery, more than 30 hours continuous working time, charging time less than 7 hours, support mobile power supply and charging, USB port mobile phone charger compatible. |
| Charger | Standard 5V 2.1A USB quick charger, plug removable, each charger is equipped with four plugs (US, Europe, UK/HK, AU standard). |
| Alarm method | Sound alarm 95 dB@30cm, red LED alarm light, personnel falling alarm, short distance wireless and long distance GPRS alarm. |
| Alarm value setting | A1 alarm value, A2 alarm value TWA, STEL and low concentration alarm value can be set individually. |
| Screen | 2.3 inch TFT |
| Backlight | Manual, automatic when alarming |
| Button | 7 buttons navigation |
| Direct reading | Measured value, data logging status, pump working status, environment temperature and humidity, maximum value, minimum value, average value |
| Data storage | Auto storage, manual storage and single point storage. Storage interval can be customized and 300,000 groups data that can be stored with date/time data, if matching micro-SD memory card, then can store 10 million or more; with data recovery function can choose part or all of data recovery. |
| Data download | Support USB data download; support GPRS wireless transmission (optional) |
| Data print | Support micro-portable printer, bluetooth wireless printing. |
| Calibration | 3 to 8 level of the target-point automatic calibration, can set the calibration certified value, zero setting. |
| Explosion proof | ExdIICT4 Ga (Intrinsically Safe) |
| Protection class | IP66 (water and dust proof) |
| Operation mode | User mode, administrator mode |
| Working temperature | -40~70C (If match with high temperature sample handles, can measure up to 800C) |
| Working humidity | 0-95%RH (Non-condensing) |
| Standards | GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010 |
| Patent certificate | Patent No.: ZL 2015 3 0122378.4 |
| QA | One year, maintenance free in warranty time |

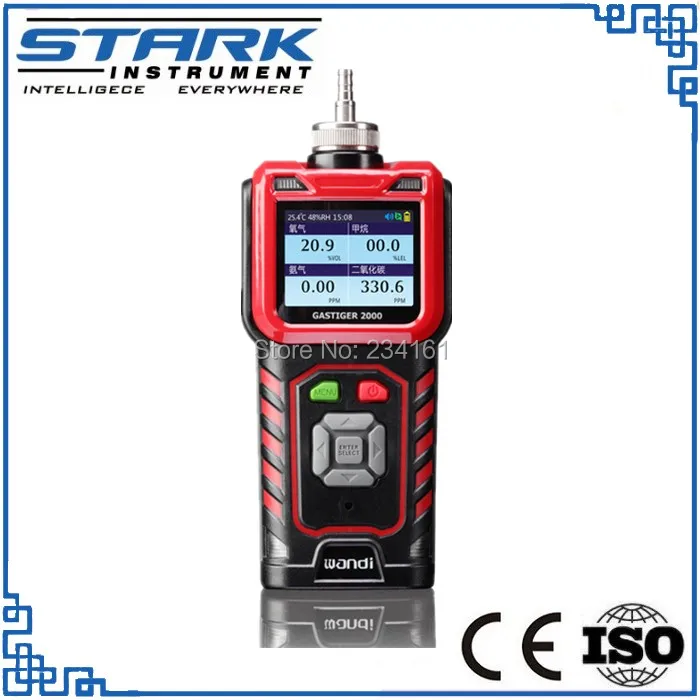

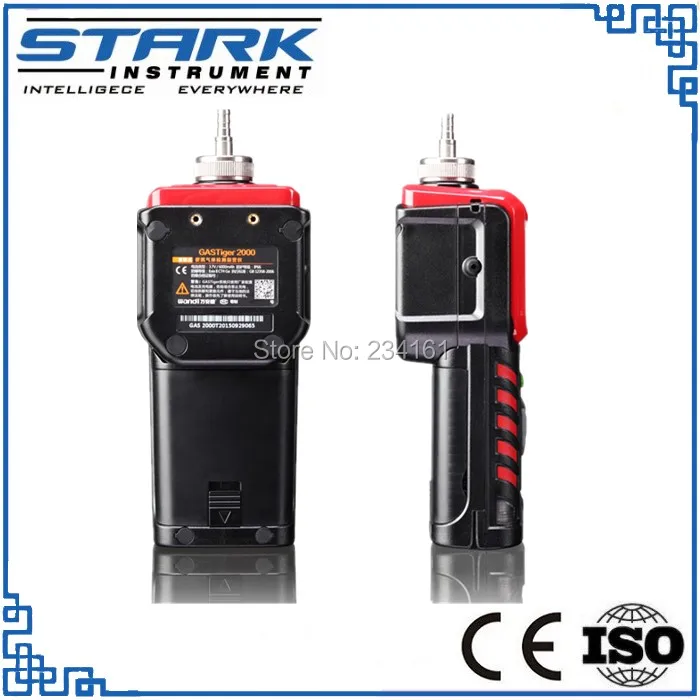

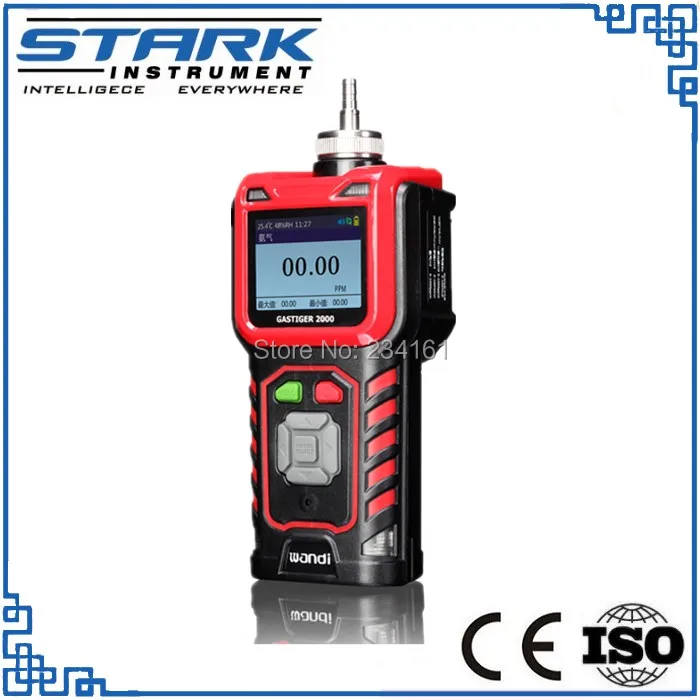

Product Pictures
GASTiger 2000 Standard Configuration
| Name | QTY |
| GASTiger 2000 host | 1 |
| Gas sensor(built in) | 1 |
| Temperature and humidity sensor(built in) | 1 |
| Battery(built in) | 1 |
| Charger dock | 1 |
| USB charger | 1 |
| USB data wire | 1 |
| User manual | 1 |
| Packing box | 1 |
| Gas monitoring and management system installation CD | 1 |
| Qualification | 1 |
| Warranty card | 1 |
GASTiger 2000 Optional Accessory
| Name | QTY |
| Sample handles(0.4m) | 1 |
| Superior quality Aluminum Alloy instrument box 310mm(L)×220mm(H)×120mm(W) | 1 |
| Micro Bluetooth wireless printer 103mm(L)×77.4mm(H)×36mm(W) | 1 |
| SD storage card(2G\4G\8G) | 1 |
| RTU-433short distance wireless module | 1 |
| GPRS wireless module | 1 |
| Bluetooth module | 1 |
