Датчик расстояния на ультразвуковой основе для платформ DC 3V~5.5V - купить

Item Description:

    Detecting range: 3cm-4M
    Best in 30 degree angle
    Electronic brick compatible interface
    5VDC power supply
    Breadboard friendly
    Dual transducer
    library ready


Specification:

    Working Voltage: 5V (DC)
    Static current: Less than 2mA.
    Output signal: Electric frequency signal, high level 5V, low level 0V
    Sensor angle: Not more than 15 degrees.
    Detection distance: 2cm-450cm.
    High precision: Up to 0.3cm
    Working tempter:-20C___+60C
    Weight: 10
    Size: 45x 21mm (L x W)


Connector Pin:

VCC
Trig (T)
Echo(R)
OUT
GND

Package Included:

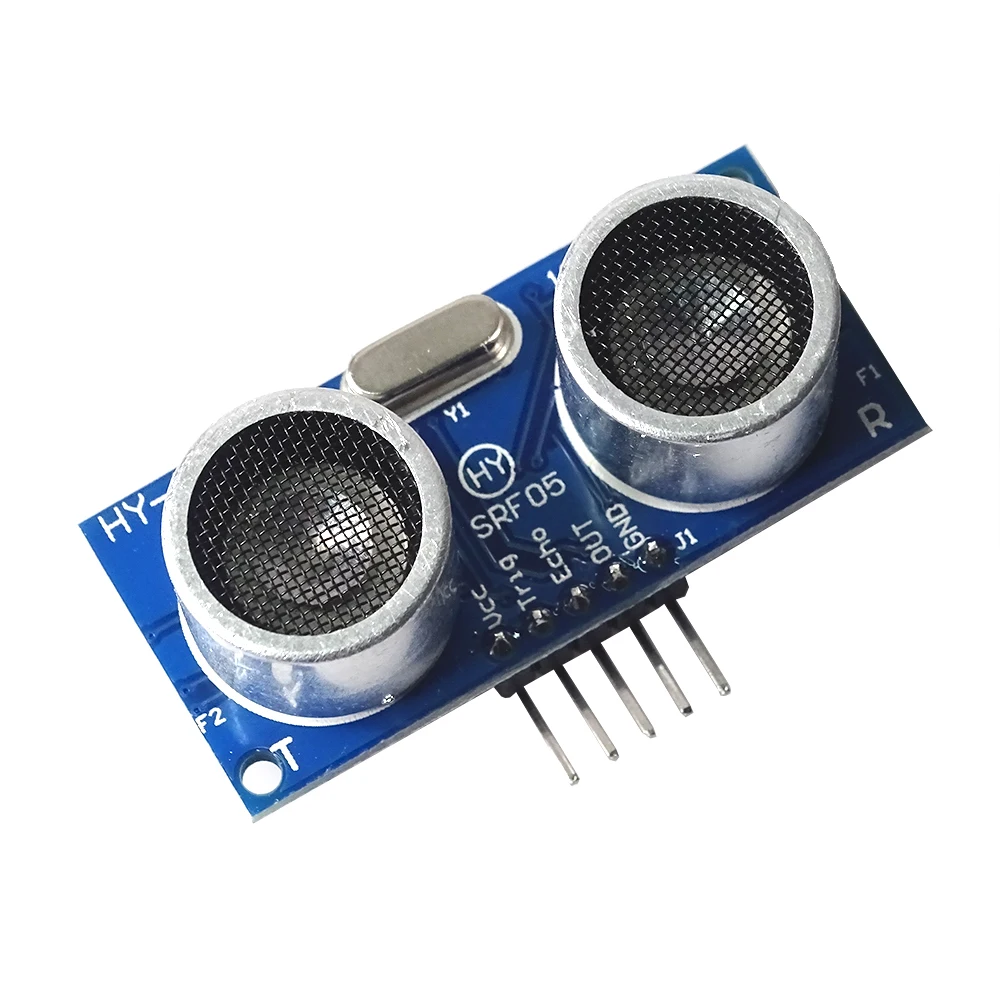

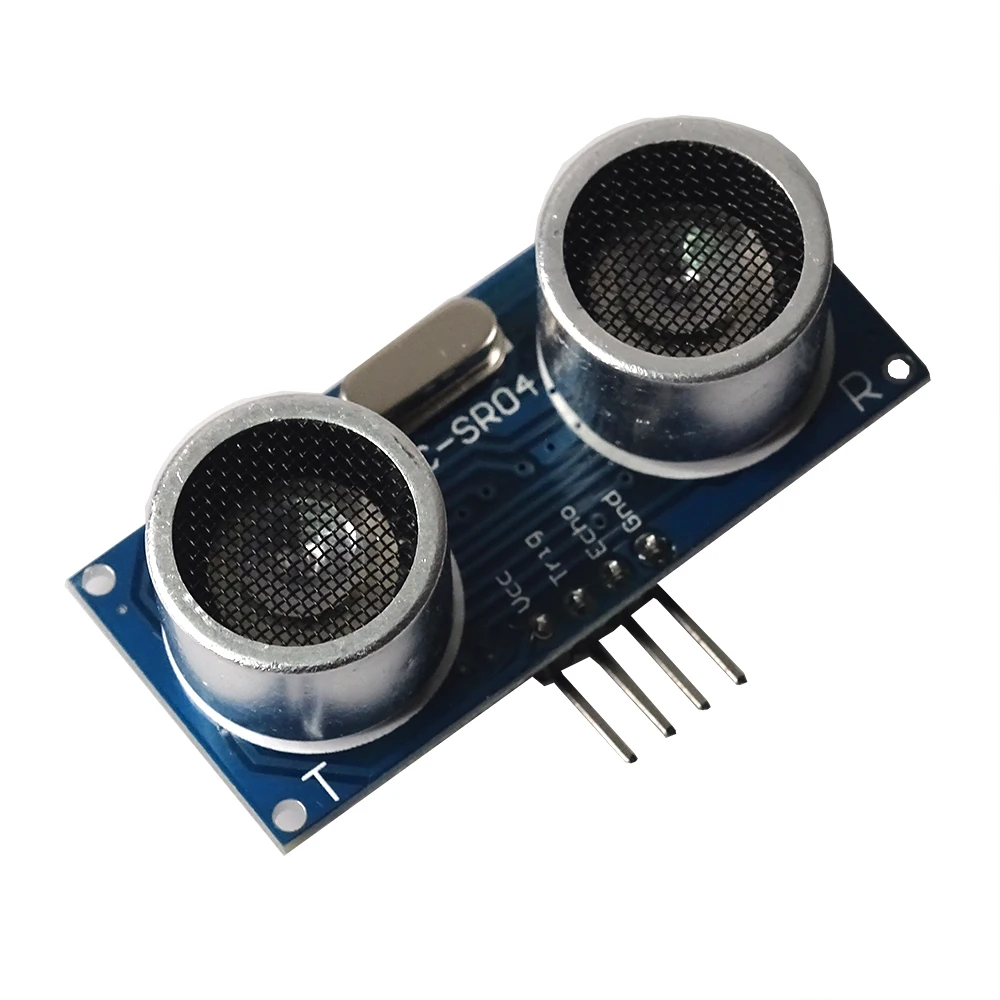

1 X HY-SRF05 Ultrasonic Ranging Sensor Module

1. This module has stable performance and accurate measurement distance. It can be compared with SRF05, srf02 and other ultrasonic ranging modules abroad. The module is high precision, the blind area (2cm) is super close, and the stable ranging is the strong basis for this product to go to the market successfully!
2 main technical parameters:
1: Use voltage: DC5V 2: static current: less than 2mA
3: Level output: high 5V 4: level output: bottom 0V
5: Sensing angle: no more than 15 degrees 6: detection distance: 2cm-450cm
7: High precision: up to 0.3cm
8. PCB size: 4.5 * 2.0cm
Wiring mode, VCC, trig, echo, GND
How to use this product: if a control port sends a high level of more than 10us, you can wait for the high level output at the receiving port. As soon as the output is available, you can turn on the timer for timing. When the port turns to low power, you can read the value of the timer. At this time, it is the time of this ranging, and then you can calculate the distance. Such continuous periodic measurement can reach the value of your mobile measurement~~
Working principle of the module:
(1) Adopt IO trigger ranging to give at least 10us high-level signal;
(2) The module automatically sends 8 square waves of 40KHz to detect whether there is signal return;
(3) If there is signal return, output a high level through IO, the duration of high level is
Time from transmission to return. Test distance = (high level time * sound speed (340m / s)) / 2;
This module can provide a complete set of ranging program: C51, pic18f877, ultrasonic LCD1602 display, ultrasonic LCD12864 display, digital tube display, serial port display, etc., ranging reference program.

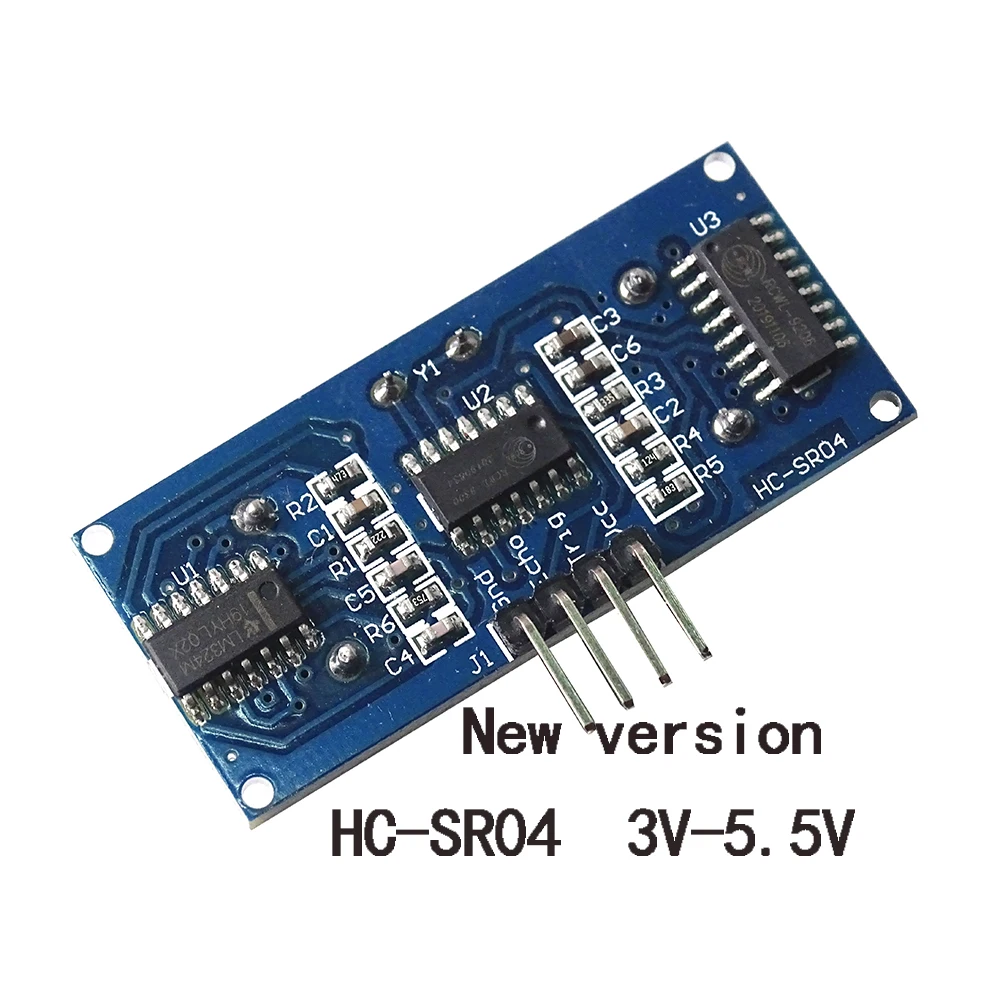

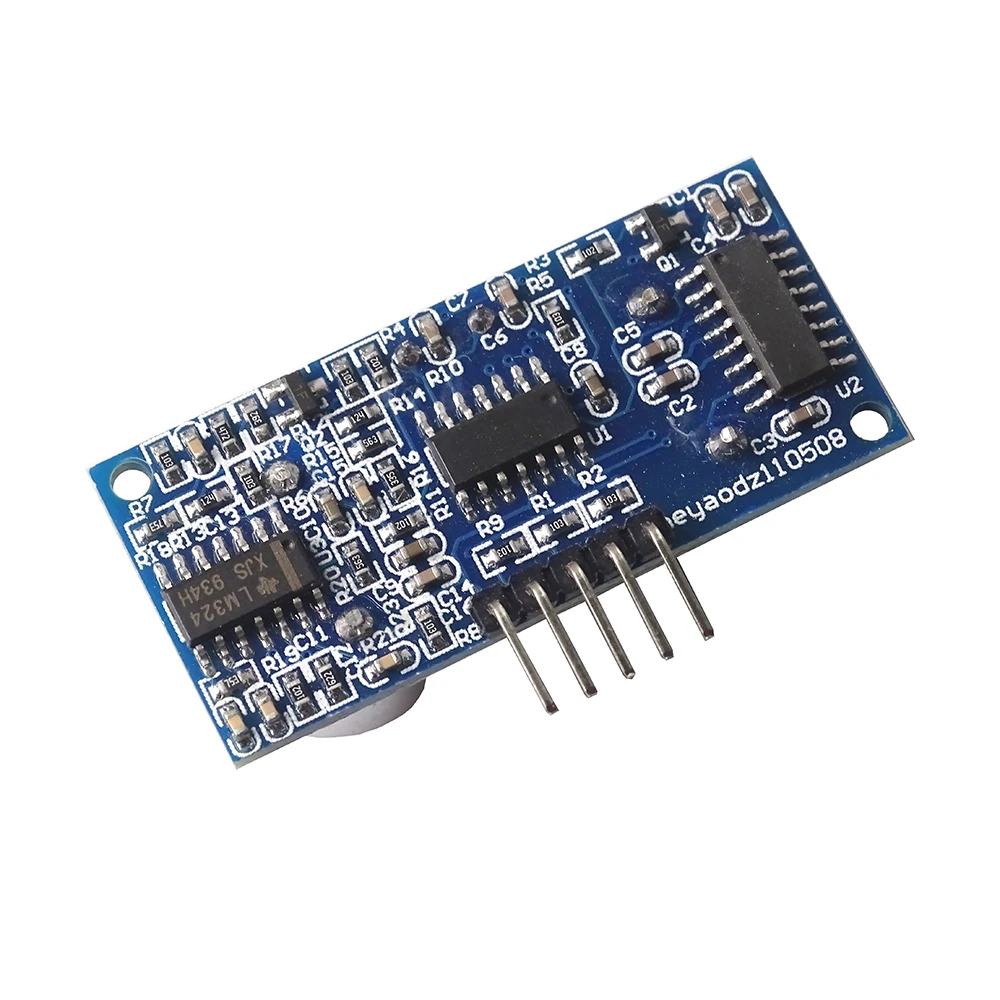

Hc-sr04 new version: voltage 3.3-5v dual chip. The picture is as follows

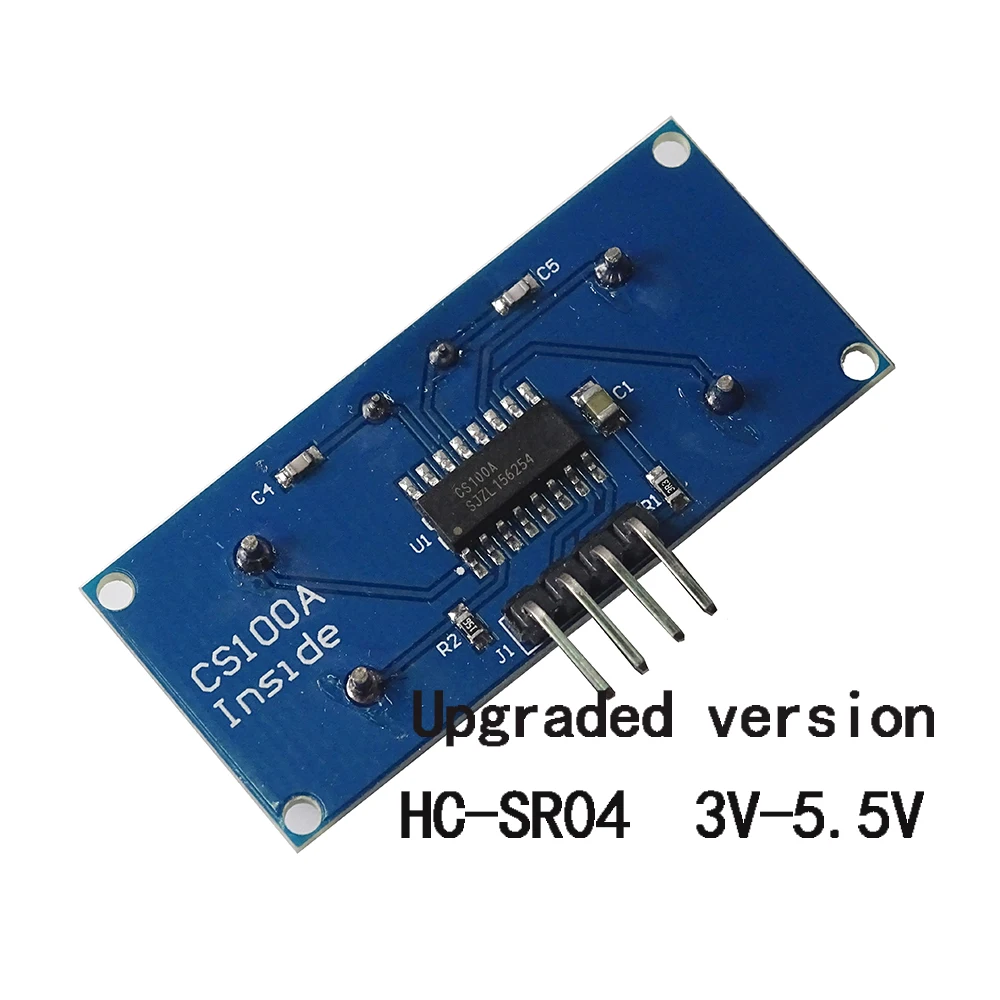

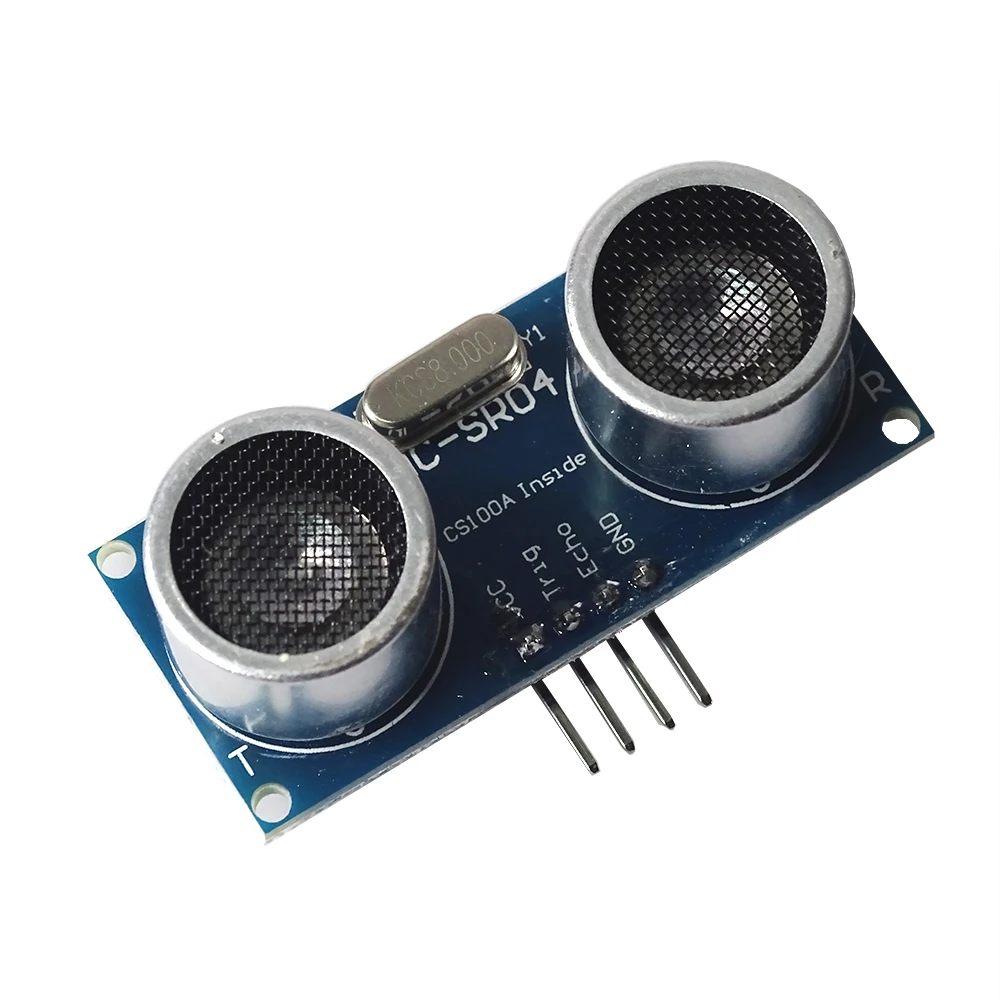

Hc-sr04 upgraded single chip version: there is only one chip on the back with working voltage of 3v-5.5v cs100a ultrasonic chip
