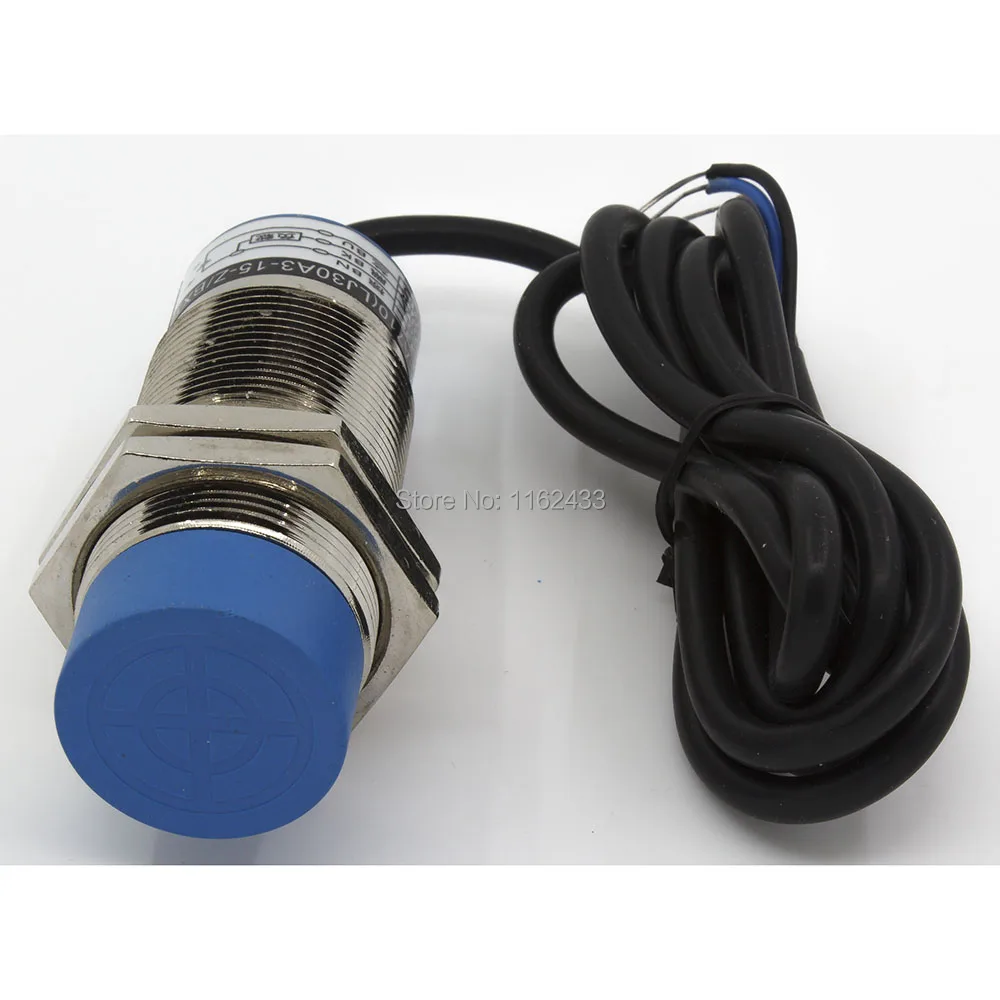

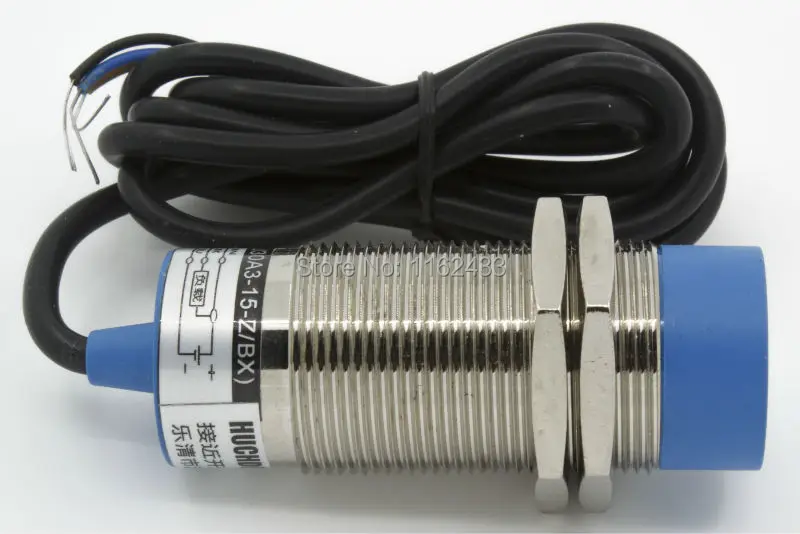

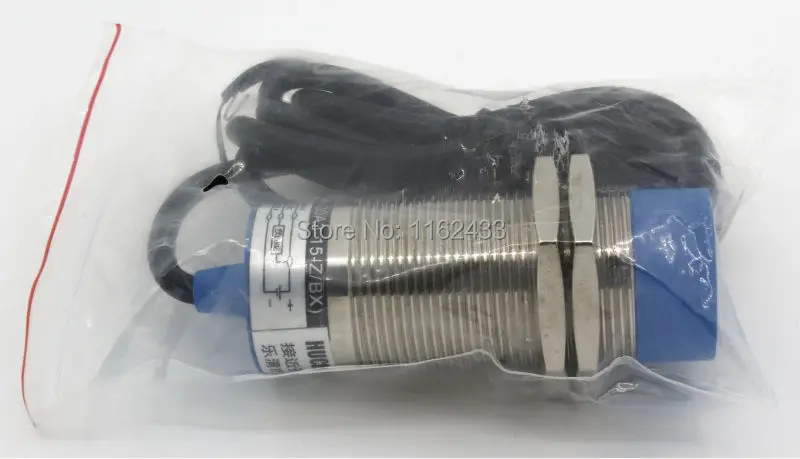

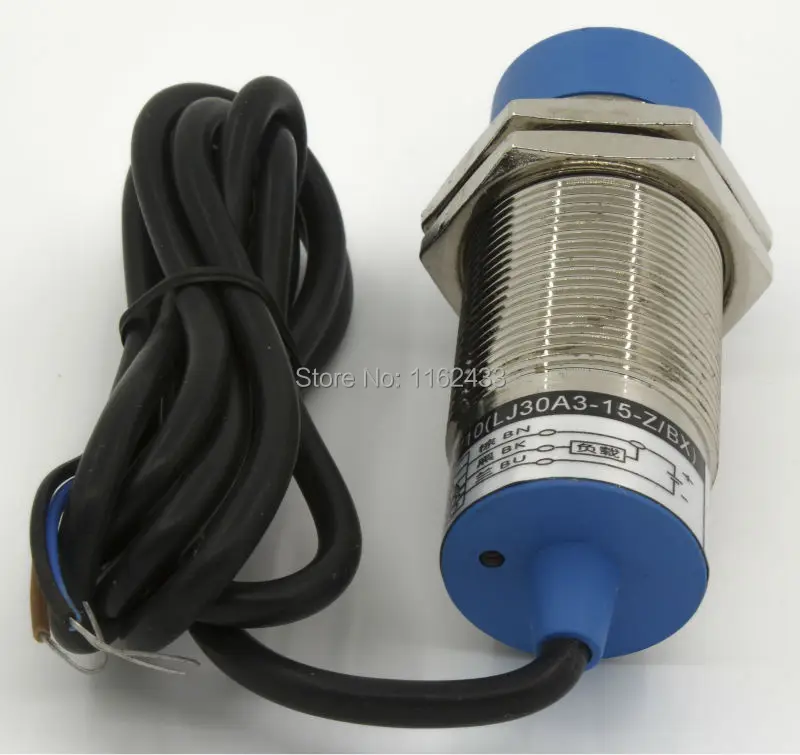

M30 15mm sensing NPN NO LJ30A3-15-Z/BX cylinder inductive proximity sensor switch Обустройство дома - купить

Купить M30 15mm sensing NPN NO LJ30A3-15-Z/BX cylinder inductive proximity sensor switch | Обустройство дома

LJ30A3-15 series cylinder inductive proximity sensor finglaiOperating form and model number

Current type	Operating form	Contact form	Connection form	Model number	Related product
DC	NPN	NO	Wire lead	LJ30A3-15-Z/BX	Visiting...
DC	NPN	NO	Wire lead	LJ30A3-15-Z/BX-5V	Order
DC	NPN	NC	Wire lead	LJ30A3-15-Z/AX	Order
DC	NPN	NO+NC	Wire lead	LJ30A3-15-Z/CX	Order
DC	PNP	NO	Wire lead	LJ30A3-15-Z/BY	Order
DC	PNP	NC	Wire lead	LJ30A3-15-Z/AY	Order
DC	PNP	NO+NC	Wire lead	LJ30A3-15-Z/CY	Order
DC	Two wires	NO	Wire lead	LJ30A3-15-Z/EX	Order
DC	Two wires	NC	Wire lead	LJ30A3-15-Z/DX
AC	Two wires	NO	Wire lead	LJ30A3-15-J/EZ	Order
AC	Two wires	NC	Wire lead	LJ30A3-15-J/DZ	Order

finglaiGeneral

Model number	LJ30A3-15 series
External dimensions	M30x75
Installation type	Non-shielded
Detection distance	15mm
Setting distance	0-12 mm
Supply voltage	6-36Vdc; 5Vdc; 90-250Vac, 50/60Hz
Output current	DC type: 300mA max; AC Type: 400mA
Standard detected object	Mild steel (18x18x1mm)
Sensing object	Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency	500Hz
Output indication	Red LED
Short-circuit protection	Yes
Reverse connection protection	Yes
Insulation resistance	50MΩ min (between charging part and housing)
Dielectric strength	1000Vac, 1min (between charging part and housing)
IP Rating	IP67
Operating temperature	-25 to 70 °C (13 to 158 °F)
Cable length	1.2m, PVC cable
Material	Case: Brass-nickel plated; Sensing surface: ABS
