Pls tell us the voltage you need when you place the order



1.Specification

Product Name	Solenoid Valve
Model No.	4V230C-06
Fluid	40 Micron Filtered Air
Operation Type	Internal Piloted
Port Size	Inlet=Outlet=Exhaust=G1/8"
Working Pressure	0.15~0.8MPa
Type	5 Way 2 Position
Power Consumption	DC24V
Temperature	35°C
Maxi. Withstand Pressure	1.2MPa
Threaded Port Size(Approx)
Overall Size(Approx)	15.5 x 5.5 x 2.2cm / 6.1" x 2.2" x 0.9" (L*W*H)
Color	White, Black
Net Weight	301g
Package Content	1 x Solenoid Valve

Description:

With solenoid operated for control appropriate flow and direction, provide great performance. Stury body have a long lifespan, perfect for electrically driven pneumatic power control. Two Coil 2 position solenoid valve.

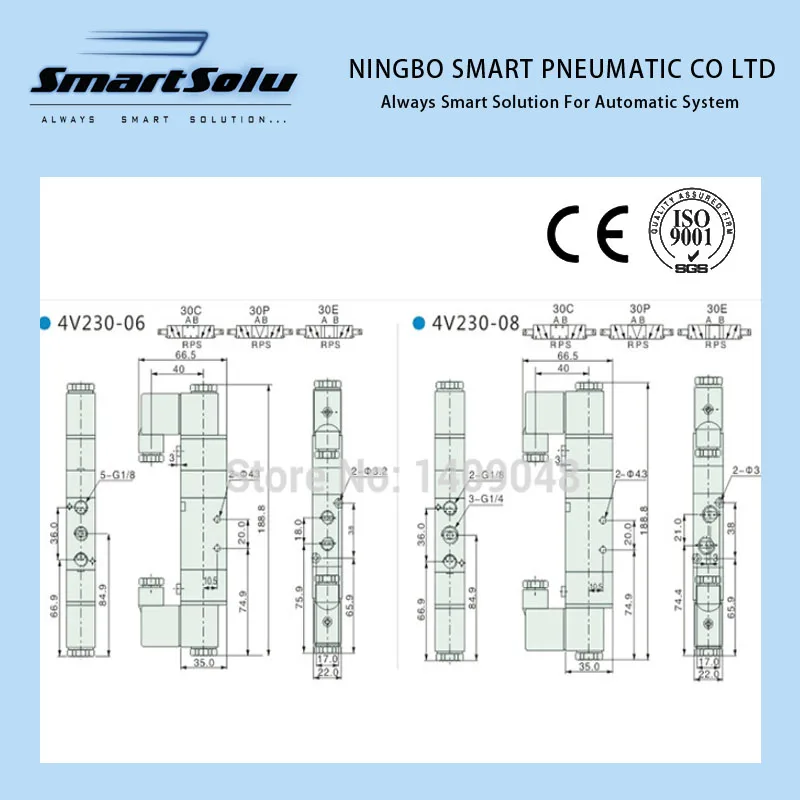

2.Dimensions
