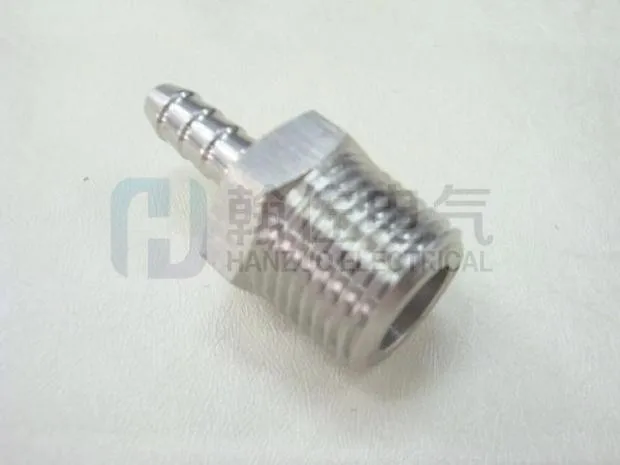

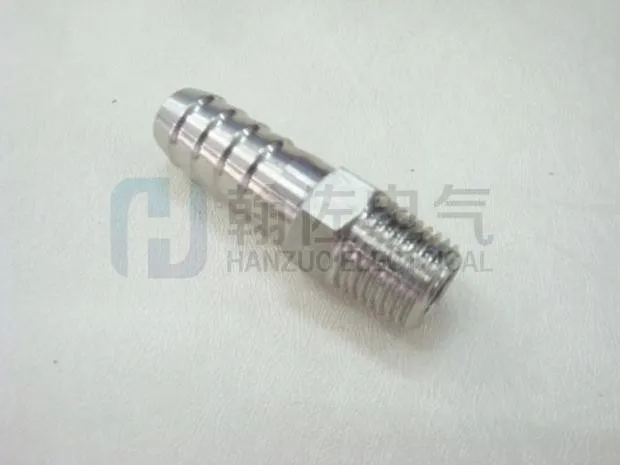

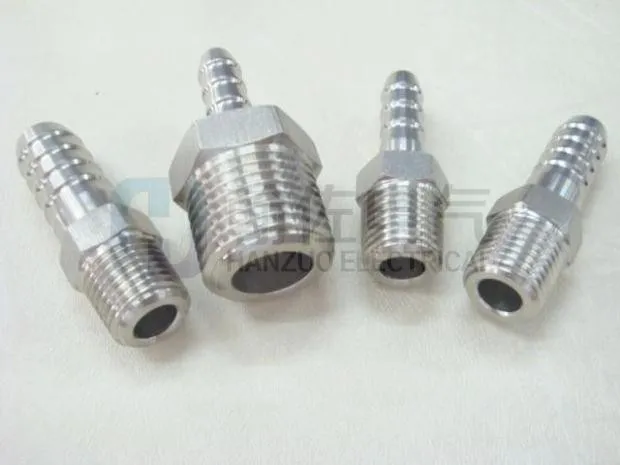

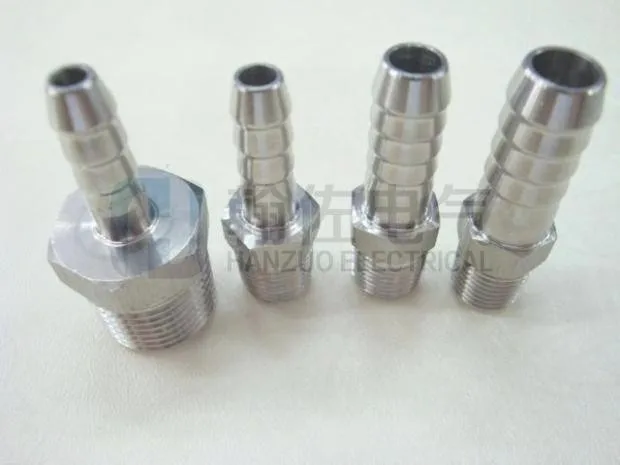

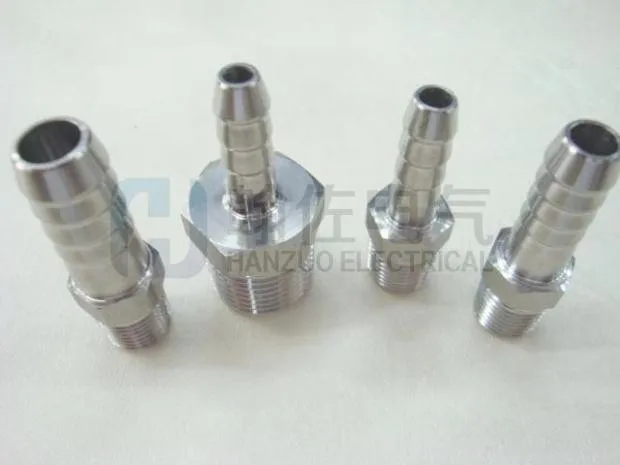

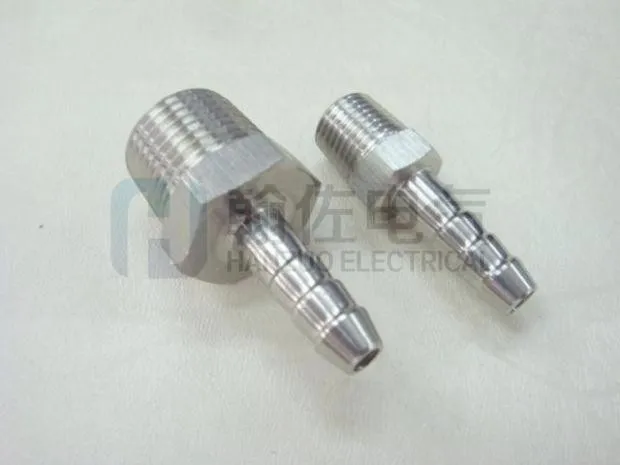

KT-B 304 stainless steel hexagonal pagoda joints

Details:

Specifications: 1/8 3/8 1/4 1/2 3/4 11-1 / 41-1 / 222-1 / 234-inch pipe: 6-100mm

Material: 304

Manufacturing standards: GB3733.1 ~ 3765-2008 GB3733.1 ~ 3765-83

Nominal pressure: 6.4MPa

Barbed fitting connection: a thread, a hose (hose)

Leather fittings Connection: a welding, insert a hose (hose)

Thread Standard: NPT, PT, G, ZG, RC, RP, etc.

Applicable medium: gas, water, oil, and some of the corrosive liquid

Stainless steel pagoda connector has two forms. One is rough to do, the other is a vehicle with a hexagonal rods
Pagoda connector: poetry is named surface looks like a pagoda look, with hexagonal. Connection hose (hose) length of one end of the thread length 33MM threaded connection is 11MM (length are not included the above two hexagonal width into account. These data are not one hundred percent

Accurate only an approximate reference only one data)
Leather fittings (hose fittings) There are three possible card where it can be said there are three sections to the length of the hose inserted in about 31MM, it is not the other hexagonal head is welded, polished surface look more beautiful
Leather fittings and pagoda joint thickness is 1.5MMLarge size pagoda link: https:? //item.taobao.com/item.htm Spm = a1z10.5-c.w4002-2800348572.40.fEOo14 & id = 520955337831
