12V-80V DC Motor Speed Controller



Features:

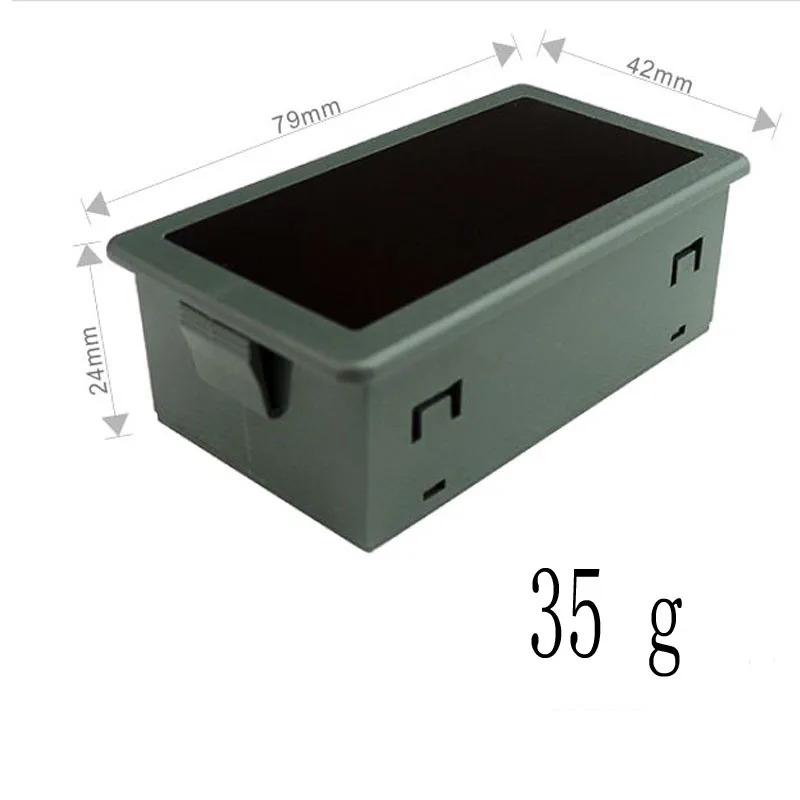

12V-80V DC Motor Speed Controller Input supply voltage: 12V-80V DC PWM frequency: 21kHz; Duty Cycle adjustable: 0%-100% Suitable current range:current rating: 30A. Potentiometer with switch function. Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions.  The display range of 3-digit LED display is "000"-"100". (For example, displayed "055", it means that the PWM output duty cycle is 55%.) Item size:module:3.94"*2.96"*1.11";display device:3.12"*1.66"*0.95" Net Weight: 5.8 ounce Potentiometer with switch function. Incorporate a 30A fuse, and with the protection function of reverse connect power supply. Potentiometer cable length 0.79inch.

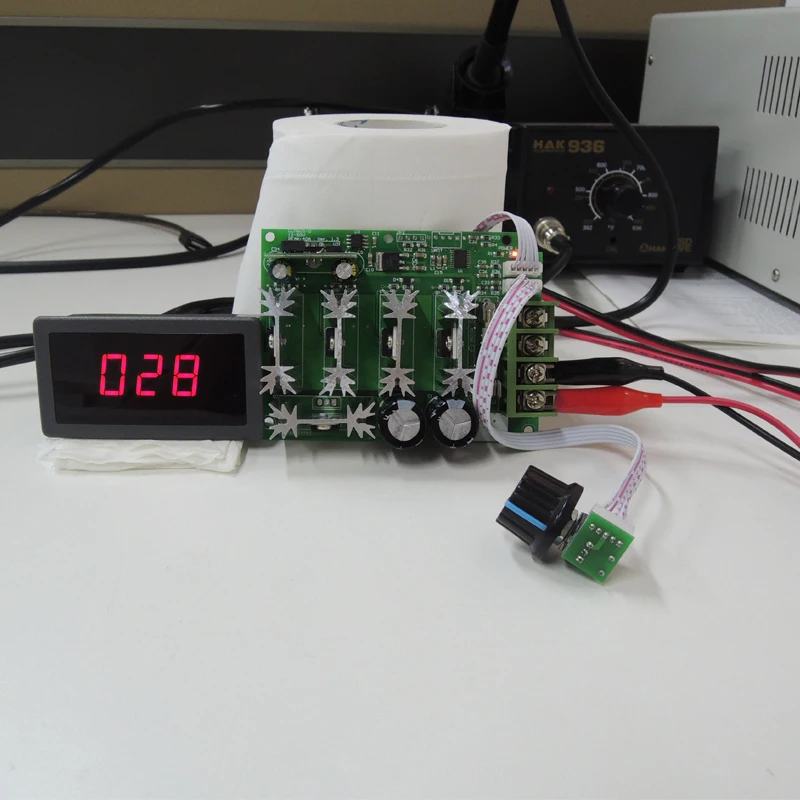

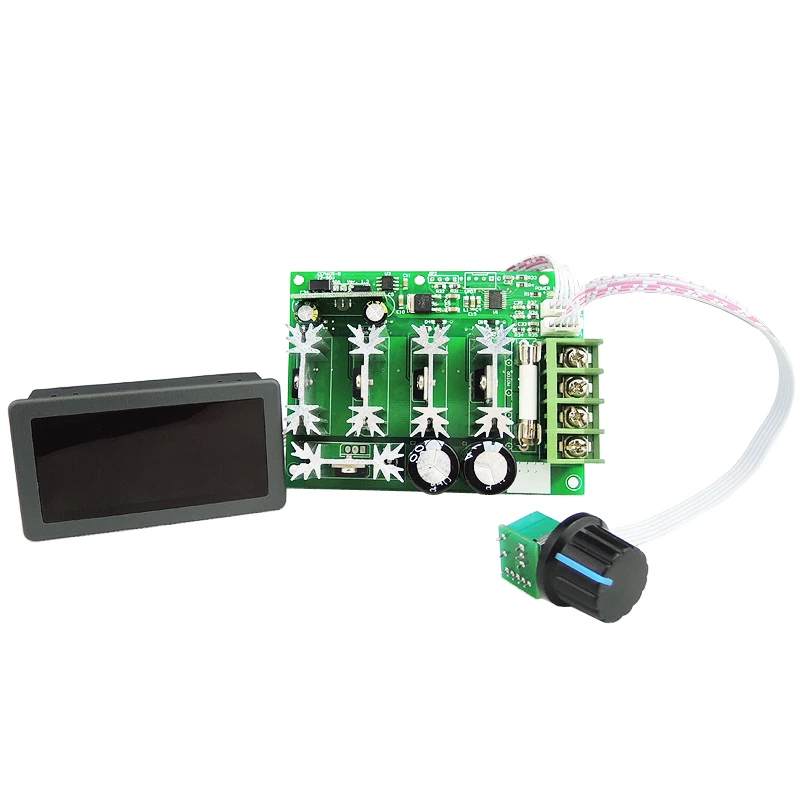

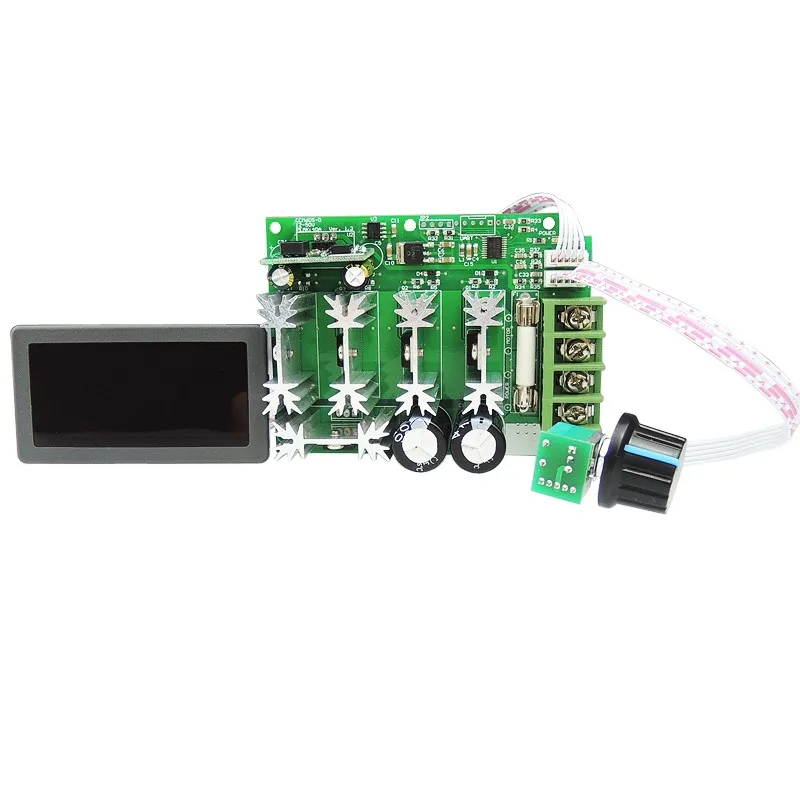

Pictures of CCM6DS-D:

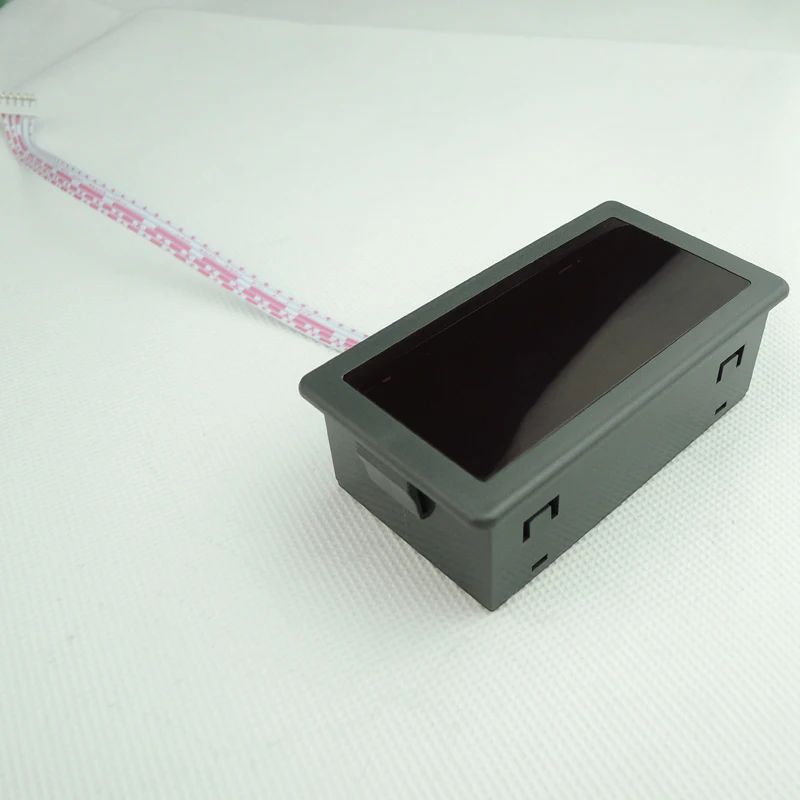

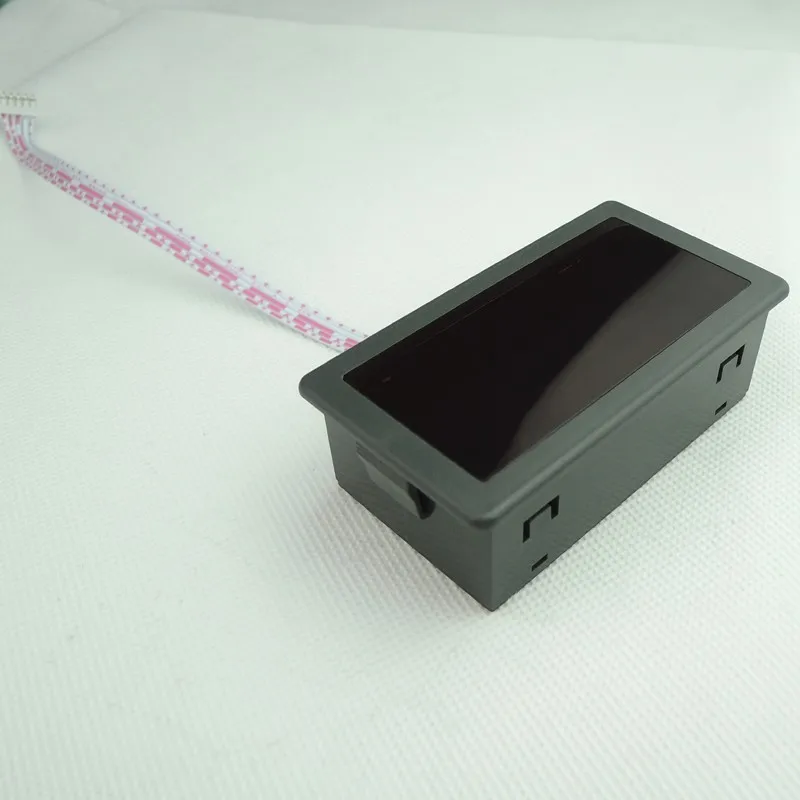

High Power, Digital Display.





Operating instruction:



Before you attempting to wire the controller, make sure power is off.



WARNING:DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.

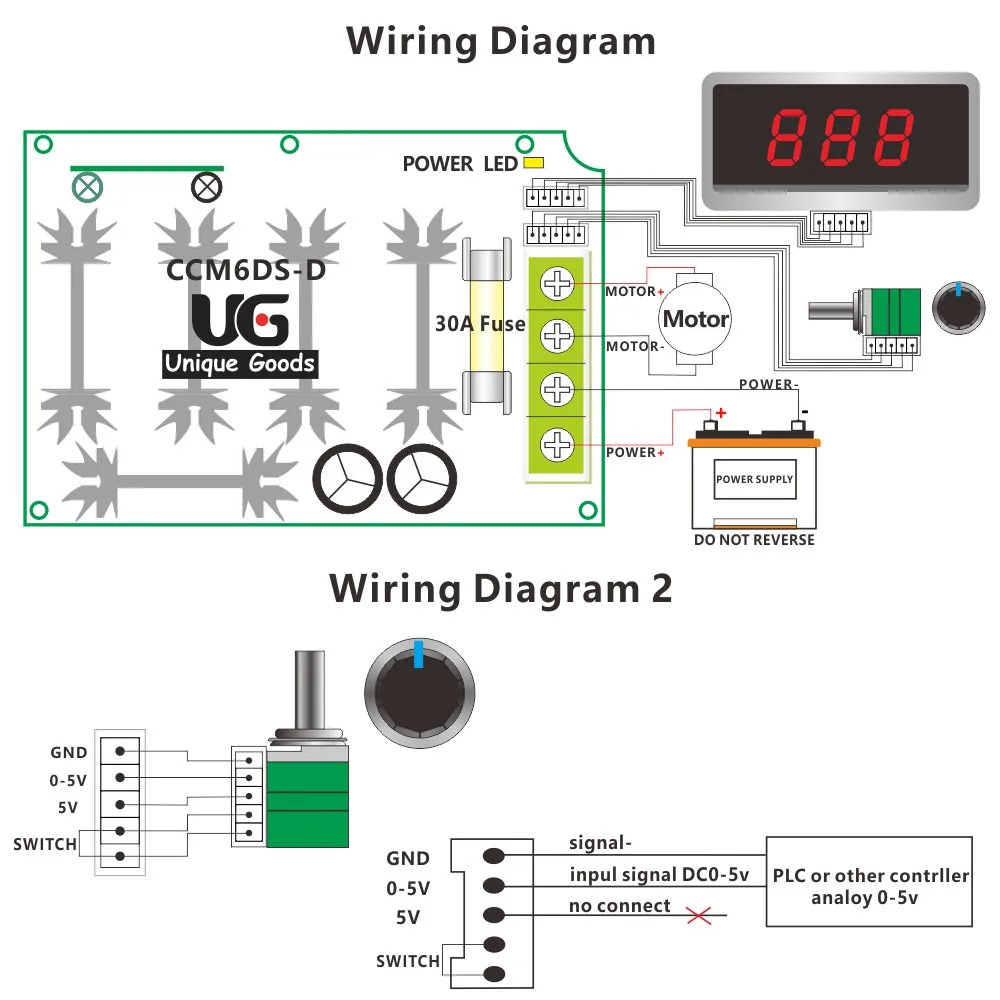

1. Connect wires refer to the "wiring diagram"

2. Turn on the power.

3. Adjust the potentiometer.













Package Including:



1 x Digital Display DC Motor Speed Controller
