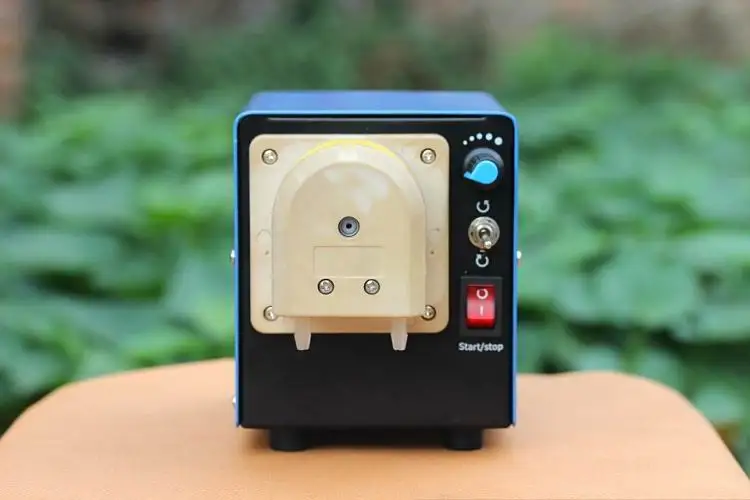

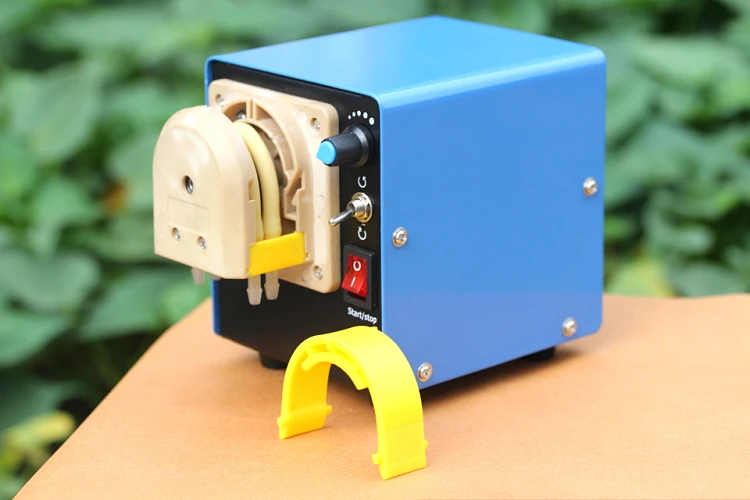

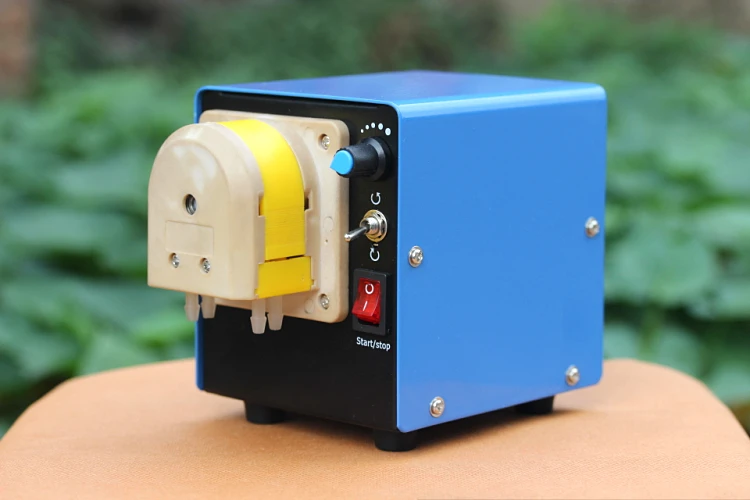

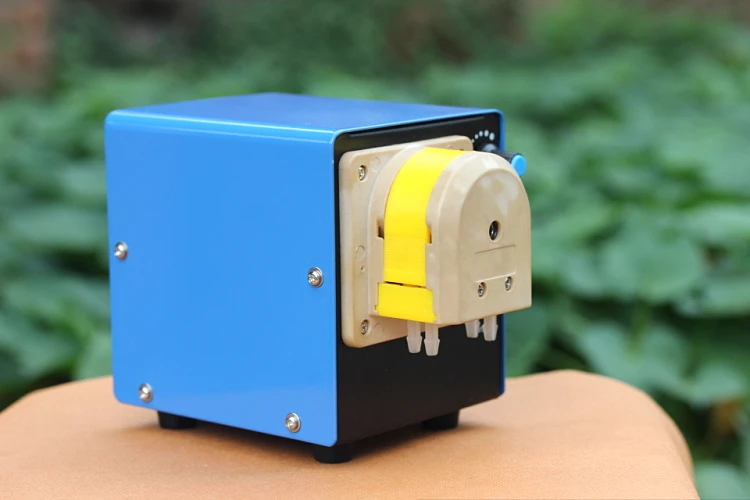

GROTHEN GAB38 Dosing Pump

Tube Life: peristaltic pump tubing is a consumable and it will wear after a period of time, which results in inconsistent flow rate. so replacement is needed. the pump tube life time is closely related to fluid medium, temperature, running speed, working time, and break  interval . it is difficult to tell the exact life time of pump tube life time .we provide test results under corresponding conditions which is only as a reference.

Applicable Tubing: for wall thickness 1.6mm, outer diameter: less than 9.6mm tubing Standard tube size :4.8 * 8 Tube material: silicone tube l / corrosion-resistant composite tube     Reasonable Flow Rate:  Tubing Size: 4.8 * 8 head pump flow rate per round: 1.75 ml, recommended speed :less than 400 rounds / min.we recommend a flow rate of less than 380 ml / min (short working time is good for its full heat release .If necessary, the maximum : 500 round / min can be developed)   Tubing selection:  standard double tubing:3.2 * 6.4 (pump head can hold two  tubing, can simultaneously pump two different liquids)   Roller Number: 4 rollers   Pump cover color: light yellow   Optional Voltage:  DC geared motor : 6V, 12V, 24V stepping motor : 6-24V synchronous motors :110V, 220V (special voltage can be customized)   Motor power:  DC geared motor: about 10W 42 stepper motor:about 30W 50 synchronous motor :about 10W       Weight: pump head: about 100 grams  DC gear motor :about 134 grams 42 stepper motor: about 282 grams 50 synchronous motor:about 188 grams

shell material: pc plastic (polycarbonate)

Roller material: pom plastic (POM)

Motor Select: DC geared motor, 42 stepper motors, synchronous motors





AB38 with R30-BJ385 DC geared motor inside, tested flow rate for reference:



(with composite tube 3.2mm*6.4mm, pump head flows  0.4ml/round)



Voltage 12v  80mA  flow rate: 13ml / min



Voltage 24v  110mA  flow rate : 26ml / min



(with composite tube 4.8mm * 8mm, pump head flows 0.65ml/round)



Voltage 12v  90mA  flow rate: 24ml / min



Voltage 24v 110mA  flow rate:  49ml / min



(with composite tube 6.4mm *9.6mm, pump head flows 0.85ml/round)



Voltage 12v 100mA  flow rate:  28ml / min



Voltage 24v 110mA  flow rate: 56ml / min
