smart home New 220V 10A 1 Channel Wireless Relay Remote Control Light Switch RF Mini Receiver With 4pcs Transmitter Обустройство - купить

Купить smart home New 220V 10A 1 Channel Wireless Relay Remote Control Light Switch RF Mini Receiver With 4pcs Transmitter | Обустройство

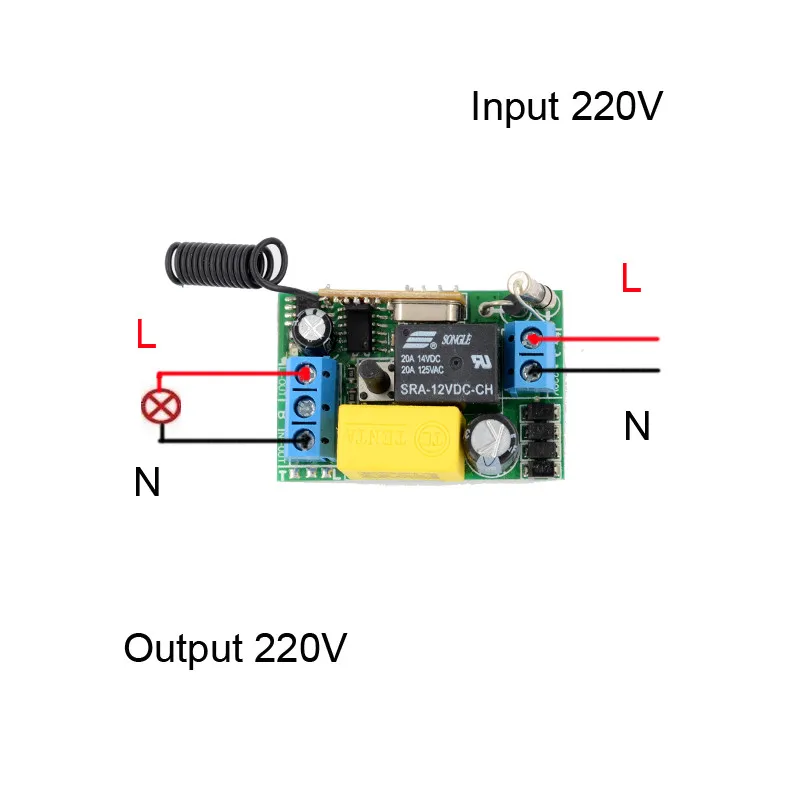

1. Working Voltage: AC220V (Input AC220V Output AC220V)

2.Max Current: 10A (have better lower than 7A )

3.Channel: 1CH

4.Working Frequency : 315MHZ/433MZH

5.Receiver sensitivity: : -105Db

6.Working temperature : -10\'C - +60\'C

7.Output way : Momentary. Toggle .Latched Adjustable

8.Code type: Learning code Add Controller by the Learning Button on the receiver

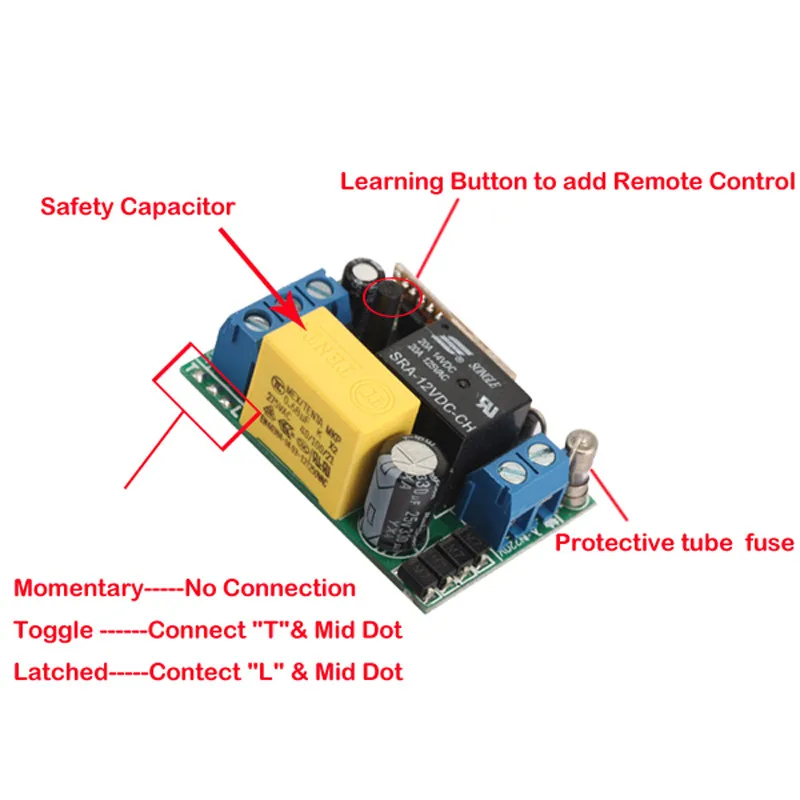

Output State:

Momentary, Toggle, Latched adjusted freely by soldering with different dot .

A: Momentary-----------No connection is Momentary.

B: Toggle------------Connect "T& Mid Dot "is Toggle.

C: Latched------------- Connect "L& Mid Dot" is Latched.

Momentary------------Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,

Toggle---------------Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,

Latched------------Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.

Learning Method:

Momentary/Toggle

Keeping press the learning button ,the LED indicator flash fast then press the transmitter button , until the LED indicator stop to flash fast ,it mean learning successfully

Latched

Input AC220V for the Receiver .Press the Learning Button on the received,until the LED Indicator flash fast, Release it. Press 1th Button ,then you hear the relay act sound , then press the learning Button again , the LED indicator flash,  Release it,Press the 2th Button ,then you hear the relay act sound again , it means Latched mode learning is finished

 ON OFF Button Learning is independent,you can set the ON OFF Button as your needy

Remove code:

Keeping press the Learning Button on the receiver until the LED indicator flash fast until it flash slow 2 times .it mean the code have cleared successfully

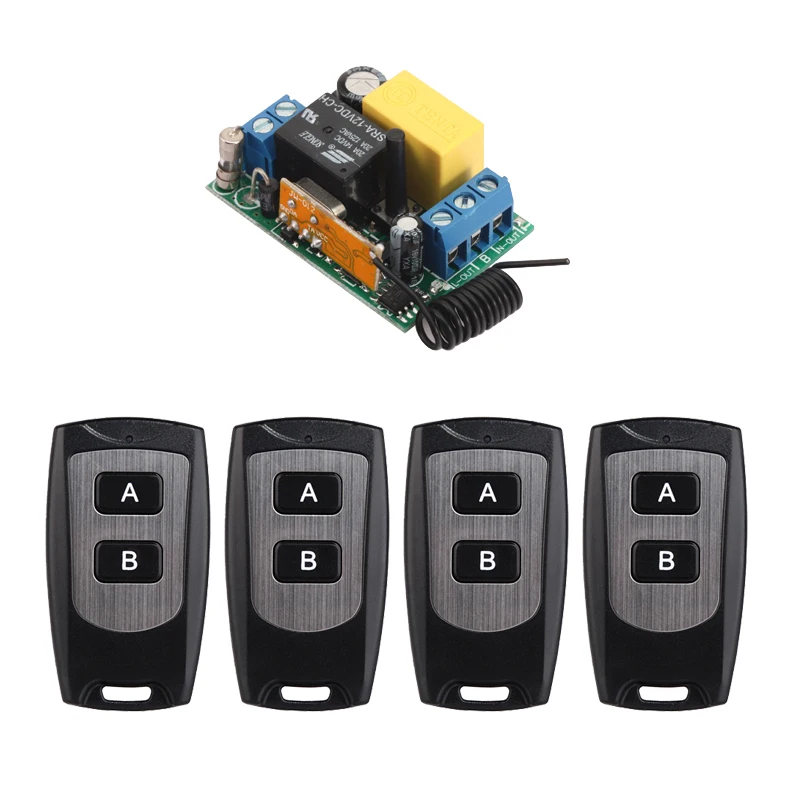

package include:

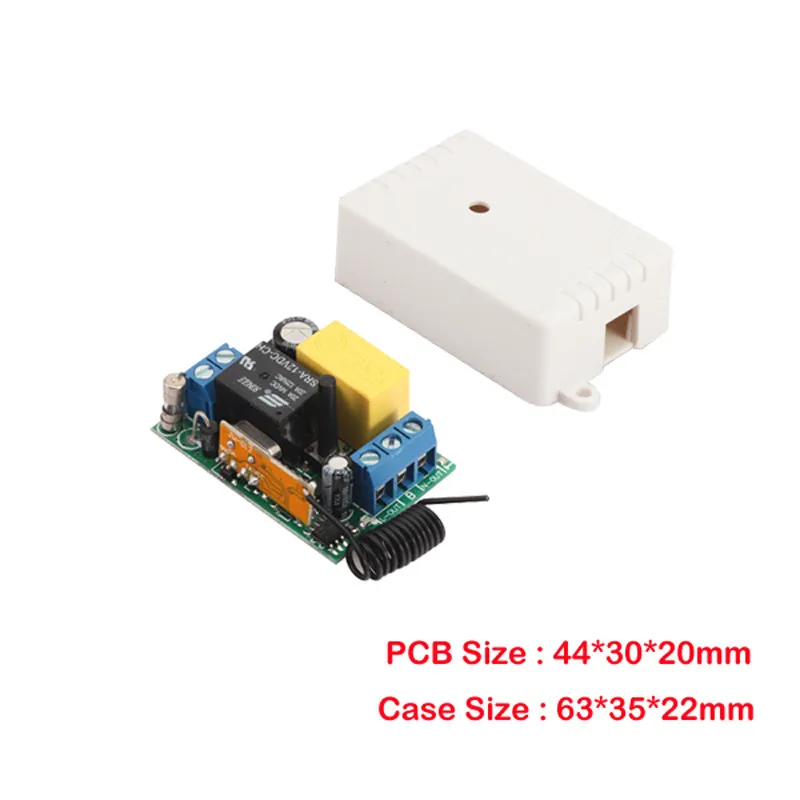

1* Receiver (included cover)

4* transmitter (included battery)
